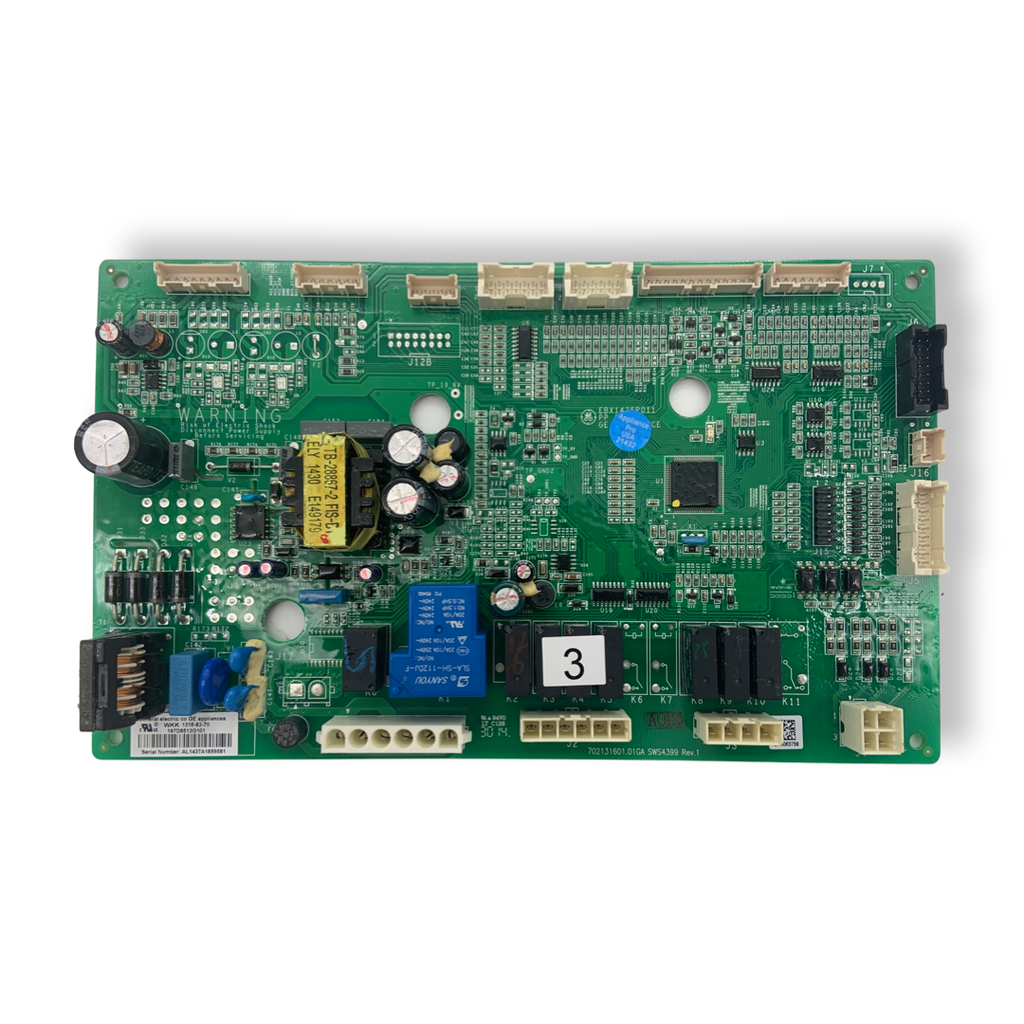

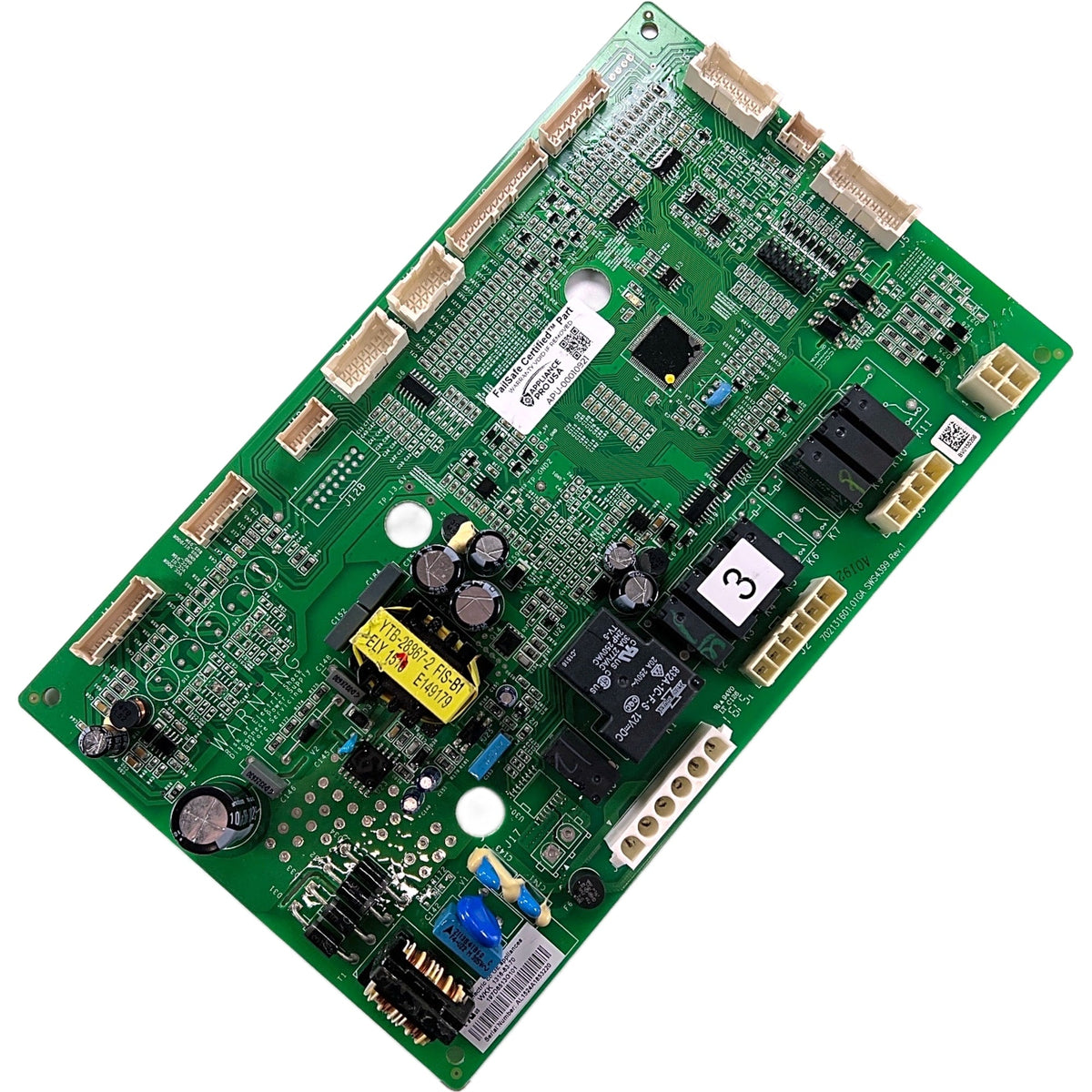

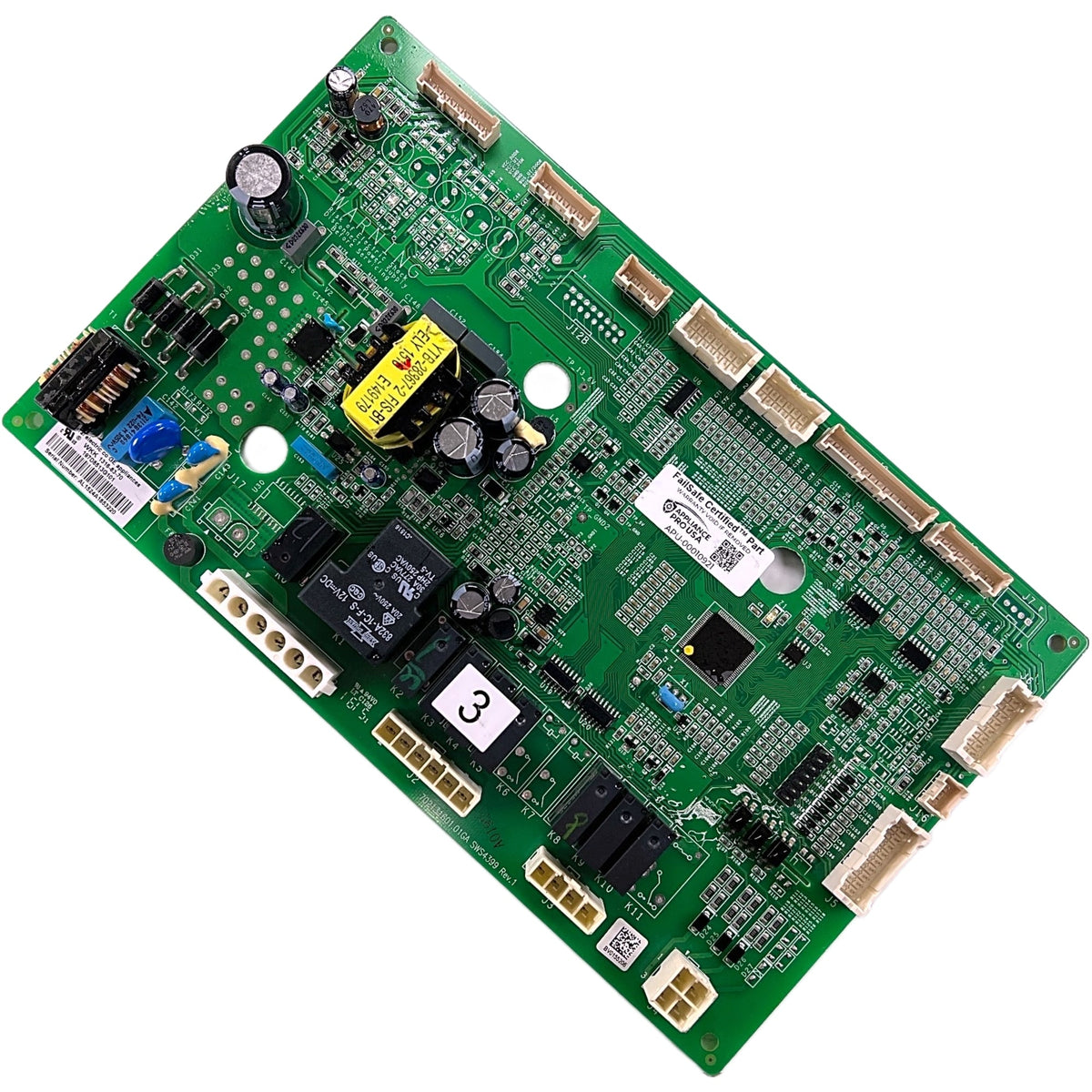

What Is the 197D8513G101 GE Refrigerator Main Control Board Replacement?
The 197D8513G101 is the genuine GE main control board for select French-door and bottom-mount refrigerators, mounted at the rear of the cabinet behind the access panel (or behind the front control bezel on some models). This replacement control board manages temperature regulation, defrost timing, and compressor operation to keep the fridge and freezer running at the right temperature. FailSafe Certified and backed by a 1-year warranty from Appliance Pro USA.
197D8513G101 is the production number stamped on the board itself. It's the same board sold under service part WR55X30806 (also cross-referenced to WR55X27068 and 702131601.02GA) and has since been folded into the newer consolidated service number WR55X46805, so any of these numbers point to this exact board.
What Does the 197D8513G101 Fix on a GE Refrigerator?
Customers usually order this board after seeing one or more of the following:
- Refrigerator not cooling but lights still work
- Blank or unresponsive display panel
- Erratic or fluctuating temperature control
- Interior lights flicker or go out intermittently
- Refrigerator won't start or compressor won't run
- Clicking or humming noises from the control area
These symptoms point to the refrigerator control board as the most likely cause - but appliances are complex systems, and the same symptoms can occasionally stem from a sensor, switch, wiring harness, or motor issue. If a technician has identified the control board, or you've ruled out those components yourself, this board is your fix. When in doubt, contact us before you order - we're happy to walk you through some troubleshooting, and a photo of your board is usually all we need. A diagnosis from a local appliance technician works too.
How Do I Know If This Is the Right Board for My Refrigerator?

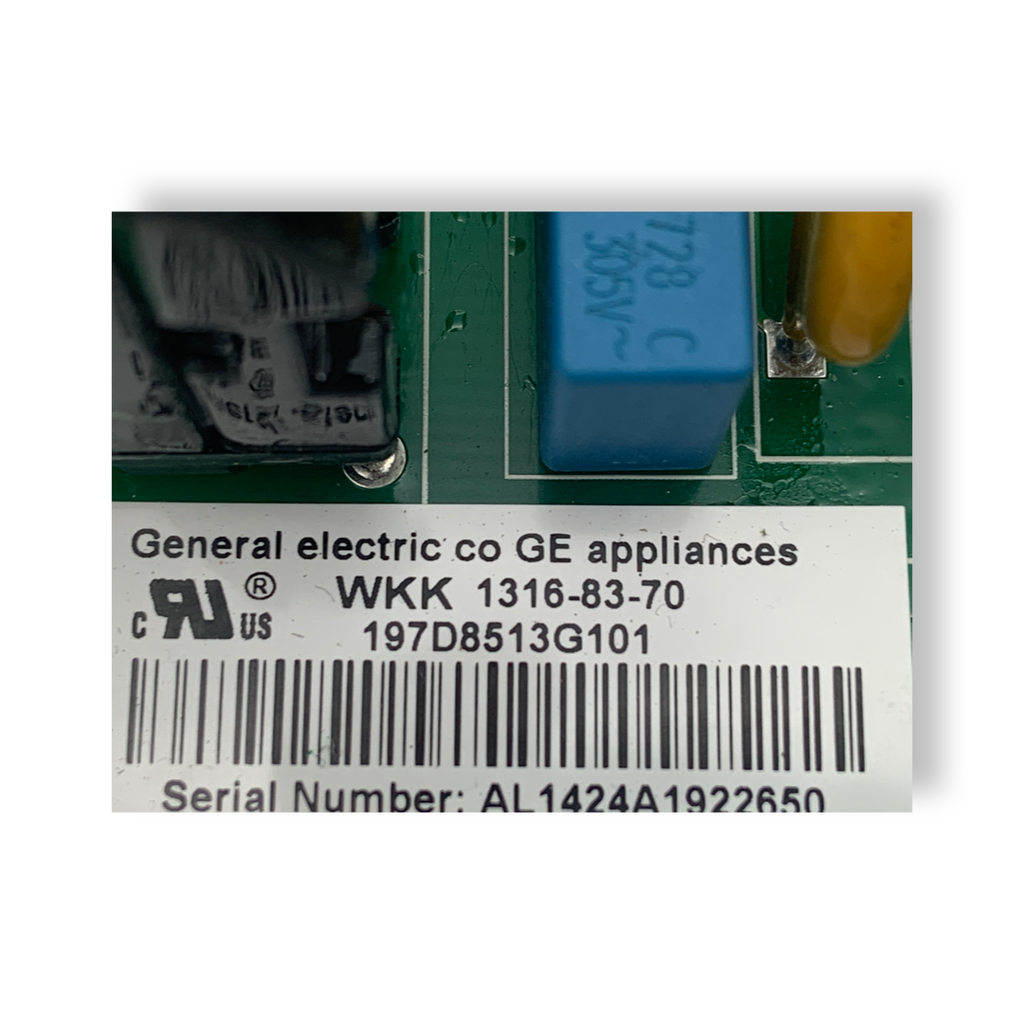

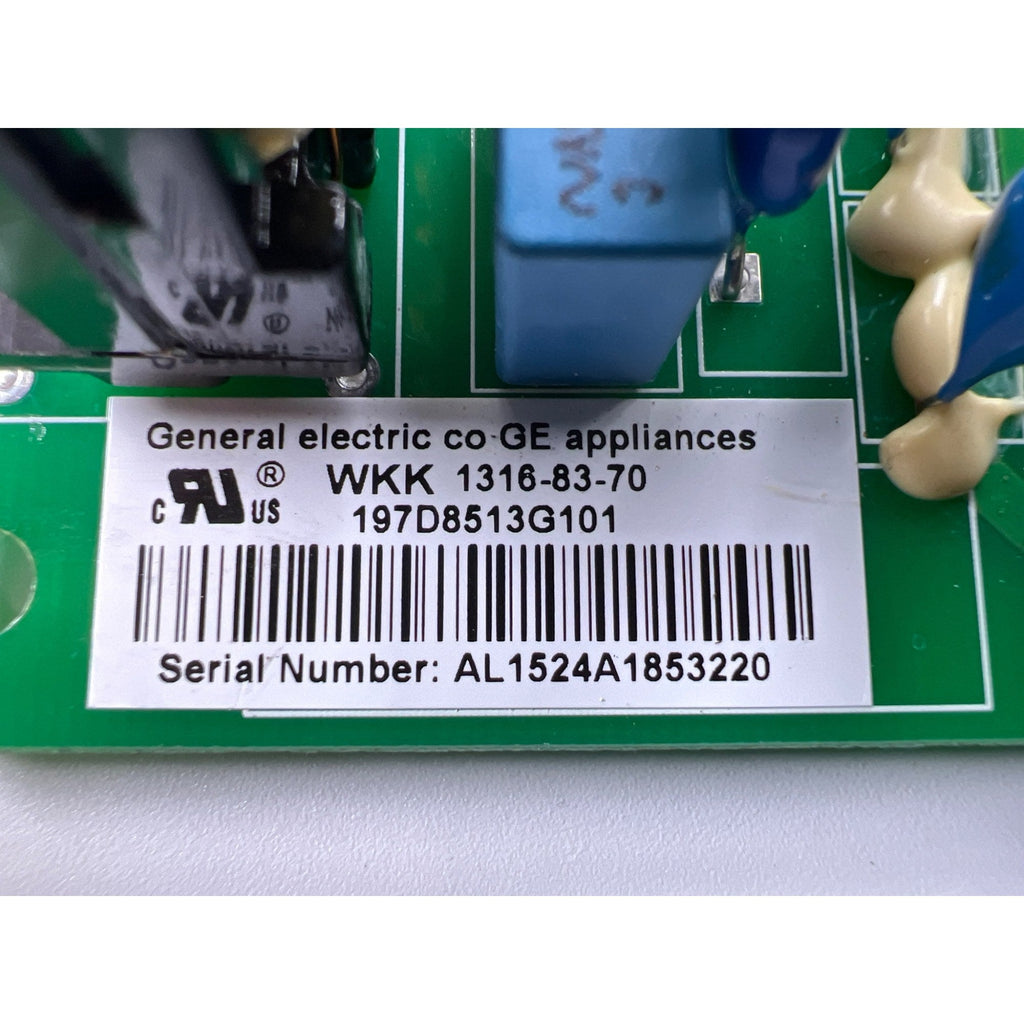

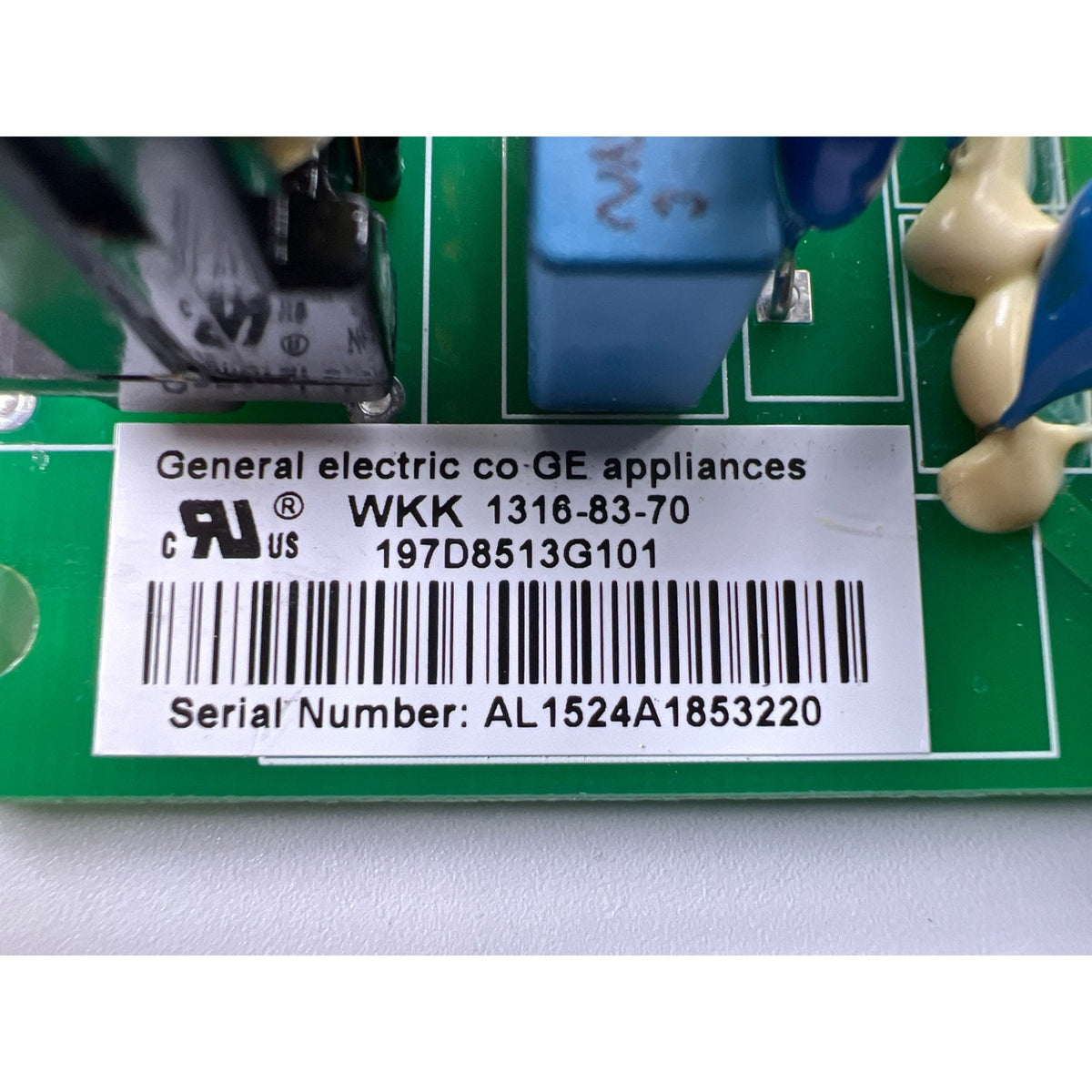

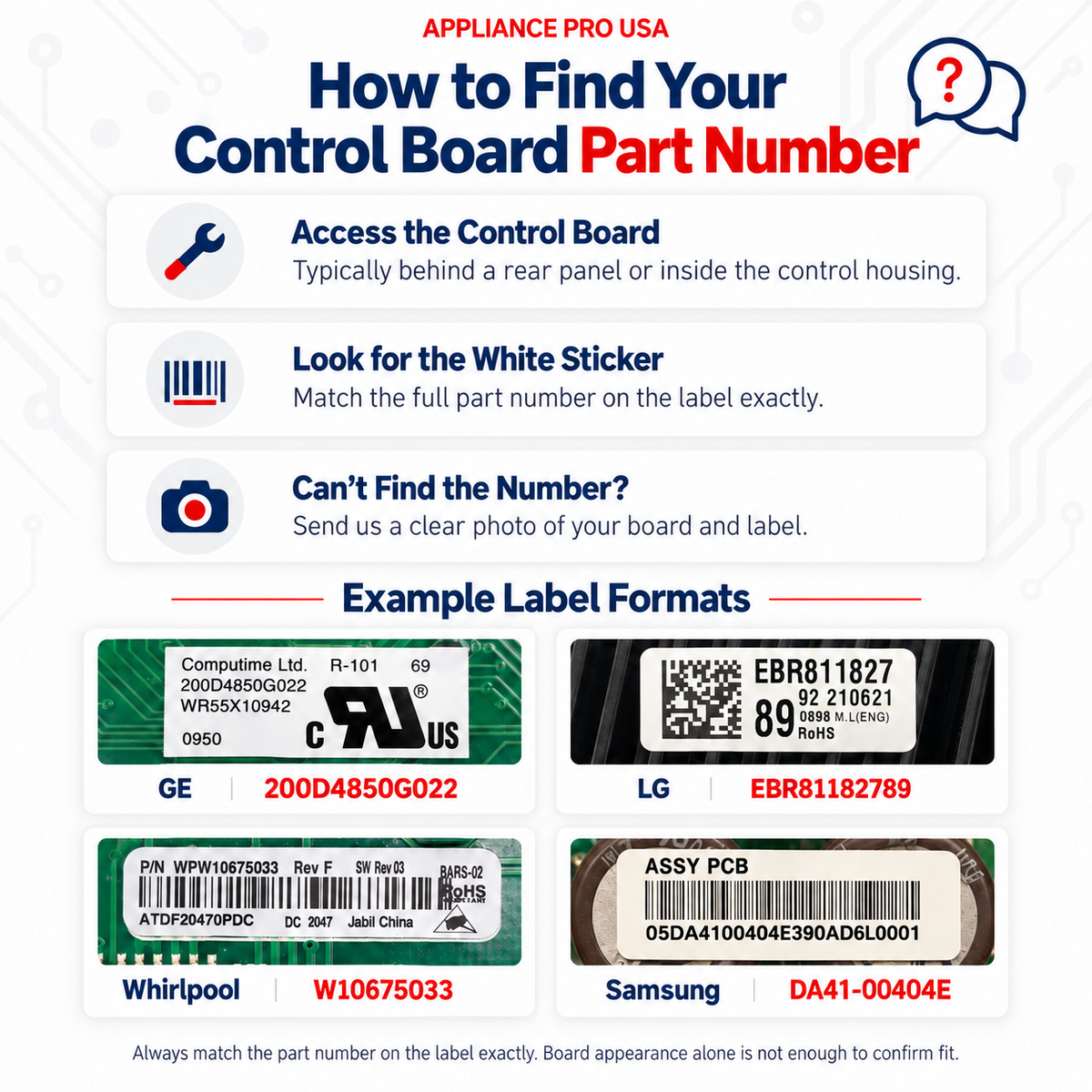

Check the white or silver sticker on your original board before ordering. Any of these will confirm it's a match: 197D8513G101, WR55X30806, WR55X27068, 702131601.02GA, or the newer WR55X46805. Match the number on the board, not just your refrigerator's model number, since one board covers many models. This board is also catalogued under WR55X30806, WR55X27068, 702131601.02GA, SJ-197D8513G101 - any of those numbers on your sticker means this is your board. Your GE refrigerator part number is on the sticker on the original board - look for the WR55-, 200D-, or WR49- prefix. GE lists WR55X46805 as its current replacement for this board - still match the number printed on your original board.
Other part numbers used for this board: WR55X30806, WR55X27068, 702131601.02GA, SJ-197D8513G101. Retailers and parts catalogs list the same board under these numbers.
Not sure? Send us a photo of your board and its sticker before you order and we'll verify it for free - same business day.
Compatible Refrigerator Models
This board is confirmed to fit these GE, Cafe, and Profile refrigerator models, among 46 reported models total:
Confirmed GE models
- CFE28TSHESS
- CWE23SP3MED1
- CYE22TP2MFS1
- PFE28KMKGES
- PFE28PYNCFS
Additional GE models may also use this board - send us your model number and we will confirm it.
Also reported to fit - verify by the label on your board
- CFE28TP3MED1
- CFE28TSHFSS
- GFD28GELBDS
- GNE29GMKNES
- PFE28KSKGSS
- PWE23KMKPES
- ZWE23PSNFSS
- CFE28TP4MFW2
- CFE28TSHKSS
- CFE28UELCDS
- CFE28UP2MFS1
- CFE28USHBSS
- CFE28USHFSS
- CWE23SP4MEW2
- CYE22TP3MED1
- CYE22TP4MEW2
- CYE22UP2MGS1
- DFE28JGHCBB
- GFD28GELDDS
- GFD28GMLDES
- GWE23GENCDS
- GWE23GYNCFS
- GWE23GYNDFS
- GWE23GYNFFS
- GYE22HBLETS
- GYE22HBLFTS
- GYE22HMKGES
- GYE22HMKJES
- GYE22HSKBSS
- GYE22HSKHSS
- PFD28KBLBTS
- PFD28KBLCTS
- PFD28KBLFTS
- PFD28KSLFSS
- PFE27KSDASS
- PFE27KSDCSS
- PFE28KSKHSS
- PFE28KSKISS
- PFE28PMKBES
- PFE28PMKDES
- PFE28PMKEES
- PFE28PMKHES
- PFE28PMKIES
- PFE28PMKJES
- PWE23KMKQES
- ZWE23ESNCSS
Reported fit is general reference material - confirm by the part number on your board's sticker before ordering.
This model list is for reference only. GE may change boards between production runs, so two appliances with the same model number can use different boards. Always order by the part number printed on your original board - it is the only identifier that decides.

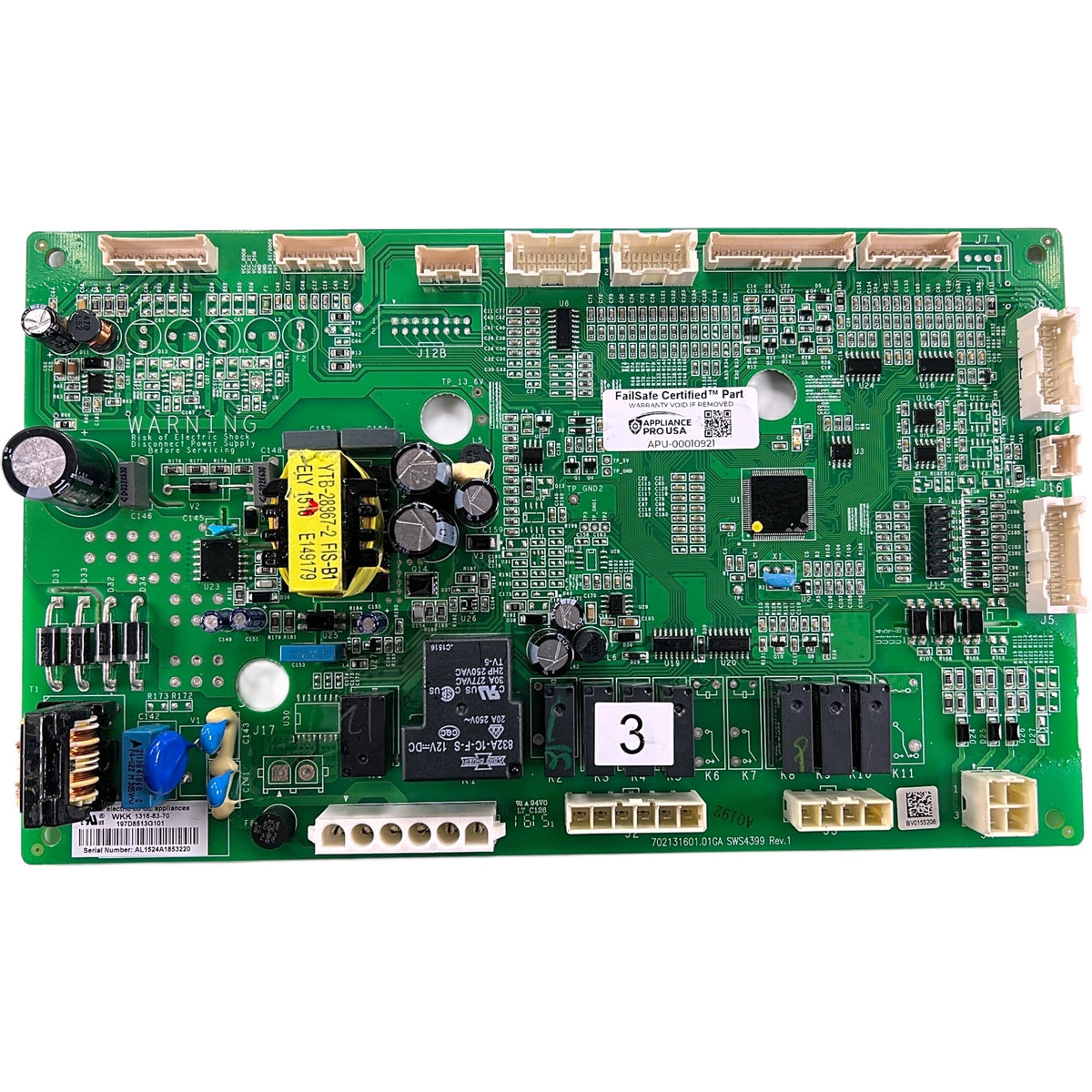

Genuine OEM - FailSafe Certified Reconditioned
Every 197D8513G101 board from Appliance Pro USA is a genuine OEM GE board restored to reliable working condition through the FailSafe Precision Protocol, our 4-step recertification process built around what actually fails on this board:
-
Failure Pattern Analysis - We've mapped the failure signatures specific to this board, identifying which components degrade and fail over time.
-
Targeted Component Replacement - The components this board is known to lose are replaced before they get the chance to fail.
-
Proactive Rebuild Standard - Known high-failure components are replaced with new parts on every board, regardless of whether they show a problem yet. Degraded parts don't ship.
-
Final Certification - Every board is tested and certified to our internal FailSafe Precision Protocol standard for function and lifespan before it ships.
Key Features
- Genuine OEM GE main control board - not an aftermarket copy
- Direct fit replacement, no reprogramming required
- Handled with standard ESD precautions before shipping
- Minor cosmetic wear may be present due to prior installation - it does not affect performance
Board Type and Function
This board is the central processor for the refrigerator's cooling system. It reads input from the temperature sensors and translates that into commands for the compressor and fans, keeping both the fresh food and freezer compartments at their set points. It also runs the automatic defrost cycle on a timed schedule so frost doesn't build up on the evaporator coils. When this board fails, the whole cooling system loses its brain, which is why symptoms show up as anything from a dead compressor to a blank display.
Common GE Refrigerator Error Codes
If your GE refrigerator is displaying an error code, the list below describes what it typically indicates. These are general GE codes and can vary by your exact model, so use this as a general guide. Codes labeled Board Related are the ones most directly associated with main control board failure. Always confirm the exact meaning in your model's owner's manual or service guide before ordering any part.
-
HRS - Board Related - Main control board failure - system crashed or stuck in defrost. Most severe GE error
-
CC - Board Related - Cooling / compressor circuit fault - board cannot communicate with compressor
-
EC / E0 - Board Related - Communication error between main control board and user interface
-
E4 / Er - Board Related - Defrost system error or temperature sensor fault - board-controlled cycle
-
FF - Freezer fan failure or freezer temperature too high for 2+ hours
-
dE / DF - Defrost system not operating properly in last 24 hours (dE) or no defrost circuit current in 48 hours (DF)
-
E2 / E3 - Evaporator fan (E2) or condenser fan (E3) communication error
-
CI - Ice maker fault - check for jammed ice, water supply, or ice maker assembly issue
-
PF - Power failure detected - press System Check button to clear. Not a board fault
-
tC / tF - Turbo Cool / Turbo Freeze active - normal function modes, not error codes
This list is general reference material. Error code definitions vary by GE (Profile, Café, standard) model series. Always confirm the exact meaning in your refrigerator's owner's manual or service guide before purchasing any part.
How to Install a GE Refrigerator Main Control Board
Unplug the refrigerator before you touch anything. Pull the unit out and remove the rear access panel, or on some models the front control bezel, which comes off with a single screw. Take a photo of the wiring before you disconnect it, since the harness connectors look similar and the photo makes reconnection simple. Squeeze the release tabs on each connector and note the black dot marks for orientation, then remove the mounting screws or pins and swap in the new board. Most people finish this install in under 30 minutes with basic hand tools. Give the refrigerator a few hours to stabilize temperature before deciding whether the repair worked.
Shipping
Every board is physically in stock - no backorders, no drop shipping. Orders placed before 4:00 PM EST ship the same business day. Tracking provided on every order.
Warranty
Backed by a 1-year warranty from Appliance Pro USA (registration required - the card is in the box). If the board fails due to a defect within the warranty period, we'll repair or replace it at no charge (shipping fees may apply). Warranty coverage is determined at Appliance Pro USA's discretion. Boards that have been tampered with, or with the verification seal (hologram or tamper-evident sticker) removed or damaged, are not eligible for warranty coverage. Damage caused by improper installation, electrical surges, or physical damage is not covered.
Returns
Returns are accepted within 30 days of delivery. Boards that are unopened and uninstalled, in original condition with the verification seal (hologram or tamper-evident sticker) intact, qualify for a full refund. If the board has been opened or installed, contact us before sending it back with a photo of the board you received, the reason for the return, and a photo of your original board's part-number label so we can verify fitment and approve the return. Boards returned used, altered, damaged, or with the verification seal missing may receive a partial refund in line with our return policy. Exchanges for the correct part are always available.
Not sure it's the board? Before you order, and before you return, contact us. We offer free troubleshooting help and can usually tell from a photo of your board and its symptoms whether this is the right part. Only a technician can fully diagnose your appliance.
