WR55X27068 GE Refrigerator Main Control Board: WR55X46805 Cross-Reference, Symptoms and Install Guide
Warm shelves on top, a freezer packing with frost, an ice maker gone silent? Start here: what GE ships against this number now, the models it covers, five checks before you spend, and how the board comes out.

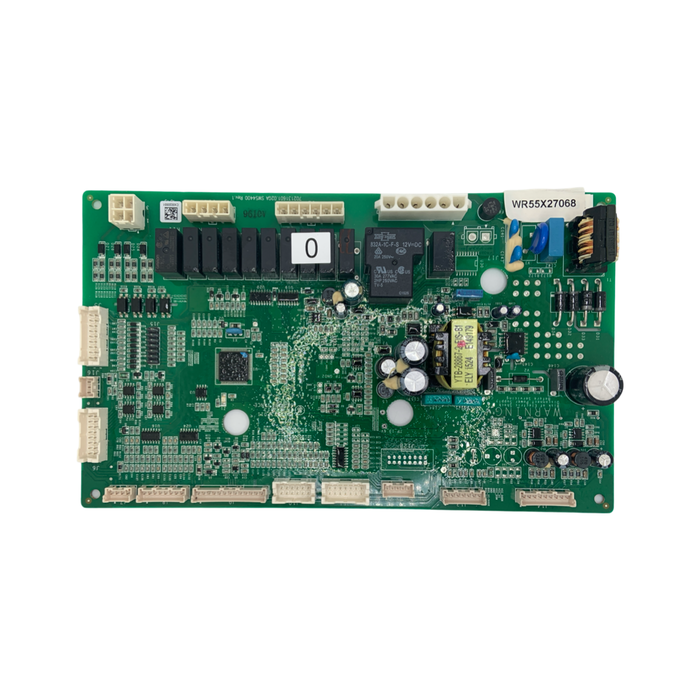

The WR55X27068 is the main control board from GE's bottom-freezer refrigerators, and it carries most of the cooling side on one part: the compressor, the fans, the defrost cycle, ice production and the interior lights. A refrigerator that woke up dead after a storm, an ice maker that went quiet on its own, a compressor that will not shut off, or fresh food shelves drifting warm while the freezer holds: all of it lands here once the cheap parts test clean. Order against WR55X27068 today and GE fills it as WR55X46805, which the next section explains. Send us a photo of your board sticker first if you would rather have it confirmed by someone who reads these labels all day.
Even if you end up calling a tech, these checks mean you can tell them exactly what you found, which usually shortens the visit and the bill.
What Happened to WR55X27068, and Which Number Ships Today?
GE has superseded WR55X27068 to WR55X46805. An order placed against the old number now fills as WR55X46805, and that is the right board.
WR55X27068 is already a GE service number, which is the number GE stocked and shipped this board under. WR55X46805 has since taken its place. Search WR55X46805 to see what is on shelves today, then set your old label beside whatever arrives and read it through before the bag is opened.
This is not a universal board. It is a direct replacement for the part number printed on your original board. Boards that look identical may be programmed differently, so match your sticker first.

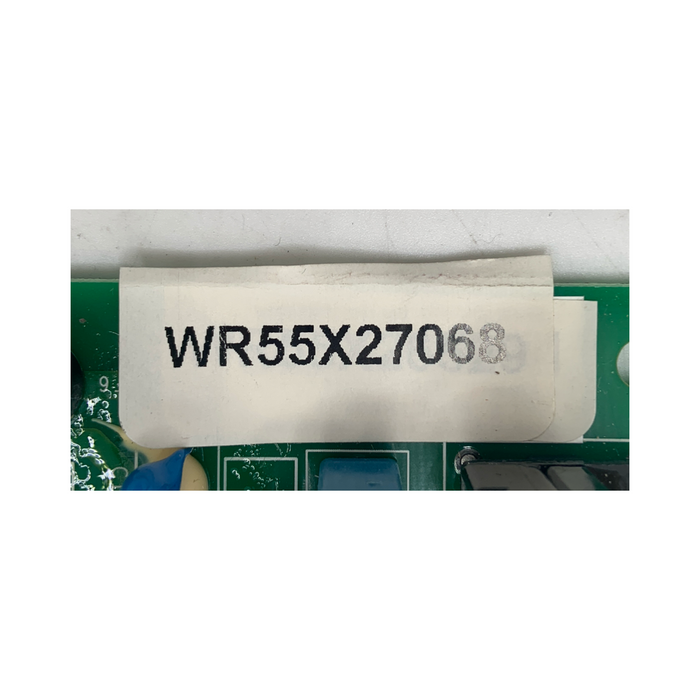

| Number on your board | WR55X27068. This is GE's own service number for the board, and it is what the white label carries |
| What GE ships now | WR55X46805. GE superseded WR55X27068 to it, so a current order fills under the newer number |
| Board type | Main control board. Suits GE's bottom-freezer range, the French door layouts as well as the two-door bottom-mount ones. It holds both compartments at temperature and drives the compressor, the fans, defrost, ice making and the interior lights |
| Cross references | AP7245825 and PS17875680. These are the retail numbers carried on the current WR55X46805 board |
| Neighbors on the same line | WR55X46805 also absorbs WR55X26575, WR55X27488, WR55X27516 and WR55X27518, among a long run of others. A label reading any one of them now resolves to the board GE builds today |
| One note worth reading | GE publishes this alongside the part: "This electrical component is a manufacturer-authorized service part to be used in refrigerator models with a flammable refrigerant, such as R600a." Changing a control board never opens the sealed refrigerant circuit. Work that does break into that circuit belongs to a licensed technician with recovery gear |
| Availability | GE no longer supplies WR55X27068 new; the counter fills it as WR55X46805. Appliance Pro USA carries the WR55X27068 itself |
| APU status | FailSafe Certified, 1-year warranty (registration required), same-day shipping on orders placed before 4 PM EST |
Will the WR55X27068 Board Fit the Refrigerator You Have?
The WR55X27068 fits GE bottom-freezer refrigerators, French door and two-door alike, badged GE, GE Profile, Cafe and Monogram. The CFE28, PYE22, GFE28, PFE28 and GNE29 families carry the most models on record. Read your own label before ordering.
Model Number Check
Everything on this page hangs on the characters printed there. Get a clear photograph of it while the board is still bolted in, and buy against what you can read.
382 models on record for WR55X27068. A linked model has its own page with board location, symptoms and parts for that refrigerator.
- CFE28TP3MBD1
- CFE28TP3MCD1
- CFE28TP3MGD1
- CFE28TP4MBW2
- CFE28TP4MCW2
- CFE28TP4MEW2
- CFE28TP4MLW2
- CFE28TP2MBS1
- CFE28TP2MCS1
- CFE28TP2MDS1
- CFE28TP2MES1
- CFE28TP2MFS1
- CFE28TP2MHS1
- CFE28TP2MIS1
- CFE28TP2MJS1
- CFE28TP2MLS1
- CFE28TP2MMS1
- CFE28TP2MNS1
- CFE28TP3MBW2
- CFE28TP3MDD1
- CFE28TP3MED1
- CFE28TP3MFD1
- CFE28TP3MJD1
- CFE28TP3MLD1
- CFE28TP3MMD1
- CFE28TP4MDW2
- CFE28TP4MFW2
- CFE28TP4MGW2
- CFE28TP4MHW2
- CFE28TP4MIW2
- CFE28TP4MJW2
Show 351 more reported models
- CFE28TSHBSS
- CFE28TSHCSS
- CFE28TSHDSS
- CFE28TSHESS
- CFE28TSHFSS
- CFE28TSHGSS
- CFE28TSHJSS
- CFE28TSHKSS
- CFE28TSHMSS
- CFE28UELCDS
- CFE28UELEDS
- CFE28UP2MES1
- CFE28UP2MKS1
- CFE28USHBSS
- CFE28USHESS
- CFE28USHFSS
- CFE28USHHSS
- CFE28USHMSS
- CFE29TSDASS
- CFE29TSDDSS
- CFE29TSDESS
- CWE23SP2MFS1
- CWE23SP2MGS1
- CWE23SP3MCD1
- CWE23SP3MGD1
- CWE23SP3MLD1
- CWE23SP4MIW2
- CWE23SP4MJW2
- CWE23SSHCSS
- CWE23SSHESS
- CWE23SSHFSS
- CWE23SSHJSS
- CWE23SSHLSS
- CWE23SSHNSS
- CYE22TP2MFS1
- CYE22TP2MJS1
- CYE22TP2MLS1
- CYE22TP4MCW2
- CYE22TP4MEW2
- CYE22TP4MGW2
- CYE22TP4MHW2
- CYE22TP4MIW2
- CYE22TP4MLW2
- CYE22TP4MMW2
- CYE22TSHBSS
- CYE22TSHPSS
- CYE22TSHSSS
- CYE22UELBDS
- CYE22UP2MDS1
- CYE22UP2MJS1
- CYE22USHESS
- CYE22USHISS
- CYE22USHJSS
- CYE22USHKSS
- CYE23TSDDSS
- CYE23TSDFSS
- DFE28JBLDTS
- DFE28JBLFTS
- DFE28JELDDS
- DFE28JELEDS
- DFE28JELGDS
- DFE28JGHCWW
- DFE28JGHDBB
- DFE28JGHEBB
- DFE28JGHEWW
- DFE28JGHFBB
- DFE28JMHEES
- DFE28JMHFES
- DFE28JMKBES
- DFE28JMKGES
- DFE28JMKIES
- DFE28JMKKES
- DFE28JMKLES
- DFE28JSHBSS
- DFE28JSKGSS
- DFE28JSKISS
- DFE28JSKLSS
- DFE29JGDEBB
- DFE29JGDHBB
- DFE29JGDHWW
- DFE29JMDAES
- DFE29JMDEES
- DFE29JSDASS
- DFE29JSDCSS
- DFE29JSDFSS
- GFD28GBLETS
- GFD28GELDDS
- GFD28GELHDS
- GFD28GELLDS
- GFD28GMLCES
- GFD28GMLFES
- GFD28GMLIES
- GFD28GMLLES
- GFD28GSLBSS
- GFD28GSLCSS
- GFD28GSLESS
- GFD28GYNGFS
- GFE26GGKEWW
- GFE26GGKHWW
- GFE26GGKIWW
- GFE26GMHDES
- GFE26GMKDES
- GFE26GSHBSS
- GFE26GSKHSS
- GFE27GGDEWW
- GFE27GMDDES
- GFE27GMDFES
- GFE27GSDASS
- GFE27GSDDSS
- GFE28GBLBTS
- GFE28GELCDS
- GFE28GELEDS
- GFE28GELLDS
- GFE28GELODS
- GFE28GGKEBB
- GFE28GGKFWW
- GFE28GGKGWW
- GFE28GGKIBB
- GFE28GMKEES
- GFE28GMKGES
- GFE28GMKQES
- GFE28GMKUES
- GFE28GSKBSS
- GFE28GSKDSS
- GFE28GSKESS
- GFE28GSKKSS
- GFE28GYNBFS
- GFE28GYNDFS
- GFE28GYNIFS
- GFE28HGHBWW
- GFE28HGHFBB
- GFE28HMHDES
- GFE28HMHGES
- GFE28HMKCES
- GFE28HMKMES
- GFE28HMKNES
- GFE28HSHBSS
- GFE28HSHDSS
- GFE28HSHESS
- GFE28HSKCSS
- GFE28HSKESS
- GFE28HSKHSS
- GFE28HSKISS
- GFE29HGDCBB
- GFE29HGDFWW
- GFE29HGDGWW
- GFE29HGDHBB
- GFE29HGDIBB
- GFE29HMDDES
- GFE29HMEJES
- GFE29HSDBSS
- GFE29HSDDSS
- GFE29HSDFSS
- GNE26GGDEWW
- GNE26GGDFWW
- GNE26GMDAES
- GNE26GSDBSS
- GNE26GSDCSS
- GNE26GSDGSS
- GNE29GGHCWW
- GNE29GGHDWW
- GNE29GGHEWW
- GNE29GGKCWW
- GNE29GGKDBB
- GNE29GGKFBB
- GNE29GGKGBB
- GNE29GGKHBB
- GNE29GMHDES
- GNE29GMKDES
- GNE29GMKGES
- GNE29GMKIES
- GNE29GMKKES
- GNE29GMKMES
- GNE29GMKNES
- GNE29GSHBSS
- GNE29GSHDSS
- GNE29GSHESS
- GNE29GSKBSS
- GNE29GSKDSS
- GNE29GSKESS
- GNE29GSKGSS
- GNE29GSKLSS
- GNE29GYNCFS
- GNE29GYNDFS
- GNE29GYNFFS
- GNE29GYNGFS
- GNE29GYNHFS
- GWE23GENDDS
- GWE23GMNDES
- GWE23GYNDFS
- GWE23GYNGFS
- GYE22GENHDS
- GYE22GENIDS
- GYE22GENJDS
- GYE22GMNDES
- GYE22GMNIES
- GYE22GMNJES
- GYE22GYNBFS
- GYE22GYNEFS
- GYE22HBLDTS
- GYE22HBLFTS
- GYE22HBLHTS
- GYE22HMKCES
- GYE22HMKJES
- GYE22HSKCSS
- GYE22HSKGSS
- GYE22HSKJSS
- GYE22KSHBSS
- GYE22KSHESS
- GYE22KSHHSS
- GYS22GMNDES
- PFD28KBLCTS
- PFD28KBLHTS
- PFD28KBLJTS
- PFD28KSLCSS
- PFD28KSLISS
- PFD28KYNDFS
- PFD28KYNFFS
- PFD28KYNHFS
- PFE27KSDCSS
- PFE27KSDDSS
- PFE28KBLFTS
- PFE28KBLNTS
- PFE28KELHDS
- PFE28KMKBES
- PFE28KMKEES
- PFE28KMKFES
- PFE28KMKHES
- PFE28KMKKES
- PFE28KMKMES
- PFE28KMKUES
- PFE28KSKESS
- PFE28KSKFSS
- PFE28KSKGSS
- PFE28KSKISS
- PFE28KSKMSS
- PFE28KSKNSS
- PFE28KYNDFS
- PFE28PBLBTS
- PFE28PBLCTS
- PFE28PBLDTS
- PFE28PBLETS
- PFE28PBLGTS
- PFE28PMKBES
- PFE28PMKIES
- PFE28PMKNES
- PFE28PSKBSS
- PFE28PSKGSS
- PFE28PSKISS
- PFE28PSKJSS
- PFE28PSKLSS
- PFE28PSKMSS
- PFE28PYNEFS
- PFE28PYNJFS
- PFE28RSHHSS
- PFE29PSDBSS
- PWE23KELDDS
- PWE23KELEDS
- PWE23KELMDS
- PWE23KGDABB
- PWE23KGDCWW
- PWE23KMDDES
- PWE23KMDEES
- PWE23KMDGES
- PWE23KMDHES
- PWE23KMKDES
- PWE23KMKEES
- PWE23KMKFES
- PWE23KMKHES
- PWE23KMKIES
- PWE23KMKMES
- PWE23KSDESS
- PWE23KSDFSS
- PWE23KSKBSS
- PWE23KSKGSS
- PWE23KSKHSS
- PWE23KSKJSS
- PWE23KSKKSS
- PWE23KYNCFS
- PWE23KYNHFS
- PWE23KYNIFS
- PWE23SWNBII
- PYD22KBLDTS
- PYD22KBLITS
- PYD22KBLJTS
- PYD22KSLFSS
- PYD22KSLGSS
- PYD22KSLHSS
- PYD22KSLISS
- PYD22KYNCFS
- PYD22KYNEFS
- PYD22KYNJFS
- PYE22KBLCTS
- PYE22KBLFTS
- PYE22KBLGTS
- PYE22KBLOTS
- PYE22KBLPTS
- PYE22KBLQTS
- PYE22KBLRTS
- PYE22KELBDS
- PYE22KELCDS
- PYE22KELDDS
- PYE22KELMDS
- PYE22KELNDS
- PYE22KELQDS
- PYE22KMKGES
- PYE22KMKHES
- PYE22KMKNES
- PYE22KMKSES
- PYE22KSKBSS
- PYE22KSKCSS
- PYE22KSKDSS
- PYE22KSKESS
- PYE22KSKHSS
- PYE22KSKJSS
- PYE22KSKLSS
- PYE22KSKOSS
- PYE22KYNHFS
- PYE22PBLBTS
- PYE22PELFDS
- PYE22PMKBES
- PYE22PMKCES
- PYE22PMKMES
- PYE22PSHBSS
- PYE22PSHHSS
- PYE22PSKCSS
- PYE22PSKHSS
- PYE22PSKISS
- PYE22PSKJSS
- PYE22PSKNSS
- PYE22PYNFFS
- PYE22PYNHFS
- PYE23KSDASS
- PYE23KSDDSS
- PYE23PSDASS
- ZWE23ESHCSS
- ZWE23ESHESS
- ZWE23ESHJSS
- ZWE23ESHKSS
- ZWE23ESHMSS
- ZWE23ESHNSS
- ZWE23ESHOSS
- ZWE23ESNCSS
- ZWE23PSHCSS
- ZWE23PSHDSS
- ZWE23PSHESS
- ZWE23PSHHSS
- ZWE23PSHKSS
- ZWE23PSHLSS
- ZWE23PSNBSS
- ZWE23PSNDSS
Not listed? Run your model through the check above and use its buttons; a missing model is not the same as incompatible.
On the models we see, the board sits behind a service panel low on the back of the refrigerator.
This model list is for reference only. GE may change boards between production runs, so two refrigerators with the same model number can use different boards. Always order by the part number printed on your original board, it is the only identifier that decides. This board turns up across the CFE, CWE, CYE, DFE, GFD, GFE, GNE, GWE, GYE, GYS, PFD, PFE, PWE, PYD, PYE and ZWE prefixes, so any model starting with those is worth checking.
Warm Fridge, Dead Ice Maker or Heavy Frost: Is the WR55X27068 to Blame?
The WR55X27068 drives cooling, the fans, defrost, ice production and the lights from one board. Two or three unrelated functions failing together is what brings people to this board. Clear the sensors, the defrost parts and the fans first.
Pull the plug before any panel comes off. The list below is what people describe when they arrive at this board.
- Fresh food shelves sitting warm while the freezer still holds
- Both compartments creeping up over a day or two
- A wall of frost across the back of the freezer
- Ice maker silent and the water dispenser doing nothing
- The refrigerator never shuts off, whatever the setting says
- Nothing at all after a storm: no lights, no fan, no sound
Plenty of the refrigerators built around this board carry a display in the door or the dispenser, but no fault-code table belongs to the board itself. GE writes code meanings into each model series and prints them in the owner's manual, so read any code against your own manual and treat it as a place to start testing.
Let's verify it is the board by checking the common parts that contribute to these failures. None of them costs much or takes long, and clearing them means one order rather than two.
Those characters decide which board you buy, and this is the one answer you can settle without a meter. Read it in place, refrigerator unplugged, before any packaging is disturbed.
The thermistors report air temperature back to the board. Hand a board a bad reading from a failing sensor and it makes a bad decision on it, which is not the board's fault. Sensors cost little and they fail often, so they come off the list first.
The board only decides when a defrost happens. Three pieces of hardware actually perform it: a heater that draws current, a thermostat that shuts once the coil has chilled, and a fuse that has never opened. Any one of those failing lets ice build until no air moves through the freezer at all.
That fan is what carries cold from the freezer up into the fresh food section, and it is meant to stop when a door opens. A blade iced into its shroud, or a switch that never releases, gives you a cold freezer sitting over warm shelves with no board fault anywhere.
An ice maker has plenty of ways to die on its own: a shutoff arm left up, a fill tube frozen solid, an inlet valve too tired to open. The board becomes the suspect when ice stops at the same time as something unrelated to water, such as the interior lights or the temperature.
A fan that has been dragging for months has been working the board hard the whole time. Keep a spare on the shelf and a warm fridge becomes a fifteen-minute swap instead of a week of coolers.
What Is Involved in Fitting a WR55X27068 Main Control Board?
The WR55X27068 lives behind a service panel at the foot of the refrigerator's back wall. Most fittings run 15 to 30 minutes and need nothing exotic.
Take the plug out at the wall and walk the refrigerator forward until you can stand square behind it. A few screws release the service panel at the foot of the back wall, and the board sits on its bracket right there. Photograph it with every connector still seated, put a hand on bare frame metal to shed static, then free each connector by its latch rather than hauling on the wires. The replacement goes in facing the same way; work back through your photograph, refit the panel and plug the refrigerator in.
The New WR55X27068 Is In and Nothing Improved: Where Next?
If the WR55X27068 goes in and nothing improves, whatever broke the first board is usually still present. Recheck the sensors, the connectors and the door switch.
A board that does not match yours
Work from the photo you took. Header positions, plug count and mounting points should line up with the board you removed. If they do not, stop: a board that looks materially different usually means the wrong part is in hand.
Two plugs that look alike are easy to swap
Connectors on a board like this run to similar sizes and similar keying, and one sitting a position over from where it belongs behaves exactly like a board that never woke up. Go through them one at a time against the picture you took.
Return to the temperature sensors
Whatever a drifted sensor was reporting to the board you removed, it reports to this one word for word. Good hardware looks broken when the numbers reaching it are wrong.
Check the door switch before you blame the board
Hold a switch open and the fan stays off, which is exactly what the board was told to do. Press each one and listen for the evaporator fan behind the freezer wall.
Still stuck?
Give the refrigerator several hours at a normal setting, then contact our team before you return anything.
What Wears Out a GE Refrigerator Main Board, and How Do You Slow It Down?
Surges, trapped heat and moisture are what take these boards out. Three checks with the panel already off protect the WR55X27068 you just fitted.
While you are back there, three quick checks help your new board live a long life.
- Get the refrigerator onto surge protection. Power that flickers off and back repeatedly is harder on electronics than one clean blackout, and a generator changeover does the same damage faster. A whole-appliance surge protector costs a fraction of what it defends.
- Vacuum the condenser coil and the fan shroud. Dust buries the coil, the compressor and fans then run longer to shed the same heat, and the board sits in that heat with them. Take the lower grille off and clear it while you are already down there.
- Chase the moisture out of the machine bay. A blocked defrost drain or an inlet valve that weeps puts water into the same lower bay the board occupies. Wipe it dry, look along the frame for staining, and find the source before the panel goes back on.
Which Nearby Parts Are Worth Changing on the Same Trip?
Some of these share the lower bay with the WR55X27068. Others are simply worth doing while the refrigerator is already out from the wall.
Why Are Appliance Pro USA Boards So Reliable?
Each WR55X27068 leaving Appliance Pro USA has been restored to reliable working condition through the FailSafe Precision Protocol. The parts this board is known to lose come out first, and nothing leaves the bench untested.
FailSafe Precision Protocol
Failure Pattern Analysis
We've mapped the failure signatures specific to the WR55X27068, identifying which components degrade and fail over time.
Targeted Component Replacement
The components this board is known to lose are replaced before they get the chance to fail.
Proactive Rebuild Standard
Known high-failure components are replaced with new parts on every board, regardless of whether they show a problem yet. Degraded parts don't ship.
Final Certification
Every board is tested and certified to our internal FailSafe Precision Protocol standard for function and lifespan before it ships.
Boards are supplied from tested stock and may show minor cosmetic wear. Every board is verified fully functional before shipping.
Why Order the WR55X27068 from Appliance Pro USA?
Every WR55X27068 we sell is FailSafe Certified and tested before it goes out. You get free shipping, 30-day returns, and a 1-year warranty after registration. The cost card below carries our current price.
What this board costs
We specialize in reconditioned replacement control boards. Every one goes through the FailSafe Precision Protocol: the components we know this board loses are replaced with new parts, then the board is tested and certified to our internal standard for function and lifespan.
Free priority shipping on every order, and orders placed before 4 PM EST ship same day, Monday through Friday, excluding holidays and scheduled closures. The board carries a 1-year warranty (registration required). Warranty coverage is determined at Appliance Pro USA's discretion. Boards that have been tampered with, or with our verification stickers or holograms removed or damaged, are not eligible for warranty coverage. Returns are accepted within 30 days in original condition; restocking and retesting fees may apply to opened or installed boards, waived on exchanges. Boards returned with missing or damaged hologram stickers may not be eligible for a full refund. Any board that has been flashed, reprogrammed, or had its firmware altered is not eligible for return or warranty coverage.
Ask us about MarkUp Pro, exclusive pricing on every order.
Which Questions Come Up Most About the WR55X27068?
The questions below cover the move to WR55X46805, how much of the refrigerator this board runs, and heavy freezer frost. Setup after fitting and a model number that draws a blank are here too.
Will a board marked WR55X46805 run my refrigerator if my old one says WR55X27068?
Yes. GE superseded WR55X27068 to WR55X46805, so the newer number is what a counter fills the older one with. Nothing about your refrigerator has to change to accept it. Set your old label beside whatever turns up and read the characters through before the anti-static bag is opened.
Can I still buy a brand new WR55X27068?
Not under that number. GE supplies this board as WR55X46805 now. We hold FailSafe Certified WR55X27068 boards, restored and tested, which is how you get back the exact number you took out.
How much of the refrigerator does this one board actually run?
Enough of it that a failure here usually shows up as more than one complaint at a time. What the board does not do is any of the physical work. It decides when the compressor, the fans and the defrost heater should run, and each of those is a separate part that can fail on its own without the board being at fault. Work the downstream parts first, in the order the checks above are set out.
My freezer is packed with frost but the fresh food side is cold. Is that this board?
It can be, though the defrost hardware comes first. The board decides when defrost happens; a heater, a thermostat and a thermal fuse are what carry it out. If the heater draws current, the fuse is intact and frost still returns, the scheduling is what failed and you need a replacement main control board.
The GE parts page carries a warning about flammable refrigerant. Does that affect me?
That is GE's own wording, and it marks the board as a manufacturer-authorized service part in refrigerators running R600a. Swapping a control board never opens the sealed refrigerant circuit, so the job itself is unchanged. Anything that does break into that circuit belongs to a licensed technician with recovery gear.
Does anything have to be set on the board before it will run?
Nothing needs setting. As far as we have seen, a standard replacement goes in with no jumper to move and no configuration step. Some models may require a firmware update after installation, and firmware changes should be performed by a qualified technician. Any board that has been flashed, reprogrammed, or had its firmware altered is not eligible for return or warranty coverage.
Nothing came up when I checked my model number. Should I order anyway?
A blank result is not a no. No list covers every regional build or late production run. Read the number off your own board and match that. If the label will not read, the free check above will settle it.
Which Help Center Articles Support This Repair?
These Appliance Pro USA Help Center articles cover part number lookup and what a main control board does. They also cover why boards fail and what to check when a new board changes nothing.
Ownership. This product guide is the original work of Appliance Pro USA. It may not be copied, reproduced, republished, or used to create derivative works without written permission. All rights reserved.
Ready to order the WR55X27068?In stock now at Appliance Pro USA, backed by our 1-year warranty (registration required) and 30-day return policy.
🛒 Order Now, Appliance Pro USA
