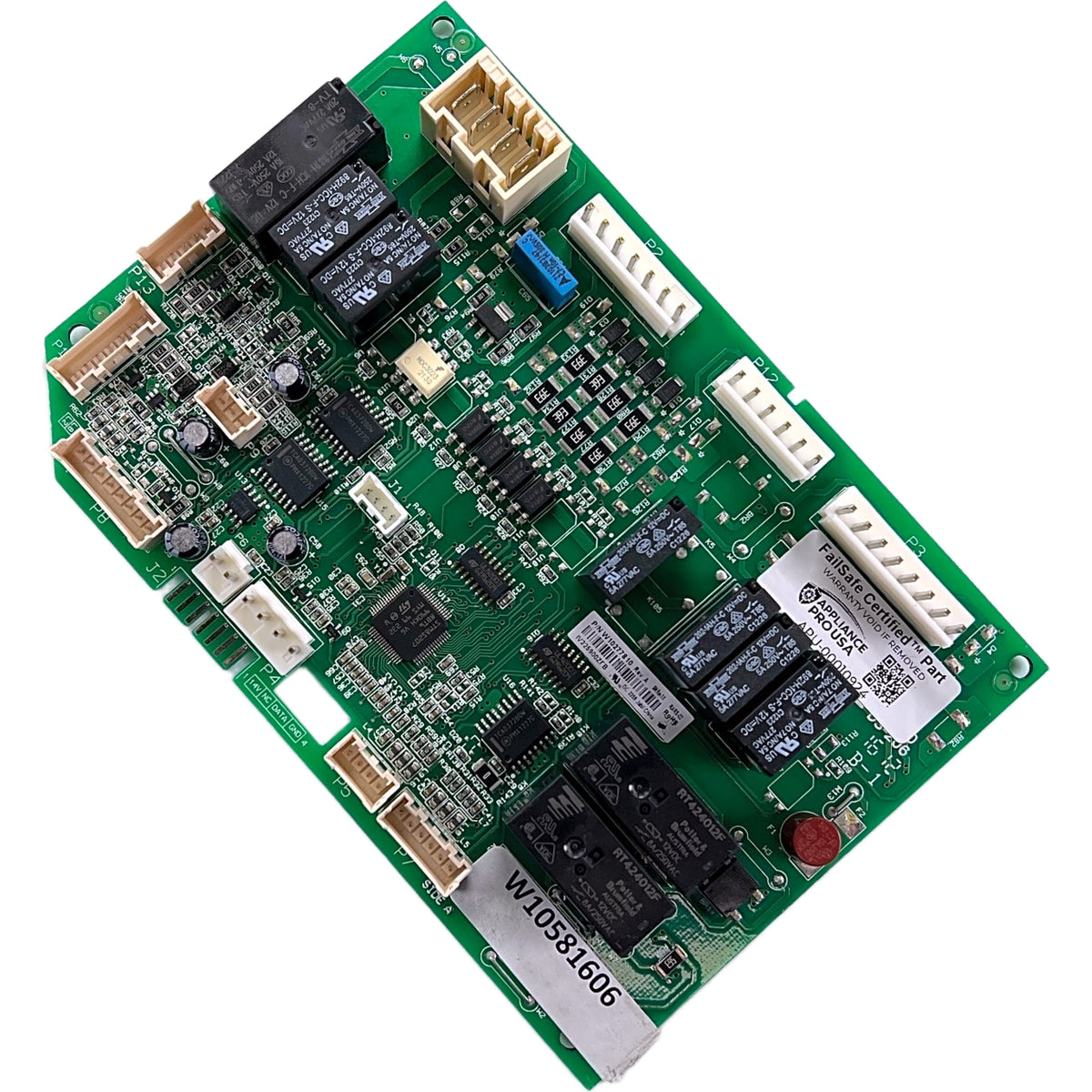

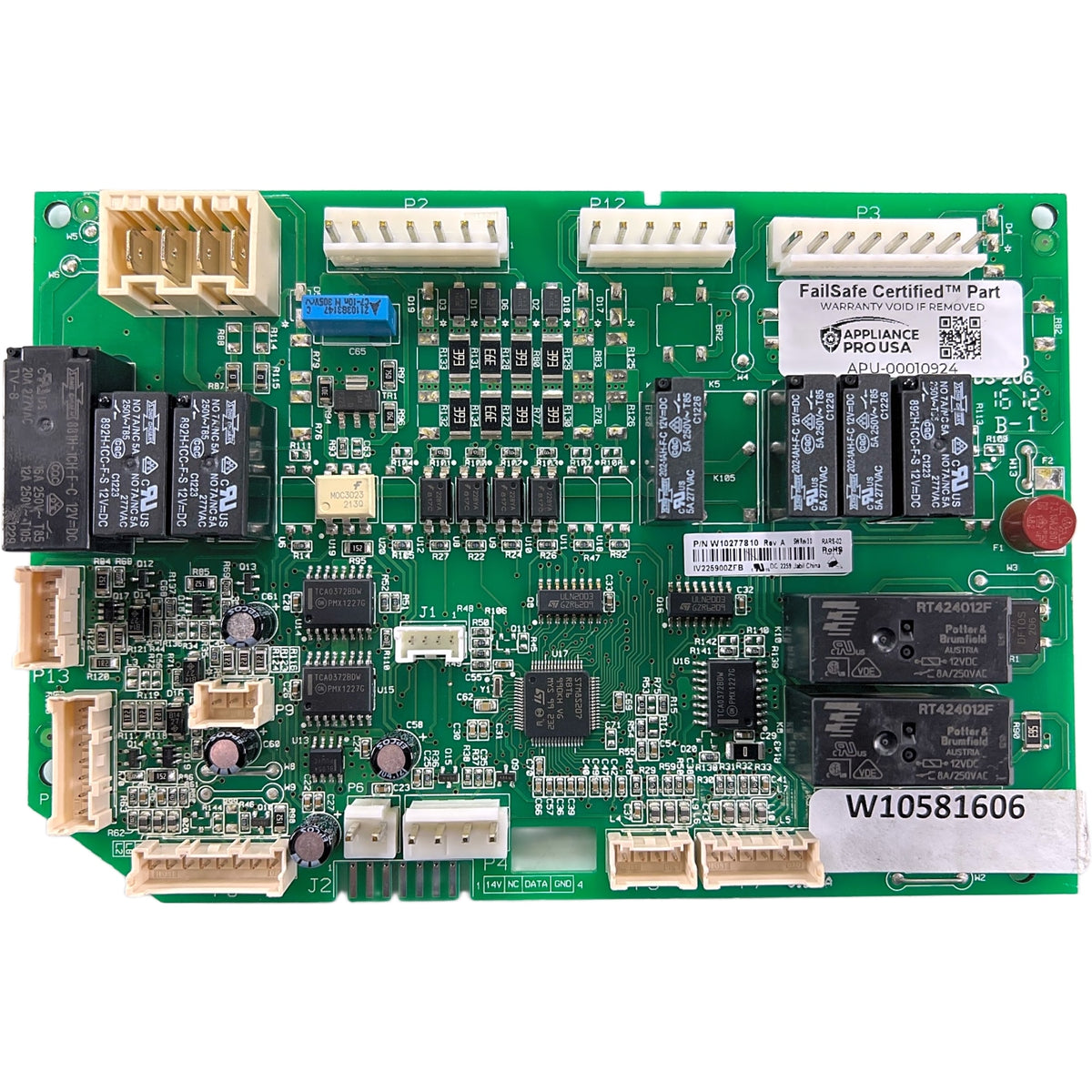

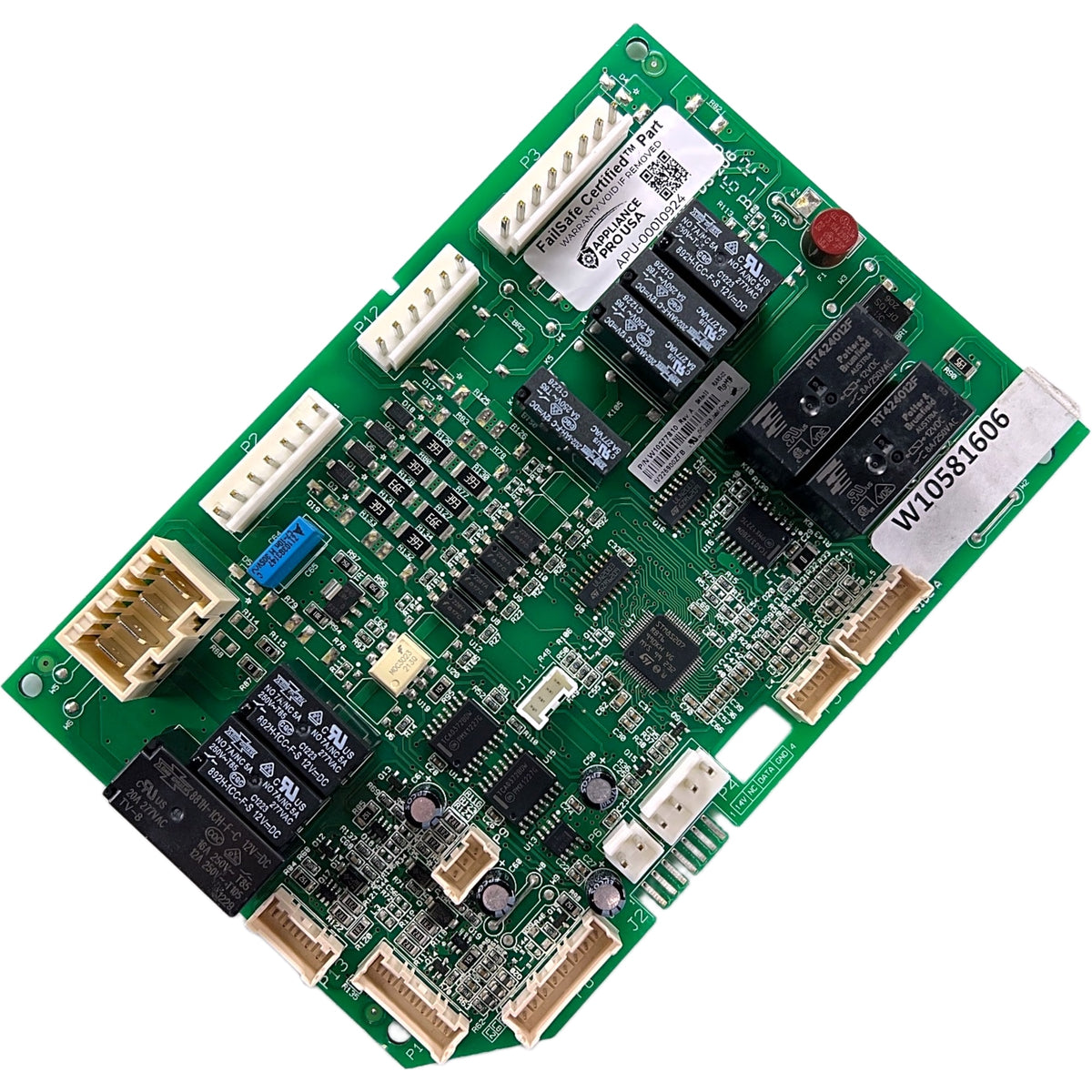

What Is the W10277810 Whirlpool Refrigerator Main Control Board Replacement?
The W10277810 is the main electronic control board used on Whirlpool bottom-freezer refrigerators. It's typically mounted in the ceiling of the fresh-food compartment behind the light cover, where it manages compressor cycling, fan operation, and the automatic defrost cycle. This replacement control board also communicates with the user-interface display to keep temperature settings accurate. FailSafe Certified and backed by a 1-year warranty from Appliance Pro USA.
What Does the W10277810 Fix on a Whirlpool Refrigerator?
This board is commonly replaced when a refrigerator shows one or more of these problems:
- Refrigerator isn't cooling like it used to
- Freezer stays cold but the fridge side is warm
- Control panel display is blank or won't respond
- Unit seems stuck in defrost mode or never defrosts
- Compressor or fans run non-stop and never cycle off
- Error codes popping up on the display
These symptoms point to the refrigerator control board as the most likely cause - but appliances are complex systems, and the same symptoms can occasionally stem from a sensor, switch, wiring harness, or motor issue. If a technician has identified the control board, or you've ruled out those components yourself, this board is your fix. When in doubt, contact us before you order - we're happy to walk you through some troubleshooting, and a photo of your board is usually all we need. A diagnosis from a local appliance technician works too.
How Do I Know If This Is the Right Board for My Refrigerator?

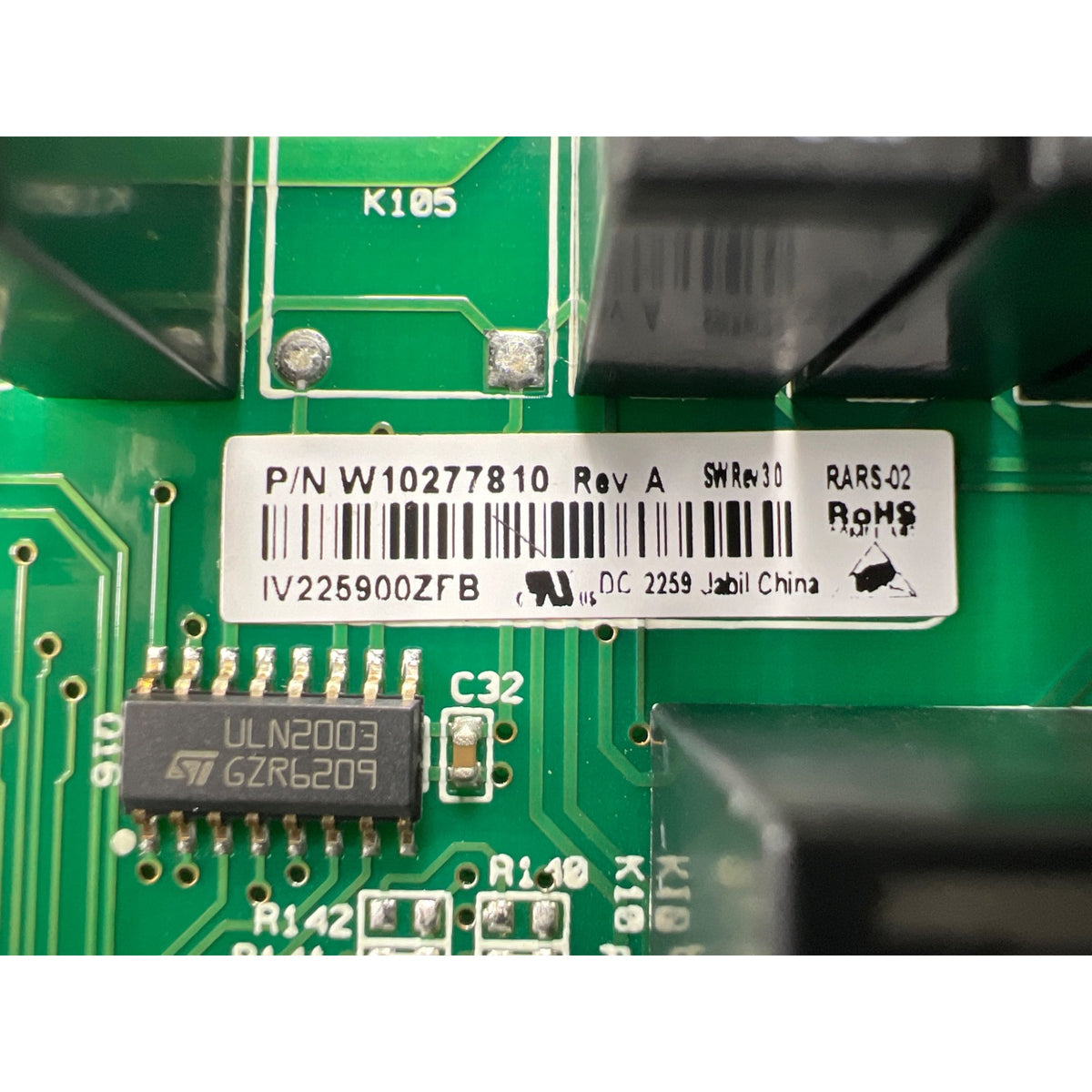

Check the sticker on your original board against the number you're ordering, not the model number on the refrigerator's data plate. Unplug the unit, remove the interior light cover or control housing in the ceiling of the fresh-food compartment, and locate the board. If the sticker reads W10277810, that's your match. Your Whirlpool refrigerator part number is on the sticker on the original board - look for the W10 or WPW10 prefix.
Not sure? Send us a photo of your board and its sticker before you order and we'll verify it for free - same business day.
Compatible Refrigerator Models
This board is ordered by part number, not by appliance model. Send us your full model number and a photo of your board's sticker and we will confirm fitment before you buy - same business day.
This model list is for reference only. Whirlpool may change boards between production runs, so two appliances with the same model number can use different boards. Always order by the part number printed on your original board - it is the only identifier that decides.
Genuine OEM - FailSafe Certified Reconditioned
Every W10277810 board from Appliance Pro USA is a genuine OEM Whirlpool board restored to reliable working condition through the FailSafe Precision Protocol, our 4-step recertification process built around what actually fails on this board:
-
Failure Pattern Analysis - We've mapped the failure signatures specific to this board, identifying which components degrade and fail over time.
-
Targeted Component Replacement - The components this board is known to lose are replaced before they get the chance to fail.
-
Proactive Rebuild Standard - Known high-failure components are replaced with new parts on every board, regardless of whether they show a problem yet. Degraded parts don't ship.
-
Final Certification - Every board is tested and certified to our internal FailSafe Precision Protocol standard for function and lifespan before it ships.
Key Features
- Genuine OEM Whirlpool main control board - not an aftermarket copy
- Controls compressor, fan cycling, and defrost timing
- Direct fit replacement for the original control board
- Minor cosmetic wear may be present due to prior installation - it does not affect performance
Board Type and Function
The main control board is the brain of the refrigerator's cooling system. It tells the compressor when to run, cycles the evaporator and condenser fans, and times the automatic defrost cycle so frost doesn't build up on the coils. It also reads input from the user-interface display and adjusts operation to match the temperature settings you've selected. When this board fails, cooling, defrost, and display functions can all be affected at once.
Common Whirlpool Refrigerator Error Codes
If your Whirlpool refrigerator is displaying an error code, the list below describes what it typically indicates. These are general Whirlpool codes and can vary by your exact model, so use this as a general guide. Codes labeled Board Related are the ones most directly associated with main control board failure. Always confirm the exact meaning in your model's owner's manual or service guide before ordering any part.
-
E6 - Board Related - Main control board failure - most severe Whirlpool error
-
CF - Board Related - Communication failure between main control board and display / user interface board
-
E5 - Board Related - Defrost system failure - board-controlled defrost heater, thermostat, or cycle fault
-
E1 - Fresh food compartment temperature sensor failure
-
E2 - Freezer temperature sensor failure
-
E3 - Defrost temperature sensor failure
-
E7 - Pantry drawer temperature sensor fault
-
E8 - Fresh food compartment temperature too high
-
E9 - Fresh food compartment temperature too low
-
E0 - Door left open or door sensor fault - check door seal and door switch
-
PO - Power outage detected. Press any button to clear. Not a component fault
-
6 (flashing) - 6th Sense technology activated - normal function mode, not an error
This list is general reference material. Error code definitions vary by Whirlpool (WRS, WRX, WRF, French door, side-by-side) model series. Always confirm the exact meaning in your refrigerator's owner's manual or service guide before purchasing any part.
How to Install a Whirlpool Refrigerator Main Control Board
Start by unplugging the refrigerator and clearing out any food that might spoil during the repair. Most units give you access to the board by removing the light cover or control housing in the ceiling of the fresh-food compartment - some models have it mounted at the back instead. Disconnect the wire harness connectors, release the retaining tabs, and swap the old board for the new one. Work gloves are a good idea while you're in there. Some replacement boards need to be programmed after installation using the code on the unit's serial plate, so check that before you close everything up. Most people finish this install in under 30 minutes with basic hand tools. Once it's back together, give the refrigerator a few hours to stabilize before judging whether the repair fixed the problem.
Shipping
Every board is physically in stock - no backorders, no drop shipping. Orders placed before 4:00 PM EST ship the same business day. Tracking provided on every order.
Warranty
Backed by a 1-year warranty from Appliance Pro USA (registration required - the card is in the box). If the board fails due to a defect within the warranty period, we'll repair or replace it at no charge (shipping fees may apply). Warranty coverage is determined at Appliance Pro USA's discretion. Boards that have been tampered with, or with the verification seal (hologram or tamper-evident sticker) removed or damaged, are not eligible for warranty coverage. Damage caused by improper installation, electrical surges, or physical damage is not covered.
Returns
Returns are accepted within 30 days of delivery. Boards that are unopened and uninstalled, in original condition with the verification seal (hologram or tamper-evident sticker) intact, qualify for a full refund. If the board has been opened or installed, contact us before sending it back with a photo of the board you received, the reason for the return, and a photo of your original board's part-number label so we can verify fitment and approve the return. Boards returned used, altered, damaged, or with the verification seal missing may receive a partial refund in line with our return policy. Exchanges for the correct part are always available.
Not sure it's the board? Before you order, and before you return, contact us. We offer free troubleshooting help and can usually tell from a photo of your board and its symptoms whether this is the right part. Only a technician can fully diagnose your appliance.
