What Is the W10120821 Whirlpool Refrigerator Main Control Board Replacement?

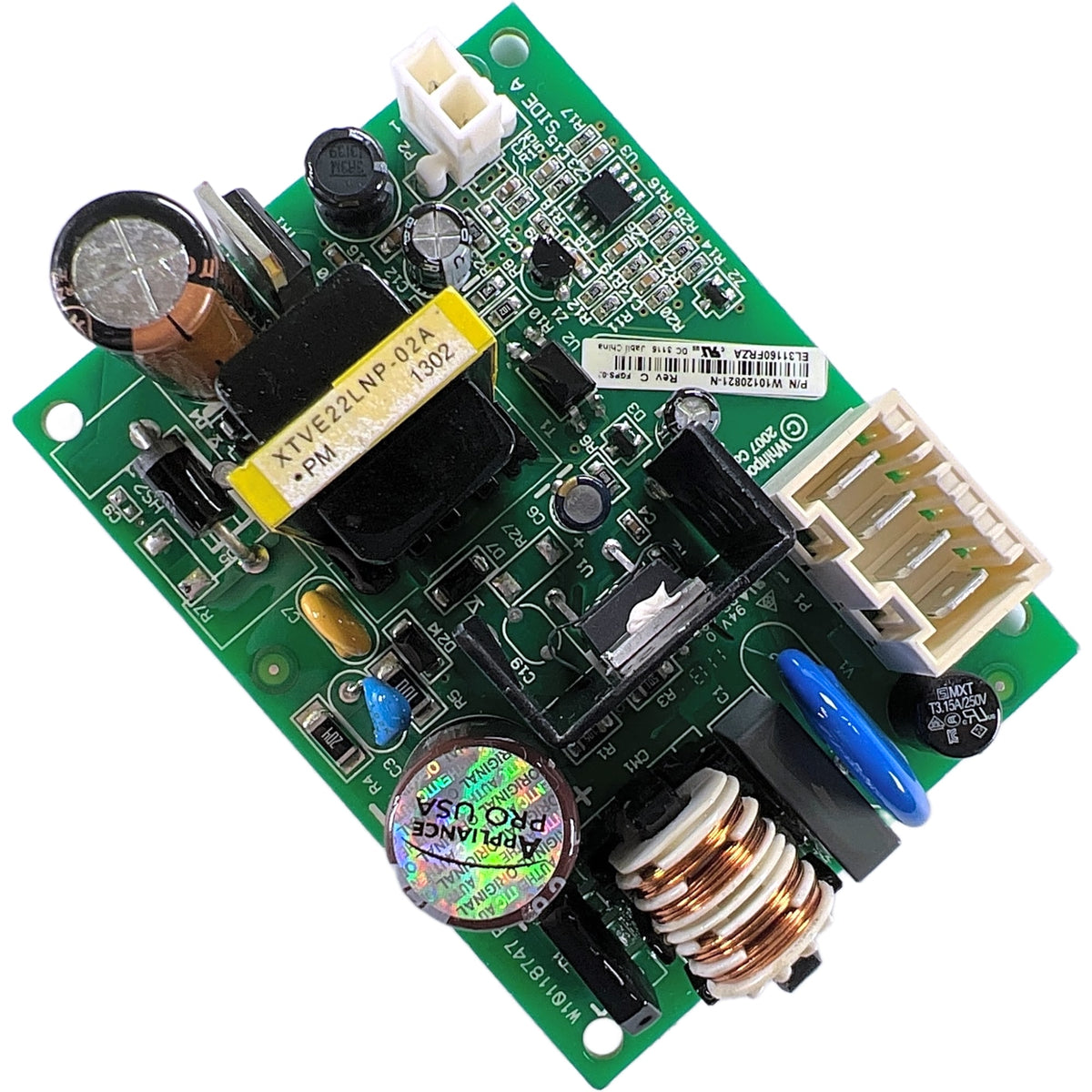

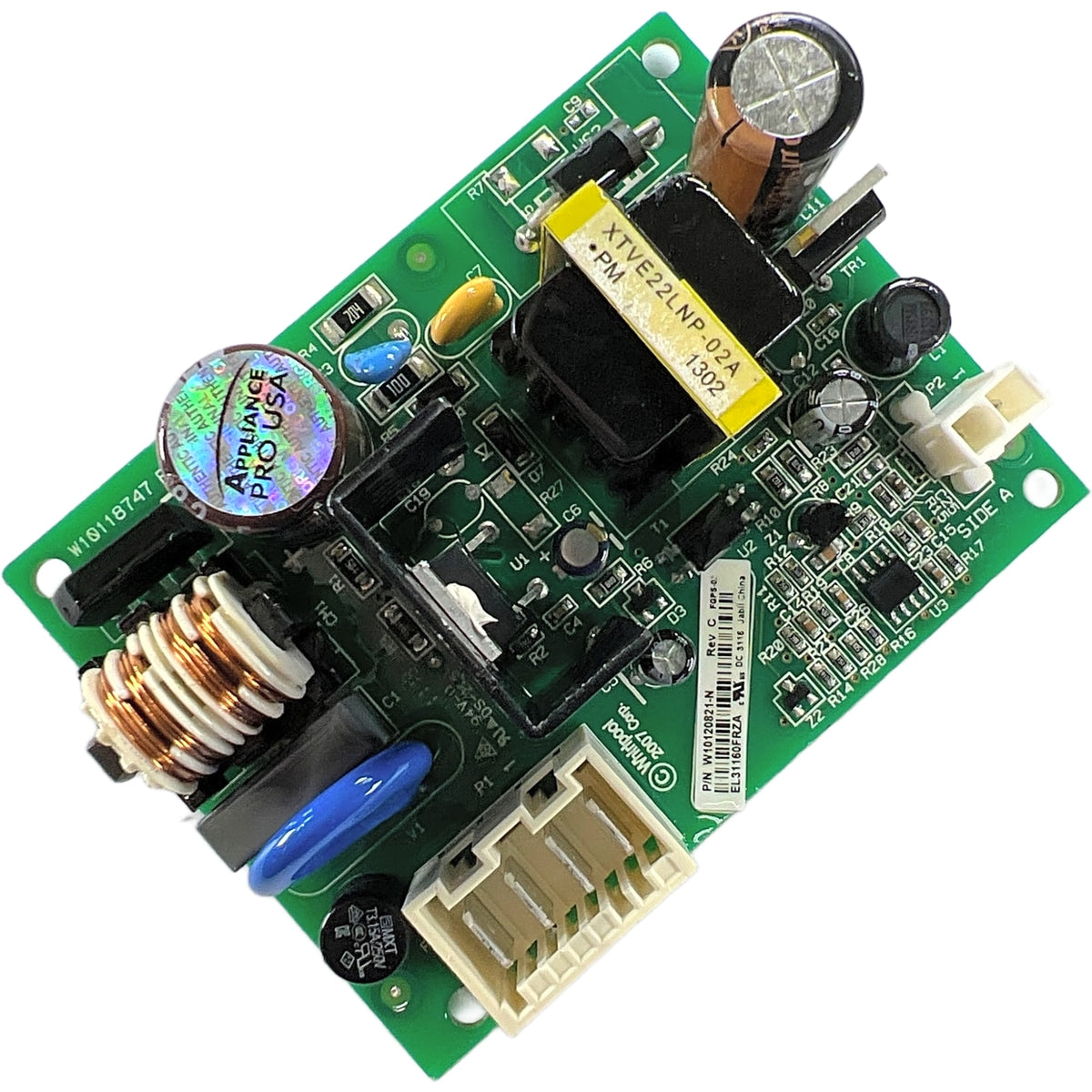

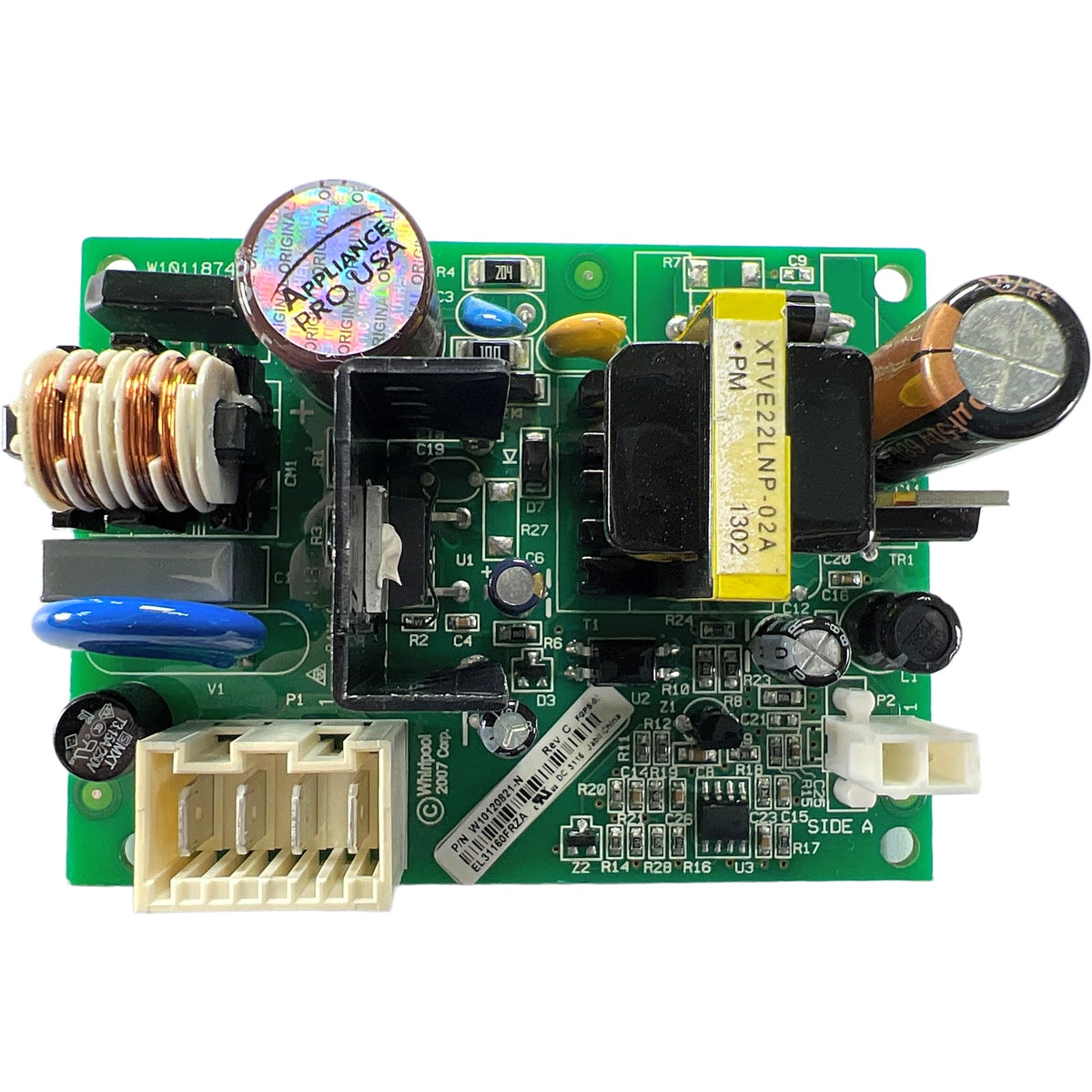

The W10120821 is the main electronic control board for Whirlpool-built French-door refrigerators, sold as a replacement control board when the original fails. It mounts inside the control housing, usually behind the interior control panel or toward the back of the cabinet, and it runs the core functions that keep the unit cooling - compressor operation, defrost cycle timing, and power and communication to the display board up front. FailSafe Certified and backed by a 1-year warranty from Appliance Pro USA.
W10120821 was the original production number, and it has since been consolidated into the service replacement WPW10356039. If the sticker on your old board reads W10120821, W10120821-N, W10118747, or SJ-W10120821, this is still the correct board for your refrigerator.
What Does the W10120821 Fix on a Whirlpool Refrigerator?
If your refrigerator is showing any of these problems, a failing control board is a common cause:
- Refrigerator not cooling
- Freezer not cooling or too warm
- Ice buildup on evaporator coils / not defrosting
- Blank or unresponsive display panel
- Control panel buttons not working
- Compressor runs constantly or won't start
These symptoms point to the refrigerator control board as the most likely cause - but appliances are complex systems, and the same symptoms can occasionally stem from a sensor, switch, wiring harness, or motor issue. If a technician has identified the control board, or you've ruled out those components yourself, this board is your fix. When in doubt, contact us before you order - we're happy to walk you through some troubleshooting, and a photo of your board is usually all we need. A diagnosis from a local appliance technician works too.
How Do I Know If This Is the Right Board for My Refrigerator?

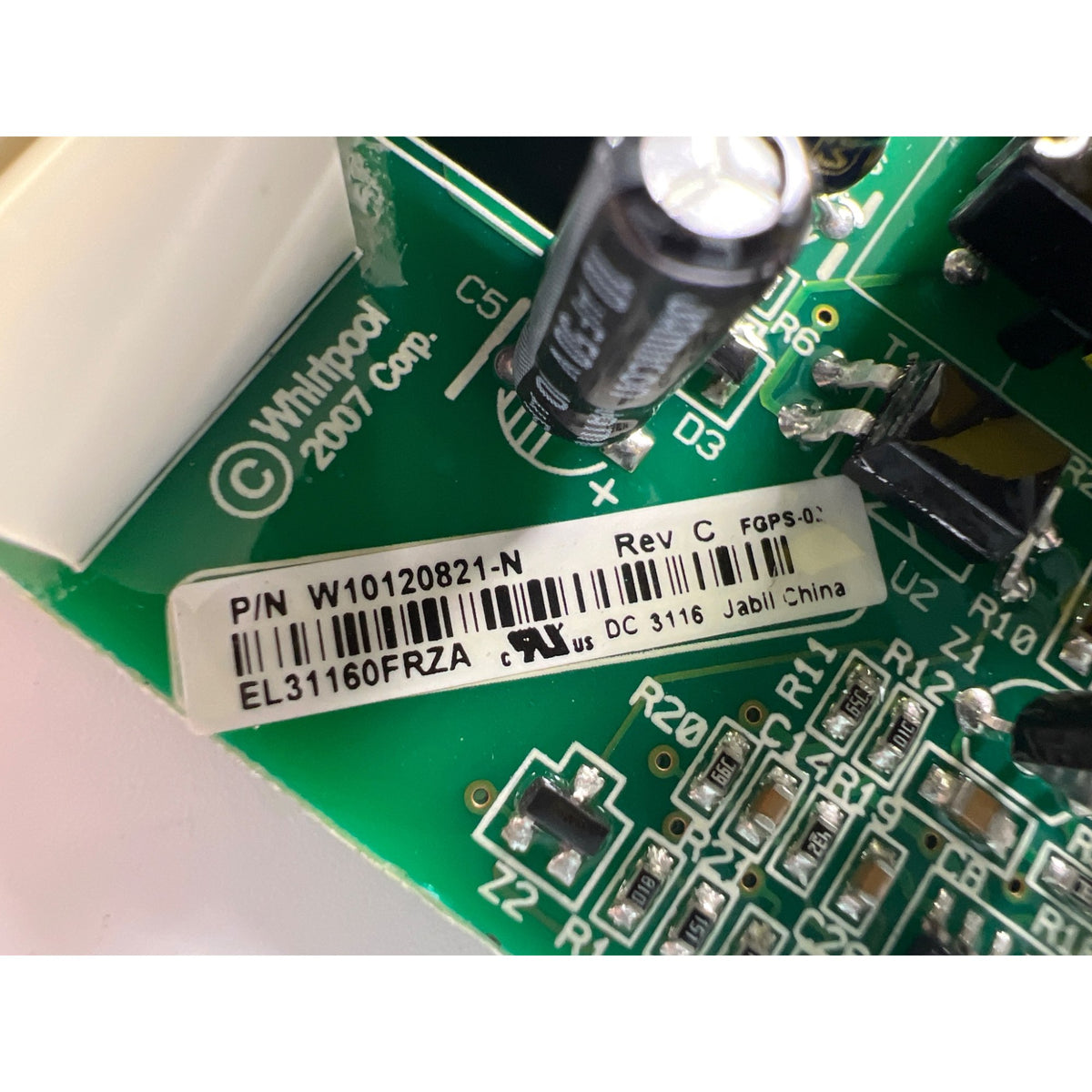

Check the sticker on your existing board before ordering, not just the model number on the fridge. Unplug the refrigerator, pull it out, and open the control housing to find the board's white or silver label. W10120821, W10120821-N, W10118747, SJ-W10120821, or the service number WPW10356039 printed on that label all mean this is your board. Your Whirlpool refrigerator part number is on the sticker on the original board - look for the W10 or WPW10 prefix. This listing is for revision C - the sticker should read W10120821 Rev C. A different revision letter can be a different board, so match it.
Other part numbers used for this board: WPW10356039, W10120821-N, W10118747, SJ-W10120821. Retailers and parts catalogs list the same board under these numbers.
Not sure? Send us a photo of your board and its sticker before you order and we'll verify it for free - same business day.
Compatible Refrigerator Models
This board is ordered by part number, not by appliance model. Send us your full model number and a photo of your board's sticker and we will confirm fitment before you buy - same business day.
| Also reported to fit - verify by the label on your board |
| GI6FARXXY05 |
GI6FARXXY06 |
GI6FARXXY07 |
| GI6FARXXY08 |
WRF555SDFZ00 |
WRF555SDFZ01 |
| WRF555SDFZ02 |
WRF555SDFZ06 |
WHIRLPOOLTEST |
Reported fit is general reference material - confirm by the part number on your board's sticker before ordering.
This model list is for reference only. Whirlpool may change boards between production runs, so two appliances with the same model number can use different boards. Always order by the part number printed on your original board - it is the only identifier that decides.
Genuine OEM - FailSafe Certified™ Reconditioned
Every W10120821 board from Appliance Pro USA is a genuine OEM Whirlpool board restored to reliable working condition through the FailSafe Precision Protocol™, our 4-step recertification process built around what actually fails on this board:
-
Failure Pattern Analysis - We've mapped the failure signatures specific to this board, identifying which components degrade and fail over time.
-
Targeted Component Replacement - The components this board is known to lose are replaced before they get the chance to fail.
-
Proactive Rebuild Standard - Known high-failure components are replaced with new parts on every board, regardless of whether they show a problem yet. Degraded parts don't ship.
-
Final Certification - Every board is tested and certified to our internal FailSafe Precision Protocol standard for function and lifespan before it ships.
Key Features
- Genuine OEM Whirlpool main control board - not an aftermarket copy
- Controls compressor operation, defrost timing, and cooling performance
- Direct fit replacement for the original W10120821 board and its cross-reference numbers
- Minor cosmetic wear may be present due to prior installation - it does not affect performance
Board Type and Function
This board is the brain of the refrigeration system. It reads input from the thermostat and sensors and decides when to run the compressor, when to start a defrost cycle, and how long that cycle runs. It also supplies power and communication to the user display board up front, so a failing board can take out the readout along with the cooling. When it goes bad, the compressor can run nonstop, shut off entirely, or defrost can stop firing altogether, leaving you with a warm fridge or a frosted-over freezer.
Common Whirlpool Refrigerator Error Codes
If your Whirlpool refrigerator is displaying an error code, the table below describes what it typically indicates. Codes marked ★ are most directly associated with main control board failure. These are general Whirlpool codes and can vary by your exact model. Always confirm the exact meaning in your model's owner's manual or service guide before ordering any part.
| Code |
What It Means |
| ★ E6 |
Main control board failure - most severe Whirlpool error |
| ★ CF |
Communication failure between main control board and display / user interface board |
| ★ E5 |
Defrost system failure - board-controlled defrost heater, thermostat, or cycle fault |
| E1 |
Fresh food compartment temperature sensor failure |
| E2 |
Freezer temperature sensor failure |
| E3 |
Defrost temperature sensor failure |
| E7 |
Pantry drawer temperature sensor fault |
| E8 |
Fresh food compartment temperature too high |
| E9 |
Fresh food compartment temperature too low |
| E0 |
Door left open or door sensor fault - check door seal and door switch |
| PO |
Power outage detected. Press any button to clear. Not a component fault |
| 6 (flashing) |
6th Sense technology activated - normal function mode, not an error |
Error code definitions vary by Whirlpool (WRS, WRX, WRF, French door, side-by-side) model series. Always confirm the exact meaning in your refrigerator's owner's manual or service guide before purchasing any part.
★ = Most directly associated with main control board failure
How to Install a Whirlpool Refrigerator Main Control Board
Unplug the refrigerator before you touch anything. Remove the control housing cover, usually held by a few screws, and take a quick photo of the wire harness connectors before pulling them off the old board. Ground yourself first, swap in the new board, and reconnect each connector to the spot it came from. Reinstall the cover, plug the unit back in, and test the controls. Most people get this done in under 30 minutes with basic screwdrivers or nut drivers. Give the refrigerator a few hours to cycle and settle into temperature before you judge whether the repair worked.
Shipping
Every board is physically in stock - no backorders, no drop shipping. Orders placed before 4:00 PM EST ship the same business day. Tracking provided on every order.
Warranty
Backed by a 1-year warranty from Appliance Pro USA (registration required - the card is in the box). If the board fails due to a defect within the warranty period, we'll repair or replace it at no charge (shipping fees may apply). Warranty coverage is determined at Appliance Pro USA's discretion. Boards that have been tampered with, or with the verification seal (hologram or tamper-evident sticker) removed or damaged, are not eligible for warranty coverage. Damage caused by improper installation, electrical surges, or physical damage is not covered.
Returns
Returns are accepted within 30 days of delivery. Boards that are unopened and uninstalled, in original condition with the verification seal (hologram or tamper-evident sticker) intact, qualify for a full refund. If the board has been opened or installed, contact us before sending it back with a photo of the board you received, the reason for the return, and a photo of your original board's part-number label so we can verify fitment and approve the return. Boards returned used, altered, damaged, or with the verification seal missing may receive a partial refund in line with our return policy. Exchanges for the correct part are always available.
Not sure it's the board? Before you order, and before you return, contact us. We offer free troubleshooting help and can usually tell from a photo of your board and its symptoms whether this is the right part. Only a technician can fully diagnose your appliance.
