What Is the DA94-09287Q Samsung Refrigerator Main Control Board Replacement?

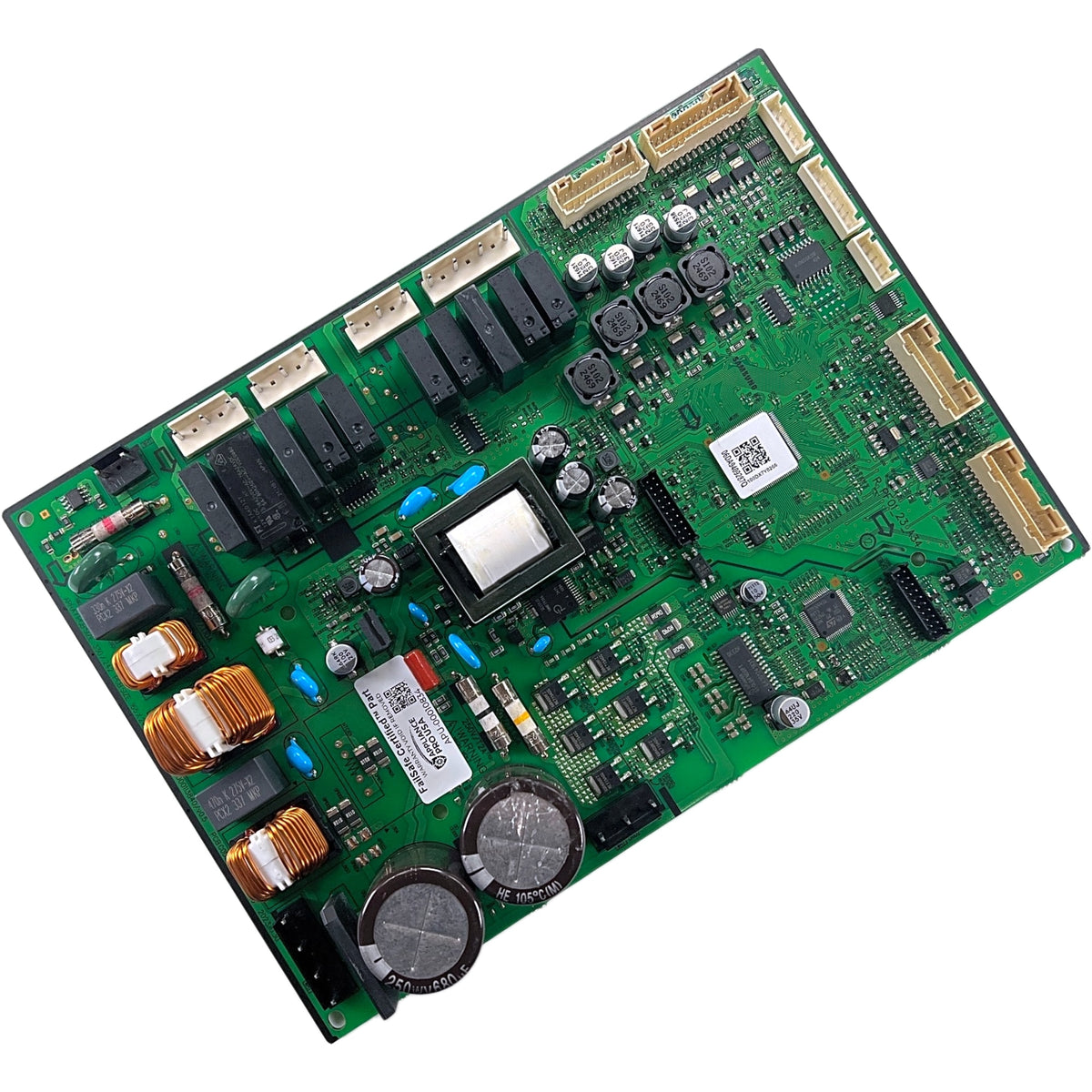

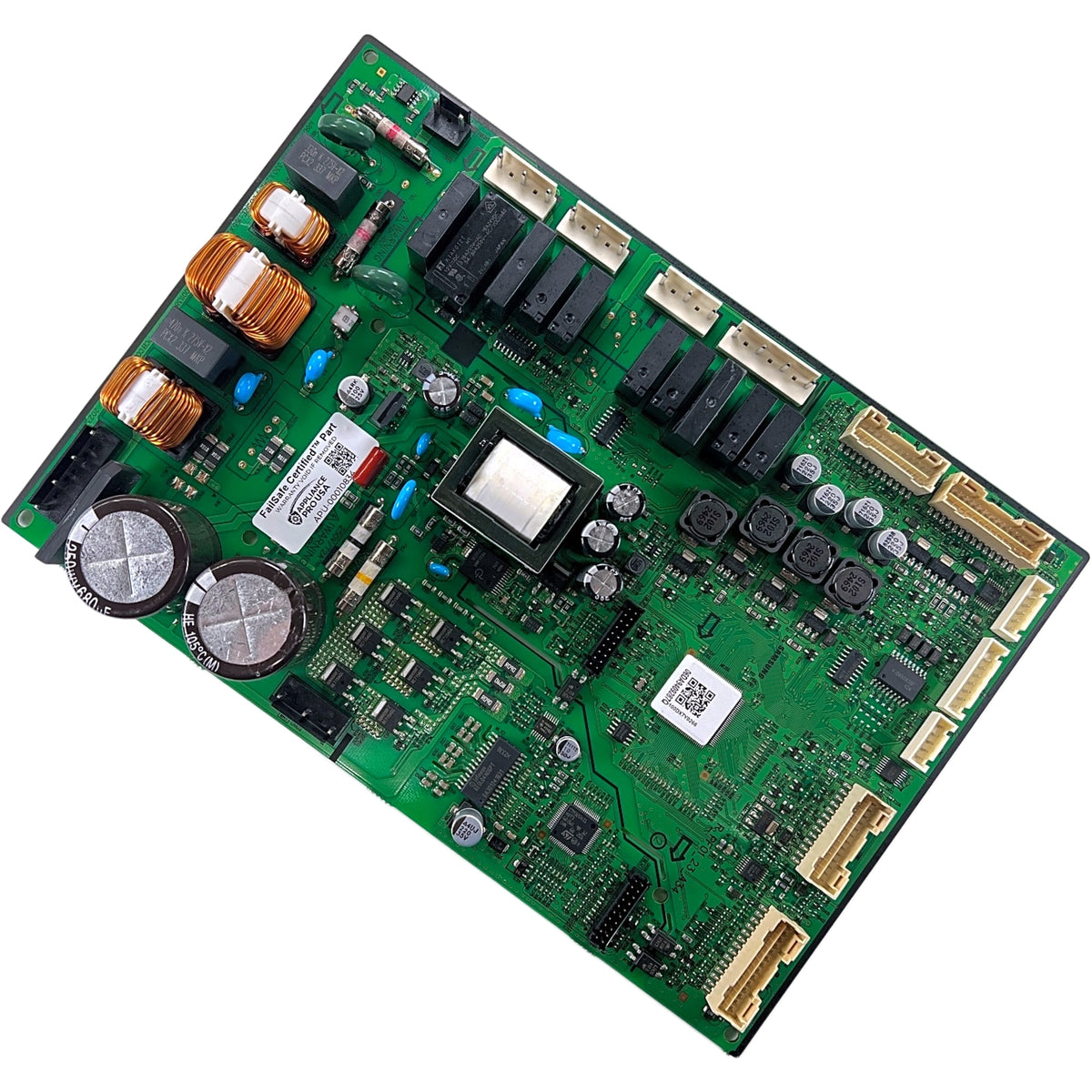

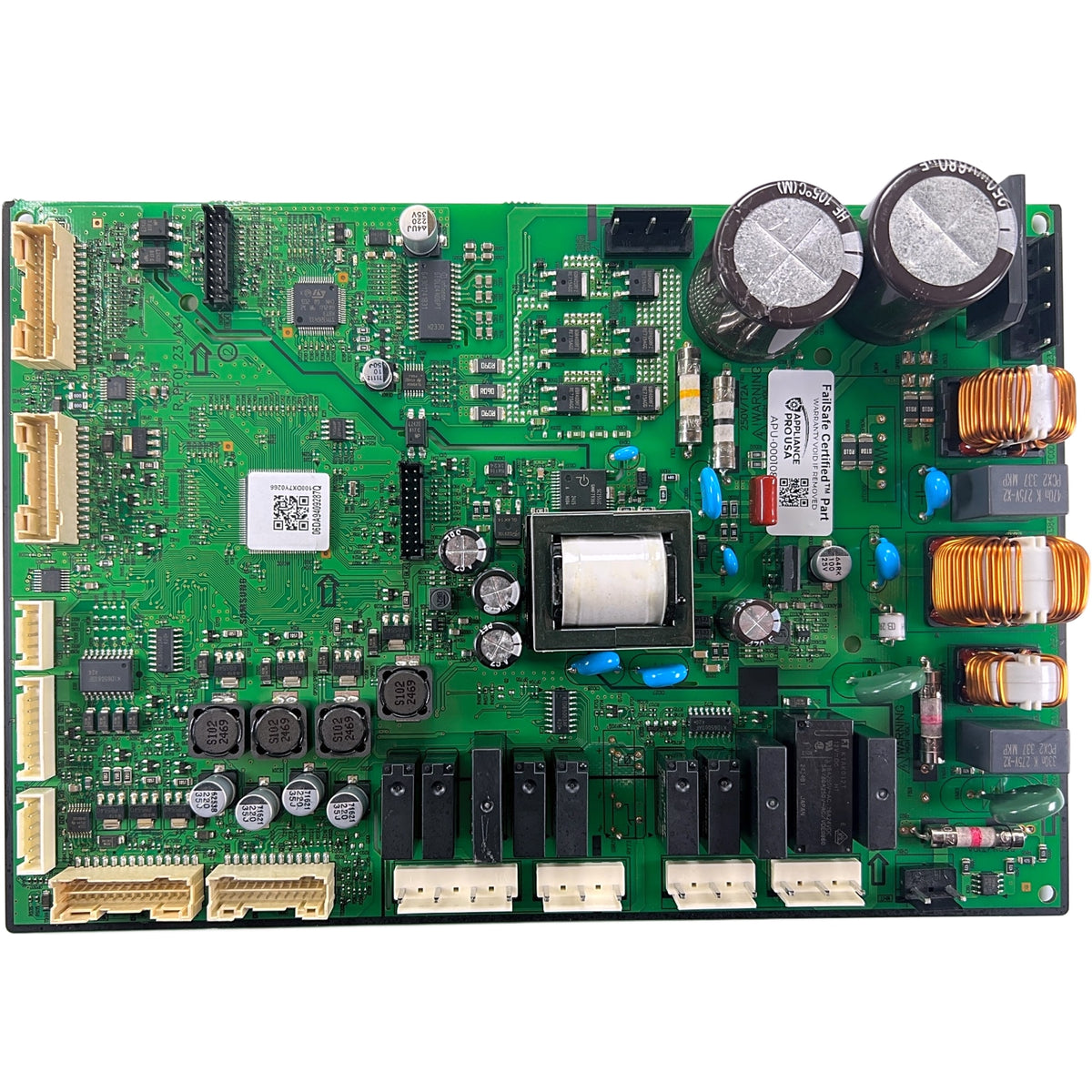

The DA94-09287Q is Samsung's main power control board for RF9000D-series French-door refrigerators, mounted in the rear machine compartment near the compressor. This replacement control board reads the temperature sensors and switches the compressor, evaporator and condenser fans, and defrost heater to keep both the fresh food and freezer sections at the right temperature. FailSafe Certified and backed by a 1-year warranty from Appliance Pro USA.
What Does the DA94-09287Q Fix on a Samsung Refrigerator?
If your refrigerator is showing any of these problems, the main control board is a likely cause.
- Fridge section stays warm while the freezer keeps working fine
- Both the fridge and freezer have stopped cooling
- Display panel is blank, frozen, or won't respond to touch
- Compressor won't kick on, or it starts and stops on its own
- An error code shows up on the display
- Loud clicking or relay noise from the back of the unit with no cooling
These symptoms point to the refrigerator control board as the most likely cause - but appliances are complex systems, and the same symptoms can occasionally stem from a sensor, switch, wiring harness, or motor issue. If a technician has identified the control board, or you've ruled out those components yourself, this board is your fix. When in doubt, contact us before you order - we're happy to walk you through some troubleshooting, and a photo of your board is usually all we need. A diagnosis from a local appliance technician works too.
How Do I Know If This Is the Right Board for My Refrigerator?

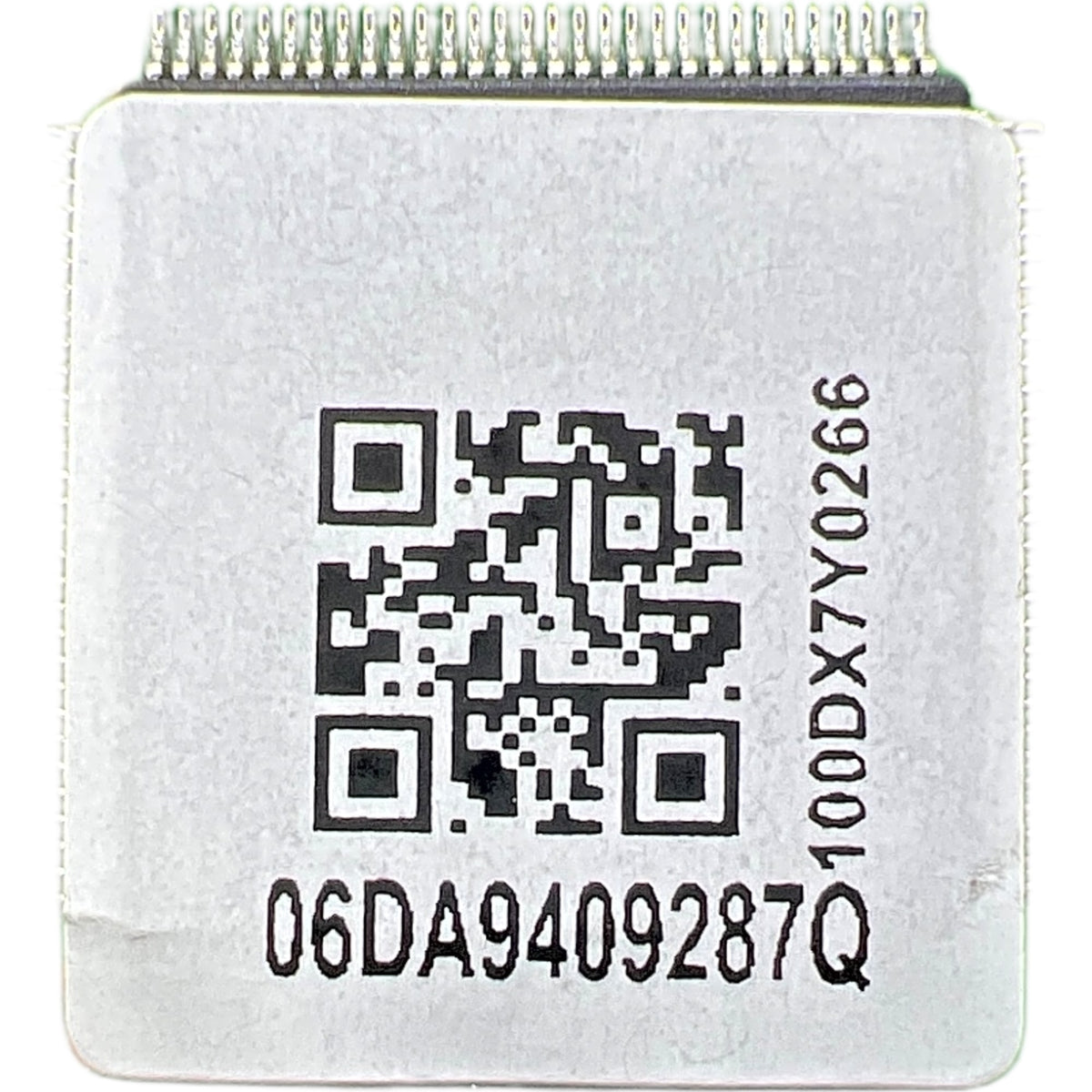

Check the white or silver sticker on the board itself, not just the model number on the door sticker. If it reads DA94-09287Q, this is your board. Pull the rear lower access panel to find it - it sits in the machine compartment near the compressor on these models. Your Samsung refrigerator part number is on the sticker on the original board - look for the DA41-, DA92-, or DA94- prefix.
Not sure? Send us a photo of your board and its sticker before you order and we'll verify it for free - same business day.
Compatible Refrigerator Models
This board is ordered by part number, not by appliance model. Send us your full model number and a photo of your board's sticker and we will confirm fitment before you buy - same business day.
This model list is for reference only. Samsung may change boards between production runs, so two appliances with the same model number can use different boards. Always order by the part number printed on your original board - it is the only identifier that decides.
Genuine OEM - FailSafe Certified™ Reconditioned
Every DA94-09287Q board from Appliance Pro USA is a genuine OEM Samsung board restored to reliable working condition through the FailSafe Precision Protocol™, our 4-step recertification process built around what actually fails on this board:
-
Failure Pattern Analysis - We've mapped the failure signatures specific to this board, identifying which components degrade and fail over time.
-
Targeted Component Replacement - The components this board is known to lose are replaced before they get the chance to fail.
-
Proactive Rebuild Standard - Known high-failure components are replaced with new parts on every board, regardless of whether they show a problem yet. Degraded parts don't ship.
-
Final Certification - Every board is tested and certified to our internal FailSafe Precision Protocol standard for function and lifespan before it ships.
Key Features
- Genuine OEM Samsung main control board - not an aftermarket copy
- Controls compressor cycling, fan operation, and defrost timing to regulate cooling
- FailSafe Certified and tested before it ships
- Minor cosmetic wear may be present due to prior installation - it does not affect performance
Board Type and Function
This is the brain of the refrigerator's cooling system. It takes readings from the temperature sensors in the fresh food and freezer compartments and uses them to switch the compressor, the evaporator and condenser fans, and the defrost heater on and off as needed. It also drives the display panel and manages ice maker and dispenser functions, which is why a bad board can show up as an error code or a dead display just as easily as a cooling complaint. When this board fails, the whole system loses its ability to regulate temperature correctly.
Common Samsung Refrigerator Error Codes
If your Samsung refrigerator is displaying an error code, the table below describes what it typically indicates. These are general Samsung codes and can vary by your exact model, so use this as a general guide. Codes marked ★ are most directly associated with main control board failure. Always confirm the exact meaning in your model's owner's manual or service guide before ordering any part.
| Code |
What It Means |
| ★ 41E / 41C / PC ER |
Communication failure between main control board and display panel |
| ★ 88 88 |
Control board communication loss - not demo mode. Reset first; if it returns, board diagnosis needed |
| ★ 83E |
Compressor abnormal current - board-managed compressor circuit fault |
| ★ 85E / 85C |
Low voltage error detected by main control board |
| 84C / 84E |
Compressor rotor locked - most severe Samsung error. Requires immediate professional service |
| 1E / SE |
Freezer temperature sensor failure |
| 2E |
Fresh food compartment temperature sensor failure |
| 4E |
Freezer defrost sensor failure |
| 5E |
Defrost function error / defrost sensor failure |
| 8E |
Ice maker sensor failure |
| 21E |
Freezer evaporator fan not running |
| 22E |
Fresh food evaporator fan not running |
| 23E |
Condenser fan failure |
| OF OF |
Demo mode active - cooling fully disabled. Not an error code |
| ★ 21 C / 22 C / 23 C |
Refrigerator, freezer, or defrost temperature sensor fault |
| ★ 1F / IF |
Ice maker fault |
| ★ No display / blank panel |
Loss of communication or power from the main control board to the display |
This table is general reference material. Error code definitions vary by Samsung model series. Always confirm the exact meaning in your refrigerator's owner's manual or service guide before purchasing any part.
★ = Most directly associated with main control board failure
How to Install a Samsung Refrigerator Main Control Board
Unplug the refrigerator or shut off power at the breaker before you start. Remove the rear lower access panel, usually held on with a few Phillips screws, to get at the board. Take a photo of the wiring harness before you unplug anything so you know exactly where each connector goes back. Touch a grounded metal surface or use an anti-static strap before handling the new board, since it's an EEPROM-based assembly that's sensitive to static. Swap the board, reconnect the harness, button up the panel, and restore power - most people are done in under 30 minutes. Give the unit a few hours to settle back into its cooling cycle before you judge whether the repair worked.
Shipping
Every board is physically in stock - no backorders, no drop shipping. Orders placed before 4:00 PM EST ship the same business day. Tracking provided on every order.
Warranty
Backed by a 1-year warranty from Appliance Pro USA (registration required - the card is in the box). If the board fails due to a defect within the warranty period, we'll repair or replace it at no charge (shipping fees may apply). Warranty coverage is determined at Appliance Pro USA's discretion. Boards that have been tampered with, or with our verification stickers or holograms removed or damaged, are not eligible for warranty coverage. Damage caused by improper installation, electrical surges, or physical damage is not covered.
Returns
Returns accepted within 30 days of purchase. Items must be returned in original condition. All returns may be subject to deductions for original and return shipping fees. Restocking and retesting fees may apply to opened or installed boards - these fees are waived for exchanges, though reshipping costs and any price difference between products will apply. Boards returned with physical damage, missing components, missing or damaged hologram stickers, or signs of improper installation may not be eligible for a full refund.
Important Installation Notes
This is not a universal control board - it is a direct replacement for the part number printed on your original board. Boards that look identical can be programmed differently, so always match the number on the sticker.
Some models may require a firmware update after installation; firmware updates and configuration changes should be performed by a qualified technician. Any board that has been flashed, reprogrammed, or had its firmware altered is not eligible for return or warranty coverage.
Installation is performed at your own risk. By installing this part yourself you assume all risk of the repair, and Appliance Pro USA is not responsible for damage to your appliance or property, lost or spoiled food, or injury occurring during or after installation. If you are not comfortable working around electrical components, have a qualified technician install this part. If there is ever an issue with the part itself, your remedy is repair, replacement, or refund under our warranty and return policies.
Even if you end up calling a pro, knowing your part number and symptoms before the tech arrives usually shortens the visit and the bill.
