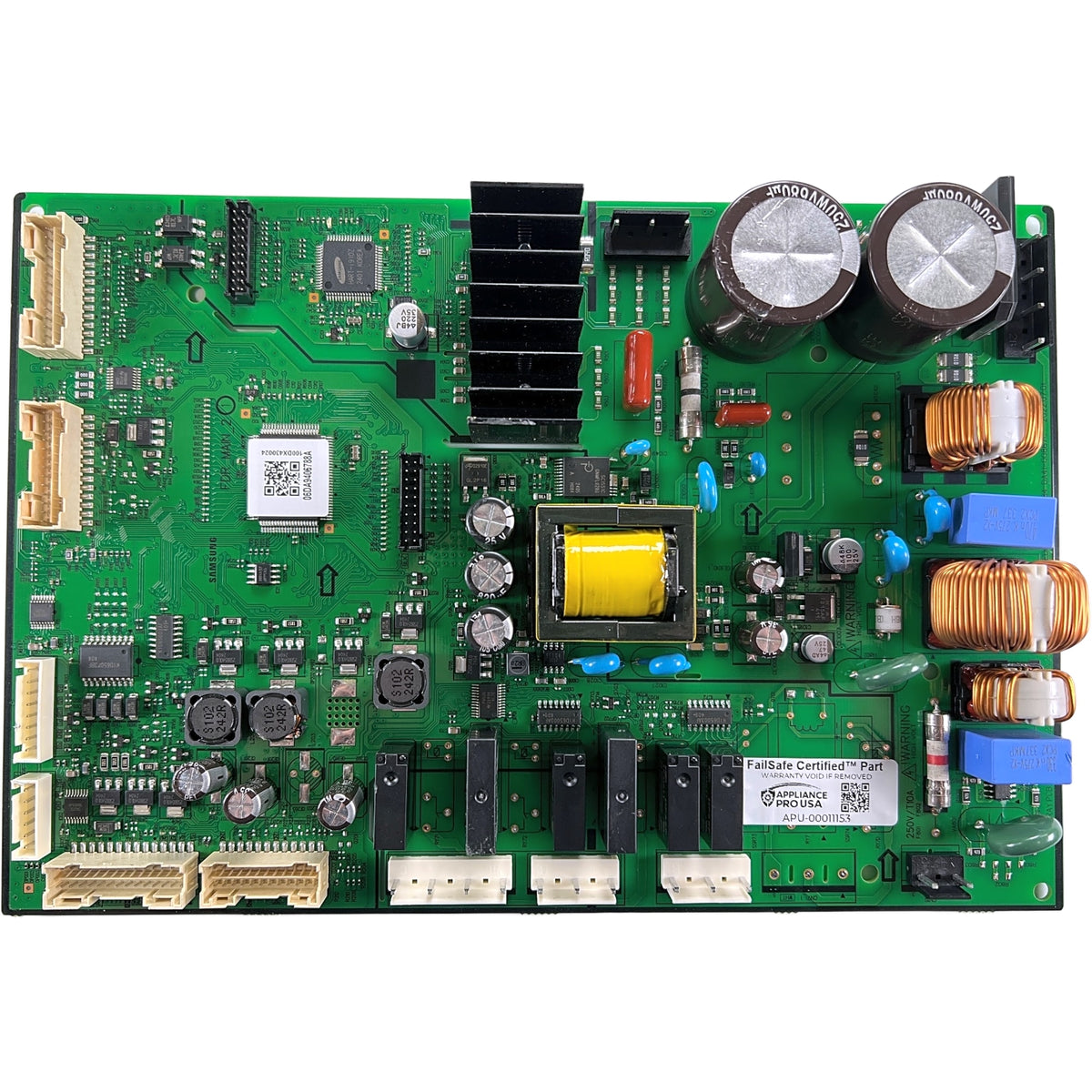

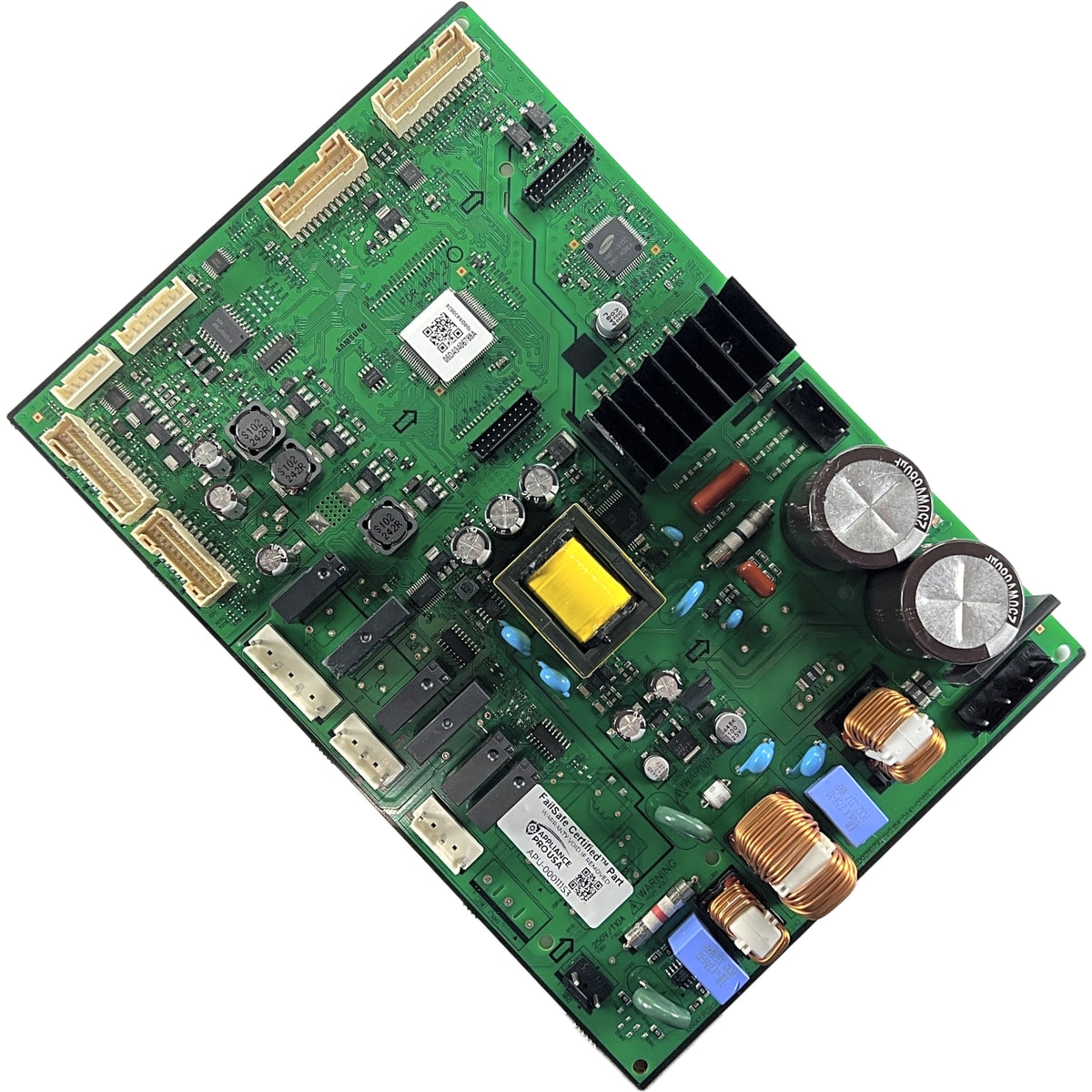

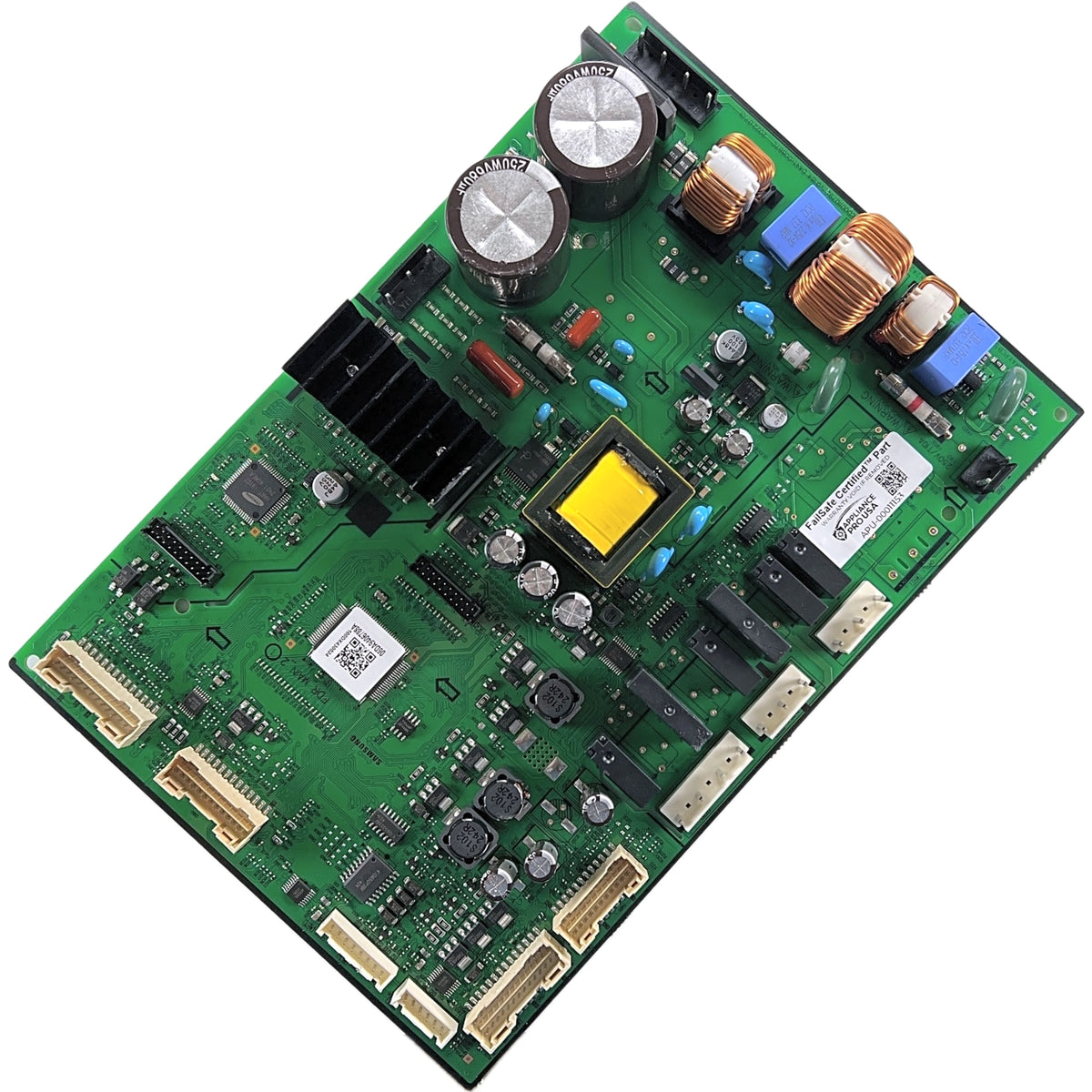

What Is the DA94-06788A Samsung Refrigerator Main Control Board Replacement?
The DA94-06788A is the main control board for Samsung French-door and bottom-mount refrigerators. It's housed inside the control board cover at the back of the unit or behind an interior access panel, and it governs the systems that keep the cabinet cold - temperature regulation, cooling cycles, and defrost timing. If your original board has failed, this replacement control board restores normal operation. FailSafe Certified and backed by a 1-year warranty from Appliance Pro USA.
What Does the DA94-06788A Fix on a Samsung Refrigerator?
If your refrigerator is showing any of the following, this board is a common cause:
- Refrigerator not cooling
- Control panel or display unresponsive or frozen
- Error codes showing on the display
- Compressor or fans not kicking on
- Temperature readings jumping around or inconsistent
- No power at all - refrigerator completely dead
These symptoms point to the refrigerator control board as the most likely cause - but appliances are complex systems, and the same symptoms can occasionally stem from a sensor, switch, wiring harness, or motor issue. If a technician has identified the control board, or you've ruled out those components yourself, this board is your fix. When in doubt, contact us before you order - we're happy to walk you through some troubleshooting, and a photo of your board is usually all we need. A diagnosis from a local appliance technician works too.

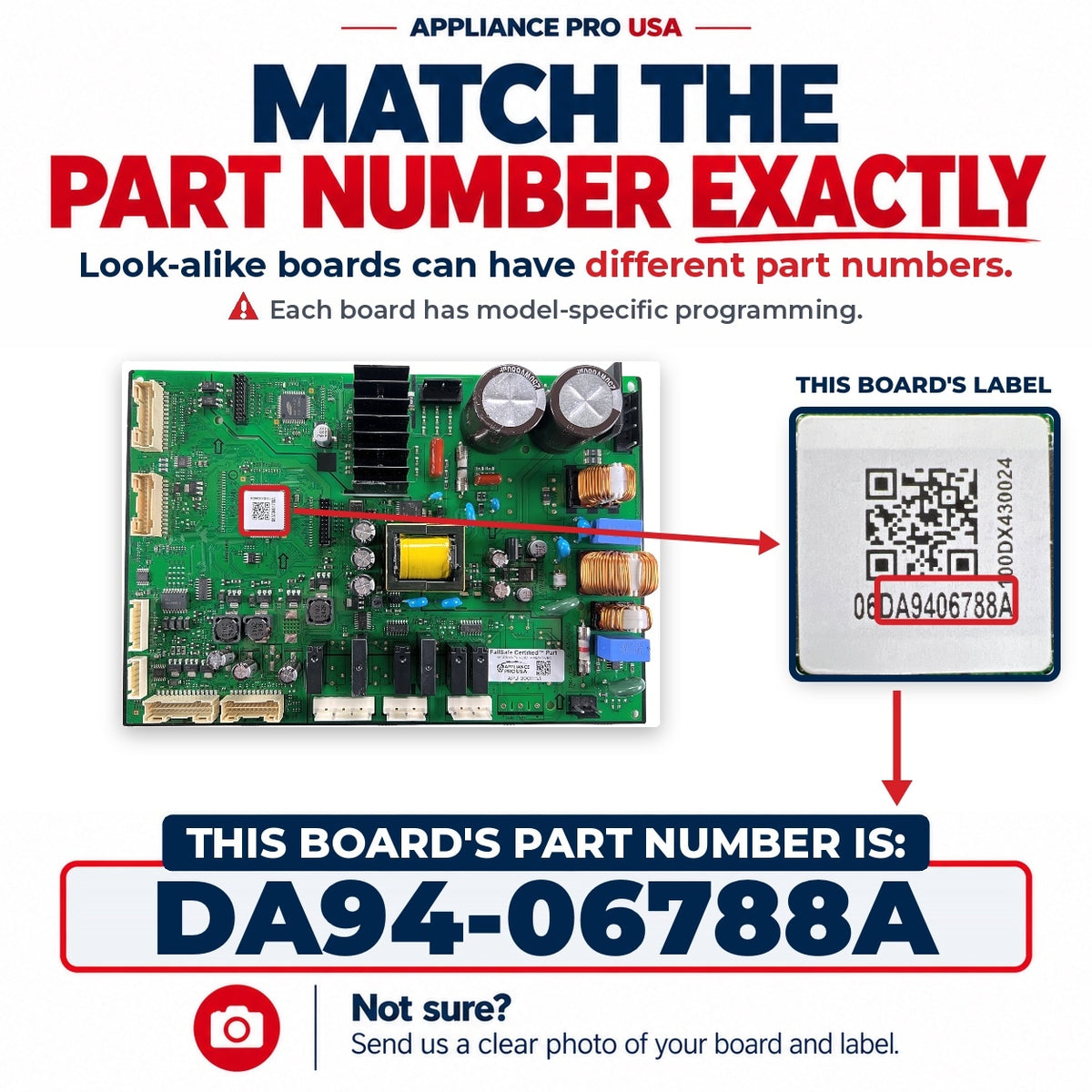

How Do I Know If This Is the Right Board for My Refrigerator?

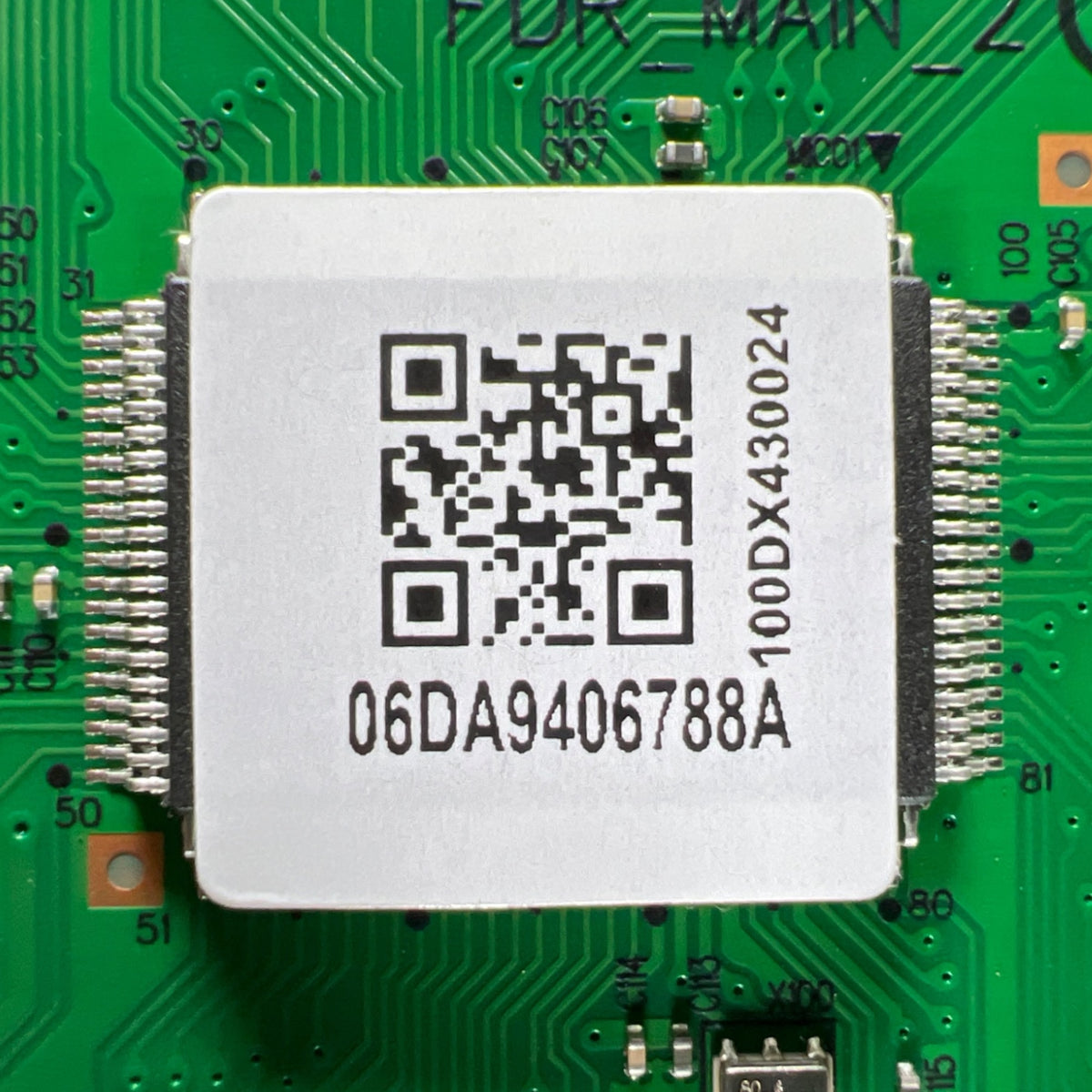

Before you order, pull the control board cover and check the sticker on the board itself, not just the model tag on the fridge. If you see DA94-06788A printed on that sticker, you've got the right board for your unit. Your Samsung refrigerator part number is on the sticker on the original board - look for the DA41-, DA92-, or DA94- prefix. On the board's sticker this number is printed without the dash, as DA9406788A, sometimes with a two-character lot code in front of it - it is the same part number.
Not sure? Send us a photo of your board and its sticker before you order and we'll verify it for free - same business day.
Compatible Refrigerator Models
This board is confirmed for the following Samsung refrigerator models:
| Confirmed Samsung models |
| RF29BB8900ACAA |
RF29BB8900AWAA |
RF29BB8900QKAA |
| RF29BB89008MAA |
RF29BB890012AA |
|
Additional Samsung models may also use this board - send us your model number and we will confirm it.
This model list is for reference only. Samsung may change boards between production runs, so two appliances with the same model number can use different boards. Always order by the part number printed on your original board - it is the only identifier that decides.
Genuine OEM - FailSafe Certified™ Reconditioned
Every DA94-06788A board from Appliance Pro USA is a genuine OEM Samsung board restored to reliable working condition through the FailSafe Precision Protocol™, our 4-step recertification process built around what actually fails on this board:
-
Failure Pattern Analysis - We've mapped the failure signatures specific to this board, identifying which components degrade and fail over time.
-
Targeted Component Replacement - The components this board is known to lose are replaced before they get the chance to fail.
-
Proactive Rebuild Standard - Known high-failure components are replaced with new parts on every board, regardless of whether they show a problem yet. Degraded parts don't ship.
-
Final Certification - Every board is tested and certified to our internal FailSafe Precision Protocol standard for function and lifespan before it ships.
Key Features
- Genuine OEM Samsung main control board - not an aftermarket copy
- FailSafe Certified for reliable performance
- Backed by a 1-year warranty from Appliance Pro USA
- Minor cosmetic wear may be present due to prior installation - it does not affect performance
Board Type and Function
This is the main control board for the refrigerator, meaning it's the brain behind day-to-day operation. It monitors internal temperature and cycles the compressor and fans to keep the fresh food and freezer sections at the right temperature. It also manages defrost timing so frost doesn't build up on the evaporator coil. When this board fails, you lose coordinated control over cooling, and that shows up as inconsistent temperatures, a dead unit, or a frozen control panel.
Common Samsung Refrigerator Error Codes
If your Samsung refrigerator is displaying an error code, the table below describes what it typically indicates. Codes marked ★ are most directly associated with main control board failure. These are general Samsung codes and can vary by your exact model. Always confirm the exact meaning in your model's owner's manual or service guide before ordering any part.
| Code |
What It Means |
| ★ 41E / 41C / PC ER |
Communication failure between main control board and display panel |
| ★ 88 88 |
Control board communication loss - not demo mode. Reset first; if it returns, board diagnosis needed |
| ★ 83E |
Compressor abnormal current - board-managed compressor circuit fault |
| ★ 85E / 85C |
Low voltage error detected by main control board |
| 84C / 84E |
Compressor rotor locked - most severe Samsung error. Requires immediate professional service |
| 1E / SE |
Freezer temperature sensor failure |
| 2E |
Fresh food compartment temperature sensor failure |
| 4E |
Freezer defrost sensor failure |
| 5E |
Defrost function error / defrost sensor failure |
| 8E |
Ice maker sensor failure |
| 21E |
Freezer evaporator fan not running |
| 22E |
Fresh food evaporator fan not running |
| 23E |
Condenser fan failure |
| OF OF |
Demo mode active - cooling fully disabled. Not an error code |
Error code definitions vary by Samsung model series. Always confirm the exact meaning in your refrigerator's owner's manual or service guide before purchasing any part.
★ = Most directly associated with main control board failure
How to Install a Samsung Refrigerator Main Control Board
Most people finish this install in under 30 minutes with basic hand tools. Unplug the refrigerator first, then locate and remove the control board housing cover, either at the back of the unit or behind an interior panel. Take a photo of the wiring harness connections before you start pulling anything apart - it makes reconnection straightforward. Disconnect each connector from the old board, swap in the new DA94-06788A, and reconnect everything securely before closing the cover back up. Handle the bare board by the edges and avoid touching the components, standard static precautions apply. Once it's buttoned up and plugged back in, give the refrigerator a few hours to stabilize before you judge whether the repair worked.
Shipping
Every board is physically in stock - no backorders, no drop shipping. Orders placed before 4:00 PM EST ship the same business day. Tracking provided on every order.
Warranty
Backed by a 1-year warranty from Appliance Pro USA (registration required - the card is in the box). If the board fails due to a defect within the warranty period, we'll repair or replace it at no charge (shipping fees may apply). Warranty coverage is determined at Appliance Pro USA's discretion. Boards that have been tampered with, or with the verification seal (hologram or tamper-evident sticker) removed or damaged, are not eligible for warranty coverage. Damage caused by improper installation, electrical surges, or physical damage is not covered.
Returns
Returns are accepted within 30 days of delivery. Boards that are unopened and uninstalled, in original condition with the verification seal (hologram or tamper-evident sticker) intact, qualify for a full refund. If the board has been opened or installed, contact us before sending it back with a photo of the board you received, the reason for the return, and a photo of your original board's part-number label so we can verify fitment and approve the return. Boards returned used, altered, damaged, or with the verification seal missing may receive a partial refund in line with our return policy. Exchanges for the correct part are always available.
Not sure it's the board? Before you order, and before you return, contact us. We offer free troubleshooting help and can usually tell from a photo of your board and its symptoms whether this is the right part. Only a technician can fully diagnose your appliance.
