What Is the A15633102 Frigidaire Refrigerator Main Control Board Replacement?
The A15633102 is a replacement control board for Frigidaire refrigerators, mounted behind an access panel or lower front grille near the freezer drawer. It manages the compressor, defrost cycles, fan motors, and temperature regulation that keep the fridge and freezer running correctly. FailSafe Certified and backed by a 1-year warranty from Appliance Pro USA.
What Does the A15633102 Fix on a Frigidaire Refrigerator?
This board is commonly behind the following refrigerator problems:
- Refrigerator won't cool or runs constantly
- Freezer too cold or too warm
- Display panel blank, frozen, or unresponsive
- Error codes shown on control panel
- Compressor or fans fail to turn on
- Refrigerator short-cycling or clicking/humming noises
These symptoms point to the refrigerator control board as the most likely cause - but appliances are complex systems, and the same symptoms can occasionally stem from a sensor, switch, wiring harness, or motor issue. If a technician has identified the control board, or you've ruled out those components yourself, this board is your fix. When in doubt, contact us before you order - we're happy to walk you through some troubleshooting, and a photo of your board is usually all we need. A diagnosis from a local appliance technician works too.
How Do I Know If This Is the Right Board for My Refrigerator?

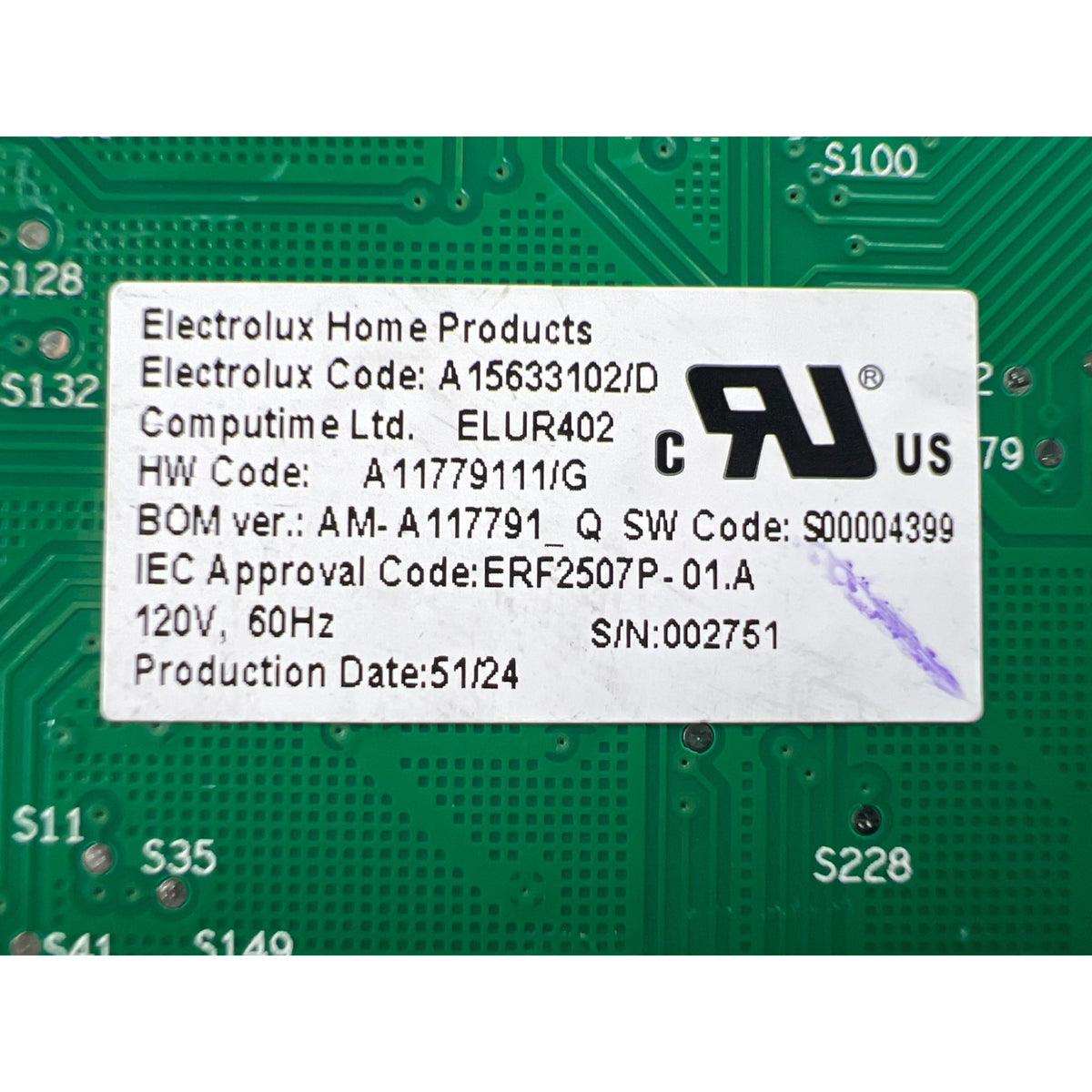

Check the sticker on your original board before ordering - it will carry the part number A15633102 if this is the correct replacement for your unit. The board is usually found behind the lower front grille near the freezer drawer or on the rear of the cabinet, so you may need to pull the freezer drawer and remove the grille to see it clearly.
Not sure? Send us a photo of your board and its sticker before you order and we'll verify it for free - same business day.
Compatible Refrigerator Models
This board is ordered by part number, not by appliance model. Send us your full model number and a photo of your board's sticker and we will confirm fitment before you buy - same business day.
This model list is for reference only. Frigidaire may change boards between production runs, so two appliances with the same model number can use different boards. Always order by the part number printed on your original board - it is the only identifier that decides.
Genuine OEM - FailSafe Certified™ Reconditioned
Every A15633102 board from Appliance Pro USA is a genuine OEM Frigidaire board restored to reliable working condition through the FailSafe Precision Protocol™, our 4-step recertification process built around what actually fails on this board:
-
Failure Pattern Analysis - We've mapped the failure signatures specific to this board, identifying which components degrade and fail over time.
-
Targeted Component Replacement - The components this board is known to lose are replaced before they get the chance to fail.
-
Proactive Rebuild Standard - Known high-failure components are replaced with new parts on every board, regardless of whether they show a problem yet. Degraded parts don't ship.
-
Final Certification - Every board is tested and certified to our internal FailSafe Precision Protocol standard for function and lifespan before it ships.
Key Features
- Genuine OEM Frigidaire main control board - not an aftermarket copy
- Controls compressor operation, defrost cycles, fan motors, and temperature regulation
- Mounts behind the lower front grille or rear access panel for straightforward replacement
- Minor cosmetic wear may be present due to prior installation - it does not affect performance
Board Type and Function
This main control board is the electronic brain of the refrigerator, coordinating compressor cycling, defrost timing, and fan motor operation so the unit maintains proper temperature. It reads input from sensors and the display panel, then sends the signals that start and stop cooling components as needed. When this board fails, you can see symptoms ranging from a blank or unresponsive display to a compressor or fans that won't turn on at all, along with error codes showing on the control panel.
How to Install a Frigidaire Refrigerator Main Control Board
Start by unplugging the refrigerator for safety. Pull out the freezer drawer and remove the lower grille to expose the control board housing, then pry the housing down and forward to release it. Take note of how each wire harness connector is oriented before disconnecting anything - some models also have a test-port plug and a retaining tab that need to be released along with the old board. Snap the new board into place, reconnect the harnesses in their original positions, replace the test port plug, and reinstall the grille. Most people finish this job in under 30 minutes with a basic screwdriver. Once everything is buttoned back up, give the refrigerator some time to cycle and reach temperature before judging whether the repair worked.
Shipping
Every board is physically in stock - no backorders, no drop shipping. Orders placed before 4:00 PM EST ship the same business day. Tracking provided on every order.
Warranty
Backed by a 1-year warranty from Appliance Pro USA (registration required - the card is in the box). If the board fails due to a defect within the warranty period, we'll repair or replace it at no charge (shipping fees may apply). Warranty coverage is determined at Appliance Pro USA's discretion. Boards that have been tampered with, or with the verification seal (hologram or tamper-evident sticker) removed or damaged, are not eligible for warranty coverage. Damage caused by improper installation, electrical surges, or physical damage is not covered.
Returns
Returns are accepted within 30 days of delivery. Boards that are unopened and uninstalled, in original condition with the verification seal (hologram or tamper-evident sticker) intact, qualify for a full refund. If the board has been opened or installed, contact us before sending it back with a photo of the board you received, the reason for the return, and a photo of your original board's part-number label so we can verify fitment and approve the return. Boards returned used, altered, damaged, or with the verification seal missing may receive a partial refund in line with our return policy. Exchanges for the correct part are always available.
Not sure it's the board? Before you order, and before you return, contact us. We offer free troubleshooting help and can usually tell from a photo of your board and its symptoms whether this is the right part. Only a technician can fully diagnose your appliance.
