WR55X30806 GE French-Door Refrigerator Main Control Board: WR55X46805 Supersession, Symptoms and Install Guide

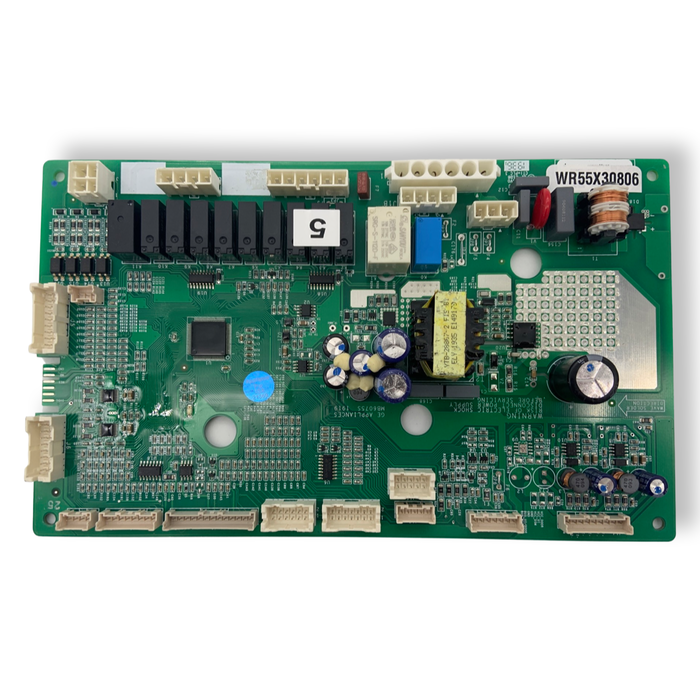

The WR55X30806 main control board runs the compressor, both fans, the defrost cycle and the ice and water functions on GE French-door refrigerators. If the fresh food side is warm, the ice maker has quit, the lights are dark or the refrigerator does nothing at all, this is the board behind it once the cheaper parts check out. GE has since retired WR55X30806 and moved the line onto WR55X46805, and the next section covers what that means for your order. Send us a photo of your board sticker if you want it confirmed first.

Is the WR55X30806 the Same Board as the WR55X46805?

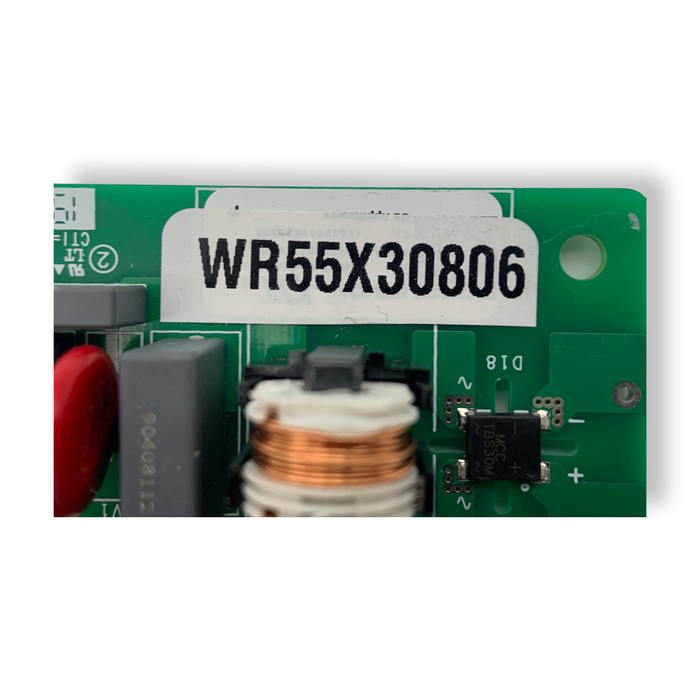

GE puts more than one kind of number on a refrigerator control board. WR55X30806 is the service number, the code GE and the parts suppliers stocked this board under, and on most of these boards it is printed right there on the white label. Some labels in the same family also carry a longer factory production code beginning 197D, which is GE's own build number for that exact version.

That supersession is the part worth understanding before you order. GE stopped supplying WR55X30806 and moved the whole line onto WR55X46805, so a new board bought anywhere today arrives under the newer number. Appliance Pro USA still supplies the WR55X30806 itself. Either way the answer starts at your label, so read it before you order.

This is not a universal board. It is a direct replacement for the part number printed on your original board. Boards that look identical may be programmed differently, so match your sticker first.

Which GE Refrigerators Take the WR55X30806 Main Control Board?

Model Number Check

Quick Lookup

Check

Email Our Team Send a Photo for Verification

Zoom

Find the white label first

Every character of the number is on that label, and it is the only thing that settles the fit. Take the photo while the board is still bolted in place.

⚠Order right the first time: Opened or installed boards may carry a restocking and retesting fee, so compare the sticker before you open the anti-static bag. Hold yours next to WR55X30806 and check it character by character.

Wherever it fits, the board sits in the same spot: low on the back of the refrigerator, behind a small access panel.

This model list is for reference only. GE may change boards between production runs, so two refrigerators with the same model number can use different boards. Always order by the part number printed on your original board, it is the only identifier that decides. Models in this range begin CFE, CWE, CYE, DFE, GFD, GFE, GFS, GNE, GWE, GYE, GYS, PFD, PFE, PFH, PWE, PYD, PYE or ZWE, so check yours against the list above if it starts with one of those.

GE Fridge Warm, Dark or Dead: Is It the WR55X30806?

Pull the plug before you take a panel off. These are the faults that send people looking for this board.

• Fresh food side warm while the freezer still holds
• Nothing at all when the door opens, no light and no display
• Frost building on the back wall of the freezer compartment
• Ice maker and water dispenser dead at the same time
• Interior LED lights dark or flickering on their own
• Fans pulsing on and off, or a compressor that never picks up

There is no published fault-code table for the main board on these refrigerators, so the way in here is the symptom rather than a code. Work the list above. If your panel does put something up, look up what it means in your owner's manual before you order any part.

How Is the WR55X30806 Control Board Changed on a GE French-Door Refrigerator?

New Board Fitted and the GE Fridge Is Still Warm: What Now?

What Kills a GE Refrigerator Control Board, and How Do You Stop It?

While you are back there, three quick checks help your new board live a long life.

• Give the refrigerator a surge protector. A lightning hit, a utility fault, a generator changeover or a run of short outages one after another all put a spike straight onto the board. A protector rated for a large appliance costs far less than a board and a freezer full of spoiled food.
• Vacuum out the machine compartment. The condenser coil and its fan share the bottom of the back with the board. Choked with dust, the compressor and the fan run longer and hotter, and the board sits in that heat all day. Clear it while the panel is already off.
• Look for water where there should be none. A blocked defrost drain or a weeping water valve drips into the housing the board lives in. Dry it out, look for staining or a white crust on the plastic, and deal with the leak before the panel goes back on.

Which Parts Are Worth Changing While the Panel Is Off?

Why Are Appliance Pro USA Boards So Reliable?

Boards are supplied from tested stock and may show minor cosmetic wear. Every board is verified fully functional before shipping.
