W10811365 Whirlpool Refrigerator Main Control Board: Symptoms, Model Fit and Install Guide
Whirlpool fridge not cooling, dead on restart, or caked with frost? This guide covers which number to order by, confirmed model fit, five checks before you buy, and the swap.
20,000+ control boards restored at the bench
✓ FailSafe CertifiedClick to enlarge
Is W10811365 the Right Whirlpool Refrigerator Board Number?

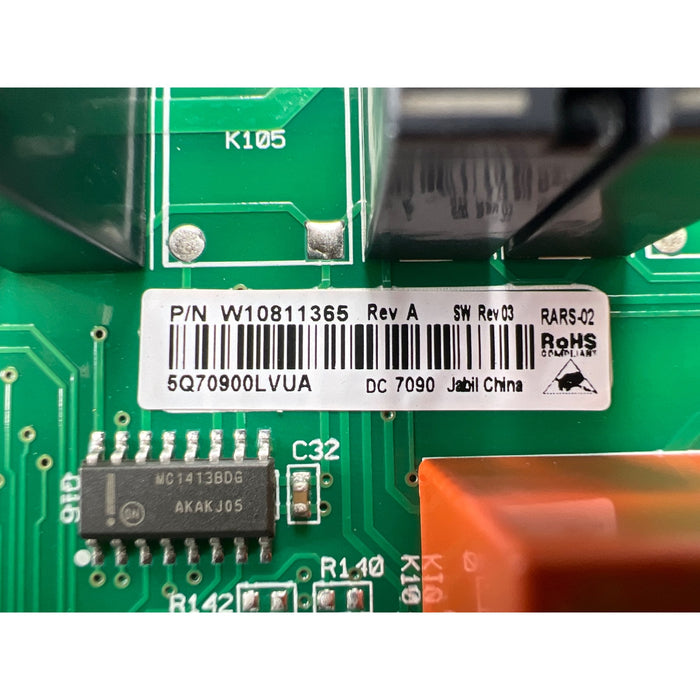

The sticker carries the full production number, including every letter and digit. Numbers printed on the board itself are component references, not the part number.
Whirlpool has pushed this part through more than one revision since W10811365 shipped, so a later board can carry a different number on its label. Size, connector layout and mounting points should still match the board you removed. If anything looks off, stop before installing and send us both photos: the board that came out with all of its stickers, and the one that arrived.

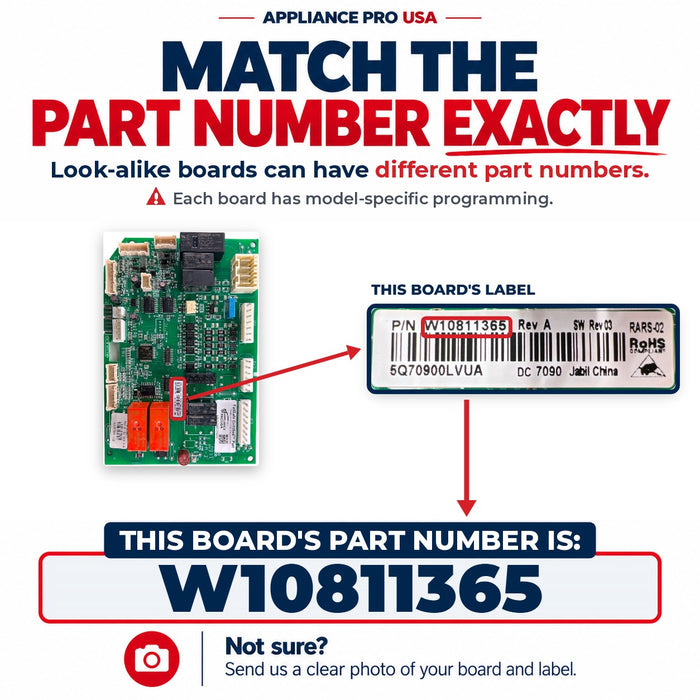

This is not a universal main control board - it is a direct replacement for the part number printed on your original board. Boards that look identical can be programmed differently, so always match the number on the sticker.
Which Whirlpool Refrigerators Take the W10811365 Main Control Board?
Not listed? A missing model is not the same as incompatible. Go by the sticker on your old board, or use the check above and send us a photo.
This board sits in the rear or base machine compartment area behind an access panel near the back of the cabinet, with exact placement depending on your model. This model list is for reference only. Whirlpool may change boards between production runs, so two refrigerators with the same model number can use different boards. Always order by the part number printed on your original board - it is the only identifier that decides.
Opened or installed boards may carry a restocking and retesting fee, so compare the sticker before you open the anti-static bag. Hold yours next to W10811365 and check it character by character.
W10811365: Is Your Whirlpool Fridge Not Cooling Because of This Board?
These checks help you rule out the common causes before you order. Only a qualified technician on site can confirm the fault in your refrigerator. Unplug the refrigerator before you take any panel off, and stop at any step you are not comfortable with.
This board does not drive a code display, so you will not see an error number for it. Diagnose by symptom instead.
Let's verify it is the board by checking the common parts that contribute to these failures. They are inexpensive, easy to check, and ruling them out means you order once, with confidence.
Confirm the number on your sticker
Read the number on your board's sticker before you do anything else. If it matches W10811365, or one of its listed cross numbers, this is your board.
Check the outlet and the cord
Confirm the outlet is live and the cord and plug are not damaged. A dead unit is not always a dead board.
Test the temperature sensors
A sensor that reads short or open feeds the board bad information, and that is not the board's fault. Compare each sensor's reading against the chart on the tech sheet, the wiring and test chart packed inside the appliance.
Check the defrost heater and fuse
Heavy frost on the evaporator coil often points to a defrost heater or thermal fuse that has failed open. Both should show continuity.
Check the evaporator and condenser fans
A fan that drags or has stopped spinning makes the board look like the problem when it is not. Spin each fan by hand and listen for a free, even turn.
Once the sticker, the sensors, the defrost parts and the fans all check out, the board is what is left. You need a replacement main control board, and you order it once by matching the number on your sticker. A sensor or fan that failed months ago may have been stressing this board the whole time it limped along. Keep a spare on the shelf, since this number is already discontinued and harder to find each year.
How Do You Replace the W10811365 Whirlpool Refrigerator Main Control Board?
Repair times and difficulty levels are general estimates and may vary by model, tool availability, and experience. This is provided as general guidance only and is not a substitute for professional service. Food is normally fine during a typical install, but we highly recommend moving it to a cooler with ice as a precaution - Appliance Pro USA is not responsible for lost or spoiled food.
Disconnect power at the wall first. Move any food that could spoil out of the unit while you work.
Take off the rear or base panel covering the control board compartment. Set the screws aside where you will not lose them.
Shoot the board with all harnesses still plugged in. This photo is your map for reconnecting everything in the same spot.
Note or label each connector position as you remove it. Handle the board by its edges and use standard anti-static precautions.
Set the old board aside until the new one is confirmed working.
Match each connector to its original slot from your photo. Replace the mounting screws and refit the access panel.
- ✓I matched the number on my sticker before ordering
- ✓I confirmed the outlet and cord are good
- ✓I tested the temperature sensors against the tech sheet
- ✓I checked the defrost heater, fuse and both fans
- ✓I photographed every harness connector before unplugging it
This board goes in as a straight swap on the models we have on record. No programming or setup step is needed after you reconnect the harnesses. Give the refrigerator several hours at a normal setting before you judge it. The 5-mil nitrile gloves in the box give grip and some protection, but they are not cut-proof. Hold the board by its edges and mind the sheet-metal edges of the cover.
Still Not Cooling After You Installed the W10811365?
Clicks and relay sounds are normal. The compressor may stay off for several minutes as a protection delay.
Fans run, compressor hums, and cold air shows up in the freezer first.
Both sections reach near set temperature. Do not load warm groceries before this.
Temperatures stabilize and the ice maker resumes. Now decide whether anything is wrong.
Once power is back on, the board compartment is live. Do not reach into it or reseat a plug with the refrigerator plugged in. Unplug first, every time.
Check the board against your photo
Size, connector layout and mounting points should match the board you removed. Send us both photos if anything looks different.
Reseat every harness
A connector pushed in one position off its slot acts like a dead board. Match each one to your photo from before.
Recheck the temperature sensors
A sensor already going bad hands the new board the same wrong reading it gave the old one.
Recheck the defrost heater and fuse
If either failed open before the swap, a new board alone will not clear thick frost on the coil.
Still stuck? Talk to us before you return anything
Give the fridge several hours at a normal setting, then reach out with your symptom and photos. Troubleshooting is free.
The troubleshooting steps above are general guidance only and may not apply to every model or situation. If you are unable to resolve the issue after following these steps, we recommend contacting our team or consulting a qualified appliance technician before taking further action.
How Do You Help Your New W10811365 Control Board Last?
Protect against power surges
A lightning strike, utility fault or generator changeover sends a spike straight through the board. A basic surge protector on the outlet is cheap insurance.
Keep the coils and fans clean
A dusty condenser coil makes the compressor and fans run longer and hotter, and the board runs hot right along with them.
Watch for moisture near the panel
A clogged defrost drain or a leaking water line can drip into the board compartment. Wipe the area dry and check for staining.
What Else Is Worth Checking While the W10811365 Is Out?
Temperature sensors Do it now
Inexpensive and already exposed once the panel is off. A bad reading here makes a good board look faulty.
Defrost heater and thermal fuse On frost
Already accessible with the rear panel open. Getting back to them later means another full teardown.
Evaporator and condenser fans If noisy
A fan with a worn bearing runs hot and drags on the board driving it. Replace it if it rumbles or drags.
Wire harness connectors Quick check
Years of heat can leave a connector brittle or loose. Check each one for a snug, clean fit while you have access.
Why Are Appliance Pro USA Boards So Reliable?
Failure Pattern Analysis
We've mapped the failure signatures specific to this board, identifying which components degrade and fail over time.
Targeted Component Replacement
The components this board is known to lose are replaced before they get the chance to fail.
Proactive Rebuild Standard
Known high-failure components are replaced with new parts on every board, regardless of whether they show a problem yet. Degraded parts don't ship.
Final Certification
Every board is certified to our internal FailSafe Precision Protocol standard before it ships.
Why Buy the W10811365 from Appliance Pro USA?
Appliance technician? MarkUp Pro members get professional pricing on every order, applied automatically once approved. Learn about MarkUp Pro
Warranty coverage is determined at Appliance Pro USA's discretion. Boards that have been tampered with, or with our verification stickers or holograms removed or damaged, are not eligible for warranty coverage. Any board that has been flashed, reprogrammed, or had its firmware altered is not eligible for return or warranty coverage. Opened or installed boards may carry a restocking and retesting fee, so compare the sticker before you open the anti-static bag. Minor cosmetic wear may be present due to prior installation - it does not affect performance.
What Else Do People Ask About the W10811365?
Why does searching W10811365 turn up so little?
Whirlpool discontinued W10811365 and moved the part forward to WPW10675033. Search either number; both point back to the production number on your sticker, which is the one that decides fit.
What ships in the box with the W10811365?
The board sealed in an anti-static bag, the Quick Start Guide, a pair of 5-mil nitrile install gloves, and the warranty registration card.
My replacement board looks different from the one I took out. Is it wrong?
Stop before you install it. Compare size, connector layout and mounting points against the board you removed. Send us a photo of the board you removed with all of its stickers and a photo of the one that arrived, and we will confirm before you go further.
I ordered the wrong board. What now?
Leave the bag sealed and contact us first. An exchange is the fastest path. Opened or installed boards may carry a restocking and retesting fee.
Does the W10811365 need programming or setup after I install it?
No. This board goes in as a straight swap with no programming step on the models we have on record. Give the fridge several hours before you judge the result. Any board that has been flashed, reprogrammed, or had its firmware altered is not eligible for return or warranty coverage.
Is the W10811365 still available new from Whirlpool?
Whirlpool has discontinued this number and moved production forward to WPW10675033. APU ships a genuine board under whichever number matches current supply.
My Whirlpool fridge is completely dead. Is it the board?
Check the outlet, cord and breaker first. If power is good and nothing inside responds, the board is a strong candidate, and the checks above take just a few minutes.
