W10665178 Whirlpool Refrigerator Inverter Board: Compressor Symptoms, Fitment and Install Guide
Whirlpool refrigerator not cooling, compressor won't start, or the unit shuts off on its own? This guide covers the right number to order, confirmed fitment, five checks before you buy, and the swap for the W10665178 inverter board.
20,000+ control boards restored at the bench
✓ FailSafe CertifiedClick to enlarge

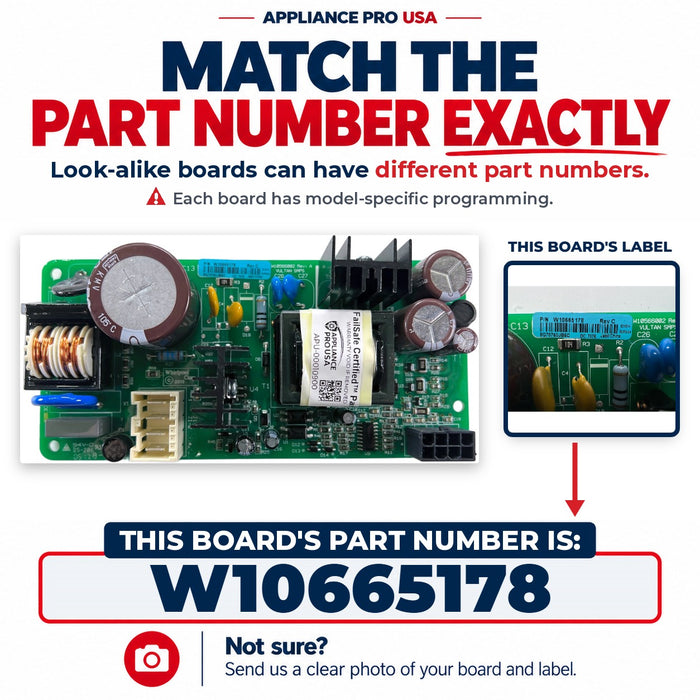

W10665178 Whirlpool Refrigerator Inverter Board: What Number Should You Order By?
Whirlpool prints the production number in full on the white label. Match every character, including any suffix, before you order.
This board has been superseded by a newer production number, so a later label or slightly different printing can show up. Size, connector layout and mounting points must still match the board you removed. If anything looks off, pause before you install it and send us both photos: the removed board with all its stickers, plus the new arrival.
This is not a universal inverter board - it is a direct replacement for the part number printed on your original board. Boards that look identical can be programmed differently, so always match the number on the sticker.
Which Whirlpool Refrigerators Use the W10665178 Inverter Board?
Not listed? A missing model is not the same as incompatible. Go by the sticker on your old board, or use the check above and send us a photo.
The board sits at the rear of the refrigerator in the compressor compartment, behind the rear access panel near the compressor and fan wiring. This model list is for reference only. Whirlpool may change boards between production runs, so two refrigerators with the same model number can use different boards. Always order by the part number printed on your original board - it is the only identifier that decides.
Opened or installed boards may carry a restocking and retesting fee, so compare the sticker before you open the anti-static bag. Hold yours next to W10665178 and check it character by character.
Refrigerator Not Cooling? Is It the W10665178 Inverter Board or Something Else?
These checks help you rule out the common causes before you order. Only a qualified technician on site can confirm the fault in your refrigerator. Unplug the refrigerator before you take any panel off, and stop at any step you are not comfortable with.
This refrigerator does not show a digital error code for this failure. Diagnose by symptom instead.
Let's verify it is the board by checking the common parts that contribute to these failures. They are inexpensive, easy to check, and ruling them out means you order once, with confidence.
Confirm the number on your sticker
Read the full number on the sticker before anything else. If it matches W10665178, this is your board.
Check power at the outlet
Confirm the outlet is live and the breaker has not tripped. A unit with no response anywhere often points to power, not the board.
Test the temperature sensors
A shorted or open temperature sensor feeds the board bad information, and that is not the board's fault. Compare each sensor against the tech sheet, the wiring and test chart packed inside the appliance.
Check the compressor start relay and overload
A failing relay or overload can keep the compressor from starting and look like a dead board. Listen for a hum or click at the compressor, then check the relay with a meter.
Spin both fans by hand
A seized condenser or evaporator fan drags on the board driving it. Confirm each fan spins freely before you order a new board.
Once these check out the board is what is left. You need a replacement inverter board, and you order it once. A failed fan or relay can put extra strain on the board driving it, which may be why it failed in the first place. Keep a spare on the shelf and a warm refrigerator becomes a quick swap instead of a week of spoiled food.
How Do You Replace the W10665178 Whirlpool Refrigerator Inverter Board?
Repair times and difficulty levels are general estimates and may vary by model, tool availability, and experience. This is provided as general guidance only and is not a substitute for professional service. Food is normally fine during a typical install, but we highly recommend moving it to a cooler with ice as a precaution - Appliance Pro USA is not responsible for lost or spoiled food.
Disconnect power at the wall before you start. This protects you and the new board.
Pull off the panel covering the compressor compartment to expose the board.
Shoot the board with every harness still plugged in. Use this photo to reconnect everything correctly.
Ground yourself on the chassis first since this is a sensitive electronic part. Squeeze the connector tabs and pull each harness straight off.
Take out the screw or screws holding the board bracket in place, then lift the old board free.
Secure the new board with the mounting screw, then plug in each harness from your photo until it clicks.
- ✓I photographed my board sticker and read every character
- ✓I unplugged the refrigerator before opening the rear panel
- ✓I photographed the harness connections before unplugging anything
- ✓I touched bare metal before handling the new board
- ✓I checked every connector clicked back into place
On this board it goes in as a straight swap. We have not run into a programming step on a standard replacement. Give the refrigerator several hours before you judge the cooling. The 5-mil nitrile gloves in the box give grip and some protection, but they are not cut-proof. Hold the board by its edges and mind the sheet-metal edges of the cover.
Still Not Cooling After You Replace the W10665178?
Clicks and relay sounds are normal. The compressor may stay off for several minutes as a protection delay.
Fans run, compressor hums, and cold air shows up in the freezer first.
Both sections reach near set temperature. Do not load warm groceries before this.
Temperatures stabilize and the ice maker resumes. Now decide whether anything is wrong.
Once power is back on, the board compartment is live. Do not reach into it or reseat a plug with the refrigerator plugged in. Unplug first, every time.
Check the new board against your photo
Size, connector layout and mounting points should match the board you removed. If something looks different, stop and compare before you install it.
Recheck the harness connections
A connector seated one position off behaves like a dead board. Go back and confirm each plug is fully seated.
Retest the temperature sensors
A sensor stuck open or shorted hands the new board the same bad reading it gave the old one. Compare each one against the tech sheet packed inside the appliance.
Confirm the compressor start relay
If the relay or overload was marginal before, it is still marginal now. Check it again before you blame the new board.
Still stuck? Talk to us before you return anything
Give the refrigerator several hours at a normal setting, then message us with the symptom you are seeing. Troubleshooting is free.
The troubleshooting steps above are general guidance only and may not apply to every model or situation. If you are unable to resolve the issue after following these steps, we recommend contacting our team or consulting a qualified appliance technician before taking further action.
How Do You Help Your New W10665178 Inverter Board Last?
Surge protection
A power outage or lightning strike sends a spike straight through the board. Repeated short outages stress it more than one long one.
Clean the condenser coil
A dusty coil makes the compressor and fans run longer and hotter. The board runs hot right along with them.
Check for moisture near the board
A weeping water line or blocked drain can put moisture into the compressor compartment. Keep the area dry and look for staining.
Which Whirlpool Refrigerator Parts Are Worth Replacing With the W10665178?
Condenser fan motor If it rumbles
Sits in the same compartment and a worn bearing works the board harder. Check it while the panel is already off.
Start relay and overload On short-cycling
Mounted near the compressor and often fails around the same time as the board. Two minutes to check once the cover is off.
Temperature sensors Do it now
Inexpensive and easy to miss, but a bad sensor can make a good board look faulty.
Compressor If it hums only
If the compressor itself has an open winding or has seized, a new board will not fix it.
Why Are Appliance Pro USA Boards So Reliable?
Failure Pattern Analysis
We've mapped the failure signatures specific to this board, identifying which components degrade and fail over time.
Targeted Component Replacement
The components this board is known to lose are replaced before they get the chance to fail.
Proactive Rebuild Standard
Known high-failure components are replaced with new parts on every board, regardless of whether they show a problem yet. Degraded parts don't ship.
Final Certification
Every board is certified to our internal FailSafe Precision Protocol standard before it ships.
Why Buy the W10665178 from Appliance Pro USA?
Appliance technician? MarkUp Pro members get professional pricing on every order, applied automatically once approved. Learn about MarkUp Pro
Warranty coverage is determined at Appliance Pro USA's discretion. Boards that have been tampered with, or with our verification stickers or holograms removed or damaged, are not eligible for warranty coverage. Any board that has been flashed, reprogrammed, or had its firmware altered is not eligible for return or warranty coverage. Opened or installed boards may carry a restocking and retesting fee, so compare the sticker before you open the anti-static bag. Minor cosmetic wear may be present due to prior installation - it does not affect performance.
What Else Do People Ask About the W10665178?
Why does searching W10665178 bring up limited results?
Whirlpool has moved production to a newer number, W10830278, so some listings show the part under that number instead. W10665178 is still the number printed on earlier boards, so match your sticker first.
What ships in the box with the W10665178?
The board sealed in an anti-static bag, the Quick Start Guide, a pair of 5-mil nitrile install gloves, and the warranty registration card.
My replacement board looks different from the one I took out. Is it wrong?
Stop before installing and compare size, connector layout and mounting points against the board you removed. If anything is off, send us a photo of the board you removed with all of its stickers and a photo of the one that arrived, and we will confirm before you go further.
I ordered the wrong board. What now?
Leave the bag sealed and contact us first. An exchange is the fastest path. Opened or installed boards may carry a restocking fee.
Does the W10665178 need programming or setup after I install it?
On this board it goes in as a straight swap. Give the refrigerator several hours at a normal setting before you judge it. No programming step has come up on a standard replacement. Any board that has been flashed, reprogrammed, or had its firmware altered is not eligible for return or warranty coverage.

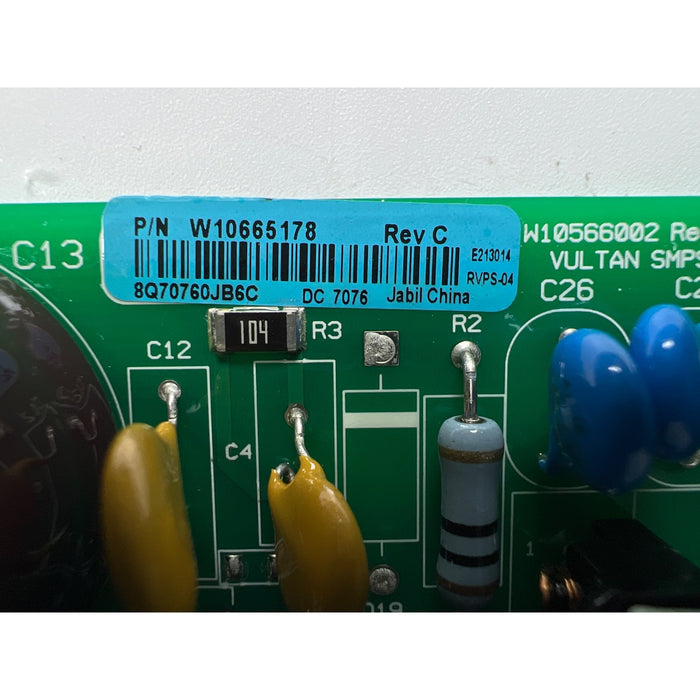

My board is stamped W10566002 instead. Is that the right part?
Some production runs of this board also carry W10566002 as a secondary visible number. This is normal for minor production revisions and does not change fitment. Match the full sticker to confirm.
My refrigerator is completely unresponsive. Is it the board?
Check the outlet and breaker first. If power is confirmed and the compressor still will not start, this board is a strong candidate.
What Should You Send Us for Fast Help?
Label inside the fresh food door or on the frame
The white sticker, every character readable
Clear and well lit, every plug connected
No power, error code, not cooling, clicking
