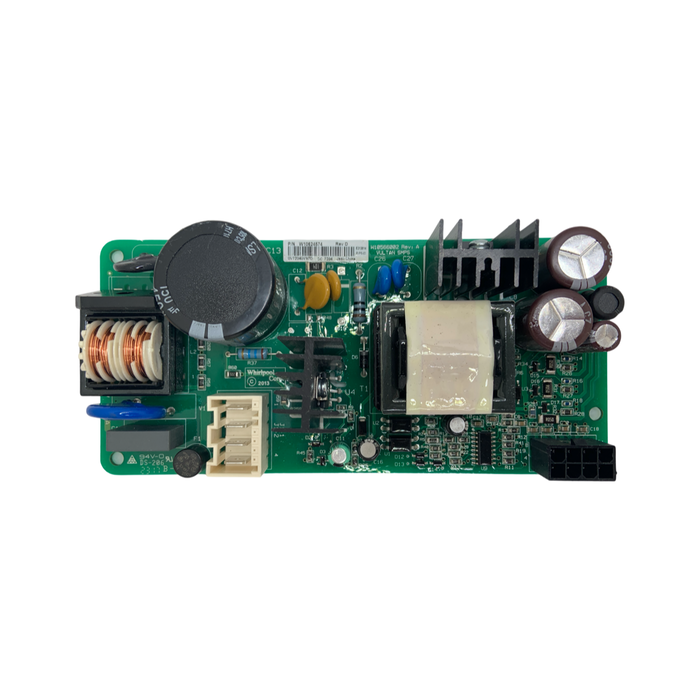

W10624574 Whirlpool Refrigerator Power Supply Board: Symptoms, Fitment and Replacement Guide
Whirlpool refrigerator not cooling, clicking, or won't restart after a power outage? This guide covers which number to order by, confirmed fitment, five checks before you buy, and the swap.
20,000+ control boards restored at the bench
✓ FailSafe CertifiedClick to enlarge
W10624574 vs WPW10624574: Which Number Do You Order By?

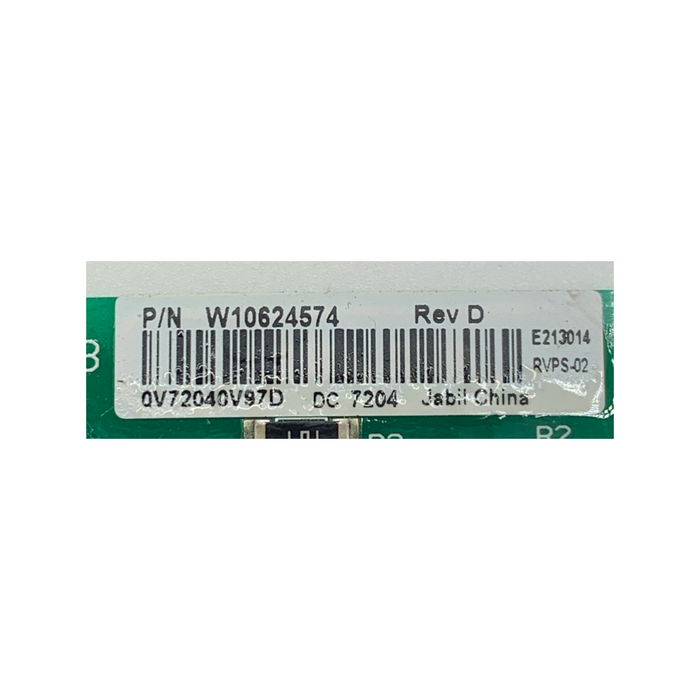

The number on the white label is what you match, not any text printed on the circuit board itself. Check it against your old board character by character, including any letter at the end.
W10624574 has been superseded by WPW10624574, so the board you receive may carry a later label than the one you pulled. Size, connector layout and mounting points should still match the board you removed. If anything looks off, stop and send us both photos: the board that came out with all of its stickers, and the one that arrived.
This is not a universal main control board - it is a direct replacement for the part number printed on your original board. Boards that look identical can be programmed differently, so always match the number on the sticker.
Which Whirlpool Refrigerators Use the W10624574 Power Supply Board?
Not listed? A missing model is not the same as incompatible. Go by the sticker on your old board, or use the check above and send us a photo.
This board mounts at the back of the cabinet, usually behind a rear access panel near the compressor compartment, next to the separate main electronic control board. This model list is for reference only. Whirlpool may change boards between production runs, so two refrigerators with the same model number can use different boards. Always order by the part number printed on your original board - it is the only identifier that decides.
Opened or installed boards may carry a restocking and retesting fee, so compare the sticker before you open the anti-static bag. Hold yours next to W10624574 and check it character by character.
Whirlpool Refrigerator Not Cooling or Clicking: Is It the W10624574?
These checks help you rule out the common causes before you order. Only a qualified technician on site can confirm the fault in your refrigerator. Unplug the refrigerator before you take any panel off, and stop at any step you are not comfortable with.
Many of these refrigerators show a PF or PO code when this board is the problem. PO can be triggered by either this board or the separate main electronic control board, so check both before you replace either one.
Let's verify it is the board by checking the common parts that contribute to these failures. They are inexpensive, easy to check, and ruling them out means you order once, with confidence.
Confirm the number on your sticker
Read the full number on the white label before you order, including any letter prefix. If a character is worn away, photograph it and compare it closely against your records.
Check the temperature sensors first
A shorted or open sensor hands the board a bad reading, and that is not the board's fault. Compare each sensor against the mini-manual (or tech sheet) - the wiring and test chart packed inside the appliance - before you blame the board.
Check the outlet and the cord
Confirm the outlet is live with another appliance plugged in, and check the cord for damage. A dead outlet looks exactly like a dead board.
Listen to the compressor and fans
A compressor that hums and clicks off on its own is often the start relay or overload, not the board. Spin both fans by hand and listen for a dragging or seized motor.
Rule out the main electronic control board
This part handles power distribution, not every function in the refrigerator. If the display or settings also act strange, the separate main electronic control board may be the real fault.
Once the sticker, the sensors, the outlet, the fans and the other board all check out, this board is what is left. You need a replacement main control board, so place a single order and be done with it. A compressor or relay that struggled for months can pull down the board driving it, so the failure you are chasing may not be the only one. Keep a spare on the shelf and a dead refrigerator becomes a same-day fix instead of a week of spoiled groceries.
How Do You Replace the W10624574 Whirlpool Refrigerator Power Supply Board?
Repair times and difficulty levels are general estimates and may vary by model, tool availability, and experience. This is provided as general guidance only and is not a substitute for professional service. Food is normally fine during a typical install, but we highly recommend moving it to a cooler with ice as a precaution - Appliance Pro USA is not responsible for lost or spoiled food.
Disconnect the refrigerator from power and remove any food near the back panel. Give it a few minutes before you start.
Take out the screws holding the panel in place and set it aside with the screws. This board sits near the compressor compartment behind it.
Shoot a clear photo of every connector on the old board while it is still in place. This is your map for reconnecting the new one.
Press the connector locks and pull straight out. Needle-nose pliers help where a connector lock sits in a tight spot.
Set the old board aside until the new one is confirmed working. Fit the new board into the same position.
Plug each connector back where it came from, matching your photo. Reinstall the access panel and its screws.
- ✓I photographed my board's sticker and matched the full number
- ✓I checked the temperature sensors against the wiring and test chart
- ✓I confirmed the outlet is live and the cord is undamaged
- ✓I spun both fans by hand and listened to the compressor
- ✓I photographed every connector before I unplugged the old board
On the installs we have seen, this is a straight swap with no programming step. Reconnect every plug from your photo and restore power. Let the refrigerator run for several hours at a normal setting before you judge the results. The 5-mil nitrile gloves in the box give grip and some protection, but they are not cut-proof. Hold the board by its edges and mind the sheet-metal edges of the cover.
Why Is Your Whirlpool Fridge Still Not Cooling After the W10624574 Swap?
Clicks and relay sounds are normal. The compressor may stay off for several minutes as a protection delay.
Fans run, compressor hums, and cold air shows up in the freezer first.
Both sections reach near set temperature. Do not load warm groceries before this.
Temperatures stabilize and the ice maker resumes. Now decide whether anything is wrong.
Once power is back on, the board compartment is live. Do not reach into it or reseat a plug with the refrigerator plugged in. Unplug first, every time.
Check every connector against your photo
A plug seated one position off can read like a dead board. Match each connector to the photo you took before you started.
Confirm the sticker matches what you ordered
Compare the full number on the new board to the one you removed. If anything is different, stop before you plug it in.
Go back to the temperature sensors
A sensor stuck open or shorted hands the new board the same bad reading it gave the old one. Compare it against the wiring and test chart packed inside the appliance.
Check the ground and power connections
A loose ground or a connector not fully seated can make a good board act dead. Reseat every plug and the ground wire.
Still stuck after these checks
If it still won't cool, something other than the board may be at play. Recheck each connector and sensor before you decide.
The troubleshooting steps above are general guidance only and may not apply to every model or situation. If you are unable to resolve the issue after following these steps, we recommend contacting our team or consulting a qualified appliance technician before taking further action.
How Do You Help Your New W10624574 Control Board Last?
Add surge protection
A power outage or a rough utility swing can be hard on the replacement, same as it was on the old one. A dedicated surge protector on the outlet is cheap insurance.
Clean the condenser coil
A dusty coil makes the compressor and fans run longer and hotter, and this board runs hot right along with them. Vacuum it while the panel is open.
Keep the compressor compartment dry
Moisture or a weeping water line near the back panel can reach this board over time. Wipe the area dry and check for staining before you close it up.
Which Parts Are Worth Replacing Alongside the W10624574?
Temperature sensors Do it now
Inexpensive and easy to reach once the panel is off. A failing sensor can make a good board look like the problem.
Start relay and overload On clicking
Sits near the compressor and takes a beating when the board struggles to start it.
Main electronic control board Check both
A separate part from this one. If the display or settings act strange along with cooling, check this board too.
Evaporator and condenser fans If it rumbles
A fan that drags runs hot and can pull the new board down early.
Why Are Appliance Pro USA Boards So Reliable?
Failure Pattern Analysis
We've mapped the failure signatures specific to this board, identifying which components degrade and fail over time.
Targeted Component Replacement
The components this board is known to lose are replaced before they get the chance to fail.
Proactive Rebuild Standard
Known high-failure components are replaced with new parts on every board, regardless of whether they show a problem yet. Degraded parts don't ship.
Final Certification
Every board is certified to our internal FailSafe Precision Protocol standard before it ships.
Why Buy the W10624574 from Appliance Pro USA?
Appliance technician? MarkUp Pro members get professional pricing on every order, applied automatically once approved. Learn about MarkUp Pro
Warranty coverage is determined at Appliance Pro USA's discretion. Boards that have been tampered with, or with our verification stickers or holograms removed or damaged, are not eligible for warranty coverage. Any board that has been flashed, reprogrammed, or had its firmware altered is not eligible for return or warranty coverage. Opened or installed boards may carry a restocking and retesting fee, so compare the sticker before you open the anti-static bag. Minor cosmetic wear may be present due to prior installation - it does not affect performance.
What Else Do People Ask About the W10624574?
Why does searching W10624574 bring up limited results?
Whirlpool has moved current stock to the WPW10624574 number, so that is what most listings carry now. W10624574 is still printed on many boards already in the field, so match the sticker on your old board either way.
What ships in the box with the W10624574?
The board sealed in an anti-static bag, the Quick Start Guide, a pair of install gloves, and the warranty registration card.
My replacement board looks different from the one I took out. Is it wrong?
Stop before you install it. Compare size, connector layout and mounting points against the board you removed. If anything does not line up, send us a photo of the board you removed with all of its stickers and a photo of the one that arrived.
I ordered the wrong board. What now?
Leave the bag sealed and contact us first. An exchange is the fastest path. Opened or installed boards may carry a restocking and retesting fee.
Does the W10624574 need programming after I install it?
On the installs we have seen, this is a straight swap with no programming step. Allow the unit to run several hours at a normal setting before you check performance. Any board that has been flashed, reprogrammed, or had its firmware altered is not eligible for return or warranty coverage.
Is this the same board as my refrigerator's main electronic control board?
No. This part regulates power distribution to the compressor, fans, lights and ice maker, while a separate main electronic control board handles the display and settings. Check which function failed before you order.
My Whirlpool refrigerator is completely dead. Is it the board?
Check the outlet, the cord and the breaker first. If the outlet is live and nothing responds, this board is a strong candidate, and the checks above take just a few minutes.
