W10453401 Whirlpool Refrigerator Inverter Board: Electronic Control Board, Symptoms and Install Guide
Whirlpool refrigerator not cooling, running warm, or flashing an error code? This guide covers the W10453401 control board: which number to match, confirmed fitment, five checks before you buy, and the install.
20,000+ control boards restored at the bench
✓ FailSafe CertifiedClick to enlarge
W10453401 vs WPW10453401: Which Number Do You Order By?

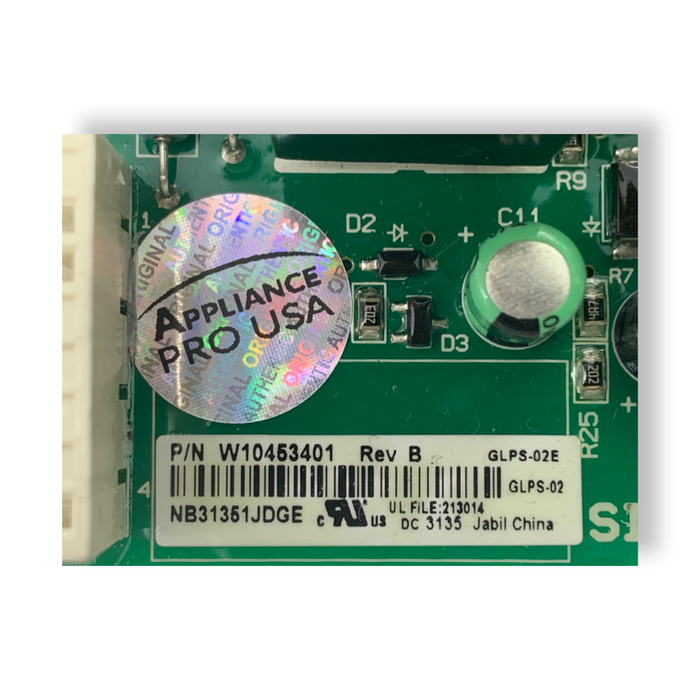

The sticker on a Whirlpool control board carries the full production number, including every digit. Numbers printed elsewhere on the board itself are component references, not the part number.
This board has shipped under slightly different label printing over time, so a newer sticker style can show up. Size, connector layout and mounting points should still match the board you removed. If anything looks off, stop before installing and send us both photos: the board that came out with all of its stickers, and the one that arrived.
This is not a universal inverter board - it is a direct replacement for the part number printed on your original board. Boards that look identical can be programmed differently, so always match the number on the sticker.
Which Whirlpool Refrigerators Use the W10453401 Control Board?
Not listed? A missing model is not the same as incompatible. Go by the sticker on your old board, or use the check above and send us a photo.
This board typically sits on the back of the refrigerator cabinet, behind a rear access panel. This model list is for reference only. Whirlpool may change boards between production runs, so two refrigerators with the same model number can use different boards. Always order by the part number printed on your original board - it is the only identifier that decides.
Opened or installed boards may carry a restocking and retesting fee, so compare the sticker before you open the anti-static bag. Hold yours next to W10453401 and check it character by character.
Refrigerator Not Cooling? Is It the W10453401 or Something Else?
These checks help you rule out the common causes before you order. Only a qualified technician on site can confirm the fault in your refrigerator. Unplug the refrigerator before you take any panel off, and stop at any step you are not comfortable with.
Some models covered here flash an error code before the board quits for good. Write the exact code down before you unplug anything, since it points you to the failing part.
Let's verify it is the board by checking the common parts that contribute to these failures. They are inexpensive, easy to check, and ruling them out means you order once, with confidence.
Confirm the sticker number
Read W10453401 straight off the sticker before you open anything else. If a character is worn away, photograph it close up and compare it carefully.
Rule out a dead outlet or breaker
Plug a lamp or another device into the same outlet. If nothing in the refrigerator responds and the outlet is live, the board becomes a stronger suspect.
Test the temperature sensors
A shorted or open sensor hands the board bad information, and that is not the board's fault. Check each sensor against the wiring and test chart packed inside the appliance before you blame the board.
Check the compressor relay and both fans
A tired start relay or a dragging fan motor can make a good board look dead. Both fans should spin freely by hand, and the compressor should hum, not just click.
Look over the wiring harness
A loose or corroded connector can mimic a board failure on its own. Reseat every plug and look for scorch marks before you order a replacement.
Once the sticker, the power supply, the temperature sensors and the start circuit all check out, the board is what is left. You need a replacement inverter board, and you order it once. A sensor or fan that failed months ago may have been stressing this board the whole time, right up to the point it quit. Keep a spare on the shelf and a warm refrigerator becomes a short repair instead of a week of spoiled food.
How Do You Replace the W10453401 Whirlpool Refrigerator Board?
Repair times and difficulty levels are general estimates and may vary by model, tool availability, and experience. This is provided as general guidance only and is not a substitute for professional service. Food is normally fine during a typical install, but we highly recommend moving it to a cooler with ice as a precaution - Appliance Pro USA is not responsible for lost or spoiled food.
Unplug the refrigerator or switch off the breaker. Give it a few minutes before you touch anything inside.
Remove the screws or clips holding the panel in place and set them aside with their fasteners.
Shoot the board with every connector still plugged in. This photo is your map for reinstalling.
Touch the metal frame first to drain static, then release each connector from the old board.
Unscrew or unclip the board from the mounting bracket and lift it clear. Hold it by the edges.
Set the new board in the bracket, then plug every connector back in the position shown in your photo.
- ✓I read W10453401 straight off my old sticker before ordering
- ✓I ruled out a dead outlet or breaker first
- ✓I checked both temperature sensors against the tech sheet
- ✓I confirmed the compressor relay and both fans work
- ✓I photographed the wiring harness before unplugging anything
On this board, installation is a straight swap with no extra wiring or jumpers reported. Line up the connectors the way your photo shows and close the panel. Let the refrigerator run several hours at a normal setting before you judge the fix. The 5-mil nitrile gloves in the box give grip and some protection, but they are not cut-proof. Hold the board by its edges and mind the sheet-metal edges of the cover.
Still Not Cooling After Installing the W10453401?
Clicks and relay sounds are normal. The compressor may stay off for several minutes as a protection delay.
Fans run, compressor hums, and cold air shows up in the freezer first.
Both sections reach near set temperature. Do not load warm groceries before this.
Temperatures stabilize and the ice maker resumes. Now decide whether anything is wrong.
Once power is back on, the board compartment is live. Do not reach into it or reseat a plug with the refrigerator plugged in. Unplug first, every time.
Compare the new board to your old one
Size, connector layout and mounting points should match the board you removed. Photograph both boards side by side if anything looks different.
Reseat every connector
A connector plugged one position off behaves exactly like a dead board. Match each plug to your reinstall photo.
Recheck the temperature sensors
A sensor that was already bad hands the new board the same false reading it gave the old one.
Confirm the ground connection
A loose or missing ground can make a good board act dead. Check it before you assume the board is at fault.
Still stuck? Talk to us before you return anything
Let the refrigerator run several hours at a normal setting, then message us with your symptom and photos. Troubleshooting costs nothing.
The troubleshooting steps above are general guidance only and may not apply to every model or situation. If you are unable to resolve the issue after following these steps, we recommend contacting our team or consulting a qualified appliance technician before taking further action.
How Do You Help Your New W10453401 Board Last?
Add surge protection
A storm or a rough power outage sends a spike straight through the board. Repeated short outages wear on it faster than one long one.
Keep the condenser coil clean
A dusty coil makes the compressor and fans run longer and hotter, and the board runs hot right along with them.
Check the door seals and drain
A weak door seal or a blocked drain lets moisture reach the board housing. Wipe any dampness and look for staining.
What Else Is Worth Replacing While the W10453401 Is Out?
Temperature sensors Do it now
Inexpensive and already exposed once the panel is off. A worn sensor can make a good board look faulty.
Defrost heater and fuse On frost
Reachable once the freezer panel comes off. Worth checking if you have had heavy frost buildup.
Start relay and overload On clicking
Sits near the compressor and drags on the board when it struggles. A quick check while the board is in your hands.
Evaporator and condenser fans If a fan drags
A fan with a worn bearing runs hot and works the new board harder. Replace it if either one rumbles or drags.
Why Are Appliance Pro USA Boards So Reliable?
Failure Pattern Analysis
We've mapped the failure signatures specific to this board, identifying which components degrade and fail over time.
Targeted Component Replacement
The components this board is known to lose are replaced before they get the chance to fail.
Proactive Rebuild Standard
Known high-failure components are replaced with new parts on every board, regardless of whether they show a problem yet. Degraded parts don't ship.
Final Certification
Every board is certified to our internal FailSafe Precision Protocol standard before it ships.
Why Buy the W10453401 from Appliance Pro USA?
Appliance technician? MarkUp Pro members get professional pricing on every order, applied automatically once approved. Learn about MarkUp Pro
Warranty coverage is determined at Appliance Pro USA's discretion. Boards that have been tampered with, or with our verification stickers or holograms removed or damaged, are not eligible for warranty coverage. Any board that has been flashed, reprogrammed, or had its firmware altered is not eligible for return or warranty coverage. Opened or installed boards may carry a restocking and retesting fee, so compare the sticker before you open the anti-static bag. Minor cosmetic wear may be present due to prior installation - it does not affect performance.
What Else Do People Ask About the W10453401?
Why does searching W10453401 bring up so few results?
Whirlpool does not list a separate service number for this board, so W10453401 is the number to search. WPW10453401 shows up on some retailer listings for the same part, but the sticker number is what decides fitment.
What ships in the box with the W10453401?
The board ships sealed in an anti-static bag along with the paperwork needed to register it. Check the contents against your packing slip before you install.
The board I received does not match the one I removed. Is it wrong?
Stop and compare before you install it. Size, connector layout and mounting points should match the board you removed. If anything looks off, send us a photo of the board you removed with all of its stickers and a photo of the one that arrived.
I ordered the wrong board. What now?
Leave the bag sealed and contact us first. An exchange is the fastest path. Opened or installed boards may carry a restocking fee.
Does the W10453401 need programming or setup after I install it?
On this board, installation is a straight swap with no extra setup reported. Give the refrigerator several hours at a normal setting before you judge the fix. Any board that has been flashed, reprogrammed, or had its firmware altered is not eligible for return or warranty coverage.
Is the W10453401 the same as a separate compressor inverter board?
This board manages overall cooling, fan and defrost control rather than acting as a standalone compressor inverter. Some of these refrigerators use a separate inverter box near the compressor, so check what sits there before you assume this is the wrong part.
My Whirlpool refrigerator is completely dead. Is the board at fault?
Check the outlet, the cord and the breaker first. If the outlet is live and nothing inside the refrigerator responds, the W10453401 becomes a strong suspect.
What Should You Send Us for Fast Help?
Label inside the fresh food door or on the frame
The white sticker, every character readable
Clear and well lit, every plug connected
No power, error code, not cooling, clicking
