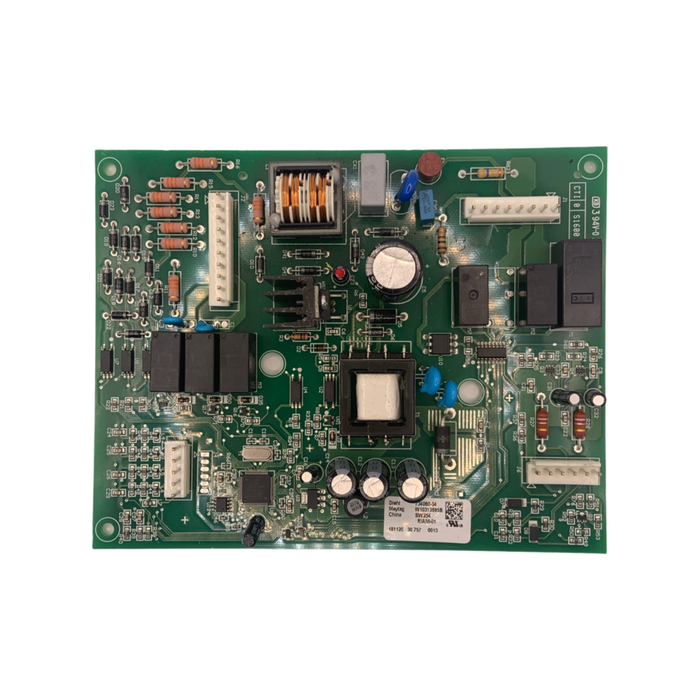

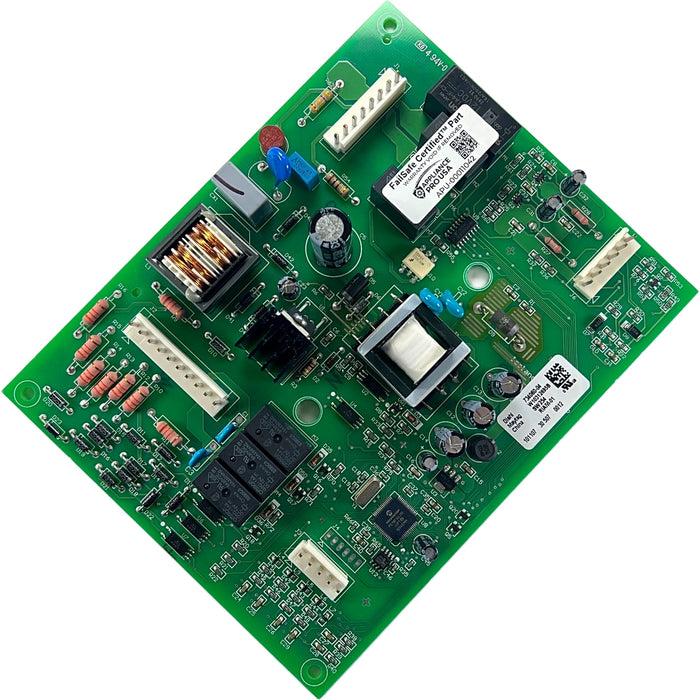

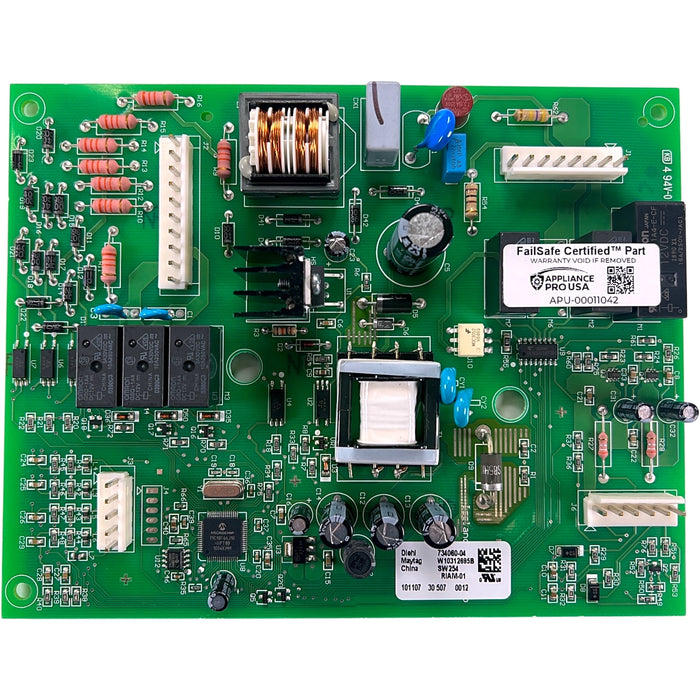

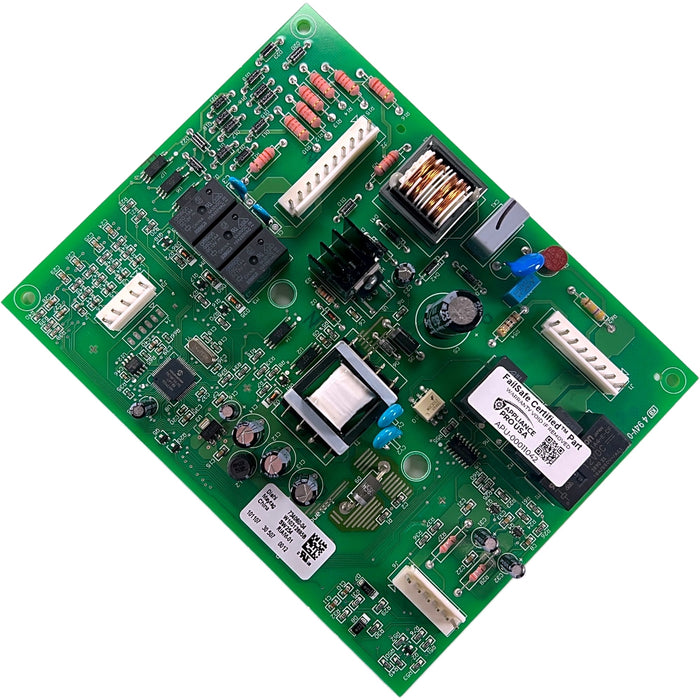

W10312695B Whirlpool Refrigerator Main Control Board (WPW10312695), The Board That Must Be Programmed After You Install It
Part W10312695B, known in current Whirlpool catalogs as WPW10312695, is the main control board used across a large family of French-door refrigerators sold under the Whirlpool, Kenmore, Maytag, KitchenAid, Jenn-Air, and Amana names. It manages the compressor, the fans, the defrost cycle, and power distribution for the whole unit. Two things make this repair different from a typical board swap, and this guide covers both in detail: your unit's program code on the serial plate determines whether this board fits at all, and the new board must be programmed with that code after installation before the refrigerator will run. Get those two steps right and this is a very achievable DIY repair.
Why Is My Whirlpool or Kenmore French-Door Refrigerator Not Cooling? Main Control Board Symptoms
Common symptoms associated with a failing W10312695B main control board include a refrigerator or freezer that stops cooling or cools inconsistently, a control panel that goes blank or stops responding, a compressor or fans that no longer cycle on and off correctly, frost buildup from a defrost cycle that never runs, and a unit that intermittently loses power or will not start at all.
This board is the central brain of the refrigerator, so its failure can show up in several different systems at once. The list below covers the most commonly reported signs. Because a separate touchpad board, the start relay, the fans, and the defrost parts can each mimic some of these, work through the diagnosis sections below before ordering.
- The refrigerator or freezer section stops cooling, or temperatures drift up and down without explanation
- The control panel is blank, frozen, or ignores button presses
- The compressor or the evaporator and condenser fans stop cycling on and off the way they used to
- Frost builds up on the back wall of the freezer because the defrost cycle is not being commanded
- The unit is completely dead, or power cuts out and returns intermittently
- Problems began after a power surge, outage, or lightning storm
FailSafe Certified, 1-year warranty (registration required), 30-day returns, ships today*

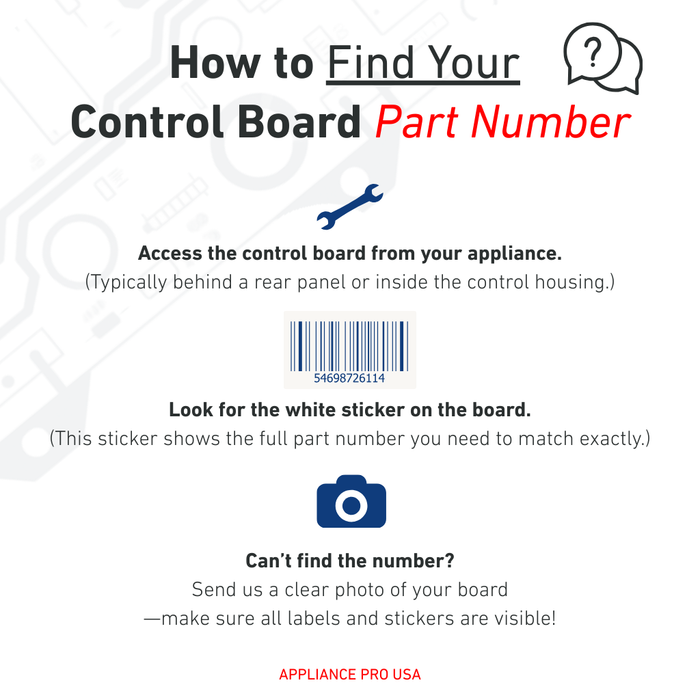

How Do I Find the Part Number on My Whirlpool Control Board? Watch the Video

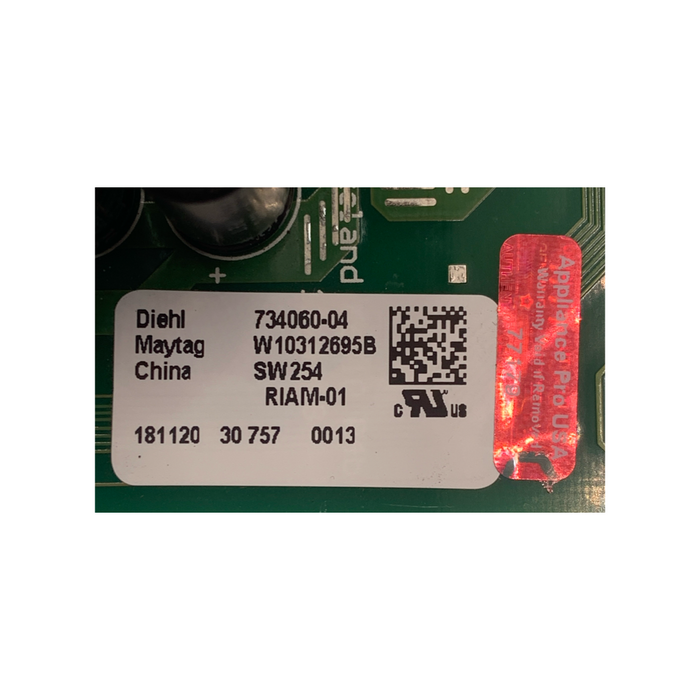

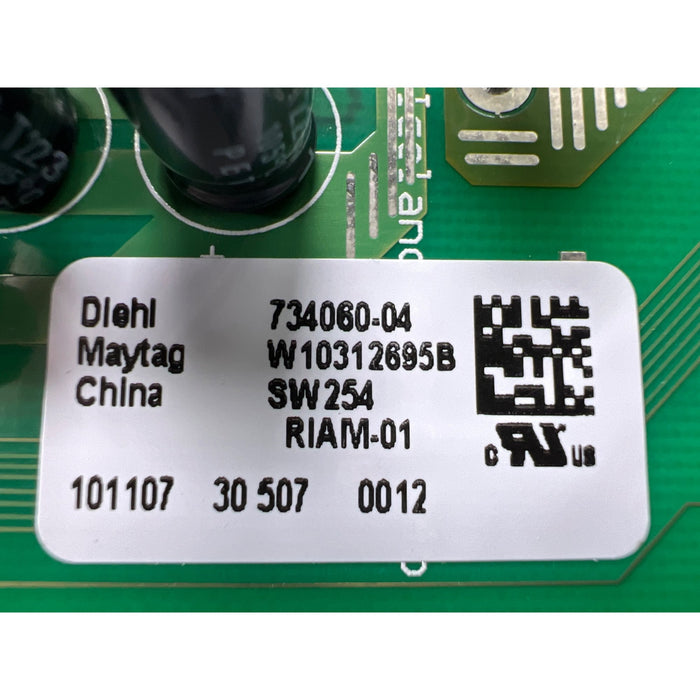

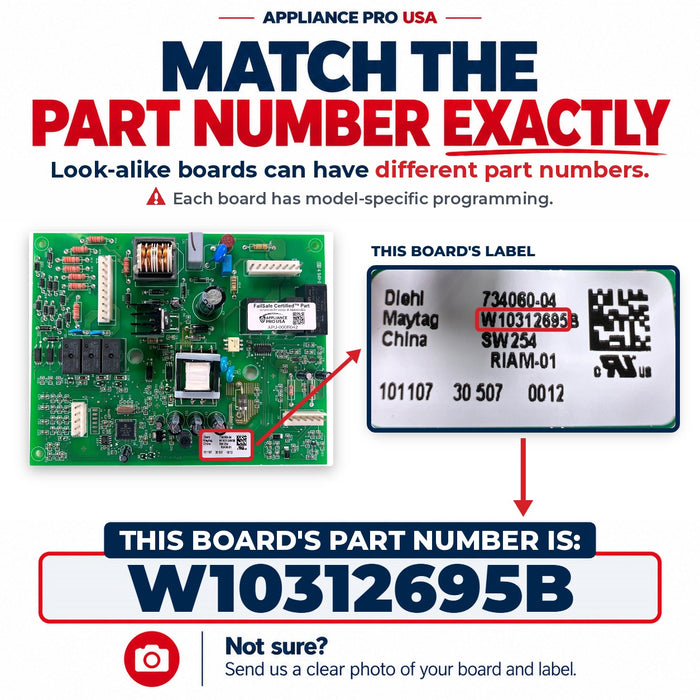

The part number for the W10312695B main control board is printed on a label on the board itself, which sits behind an access panel on the rear of the refrigerator. Unplug the unit, remove the rear panel, and compare the label to W10312695, W10312695B, or WPW10312695. While the panel is off, also find the program code on the unit's serial plate, printed after the word Code, because you will need it to program the new board.
This short video shows how to locate and read the part number sticker on an appliance control board and how to confirm you have the right part before opening the packaging. The same method applies to the W10312695B. While you are checking the board label, also write down the program code from your unit's serial plate, since the replacement board is programmed with that code after installation. General installation guidance is included in the Quick Start Guide shipped with every order.
Whirlpool Refrigerator Main Control Board Symptoms, What Each One Points To
The most commonly reported signs of W10312695B failure are loss of cooling while other functions continue, a blank or unresponsive control panel, incorrect compressor and fan cycling, and defrost failure with frost buildup. A completely dead unit can be the board or something as simple as the outlet, and a panel where only some buttons fail commonly points to the separate touchpad board instead.
Use this table as a starting point rather than a final verdict. Because this platform routes nearly everything through the main board, several of these symptoms have cheaper look-alike causes that are covered in the rule-out section further down.
| Symptom | What It May Indicate | Recommended Next Step | Board? |
|---|---|---|---|
| No cooling, but lights and display still work | Compressor or fans not being commanded by the board | Listen at the rear of the unit. If the compressor never attempts to start and the start relay checks out, the main board is a commonly reported cause. | Common |
| Compressor clicks repeatedly but never runs | Start relay or overload failing, or board sending bad power | A rattling or clicking start relay is a far cheaper first check than the board. Test the relay and overload on the compressor before condemning anything else. | Check relay first |
| Control panel blank or frozen | User-interface board, harness, or main board | If some buttons respond and others do not, the touchpad assembly is the commonly reported cause. If the whole panel is dead with good power at the outlet, inspect the harness, then the main board. | Board or touchpad |
| Frost buildup on the freezer back wall | Defrost cycle not running | Test the defrost thermostat and heater first, since they fail more often than the board. If both check out and the cycle still never runs, the board is a commonly reported cause. | Check defrost parts first |
| Temperatures drift or swing in one or both sections | Sensor readings or board control drifting | Test the thermistors against your model's resistance chart before the board. Erratic control with good sensors is commonly associated with the board. | Possible |
| Unit completely dead | No incoming power, or the board has failed | Verify the outlet, cord, and breaker first. A dead unit with confirmed power at the board connector is a commonly reported board failure. | Possible |
| New board installed and nothing happens | Board has not been programmed yet | This board ships unprogrammed and will not operate the refrigerator until the program code from your serial plate is entered. See the programming section below. | Programming step |
Does the W10312695B Show Error Codes? What These Models Actually Display
Most refrigerators that use the W10312695B main control board have a limited fault-code display, and a failing board commonly produces symptoms without any code at all. Display states commonly reported around board failure include a panel showing all eights and a PE0 indication after a power event. A blank display, a frozen display, and a panel that ignores presses are physical symptoms rather than codes, and each has its own likely cause.
Unlike some appliance platforms, these French-door models do not publish a rich set of alphanumeric fault codes, so do not wait for a code before diagnosing. The table below covers the display states that are commonly reported, and what each one suggests. Treat all of them as starting points to be confirmed with the physical checks in the next section.
| Display State | What It May Indicate | Is It This Board? |
|---|---|---|
| No code at all, cooling failed | Normal for this platform. The absence of a code does not rule the board in or out. Diagnose by symptom using the rule-out checks below. | Possible |
| Display shows all eights (888888) | Commonly reported as a self-test or communication state rather than a stored fault. If it persists after a one-minute power reset, the board or its harness is a commonly reported cause. | Possible |
| PE0 shown after an outage | Commonly reported as a power-event indication. Reset the unit by unplugging for one full minute. If normal operation returns and holds, no part may be needed. | Reset first |
| Display blank, interior lights work | Points to the touchpad assembly, the harness between it and the main board, or the main board itself. If only some buttons fail, suspect the touchpad first. | Board or touchpad |
| Display dead, unit dead | Confirm the outlet and breaker before anything else. With power confirmed at the unit, the main board becomes the commonly reported cause. | Board-related |
Will the W10312695B Fix My Refrigerator? What to Check Before Ordering
The W10312695B commonly resolves faults where the compressor and fans are no longer commanded correctly, the defrost cycle never runs with good defrost components, the control panel is dead with good power and a good touchpad, or the unit fails intermittently after a surge. Before ordering, rule out the compressor start relay and overload, the evaporator fan, the defrost thermostat and heater, the thermistors, and the separate user-interface board, and confirm your unit's program code is not 0202, 0302, or 0304.
These models use a conventional compressor with a plug-on start relay and overload protector, and that little device fails far more often than the main board. A failed relay produces the classic no-cooling, clicking-compressor symptom that gets boards replaced unnecessarily.
If the compressor runs but the fresh food section stays warm, air is not moving across the evaporator. A stalled evaporator fan or an ice-blocked fan produces a cooling complaint that has nothing to do with the main board.
Frost buildup and drifting temperatures are commonly caused by the defrost components and the temperature sensors, all of which are cheaper than the board and all of which can be tested in minutes with a multimeter.
The touchpad and display are a separate assembly from the main control board, and a dead or partially dead panel can come from either one, or simply from a loose harness between them. Condemning the main board on panel symptoms alone is a commonly reported misdiagnosis.
Can I Replace the W10312695B Myself? Difficulty, Time, and the Programming Step
Replacing the W10312695B is a moderate DIY repair that most homeowners complete in 45 to 60 minutes with a Phillips screwdriver, including the required programming step. The board sits behind an access panel on the rear of the refrigerator, so the unit must be pulled away from the wall. After installation, the board must be programmed with the code printed on the unit's serial plate or the refrigerator will not run.
The physical swap is straightforward: pull the unit out, remove the rear access panel, transfer the connectors, and mount the new board. What sets this repair apart is the programming step. The replacement board will not operate your refrigerator until the program code from your unit's serial plate is entered using the button sequence for your model, and the correct sequence varies across this family. Photograph every connector before removal, work patiently, and if you are not comfortable with any step, a qualified appliance technician is always the right call.
Does the W10312695B Fit My Refrigerator? Compatibility and Program Code Check
To confirm the W10312695B fits, match the label on your existing board to W10312695, W10312695B, or WPW10312695, then check the program code on your unit's serial plate. Units with program code 0202, 0302, or 0304 use a different board family and cannot use this part even when the model number matches. The board label plus the program code together are the reliable check.
Model Number Check
Enter your refrigerator's model number to check it against our W10312695B compatibility records. Not found? Use the buttons below to reach our team directly.
A model match alone is not enough for this part. Whirlpool built some units in this family with program codes 0202, 0302, or 0304, and those units use a different board even though the model number looks identical. Match the label on your existing board, then confirm the program code on your serial plate before ordering. Click the image to zoom in.
Which Refrigerator Models Use the W10312695B Main Control Board?
Part W10312695B is used in French-door refrigerators sold as Whirlpool GI5-series, Kenmore and Kenmore Elite 596.783, 596.785, 596.792, and 596.795 series, Maytag MFI-series, KitchenAid KRFC and KFIS series, Jenn-Air JFI-series, and Amana AFI-series. Even for a listed model, always confirm the program code on the serial plate is not 0202, 0302, or 0304 before ordering.
Kenmore / Kenmore Elite 596.792 Series, French Door
Kenmore 596.783 / 596.785 Series, French Door
Whirlpool GI5 Series, Bottom Mount
Maytag / Jenn-Air / Amana, French Door
KitchenAid, French Door
Models are listed in base form; full model numbers carry additional revision digits, and Kenmore models in the 596.79542 and 596.79543 series are also reported to use this board. This list is compiled from cross-reference data and is provided as general guidance only. A model match is not sufficient on its own for this part: units in this family built with program code 0202, 0302, or 0304 use a different board. Check the label on your existing board and the code on your serial plate, and if anything is unclear, contact our team and we will confirm before you buy.
How Is the W10312695B Restored to Spec? The FailSafe Precision Protocol
Every W10312695B sold by Appliance Pro USA goes through the FailSafe Precision Protocol, a proprietary 4-step process covering failure pattern analysis, precision diagnostic testing, proactive component replacement using equal or higher-rated parts, and final certification before the board ships.
FailSafe Precision Protocol
Failure Pattern Analysis
Known failure patterns for the W10312695B are mapped before any board enters the process, so we know exactly which components to focus on for this specific board type.
Precision Diagnostic Testing
Multi-point diagnostic testing identifies faults and confirms overall board condition. Boards that do not pass diagnostic testing do not advance.
Proactive Component Replacement
Components identified through failure pattern analysis as common weak points are replaced using equal or higher-rated parts, before the board is cleared to ship.
Final Certification
Certified to meet or exceed original Whirlpool factory specifications. Tamper-evident hologram applied. Anti-static packaged and sealed for shipping.
W10312695B Specifications and Cross-Reference Part Numbers
The W10312695B is the main control board, designated the high-voltage control board in service literature, for a family of Whirlpool-built French-door refrigerators. It manages the compressor, fans, defrost, and power distribution, while a separate touchpad assembly handles the display and buttons. The part began as W10312695, was revised to W10312695B, and is cataloged today as WPW10312695. Every replacement must be programmed after installation with the code from the unit's serial plate.
| Manufacturer Part Number | W10312695B (original number W10312695; current catalog number WPW10312695) |
| Board Type | Main Control Board, designated High-Voltage Control Board in service literature (manages compressor, fans, defrost, and power distribution; display and buttons are on a separate touchpad assembly) |
| Board Location | Behind the access panel on the rear of the refrigerator |
| Programming | Required after installation. The board will not operate the unit until the program code printed on the serial plate, after the word Code, is entered using the button sequence for your model. |
| Program Code Restriction | Not for units with program code 0202, 0302, or 0304, which use a different board family regardless of model number |
| Compressor Type | Conventional compressor with a plug-on start relay and overload (not an inverter-driven system) |
| Cross-Reference Numbers | W10312695, WPW10312695, AP6019287, PS11752593, 734060-04, 1876388 |
| APU Status | In Stock, FailSafe Certified, 1-year warranty (registration required), same-day shipping* |
Is It Worth Repairing My Refrigerator? What the W10312695B Costs vs Your Alternatives
Replacing the W10312695B main control board is typically far less expensive than a comparable new French-door refrigerator, which commonly runs $1,500 or more, or a technician board replacement, which commonly runs $400 to $750 installed. Doing the swap and the programming step yourself turns a major appliance decision into an afternoon project. Figures are general estimates and vary by region and provider.
What your options typically cost
Refrigerator Not Working After Replacing the W10312695B? Start Here
The most commonly reported reasons a refrigerator does not run after a W10312695B replacement are skipping the required programming step, entering the program code with the wrong button sequence for the model, installing this board on a unit whose program code is 0202, 0302, or 0304, and a harness connector that is not fully seated. A correctly programmed board then needs several hours before temperatures can be judged.
Program the board, it will not run without it
This board ships unprogrammed. Until the program code from your unit's serial plate is entered, the refrigerator will sit there doing nothing, which is easy to mistake for a bad board. Find the code on the serial plate after the word Code, and enter it using the button sequence for your model from the instructions included with the board.
Use the right button sequence for your model
The programming sequence is not the same across this family. Some models use a combination held on the door alarm and freezer temperature buttons, while others use the water or lock keypads. If the board refuses to accept the code, the sequence is the first thing to recheck, not the board.
Recheck your program code eligibility
If programming will not take at all, go back to the serial plate. Units with program code 0202, 0302, or 0304 use a different board family, and no amount of programming will make this board run one of those units. This is the most commonly reported cause of a compatible-looking board that never works.
Reseat every connector, then give it time
A harness connector that looks seated but never clicked home reproduces the original fault perfectly. After reseating each connector, remember that a refrigerator needs several hours to pull down to temperature, so judge the repair by whether the compressor and fans run, not by how cold it feels in the first hour.
Protect the board while handling it
Static damage during installation is a commonly reported cause of dead-on-arrival electronics. Ground yourself on the refrigerator's metal cabinet before touching the board, wear the included install gloves, and hold the board only by its edges.
Still not working after all of the above?
Contact our team before returning anything. A brief conversation resolves the majority of post-install situations. We stand behind every board we sell and are here to help you get the result you need.
Other Refrigerator Parts That May Need Attention
Components that commonly fail alongside or instead of the W10312695B include the compressor start relay and overload, the evaporator and condenser fan motors, the defrost thermostat and heater, the thermistors, and the separate user-interface touchpad. Each is cheaper than the main board and each can reproduce one of its failure symptoms.
Share your model number and a photo of your existing board's sticker. Our team will help confirm the right part before you spend a dollar. No pressure, no obligation.
Why Buy the W10312695B from Appliance Pro USA?
Appliance Pro USA supplies the W10312695B as a genuine OEM board restored through the FailSafe Precision Protocol to meet or exceed OEM specifications, backed by a 1-year warranty (registration required), a 30-day return policy, free priority shipping, and same-day shipping on orders placed before 4 PM EST, Monday through Friday.
At Appliance Pro USA, we specialize in high-quality reconditioned replacement control boards, professionally inspected and tested to meet or exceed OEM specifications. Every board we sell undergoes our FailSafe Precision Protocol, meaning components identified through failure pattern analysis as common weak points are replaced proactively using equal or higher-rated parts before the board ever ships to you. With a replacement board from Appliance Pro USA, you're getting a board that's been evaluated and restored to reliable working condition, backed by our 1-year limited warranty (registration required) and 30-day return policy, so you can order with complete confidence.
We offer free priority shipping on every order, and orders placed before 4 PM EST ship same day, Monday through Friday, excluding holidays and scheduled closures. Whether you're a homeowner tackling this repair yourself or a professional technician who needs a reliable source, we're here to help you get the right part and get the job done right the first time.
Not sure this is your board? Send us a photo of your original board's part number sticker and we'll confirm before you buy. Reach us at info@applianceprousa.com
Ask us about MarkUp Pro, exclusive pricing on every order.
W10312695B Whirlpool Refrigerator Main Control Board, Frequently Asked Questions
Common questions about the W10312695B cover the difference between the W10312695, W10312695B, and WPW10312695 numbers, what the program code on the serial plate means and where to find it, why units with codes 0202, 0302, and 0304 cannot use this board, why a new board appears dead until it is programmed, how to tell the main board from the touchpad assembly, and what the 596 prefix on Kenmore models indicates.
Are W10312695, W10312695B, and WPW10312695 the same part?
Yes, they are the same board at different points in its catalog history. W10312695 is the original number, the B suffix marks a factory revision, and WPW10312695 is the current catalog designation. Listings and labels use all three interchangeably for the models on this page. What matters is that the number on your existing board's label appears in this chain, together with the program code check described below.
What is the program code, and where do I find it?
The program code is a four-digit number printed on your refrigerator's serial plate, directly after the word Code. It identifies the exact configuration of your unit. You need it twice: once before ordering, to confirm your unit is not one of the excluded codes, and once after installation, because the new board must have this code entered before it will operate the refrigerator.
My serial plate shows program code 0202, 0302, or 0304. Can I use this board?
No. Units built with those three program codes use a different control board family even though the refrigerator model number can look identical to a compatible unit. Installing a W10312695B on one of those units will not work and cannot be fixed by programming. Send us your model and program code before ordering and we will point you to the correct board for your unit.
I installed the new board and the refrigerator does absolutely nothing. Is it defective?
Almost certainly not. This board ships unprogrammed, and an unprogrammed board does not run the refrigerator, so a silent unit right after installation is the expected state rather than a fault. Enter the program code from your serial plate using the button sequence for your model, listed in the instructions included with the board. If the code will not take, recheck the sequence first, and then recheck that your program code is not one of the excluded ones.
How do I know whether my problem is this main board or the touchpad display board?
They are separate parts that fail differently. When some buttons respond and others are dead, the touchpad assembly is the commonly reported cause. When cooling, defrost, or compressor control misbehaves while the display works, suspicion shifts to the main board. When the entire panel is dead, check the outlet and the harness between the two boards before deciding, since either board or a loose connector can produce that state.
What does the 596. at the start of my Kenmore model number mean?
The three-digit prefix on Kenmore models identifies the manufacturer that built the appliance, and 596 indicates a Whirlpool-built unit. That is why a Kenmore 596-series refrigerator uses this Whirlpool part. When checking compatibility, use the full model number from your serial plate, and remember that the program code check applies to Kenmore units in this family just as it does to the Whirlpool-branded ones.
Will my refrigerator show an error code before the board fails?
Often not. These models have a limited fault-code display compared to newer platforms, and board failure commonly appears as symptoms alone: lost cooling, a dead panel, or failed defrost with no code shown. An all-eights display and a PE0 indication after a power event are commonly reported around board trouble, but neither is a definitive verdict, so rely on the physical checks in this guide rather than waiting for a code.
