EBR81182789 LG Refrigerator Main Control Board, the Compressor Driver Behind No-Cool on LRDCS2603 Bottom Freezers
Part EBR81182789 is the LG refrigerator main control board fitted to the LRDCS2603 family of 33-inch bottom-freezer refrigerators, catalogued by the manufacturer as the main PCB assembly. On this platform it does more than run the cabinet logic. The compressor drive lives on this same board, which is why the parts breakdown for these models shows no separate inverter board at all, and why a small red diagnostic light on the board itself is the most useful thing you can look at before spending any money. This guide covers what that light is telling you, the display codes that do and do not point here, the parts worth ruling out first, every confirmed model, and how this number relates to the board one digit away from it.
Why Has My LG Bottom-Freezer Refrigerator Stopped Cooling While Everything Else Still Works?
Common symptoms associated with a failing EBR81182789 LG main control board include both compartments slowly warming while the interior lights, display and fans keep running, a compressor that never starts, a red light flashing in a repeating group at the board on the back of the cabinet, and cooling that recovers after a power reset and then quits again. These are commonly reported on LG LRDCS2603 bottom-freezer refrigerators.
If your refrigerator shows one or more of the following, the main control board is a reasonable place to start looking. The signature picture on this platform is a cabinet that looks entirely healthy from the front while nothing is actually being cooled. Work through the diagnosis sections below before ordering, because the compressor that this board drives fails with almost the same outward symptoms.
- Both compartments drifting warm while the lights, display and fans all carry on normally
- No sound from the machine compartment at the back where the compressor used to run
- A red light flashing in a repeating group of flashes on the control board at the back of the cabinet
- Compressor starts for a few seconds and then drops straight back out, over and over
- Frost building on the freezer evaporator or the fresh food section warming while the freezer stays cold
- A display code such as CF, FF, rF or CO standing on the control panel
- Cooling returns for a day after the refrigerator is unplugged and then fails again
FailSafe Certified, 1-year warranty (registration required), 30-day returns, ships today*
How Do I Find the Part Number on My LG Control Board? Watch the Video

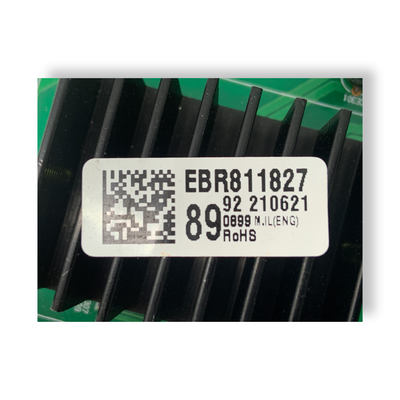

The EBR81182789 number is printed on a label on the board assembly, inside the covered control housing at the back of the cabinet. To verify it, unplug the refrigerator, pull it away from the wall, remove the screws holding the PCB cover, and read the printed label. The number on the label is what settles fitment, not the model number on the door frame.
This short video shows how to locate and read the part number label on an appliance control board and how to confirm you have the right part before opening the packaging. The same method applies to the EBR81182789, and it matters more here than usual, because a board carrying a number one digit away from this one is fitted to neighboring refrigerators in the same LG range. General installation guidance is included in the Quick Start Guide shipped with every order.
LG Main Control Board Symptoms, What Each One Points To
The EBR81182789 gives two kinds of feedback. A red LED on the board itself flashes in repeating groups when the compressor circuit reports a problem, and the control panel shows a two-character code when a sensor, fan or defrost fault is detected. Reading both together is what separates a board fault from a compressor fault on LG LRDCS2603 refrigerators.
Read the table as a direction of travel rather than a verdict. Two things make this platform different from a conventional refrigerator board. The compressor drive is part of this board, so compressor trouble is reported here, and the board reports it through a light you can only see with the rear cover off.
| Symptom | What It May Indicate | Recommended Next Step | Board? |
|---|---|---|---|
| Nothing cools, lights and fans normal, no code on the panel | The compressor is not being driven, or is refusing to run | Get the rear cover off and look at the board LED before anything else. A repeating group of flashes narrows this down further than any front-panel symptom will. | Read the board LED first |
| Red LED flashing in a repeating group of three | An open circuit somewhere between the board and the compressor | Commonly reported as an open compressor winding or a disconnected compressor lead rather than a board fault. Check the compressor connections and have the windings measured before ordering a board. | Usually the compressor circuit |
| Red LED on solid, or flashing once per repeating group | A fault reported on the board side of the compressor circuit | Commonly associated with the board itself when the harness is confirmed seated. Worth confirming the compressor is not open first, because a wrongly read pattern sends people down the expensive path. | Board-related |
| Compressor tries to start and drops out repeatedly | Overload or start failure being detected by the drive circuit | Clean the condenser coil and confirm the condenser fan turns, since a hot machine compartment produces exactly this. Then have the compressor evaluated. | Board or compressor |
| CF standing on the panel | Condenser fan reported as not turning | Inspect the condenser fan and its wiring, and vacuum the coil while the back is open. A confirmed good fan receiving nothing is a commonly reported drive fault on this board. | Possible |
| FF or rF standing on the panel | An evaporator fan reported as not turning | Usually the fan motor itself, or ice packed around the blade. The manufacturer's own guidance is to reset power and, where ice is suspected, let the cabinet thaw before assuming an electrical fault. | Usually the fan |
| CO standing on the panel | The main board and the display have lost communication | Points at the harness between them, or at either board. Reseat every connector at both ends before deciding which side is responsible. | Either board or harness |
| FS, rS, dS or IS standing on the panel | A sensor is reading out of range | The control system is reporting a thermistor that has drifted or opened. Test the sensor the code names. A new board will not clear a genuine sensor fault. | Not this board |
Which LG Codes and Board LED Patterns Point at the EBR81182789, and Which Do Not?
LG LRDCS2603 refrigerators report faults two ways. The control panel shows codes such as FS, rS, dS, IS, dH, FF, rF, CF and CO, which mostly name a sensor, fan or defrost part. The red LED on the main control board reports the compressor circuit in repeating groups of flashes, and several of those patterns point past the board at the compressor rather than at the board itself.
One caution before the table. The most expensive mistake available on this platform is reading a compressor message as a board message, because the light that carries it is printed on the board you are thinking of buying. A service test switch on the board is used to force run states, and the panel sequence that shows or clears a stored code differs across LG series and revisions, so follow the procedure printed for your model rather than a sequence found elsewhere.
| What you see | What It May Indicate | Is It This Board? |
|---|---|---|
| 1 flash group at the board | Compressor voltage or current measured out of range at the board. Reported on the board side of the circuit, so this is one of the patterns that does point back here once the wiring is confirmed. | Board-related |
| 2 flash groups at the board | A connection problem in the compressor circuit, or a component on the board. Check that the compressor harness is tight before drawing any conclusion, because a loose plug reads the same as a failed part. | Board or wiring |
| 3 flash groups at the board | An open circuit between the board, the compressor and its run capacitor. This is the pattern most often reported on these models, and it is most commonly traced to the compressor or its wiring rather than to the board. | Usually the compressor |
| 5 flash groups at the board | The compressor is being seen as mechanically locked. Points at the compressor. A replacement board will not turn a seized compressor. | Not this board |
| 6 flash groups at the board | High compressor current, commonly associated with restricted airflow, a dirty condenser or a sealed system problem. Clear the coil and check the condenser fan before anything else. | Usually not the board |
| 7 flash groups at the board | A fault in the power switching stage on the board itself. Of the compressor-side patterns, this is the one most consistently associated with the board. | Board-related |
| CF | Condenser fan reported as not running. The fan, its harness and a blocked coil come first. A good fan that still receives nothing puts the drive output on this board in the frame. | Possible |
| FF / rF | Freezer or fresh food evaporator fan reported as not running. Most often the fan motor, or ice built up around it. The manufacturer's guidance is to reset power first and to allow a frosted cabinet time to thaw. | Usually the fan |
| CO | Communication lost between the main board and the display. Reseat the harness at both ends and inspect the pins. With the wiring confirmed good, either board can be responsible. | Either board or harness |
| dH | Defrost cycle did not complete, meaning the defrost sensor never saw the expected temperature rise. Test the defrost heater, its thermal fuse and the defrost sensor before any board is considered. | Usually defrost parts |
| FS / rS / dS / IS | Freezer, refrigerator, defrost or ice maker sensor reading out of range. Test the thermistor the code names. The board is reporting the fault, not causing it. | Not this board |
Will the EBR81182789 Fix My Refrigerator? What to Check Before Ordering
The EBR81182789 commonly resolves faults where the compressor is never driven while the rest of the refrigerator behaves normally, where the board LED reports a fault on its own power stage, or where a fan output has stopped working with the fan itself confirmed good. Before ordering, rule out the inverter compressor, the condenser fan and coil, the compressor wiring, and a demo state or start delay.
This is the check that decides whether the repair costs a board or costs a sealed system. Because the compressor drive is part of this board, compressor trouble is announced by this board, and the flash group most often reported on these models points at an open compressor circuit rather than at the board. There is a second reason to settle it first. LG covers the compressor for longer than the rest of the refrigerator, so a compressor fault inside that window may be a warranty matter rather than a purchase.
The condenser fan is driven from this board, and a stalled fan or a coil packed with dust and pet hair will push compressor current up until the drive circuit shuts the compressor down. That produces a no-cool with repeated start attempts and can raise a high-current flash group, all of which is easily misread as a failed board. It is also the usual reason a CF code is standing on the panel.
An open circuit flash group does not distinguish between a failed winding and a plug that has vibrated loose, and neither does a board. Connectors at this board sit in a housing that traps dust and can corrode over the years, and a marginal connection reproduces an intermittent no-cool convincingly enough that plenty of boards get bought for it.
The control system deliberately holds the compressor off for several minutes after power is restored, so silence straight after a reset is not yet evidence of anything. Separately, a refrigerator sitting in a showroom demo state will run its lights and display and cool nothing at all. Both cost nothing to rule out and both are regularly mistaken for a dead board.
Can I Replace the EBR81182789 Myself? Difficulty and Time Estimate
Replacing the EBR81182789 is a moderate repair that most homeowners complete in 25 to 40 minutes with a Phillips screwdriver and a nut driver. The board sits under a screw-fixed PCB cover in the control housing at the back of the cabinet, so the refrigerator has to come away from the wall. Photographing the housing before anything is disconnected prevents most failed attempts.
Most DIY-confident homeowners finish this repair in well under an hour. The mechanical work is straightforward once the cover screws are out, and the board comes free with its harnesses attached. The part that catches people is everything before the screwdriver, namely reading the board LED and settling whether the compressor or the board is at fault, because the two failures look identical from the front of the refrigerator and only one of them is an affordable repair. If you are not comfortable working around line voltage and the compressor circuit, a qualified appliance technician is always the right call.
Does the EBR81182789 Fit My LG Refrigerator? Compatibility Check
To confirm the EBR81182789 fits, match the printed label on your existing main board to EBR81182789 or to a listed cross-reference such as AP6982799 or PS12748693. Model lookups help, but a board one digit away from this number is fitted to neighboring LG refrigerators, so the label on your own board is the check that settles it.
Model Number Check
Enter your refrigerator's model number to check it against our EBR81182789 compatibility records. Not found? Use the buttons below to reach our team directly.
Enter the base model without the production suffix, so LRDCS2603S rather than LRDCS2603S/00. Model lookups are a useful starting point, but this LG range uses more than one main board across neighboring models and the numbers differ by a single digit. The printed label on your existing board is always the most reliable confirmation. Click the image to zoom in.
Which LG Refrigerator Models Use the EBR81182789 Main Control Board?
Part EBR81182789 is confirmed as the main PCB assembly for the LG LRDCS2603 range of 33-inch bottom-freezer refrigerators, covering LRDCS2603D and LRDCS2603S including their production suffixes. Neighboring LG French-door models in the same generation use a different main board whose number differs by one digit, so verify by matching the label on your existing board before ordering.
LRDCS2603 Series, 33-inch Bottom Freezer
Models are listed in base form. Units carry a production suffix on the rating plate, commonly /00 or /01, which does not change the board. This is a deliberately short list, and that is the honest position: the manufacturer parts breakdowns for this number resolve to the LRDCS2603 bottom-freezer range and nothing wider. One catalogue does additionally list a French-door model of the same generation against this number, while other catalogues place that model against a board one digit away, and no manufacturer interchange between the two numbers could be confirmed. If your refrigerator is a French-door model, or your model is not listed here, do not order on the strength of a model lookup. Send us a photo of the label on your existing board and we will confirm which of the two boards you need before you buy.
How Is the EBR81182789 Restored to Spec? The FailSafe Precision Protocol
Every EBR81182789 sold by Appliance Pro USA goes through the FailSafe Precision Protocol, a proprietary 4-step process covering failure pattern analysis, precision diagnostic testing, proactive component replacement using equal or higher-rated parts, and final certification before the board ships.
FailSafe Precision Protocol
Failure Pattern Analysis
Known failure patterns for the EBR81182789 are mapped before any board enters the process, so we know exactly which components to focus on for this specific board type.
Precision Diagnostic Testing
Multi-point diagnostic testing identifies faults and confirms overall board condition. Boards that do not pass diagnostic testing do not advance.
Proactive Component Replacement
Components identified through failure pattern analysis as common weak points are replaced using equal or higher-rated parts, before the board is cleared to ship.
Final Certification
Certified to meet or exceed original LG factory specifications. Tamper-evident hologram applied. Anti-static packaged and sealed for shipping.
EBR81182789 Specifications and Cross-Reference Part Numbers
The EBR81182789 is an LG refrigerator main control board, catalogued as the main PCB assembly, fitted at schematic position 501A in the LRDCS2603 bottom-freezer range. It carries the compressor drive as well as the cabinet control logic, which is why these models list no separate inverter board, and it has a red diagnostic LED on the board. It cross-references to AP6982799, PS12748693 and EAP12748693, and remains in current production.
| Manufacturer Part Number | EBR81182789 |
| Board Type | Main Control Board / Main PCB Assembly (cabinet control logic plus the compressor drive; these models list no separate inverter board) |
| Board Location | Control housing at the back of the cabinet, under a screw-fixed PCB cover listed as a separate part in the same breakdown. Board position is catalogued at schematic location 501A. |
| Onboard Diagnostics | Red diagnostic LED on the board, readable with the rear cover off. Repeating flash groups report the compressor circuit; a slow even heartbeat is commonly reported as normal running. Panel codes cover sensors, fans and defrost. See the table above for general reference. |
| Compressor Type | Inverter-driven compressor. Boards of this family are not interchangeable with conventional start-relay compressor controls. |
| OEM Availability | Current production and widely stocked. No manufacturer supersession or substitute number was found against this part. APU supplies genuine OEM FailSafe Certified units. |
| Cross-Reference Numbers | AP6982799, PS12748693, EAP12748693. Distributor catalogues additionally reference ALG54912 and PD00070405 against this number. |
| Closely Numbered Board | EBR81182790 is a separate main PCB assembly fitted to neighboring LG French-door models of the same generation. The two occupy the same schematic position on their respective models but are stocked as distinct parts, and no manufacturer interchange between them could be confirmed. Verify by label. |
| APU Status | In Stock, FailSafe Certified, 1-year warranty (registration required), same-day shipping* |
Is It Worth Repairing My LG Refrigerator? What the EBR81182789 Costs vs Your Alternatives
Replacing the EBR81182789 main control board is typically far less expensive than a comparable new 33-inch bottom-freezer refrigerator, which commonly runs $1,500 or more, or a technician board replacement, which commonly runs $350 to $650 installed. Figures are general estimates and vary by region and provider.
What your options typically cost
LG Refrigerator Still Not Cooling After Replacing the Main Control Board? Start Here
The most commonly reported reasons an LG refrigerator does not cool immediately after an EBR81182789 replacement are judging the result before the compressor start delay has run out, a connector not fully seated, a demo state still active on the panel, and a compressor that had already failed, which no board can correct.
Let the start delay run out before judging anything
The control system holds the compressor off for several minutes after power is restored, and a full power-down reset after the swap is worth doing to clear anything the system has latched. Silence for the first ten minutes is normal and is not evidence of a bad board.
Reseat every connector, compressor leads first
A connector that looks seated but has not clicked home reproduces the original symptom exactly, and on this board the compressor leads are the ones that matter most, because a loose lead there reads as an open circuit and the board will simply stop trying.
Read the board LED again with the new board fitted
The most useful thing about this platform is that the diagnostic survives the repair. If the same flash group is back with a new board in place, the message was never about the board, and the compressor circuit is where the answer is.
Check the panel for a demo or display state
A refrigerator sitting in demo mode runs its lights and display and cools nothing, which looks exactly like a failed repair. The button sequence that clears it is given in the owner's manual and is not the same across LG ranges, so use the one printed for your model.
Use the install gloves and handle by edges
Static discharge is a common cause of damage to replacement electronics during installation. Touch the metal refrigerator frame before picking up the board, use the included install gloves, and handle the board by its edges only.
Still not working after all of the above?
Contact our team before returning anything. A brief conversation resolves the majority of post-install situations. We stand behind every board we sell and are here to help you get the result you need.
Which Other LG Refrigerator Parts Fail With the Same Symptoms?
Components that commonly fail alongside or instead of the EBR81182789 include the inverter compressor, the condenser fan motor, the evaporator fan motor, the defrost heater and defrost sensor, and the compartment thermistors. Each can produce a picture close to a main control board fault, so ruling them out first reduces the chance of buying the wrong part.
Share your model number and a photo of your existing board's sticker. Our team will help confirm the right part before you spend a dollar. No pressure, no obligation.
Why Buy the EBR81182789 from Appliance Pro USA?
Appliance Pro USA supplies the EBR81182789 as a genuine OEM board restored through the FailSafe Precision Protocol to meet or exceed OEM specifications, backed by a 1-year warranty (registration required), a 30-day return policy, free priority shipping, and same-day shipping on orders placed before 4 PM EST, Monday through Friday.
At Appliance Pro USA, we specialize in high-quality reconditioned replacement control boards, professionally inspected and tested to meet or exceed OEM specifications. Every board we sell undergoes our FailSafe Precision Protocol, meaning components identified through failure pattern analysis as common weak points are replaced proactively using equal or higher-rated parts before the board ever ships to you. With a replacement board from Appliance Pro USA, you're getting a board that's been evaluated and restored to reliable working condition, backed by our 1-year limited warranty (registration required) and 30-day return policy, so you can order with complete confidence.
We offer free priority shipping on every order, and orders placed before 4 PM EST ship same day, Monday through Friday, excluding holidays and scheduled closures. Whether you're a homeowner tackling this repair yourself or a professional technician who needs a reliable source, we're here to help you get the right part and get the job done right the first time.
Not sure this is your board? Send us a photo of your original board's part number sticker and we'll confirm before you buy. Reach us at info@applianceprousa.com
Ask us about MarkUp Pro, exclusive pricing on every order.
EBR81182789 LG Refrigerator Main Control Board, Frequently Asked Questions
Common questions about the EBR81182789 cover how it differs from the board one digit away, what the red light on the board is actually telling you, whether a clean control panel rules the board out, how to avoid buying a board when the compressor is the fault, and whether anything has to be configured after fitting.
How is the EBR81182789 different from the board whose number ends in 790?
They are stocked as two separate parts, and the practical difference is which cabinet they were built for. The number ending in 789 resolves to the LRDCS2603 bottom-freezer range in the manufacturer parts breakdowns. The number ending in 790 resolves to French-door models of the same generation. Both sit at the same position in their own model's diagram, which is why they get confused, and the catalogues are not perfectly consistent with each other on one overlapping model. No manufacturer interchange between the two could be confirmed, so treat them as distinct. Read the label on your own board, and if it has faded past reading, send us a photo before ordering.
There is a red light flashing on the board at the back. Does that mean the board has failed?
Not on its own, and this is the single most valuable thing to understand about this platform. The compressor drive is part of this board, so the board reports compressor trouble as well as its own, and it does so through that light. Repeating groups of flashes carry the message and the count is what matters. Groups that indicate an open circuit or a locked compressor are pointing past the board at the compressor. Groups that indicate a fault in the board's own switching stage are pointing at the board. A slow even heartbeat with no grouping is commonly reported as normal running rather than a fault. Count a full group two or three times before deciding anything, and confirm the meaning against your model's service documentation.
The control panel is not showing any code, but nothing is cooling. Does that rule this board out?
It does not, and on this platform an empty panel is close to expected. The panel codes on these refrigerators name sensors, fans and defrost parts. The compressor circuit reports to the board LED instead, so a board that has stopped driving the compressor can leave the front of the refrigerator looking completely normal. If nothing is cooling and the panel is clean, the rear cover needs to come off. That is where the information is.
How do I avoid buying this board when the compressor is the real problem?
Two checks answer it, and both come before any purchase. Count the flash group at the board LED, because the pattern most often reported on these models is the one that indicates an open compressor circuit. Then have the compressor windings measured across all three pin pairs; broadly even readings point away from the compressor, and an open pair points straight at it. There is a third thing worth doing that costs nothing: check your purchase date against the manufacturer's compressor coverage, which runs longer than the coverage on the rest of the refrigerator, because a compressor fault inside that window is a different conversation entirely.
Does this board need programming or configuration after it is fitted?
For a like-for-like swap, no configuration step is normally involved, and the board goes in with the same harnesses in the same positions. Some LG units can require a firmware or configuration step after a board change, and that is work for a qualified technician with the manufacturer's own equipment rather than something to attempt with generic tools. Worth knowing before you start: a board that has been flashed or reprogrammed is generally not returnable anywhere, so confirm the board has solved your problem before anyone alters it.
My refrigerator is a French-door LG of the same era. Can I fit this board?
Do not assume so. The parts breakdowns place French-door models of this generation against a different main board, even though the numbers sit one digit apart and one catalogue muddies the picture on a single model. Boards in this family are built for a specific cabinet's sensor set, fan complement and compressor, so a number that looks almost identical is not a licence to substitute. Match the label on your existing board character by character, and if the two candidate numbers both look plausible to you, send us a photo and we will confirm which one your cabinet takes before you spend anything.
