DA92-00768D Samsung Refrigerator Inverter Board: Compressor Control for the RF260, RF261, RF263 Family
Compressor never runs but the panel and lights look normal? That points at this inverter board, not the main control board. Here's the fast way to tell the two apart, which number to check, and how the swap goes.

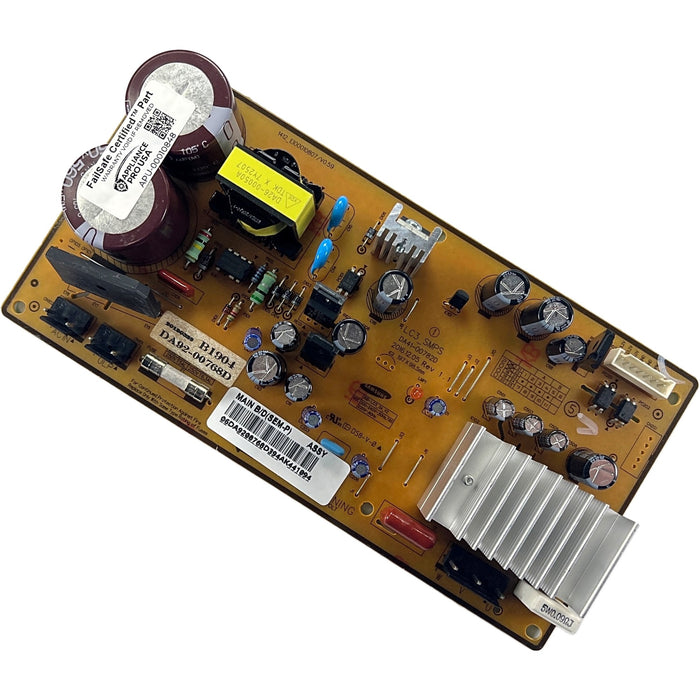

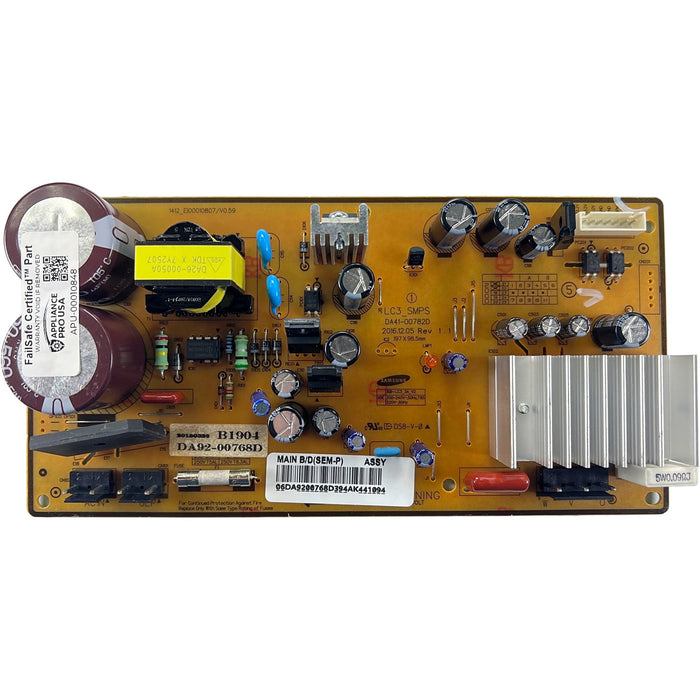

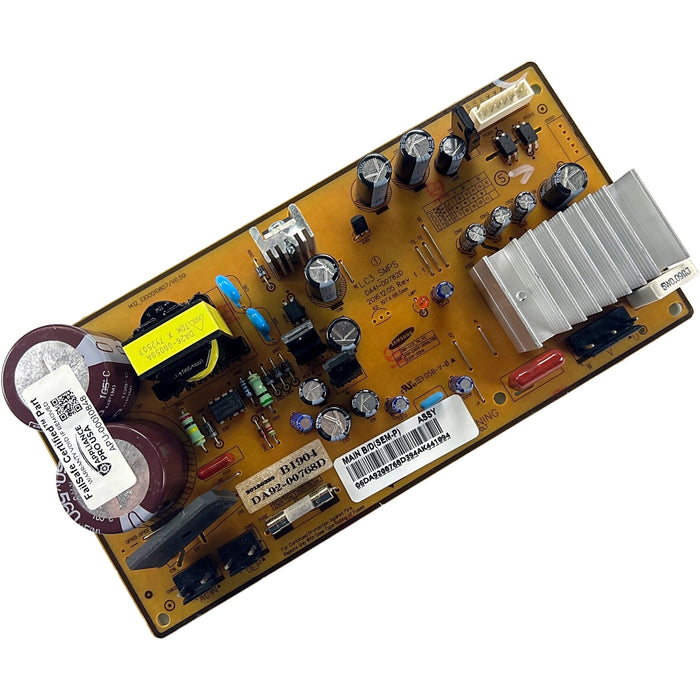

The DA92-00768D is the compressor inverter board built on Samsung's HM12 platform. It drives the compressor in the 26 cu ft bottom-mount French-door family, RF260, RF261, RF263, RF263T and RF26HFEND. It is not the main control board; that job belongs to a separate board on these same cabinets. A warm fridge on this family can trace back to either one, and this guide teaches the fast way to tell them apart before you order. Send us a photo of your board sticker if you want it confirmed first.
Even if you end up calling a tech, these checks mean you can tell them exactly what you found, which usually shortens the visit and the bill.
DA92-00768D: Is This the Inverter Board or the Main Control Board?
DA92-00768D is the compressor inverter board on Samsung's HM12 platform, not the main control board. The RF260, RF261, RF263, RF263T and RF26HFEND family also runs a separate main control board, so confirm the sticker on your board reads DA92-00768D before you order.
Samsung puts one number on this board's white sticker, and DA92-00768D is what you order against. The number that trips people up is not a production-versus-service split, it is which board it belongs to. The same 26 cu ft cabinets carry two separate boards, an inverter that drives the compressor and a separate main control board in the DA92-00384 series; different part, different job. Read the sticker on the board you pulled, not the one on the box it shipped in years ago, and match it here character by character.
This is not a universal board. It is a direct replacement for the exact part number printed on your original board. A board that looks similar can belong to a different platform, so match your sticker first, and if it reads a DA92-00384 number instead, you have the main control board, not this one.
| Number on the board | DA92-00768D, Samsung's part number, printed on the white sticker |
| Board type | Compressor inverter board, Samsung's HM12 platform, roughly 197 by 98 millimeters. It drives the compressor in the 26 cu ft bottom-mount French-door family; it is not the main control board |
| Cross references | AP6241756, PS12083015, EAP12083015, ASM32510 and PD00044737 all point to this same part |
| Companion board | The RF260, RF261, RF263, RF263T and RF26HFEND family also runs a separate main control board, numbered in the DA92-00384 series. Different board, different job; this guide covers the inverter only |
| Catalog neighbor | DA92-00768J is a separate sibling part in the same number block. No source we checked states the two interchange, so order by what your sticker reads |
| Replacement or superseding number | None listed. No published source we checked shows a replacement number for DA92-00768D. Order by the number on your sticker |
| One limit worth knowing | This board's job is the compressor. One source describes it as also setting fan speed; the others do not, so we are not carrying that claim as confirmed. Treat it as a compressor control until we see it corroborated elsewhere |
| Availability | In stock and ready to ship |
| APU status | FailSafe Certified, 1-year warranty (registration required), same-day shipping on orders placed before 4 PM EST |
Which Samsung Refrigerators Take the DA92-00768D Inverter Board?
The DA92-00768D fits Samsung's 26 cu ft bottom-mount French-door family: RF260, RF261, RF263, RF263T and RF26HFEND, with trailing letters marking finish only, SR stainless, SG black stainless, BC black, WW white. Check your model against the list below and match your sticker before you order.
Model Number Check

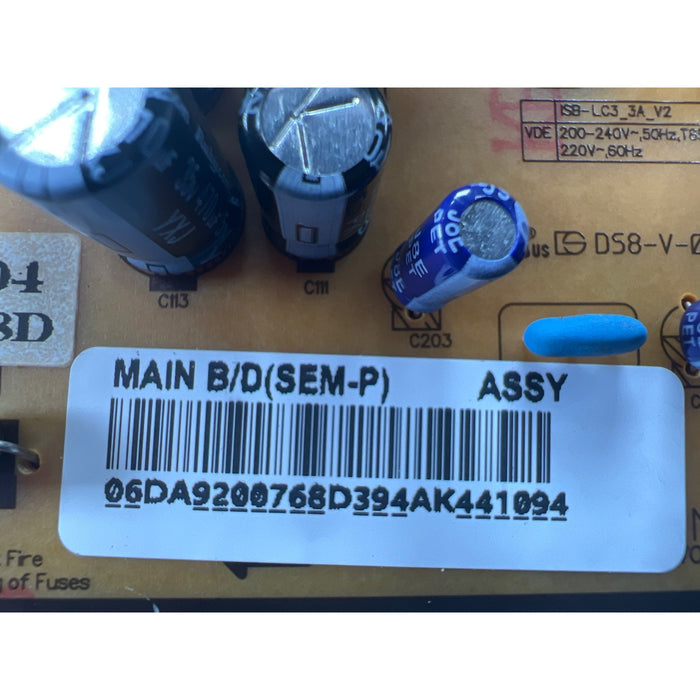

The white sticker carries the production number in full. Photograph it before the board comes out and order against what it says.
20 models on record for DA92-00768D. A linked model has its own page with board location, symptoms and parts for that refrigerator.
- RF260BEAESG
- RF261BEAESR
- RF263BEAEBC
- RF263BEAESG
- RF263BEAESR
- RF263TEAESG
- RF26HFENDSR
- RF260BEAEBC
- RF263TEAESP
- RF260BEAESL
- RF260BEAESR
- RF260BEAEWW
- RF261BEAEBC
- RF261BEAESG
- RF261BEAESP
- RF261BEAEWW
- RF263BEAEWW
- RF263TEAESR
- RF26HFENDBC/AA
- RF26HFENDWW
Not listed? Run your model through the check above and use its buttons; a missing model is not the same as incompatible.
Every model below relies on this inverter to drive its compressor, the one job it does across the whole family.
This model list is for reference only. Production runs shift over time, so two units sharing the same model prefix can still leave the factory with different board stickers. Order against the number stamped on your original board's sticker, since that is what actually settles it. This family is unusually tight compared to most control board fitment: RF260, RF261, RF263, RF263T and RF26HFEND cover the whole of it, with the trailing letters denoting finish rather than a different board. If your model starts with one of those prefixes, it is worth checking here, and our record does not show a supersession or replacement number attached to DA92-00768D.
Samsung Refrigerator Not Cooling: Is It the Inverter Board or the Main Control Board?
On the RF260, RF261, RF263, RF263T and RF26HFEND family, a compressor that never runs while the panel and interior lights behave normally is this inverter's lane. Anything else on the panel means ruling out the separate main control board first, since the record does not tie specific panel symptoms to either board.
Unplug the refrigerator before you take any panel off. These are the complaints that bring people to this board.
- Samsung refrigerator not cooling, compressor never kicks on, outlet is live
- Fridge and freezer both drift warm together while the panel and interior lights look completely normal
- Compressor tries once with a click or a hum, then goes quiet
- Condenser fan runs constantly and the compartment stays warm behind it
- Display still shows a normal set temperature while the cabinet warms up around it
Some models in this family show a code on the display, others do not. As far as we have seen, no display or blink code we could confirm ties back to this specific inverter, so on these cabinets you diagnose by symptom, not by code.
Let's verify it is the board by checking the parts that most often get blamed on it. They are inexpensive, easy to check, and ruling them out means you order once, with confidence.
The sticker on the board carries the number that decides which board you need. Read it in place, before any packaging is opened.
A compressor that never runs while the panel and interior lights behave normally is this inverter's lane. Anything else with the panel means ruling out the separate main control board first, before you fault this part.
A compressor that tries to start and then gives up sounds different from one that gets no power at all. Either way, you are now in the compressor circuit; that is the inverter, the harness, or the compressor itself.
A condenser fan spinning nonstop with no cold air coming through is easy to pin on a dead inverter. A coil clogged with dust forces the compressor to work harder, and that extra strain shortens the inverter's life too.
That connector between the inverter and the compressor takes heat on every cycle. A scorched pin or a connector that is not seated tight can look exactly like a failed board.
A dead compressor circuit can feel like a reason to replace the whole refrigerator. It normally is not. An inverter failure does not condemn the refrigerator, so swapping the small board that drives the compressor keeps the refrigerator you already have running, no need to source, deliver and install a whole new one.
How Do You Replace a Samsung Refrigerator Inverter Board (DA92-00768D)?
The DA92-00768D swaps in once the panel checks out normal and the compressor still will not run. Panel access varies by model in this family, so most installs run 10 to 20 minutes with basic hand tools.
Unplug the refrigerator first. Find this inverter using your model's tech sheet or service manual, since panel access varies across this family. Photograph every connector before you touch anything, then touch the metal frame to discharge static. Disconnect each connector by hand, working the plug itself rather than pulling on the wire, and set aside whatever mounting hardware holds the board in place before lifting it free. Seat the new board the same way the old one sat, put every plug back exactly where your photo shows it, refit the mounting hardware and panel, then restore power.
Still No Compressor After the DA92-00768D Swap? Check This First
A new DA92-00768D that changes nothing usually means a connector, the mounting hardware, or the actual fault is still in play. Before you write the board off, compare it against your photo, recheck every connector, and give the compressor its restart delay.
Check the new board against your photo
A replacement that does not match what came out is not typical for this part number. Compare size, connector layout and mounting points against the board you pulled; they should line up.
Put every connector back on its own header
A plug on the wrong header behaves exactly like a dead board, so check each plug against your photo.
Confirm the board is fully seated in its mounting hardware
A loose board is easy to overlook once everything is buttoned back up.
Give the compressor its restart delay
It is common for a compressor to sit idle for several minutes after power comes back before it attempts a restart. Silence in the first few seconds after you plug it back in does not mean anything failed.
Rule out the main control board
A compressor that never runs is this inverter's lane. If anything else is off with the panel, rule against the separate main control board first, numbered in the DA92-00384 series on these cabinets, before you fault this part again.
How Do You Help a New DA92-00768D Last?
Surges, heat and a compressor working harder than it should are what typically take out a Samsung refrigerator inverter board. A few checks while the panel is open protect your new DA92-00768D.
A few quick checks while you have things apart will help your new board last.
- Put the refrigerator on surge protection. Lightning, a utility fault or a generator changeover sends a spike straight through the inverter, and repeated short outages are harder on it than one long one. A surge protector rated for a large appliance is cheap insurance.
- Clean the condenser coil. A dust-packed coil forces the compressor to run longer and hotter, and this board answers for that extra load. Pull the lower grille, vacuum out the coil and shroud, and check that the condenser fan turns freely.
- Give the back of the unit room to breathe. Furniture, boxes or a wall crowding the refrigerator trap heat around the compressor and the board driving it. Keep the clearance behind and above the unit that your owner's manual specifies.
What Other Parts Are Worth Checking During This Repair?
A few other parts wear on the same schedule as the DA92-00768D. Worth checking during the same repair so you are not pulling the refrigerator back out for them later.
What Makes Appliance Pro USA Inverter Boards Hold Up?
Every DA92-00768D from Appliance Pro USA goes through the FailSafe Precision Protocol before it ships. Appliance Pro USA swaps out the components this inverter is known to fail on, then puts every board through testing before it leaves our shop.
FailSafe Precision Protocol
Failure Pattern Analysis
We track how the DA92-00768D actually fails on the compressor circuit it drives, not just whether it powers on.
Targeted Component Replacement
The parts on this inverter that carry the compressor load and absorb the most heat cycling get replaced before they ever get a chance to fail on your fridge.
Proactive Rebuild Standard
Every board gets new high-failure components installed, regardless of whether that specific unit is showing a problem yet, and none ship without clearing this step.
Final Certification
Every DA92-00768D is bench tested and certified to our internal FailSafe Precision Protocol standard for function and lifespan before it leaves our shop.
Boards come from inventory that has already been tested and may show minor cosmetic wear; each one is confirmed working before it is boxed.
Why Buy the DA92-00768D from Appliance Pro USA?
Our price for the DA92-00768D is listed below. It carries a 1-year warranty (registration required) and a 30-day return policy.
What this board costs
We specialize in reconditioned inverter and control boards. Every DA92-00768D goes through the FailSafe Precision Protocol, where the parts this board is known to lose come off and new components go on before the board is run, tested and certified.
Free priority shipping on every order, and orders placed before 4 PM EST ship same day, Monday through Friday, excluding holidays and scheduled closures. Your board is covered for a full year once registered, with coverage decisions handled by our bench. Boards that have been tampered with, or with our verification stickers or holograms removed or damaged, are not eligible for warranty coverage. Returns are accepted within 30 days in original condition. Opened or installed boards may carry a restocking and retesting fee, so compare the sticker before you open the anti-static bag; this fee is waived on exchanges. Boards returned with missing or damaged hologram stickers may not be eligible for a full refund.
Ask us about MarkUp Pro, exclusive pricing on every order.
What Else Do People Ask About the DA92-00768D?
A compressor that never runs with a normal panel points at this inverter; the DA92-00384-series main board is the other candidate on these cabinets. A replacement board that does not match what came out is a stop sign, not a shrug.
Why does my Samsung fridge run warm but the panel and lights look fine?
That split still holds on this family: the DA92-00768D inverter answers for the compressor only, so a normal panel and normal interior lights paired with a compressor that never runs point here. Anything else on the panel means ruling out the separate main control board first.
Is DA92-00768D the same as my refrigerator's main control board?
No. DA92-00768D is the compressor inverter board on Samsung's HM12 platform. A separate main control board in the DA92-00384 series is sold for the same cabinets; different part, different job.
What models use the DA92-00768D inverter board?
It fits Samsung's 26 cu ft bottom-mount French-door family: RF260, RF261, RF263, RF263T and RF26HFEND. The trailing letters on those models mark finish only, stainless, black stainless, black or white, not a different board. Check your sticker against the tool above to confirm the fit.
Does the DA92-00768D show an error code when it fails?
As far as we have seen, no display or blink code we could confirm ties back to this specific inverter on these cabinets. Diagnose it by symptom, a healthy panel with a compressor that never runs, rather than by waiting on a code.
Does this board also control the fan speed?
Its confirmed job is the compressor. One source describes it as also setting fan speed, but our other sources scope it to the compressor circuit only, so we are not carrying the fan-speed claim as confirmed. Treat it as a compressor control.
My replacement board doesn't match what I removed. Is that normal?
No, and that is worth stopping over. Compare the new board's size, connector layout and mounting points to the one you took out; they should be a match. Before you install it, send us two photos, the board that came out with its stickers, and the board that arrived.
Is there a newer version of the DA92-00768D I should order instead?
Not that we could find. No published source in our record lists a replacement or superseding number for DA92-00768D. Order by the number printed on your sticker.
Where Can You Find More on Inverter Board Repairs?
These Appliance Pro USA Help Center articles cover part number lookup and what a control board does. They also cover why boards fail and what to check when a new board changes nothing.
