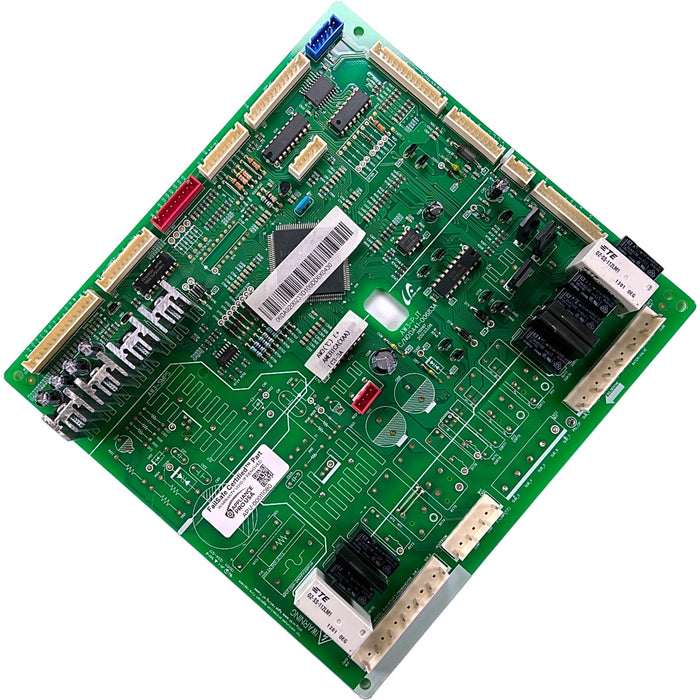

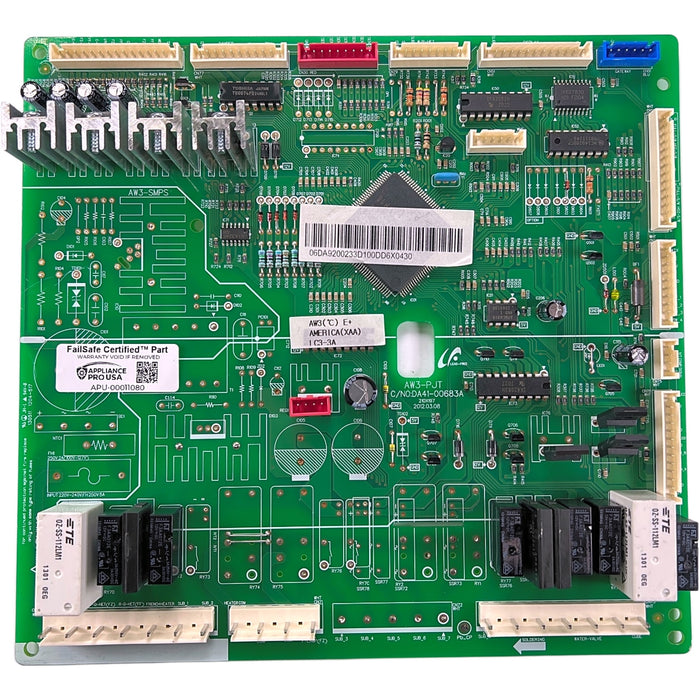

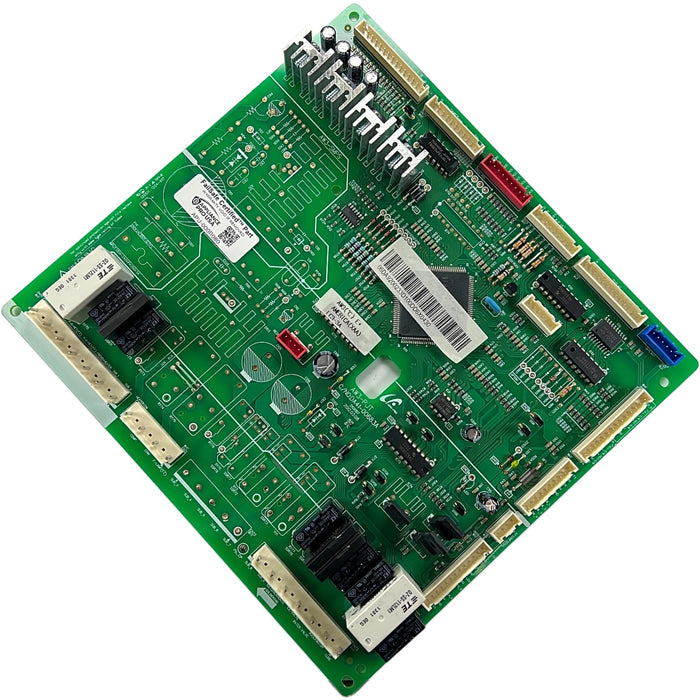

DA92-00233D Samsung RF4287 Refrigerator Main Control Board with LED Touch Display
Samsung RF4287 refrigerator not cooling, display dead, or ice maker acting up? This is the main board and touch display in one assembly. One platform confirmed, five checks before you buy, and the swap.
The DA92-00233D main control board runs cooling, defrost and temperature control for the Samsung RF4287 platform, and the factory description string for this assembly lists an LED touch display built into the same unit. If your RF4287 refrigerator's display has gone dark or unresponsive, the fridge has stopped cooling, or the ice maker has quit, this board is the usual place to look once the cheaper parts check out. DA92-00233D is the number on your board's sticker, and our record shows no earlier or later Samsung number attached to it. Send us a photo of your board sticker if you want it confirmed first.
Even if you end up calling a tech, these checks mean you can tell them exactly what you found, which usually shortens the visit and the bill.
Is DA92-00233D the Right Number for My Samsung RF4287 Control Board?
DA92-00233D is the production number Samsung stamps on this main control board, and this board carries the LED touch display as part of the same unit. As far as our record shows, no earlier or later number supersedes it in either direction, and it serves the RF4287 platform only. Match the sticker on your board to DA92-00233D and you have a confirmed fit.
Samsung stamps one number on this board's sticker: DA92-00233D. Our record shows no A, B or C suffix version of this number, and no earlier or later Samsung part number that replaces it in either direction, this one number is the end of the line. Retailers and distributors list this board under their own SKUs and item codes, those are catalog numbers, not Samsung part numbers, and they do not change what is stamped on the sticker. Order by DA92-00233D.
Our record shows a narrow fit for this number: three confirmed base models, all Samsung RF4287 French-door refrigerators, and no other platform attached to it anywhere we could check. If your refrigerator is not an RF4287, this may not be your board, verify by the sticker in the next section before you order.
This is not a universal board. It is a direct replacement for the exact number printed on your original board. Two Samsung refrigerators that look alike can still carry different boards, so match your sticker first.
| Number on the board | DA92-00233D, Samsung's factory production number, printed on the white sticker |
| Board type | Main control board assembly. The factory description string for this assembly lists ASSY PCB MAIN, LED TOUCH DISPLAY, AW3-PJT, which places the LED touch display in the same unit |
| Supersession | None found in either direction. As far as our record shows, this is a terminal number, not replaced by an earlier or later Samsung part, and it does not replace one either |
| Cross references | AP5272781, PS4168021, EAP4168021, item number 3015534, ASM32224 and PD00007853 are retailer and distributor codes for this same board, not separate Samsung part numbers |
| Companion board | The RF4287 platform also uses a separate compressor inverter board, DA92-00215C. Different board, different job, covered in the diagnosis section below |
| Fitment | RF4287 platform only, three confirmed base models on record. No other Samsung platform is attached to this number anywhere we could check |
| Availability | In stock and actively supplied |
| APU status | FailSafe Certified, 1-year warranty (registration required), same-day shipping on orders placed before 4 PM EST |
Which Samsung Refrigerators Use the DA92-00233D Control Board?
Our record ties the DA92-00233D to the Samsung RF4287 platform, three confirmed base models. One source reports Kenmore-badged units of this platform being covered too, but names no model number, so treat Kenmore fitment as a single-source, unconfirmed report until your sticker confirms it.
Model Number Check

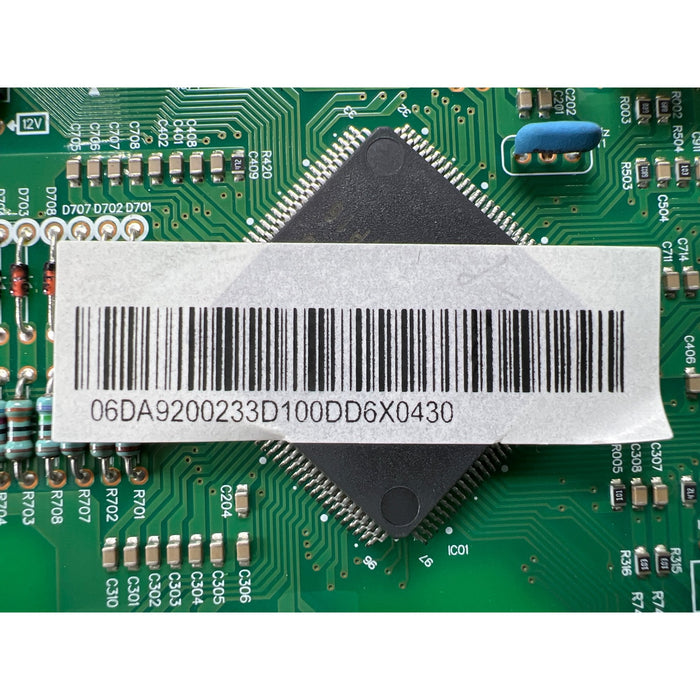

The white sticker carries the production number in full. Photograph it before the board comes out and order against what it says.
3 models on record for DA92-00233D. A linked model has its own page with board location, symptoms and parts for that refrigerator.
- RF4287HABP/XAA
- RF4287HAPN/XAA
- RF4287HARS/XAA
Not listed? Run your model through the check above and use its buttons; a missing model is not the same as incompatible.
Across every confirmed RF4287 base model, this is the same main board and display assembly, built to the one platform on record.
This model list is for reference only. Samsung may change boards between production runs, so two refrigerators with the same model number can use different boards. Go by the number printed on your original board when you order, nothing else settles fitment. As far as our record shows, this number is confined to the RF4287 platform: we found no wider prefix range attached to it. One source reports Kenmore-badged units of this platform being covered as well, but it names no model number, so verify by the sticker on your board before you order.
Samsung RF4287 Display Dead or Fridge Not Cooling: Is It the DA92-00233D?
The DA92-00233D runs cooling, defrost and temperature control, and this board carries the LED touch display in the same unit, so more than one symptom showing up at once often points here. A dead or unresponsive display points at this board. A compressor that never starts while the display stays live points at the separate compressor inverter board, DA92-00215C, instead. Rule out the thermistors, defrost parts and start circuit first.
Unplug the refrigerator before you take any panel off. These are the complaints that bring people to this board.
- Samsung RF4287 refrigerator stopped cooling or runs warm
- Freezer section will not freeze
- Ice maker not making ice, or it jams
- Control panel or LED touch display unresponsive or dark
- Compressor fan not running
This board carries the LED touch display in the same unit, so a dead or unresponsive touch panel is a strong sign pointing here. If the display lights up and responds but the compressor never starts, that points at the separate compressor inverter board, DA92-00215C, instead.
Let's verify it is the board by checking the common parts that contribute to these failures. They are inexpensive, easy to check, and ruling them out means you order once, with confidence.
The production number stamped on that sticker is what determines the correct board. Read it in place, before any packaging is opened.
This board carries the LED touch display, so a display that will not light or respond points at it directly. A refrigerator that stays warm while the display still lights up and responds points somewhere else first.
The board relies on the thermistors to know the interior temperature. If one shorts or opens, the board is simply acting on bad information, which is not a board defect. They are inexpensive and fail more often than the board itself, so we rule them out first.
Defrost timing is the board's call. It does not do the heating. That process depends on a heater actually carrying current, an intact fuse, and a sensor that is still reporting correctly. Take any one of those out of the picture and the freezer frosts up.
A stalled compressor fan is easy to mistake for a dead board. It makes the compressor run hot and short-cycle, which can look just like a board that lost the compressor.
A refrigerator that stops cooling does not have to mean a trip to the appliance store. Once the cheaper parts above check out, replacing this one board keeps the cabinet, the compressor and the sealed system you already own in service instead of hauling all of it to the curb over a single failed part.
How Do You Replace the DA92-00233D Samsung Refrigerator Control Board?
The DA92-00233D carries the LED touch display as part of the same assembly. Find the board where your unit's service access reveals it, and photograph the wiring before you disconnect anything. Most installs run 15 to 30 minutes with a Phillips screwdriver.
Unplug the refrigerator at the wall. This board carries the LED touch display as part of the same assembly, so find it where your unit's service access reveals it rather than assuming one fixed panel. Photograph every plug before you disconnect it so you can put each one back exactly where it came from, touch the metal frame first to discharge static, then release each connector by its latch rather than pulling on the wires. Free the board from its mounts, fit the new one the same way round, and reconnect from your photo before you close the panel back up.
Why Is the Display Still Dead or the Fridge Still Warm After the DA92-00233D Swap?
A new DA92-00233D that changes nothing usually means the real fault is still there, or a connection was not remade. Check the board against your photos, every plug, and the thermistors before you judge it.
Check the new board against your photo
A board that does not match what came out is not normal on this number. Stop before you install it and send us two photos, the board that came out with its stickers, and the board that arrived, and we will confirm before you go further.
Reseat every connector
A plug on the wrong header behaves like a dead board or a dark display.
Go back to the thermistors
A sensor stuck open or shorted hands the new board the same bad reading it gave the old one. A bad sensor will make a perfectly good board act like it failed.
Recheck which board the symptom points at
A dead display after the swap still points at this board. A warm fridge with a live, responsive display points at the separate compressor inverter board, DA92-00215C, instead, not at the board you just installed.
Still stuck?
Let the fridge run several hours at its usual setting before deciding whether the repair worked.
How Do You Help Your New DA92-00233D Control Board Last?
Surges, heat and moisture are the main threats to a Samsung refrigerator main control board with a built-in display. Three quick checks while you have access protect your new DA92-00233D.
While you are in there, three quick checks help your new board live a long life.
- Put the refrigerator on surge protection. A lightning strike, a grid fault or switching over to a generator can push a voltage spike straight into the board. A surge protector rated for a large appliance is cheap insurance.
- Clean the condenser coil. A coil packed with dust makes the compressor and fans run longer and hotter, and the board runs hot with them. Pull the lower grille, vacuum the coil and shroud, and check the condenser fan spins freely.
- Keep the display and control panel dry. A leaking water line or a weeping dispenser can send moisture toward the display and control panel. Wipe the panel dry and look for staining before you close up.
What Other Parts Are Worth Replacing While the Fridge Is Open?
Several Samsung RF4287 parts are worth checking during the same repair as the DA92-00233D: the thermistors, the defrost heater and fuse, and the compressor inverter board. Replacing a tired one now saves opening the refrigerator up twice.
Why Are Appliance Pro USA Boards So Reliable?
Every DA92-00233D from Appliance Pro USA is restored to reliable working condition through the FailSafe Precision Protocol. Appliance Pro USA replaces the components this board and its display are known to lose, then tests every board before it ships.
FailSafe Precision Protocol
Failure Pattern Analysis
We've mapped the failure signatures specific to the DA92-00233D, including the display, identifying which components degrade and fail over time.
Targeted Component Replacement
The components this board and its touch display are known to lose are replaced before they get the chance to fail.
Proactive Rebuild Standard
Components with a track record of failing go in new on every board here, whether that specific unit is acting up yet or not. Degraded parts don't ship.
Final Certification
Every board is tested and certified to our internal FailSafe Precision Protocol standard for function and lifespan, display included, before it ships.
Every board comes out of tested inventory and can carry light cosmetic marks from that process. Each board is confirmed fully operational before it leaves our shop.
Why Buy the DA92-00233D from Appliance Pro USA?
Our price for the DA92-00233D is listed below. It carries a 1-year warranty (registration required) and a 30-day return policy.
What this board costs
We specialize in reconditioned replacement control boards. Every one goes through the FailSafe Precision Protocol: the components we know this board and its display lose are replaced with new parts, then the board is tested and certified to our internal standard for function and lifespan.
Free priority shipping on every order, and orders placed before 4 PM EST ship same day, Monday through Friday, excluding holidays and scheduled closures. The board carries a 1-year warranty (registration required). Warranty coverage is determined at Appliance Pro USA's discretion. Boards that have been tampered with, or with our verification stickers or holograms removed or damaged, are not eligible for warranty coverage. Returns are accepted within 30 days in original condition. Opened or installed boards may carry a restocking and retesting fee, so compare the sticker before you open the anti-static bag; this fee is waived on exchanges. Boards returned with missing or damaged hologram stickers may not be eligible for a full refund. A board that has had its firmware flashed, reprogrammed or otherwise altered falls outside both the return policy and the warranty.
Ask us about MarkUp Pro, exclusive pricing on every order.
What Else Do People Ask About the DA92-00233D?
The DA92-00233D is the main control board with the LED touch display built into the same unit, confirmed for the Samsung RF4287 platform only, with no earlier or later number superseding it in either direction. A dead or unresponsive display points to this board, while a live display with a compressor that never starts points to the separate compressor inverter board, DA92-00215C.
Does the DA92-00233D control board include the display?
Yes, as far as our record shows. This board carries the LED touch display as part of the same unit as the main control board, not as a separate part.
Is there an older or newer number for the DA92-00233D?
As far as our record shows, no. We found no earlier or later Samsung part number that supersedes DA92-00233D in either direction. It is a terminal number, and the label match on this one number settles fitment.
How many Samsung refrigerators does the DA92-00233D fit?
Our record shows three confirmed base models, all within the Samsung RF4287 platform. We found no other Samsung platform attached to this number anywhere we could check.
Does the DA92-00233D fit Kenmore refrigerators?
One source reports Kenmore-badged units of this platform being covered, but it names no model number. Treat that as a single-source, unconfirmed report and verify by the sticker on your board before you order.
My Samsung RF4287 refrigerator is not cooling and the compressor never starts, but the display still works. Is it this board?
Probably not this one. A live, responsive display with a compressor that never starts points at the separate compressor inverter board for this platform, DA92-00215C, rather than at the DA92-00233D.
My display is dead or will not respond. Is that the DA92-00233D?
Yes, that points here. This board carries the LED touch display, so a dead or unresponsive display is one of the stronger signs pointing at the DA92-00233D rather than at the compressor circuit.
Does the DA92-00233D show an error code when it fails?
No error code for this board is corroborated across our sources, so diagnose it by the symptoms in the checklist above rather than a code on the display.
Which Help Center Articles Support This Repair?
The part number sticker settles fitment for the DA92-00233D, and this main control board handles cooling, defrost, temperature control and the LED touch display for the RF4287 platform. Our Help Center covers looking up the sticker, why these boards fail, and what to recheck when a new board changes nothing.
