A04914009/F Frigidaire Refrigerator Main Control Board: Symptoms, Fitment and Installation Guide
Frigidaire refrigerator running warm, clicking, or stuck on defrost? This guide covers the A04914009/F control board: how to confirm the sticker number, rule out cheaper causes, and fit it once.
20,000+ control boards restored at the bench
✓ FailSafe CertifiedClick to enlarge

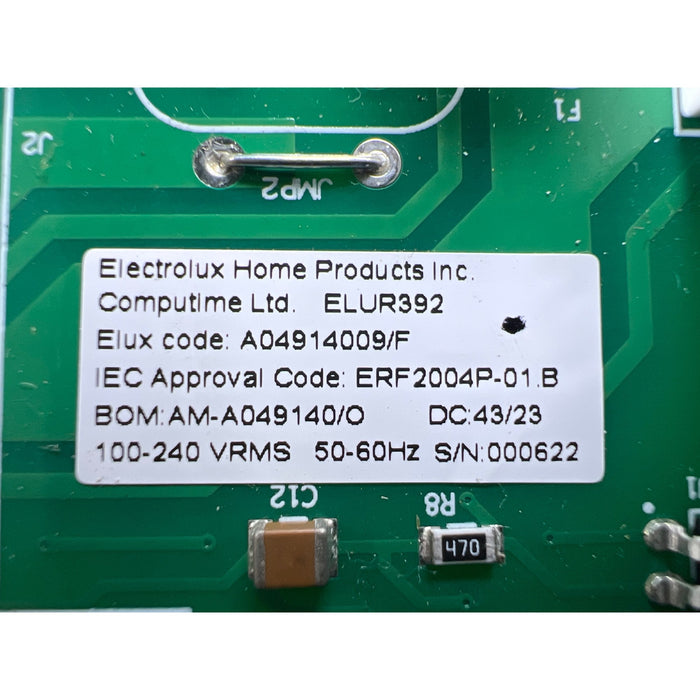

A04914009/F: Is This the Number on Your Frigidaire Control Board Sticker?
Copy the number on the white sticker exactly, including the slash and the letter at the end. The numbers stamped on the green board itself are component codes, not the part number you need.
No service number is on record for this board, so a later production run can carry small label differences. Size, connector layout and mounting points must still match the board you removed. When something is off, pause the install and send us both photos: the board that came out with all of its stickers, and the one that arrived.
This is not a universal main control board - it is a direct replacement for the part number printed on your original board. Boards that look identical can be programmed differently, so always match the number on the sticker.
Which Frigidaire Refrigerators Use the A04914009/F Control Board?
No models are confirmed for this board, so the sticker on your old board is what decides. Compare it to A04914009/F character by character.
The board sits on the back of the cabinet or behind an access panel inside the unit, often behind the freezer drawer or lower grille on bottom-freezer models. This model list is for reference only. Frigidaire may change boards between production runs, so two refrigerators with the same model number can use different boards. Always order by the part number printed on your original board - it is the only identifier that decides.
Opened or installed boards may carry a restocking and retesting fee, so compare the sticker before you open the anti-static bag. Hold yours next to A04914009/F and check it character by character.
Frigidaire Refrigerator Not Cooling? Is It the A04914009/F or Something Else?
These checks help you rule out the common causes before you order. Only a qualified technician on site can confirm the fault in your refrigerator. Unplug the refrigerator before you take any panel off, and stop at any step you are not comfortable with.
This board does not drive a fault-code display, so there is no code to read. Diagnose by symptom instead.
Let's verify it is the board by checking the common parts that contribute to these failures. They are inexpensive, easy to check, and ruling them out means you order once, with confidence.
Confirm the number on your sticker
Read it in place before you open any packaging. If it reads A04914009/F, this is your board. If a character is worn, clean the sticker and read it again in good light.
Check power at the outlet first
Confirm the outlet is live and the cord and breaker are good. A board with no power looks exactly like a dead board.
Test the temperature sensors
When a sensor shorts or opens, the board reacts to bad information, and that is not the board's fault. Compare each reading against the wiring and test chart packed inside the appliance.
Defrost heater and thermal fuse
Both should pass a continuity check. Frost built up behind the rear wall with a good board usually means one of these opened, not the board.
Start relay, overload and both fans
A struggling relay drags on the board driving it. Both fans should spin freely by hand. If the compressor hums and clicks off, check here first.
Once the power, the sticker, the sensors, the defrost parts and the start circuit all check out, the board is what is left. You need a replacement main control board, and buy once instead of guessing twice. A sensor or fan that failed quietly can stress a board for months before the board itself gives out. Keep a spare on the shelf and a warm refrigerator becomes a short repair instead of a lost week of food.
How Do You Replace the A04914009/F Frigidaire Main Control Board?
Repair times and difficulty levels are general estimates and may vary by model, tool availability, and experience. This is provided as general guidance only and is not a substitute for professional service. Food is normally fine during a typical install, but we highly recommend moving it to a cooler with ice as a precaution - Appliance Pro USA is not responsible for lost or spoiled food.
Disconnect it at the wall and wait a few minutes before you start.
Pull out the freezer drawer and detach the lower grille or kickplate on most models to expose the control board housing.
Shoot the board with all wires still attached and note the orientation of each connector before you touch one.
Pry the housing down and forward to release it from its tracks, then set it where you can work on it.
Handle the new board by its edges and avoid touching the components. Transfer the test port plug and every connector from the old board to the same spot on the new one.
Reconnect each plug from your photo, then snap the housing back into its tracks and refit the grille or drawer.
- ✓I read my sticker and confirmed it says A04914009/F
- ✓I photographed every connector before I disconnected it
- ✓I checked the sensors and defrost parts before ordering
- ✓The start relay, overload and both fans checked out
- ✓I am ready to transfer the test port plug to the new board
On this board, fitting the replacement is a straight swap. There is no jumper or setup step on a standard install. Give the refrigerator a few hours at a normal setting before you judge the result. The 5-mil nitrile gloves in the box give grip and some protection, but they are not cut-proof. Hold the board by its edges and mind the sheet-metal edges of the cover.
Still Not Cooling After Installing the A04914009/F?
Clicks and relay sounds are normal. The compressor may stay off for several minutes as a protection delay.
Fans run, compressor hums, and cold air shows up in the freezer first.
Both sections reach near set temperature. Do not load warm groceries before this.
Temperatures stabilize and the ice maker resumes. Now decide whether anything is wrong.
Once power is back on, the board compartment is live. Do not reach into it or reseat a plug with the refrigerator plugged in. Unplug first, every time.
Check the new board against your photo
Size, connector layout and mounting points should match the board you removed. Send us both photos if they do not.
Recheck every connector
Go back to your photo and confirm each plug is seated in the same spot it came from.
Go back to the sensors
A sensor stuck open or shorted hands the new board the same bad reading it gave the old one.
Confirm the test port plug moved over
If it was left on the old board, the new board can read as dead.
Still stuck? Message us before you return anything
Give the refrigerator a few hours at a normal setting, then tell us the symptom and attach your photos.
The troubleshooting steps above are general guidance only and may not apply to every model or situation. If you are unable to resolve the issue after following these steps, we recommend contacting our team or consulting a qualified appliance technician before taking further action.
How Do You Help Your New A04914009/F Control Board Last?
Add surge protection
A utility fault or a storm sends a spike straight through the board. Repeated short outages wear on it more than one long one.
Clean the condenser coil
A dusty coil makes the compressor and fans run longer and hotter, and the board runs hot with them.
Check the drain and door seals
A blocked defrost drain or a weak door seal lets moisture reach the board housing. Wipe the area dry and look for staining.
Which Frigidaire Parts Pair With the A04914009/F?
Temperature sensors Do it now
Inexpensive and in the same housing area. A bad sensor can make a good board look faulty, so change tired ones now.
Defrost heater and thermal fuse On frost
Already exposed once the rear panel is off. A failed one causes frost even with a new board.
Start relay and overload On clicking
A struggling relay drags on whatever board drives it. A quick check once the panel is open.
Evaporator or condenser fan If a blade drags
A fan with a worn bearing runs hot and works the new board harder. Replace one that rumbles or drags.
Why Are Appliance Pro USA Boards So Reliable?
Failure Pattern Analysis
We've mapped the failure signatures specific to this board, identifying which components degrade and fail over time.
Targeted Component Replacement
The components this board is known to lose are replaced before they get the chance to fail.
Proactive Rebuild Standard
Known high-failure components are replaced with new parts on every board, regardless of whether they show a problem yet. Degraded parts don't ship.
Final Certification
Every board is certified to our internal FailSafe Precision Protocol standard before it ships.
Why Buy the A04914009/F from Appliance Pro USA?
Appliance technician? MarkUp Pro members get professional pricing on every order, applied automatically once approved. Learn about MarkUp Pro
Warranty coverage is determined at Appliance Pro USA's discretion. Boards that have been tampered with, or with our verification stickers or holograms removed or damaged, are not eligible for warranty coverage. Any board that has been flashed, reprogrammed, or had its firmware altered is not eligible for return or warranty coverage. Opened or installed boards may carry a restocking and retesting fee, so compare the sticker before you open the anti-static bag. Minor cosmetic wear may be present due to prior installation - it does not affect performance.
What Else Do People Ask About the A04914009/F?
Why does searching A04914009/F bring up so little?
No service number is on record for this board, so A04914009/F printed on the sticker is the only number to search or order by. Match your sticker exactly when you order.
What ships in the box with the A04914009/F?
The board sealed in an anti-static bag, a mini-manual (tech sheet), a pair of 5-mil nitrile install gloves, and the warranty registration card.
My replacement board looks different from the one I took out. Is it wrong?
Stop and check whether size, connector layout and mounting points still match. Send us a photo of the old board with its stickers and a photo of the new one, and we will confirm before you go further.
I ordered the wrong board. What now?
Leave the bag sealed and contact us first. An exchange is the fastest path, since opened or installed boards may carry a restocking fee.
Does the A04914009/F need programming or setup?
On this board, fitting the replacement is a straight swap with no programming step. Give the refrigerator a few hours at a normal setting before you judge the result. Any board that has been flashed, reprogrammed, or had its firmware altered is not eligible for return or warranty coverage.
Is the A04914009/F discontinued?
No. It is not marked discontinued by the manufacturer, so it remains available to order by the sticker number.
My Frigidaire refrigerator is completely dead. Is it the board?
Check the outlet, cord and breaker first. If power is confirmed and nothing inside responds, the board is a strong candidate, and the checks above take just a few minutes.
