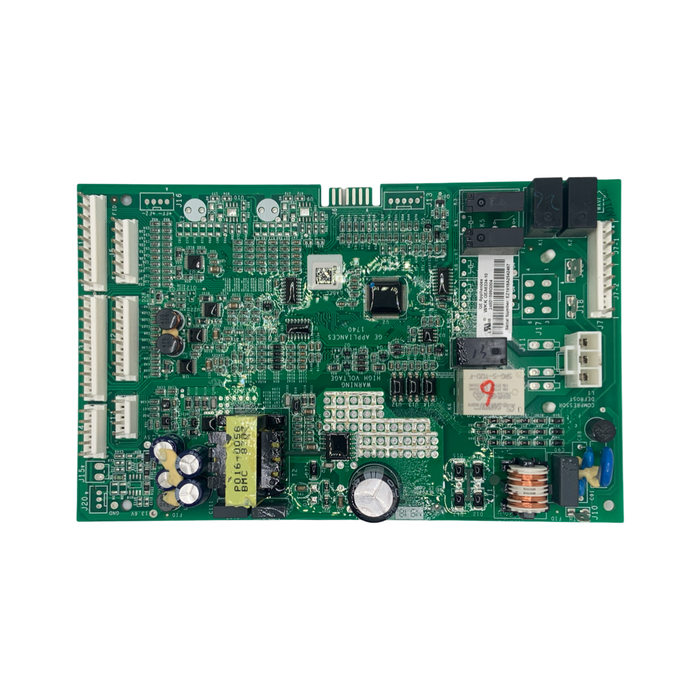

GE Refrigerator Not Cooling? 245D1899G004 Main Control Board Replacement and Install Guide
245D1899G004 governs the cooling cycle on these GE refrigerators, and when it fails the fridge commonly stops cooling, runs but never gets cold, or will not power back on after an outage.
The main control board is what decides when the compressor, fans and defrost cycle run on a GE refrigerator, so a fridge that has stopped cooling, runs but never gets cold, or trips out after a power outage often traces back to it. This guide covers the 245D1899G004 board. There is no GE service number published for this board, so the number stamped on your sticker is what identifies it and what you order against. Match it exactly, and if you are not certain what you have, the check below will confirm it before you buy.
Even if you end up calling a tech, these checks mean you can tell a tech exactly what you found.
Does the Number on My 245D1899G004 Sticker Have to Match Exactly?
Yes. The number on your board's sticker is what decides fitment for 245D1899G004, and we do not publish a GE service number for this board. Match it character for character before you order.
GE runs two numbering systems on its appliance boards, a production number stamped on the sticker and a separate service number used through GE's own parts channels. We order 245D1899G004 by the number on the sticker, so hold your board next to that number before you order, since boards that look alike on the outside are not always interchangeable.
| Number on the board | 245D1899G004 |
| Board type | Main control board |
| What it does | Governs the cooling cycle and temperature regulation |
| Where it sits | Back of the unit, behind the rear access panel (on these models) |
| APU status | FailSafe Certified, 1-year warranty (registration required), same-day shipping on orders placed before 4 PM EST |
Which GE Refrigerator Models Take the 245D1899G004 Board?
245D1899G004 is tagged to the GE refrigerator models listed below, and that list is a starting point rather than a complete catalog. The number on your own board's sticker is what actually confirms fitment, see the check above if you are not certain.

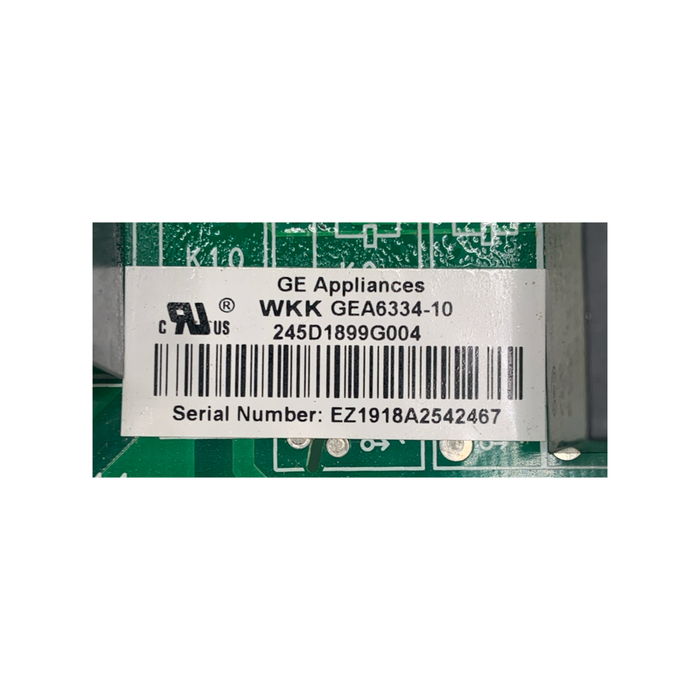

Check Your Board Sticker
The white sticker carries the number in full. Photograph it before the board comes out and order against what it says.
7 models on record for 245D1899G004. A linked model has its own page with board location, symptoms and parts for that refrigerator.
- GFE26GSHSS
- GFE26GGHBB
- GFE26GGHCC
- GFE26GGHWW
- GFE26GMHES
- GFE26GMKES
- GFE26GSKSS
Not listed? Run your model through the check above and use its buttons; a missing model is not the same as incompatible.
The sticker on your board is still the final word on fitment.
This model list is for reference only. GE may change boards between production runs, so two refrigerators with the same model number can use different boards. Always order by the part number printed on your original board, it is the only identifier that decides.
Before I Buy 245D1899G004, How Do I Know the Board Is Actually the Problem?
A GE refrigerator main control board like 245D1899G004 governs the cooling cycle and defrost timing, so a failing one can look like several cheaper problems. Rule out the more common, less expensive parts first before you order a board.
Pull the plug before any panel comes off. A main control board on the way out tends to show up as one or more of the following, since it is what tells the compressor, fans and defrost cycle when to run.
- Fridge section stays warm while the freezer keeps working fine
- No power at all following an outage or a voltage surge
- Compressor cycles on, then cuts out before it catches
- Ice builds up because the defrost cycle never kicks in on schedule
- Nothing cools even though the outlet still has power
Work from the symptom, not a code. Where your model shows a display code, treat it only as a starting point, never as the diagnosis itself.
Before you spend on a board, work through the parts that commonly mimic a bad one. Each check is cheap and quick, and clearing all five means you order once, with confidence.
Before testing anything else, match the number on your board's sticker against 245D1899G004.
A bad thermistor hands the board incorrect temperature data, and the board simply acts on what it is told. That is a sensor fault, not a board fault.
When frost collects behind the panel, the defrost system is the more likely culprit, not the board.
A compressor that clicks and then quits is usually struggling to start, not refusing outright.
A loose plug or a weak ground can imitate a dead board with startling accuracy.
How Long Does It Take to Replace the 245D1899G004 Board?
245D1899G004 sits on the back of the unit, behind the rear access panel. Most owners comfortable working back there finish the swap in under 30 minutes.
Unplug the unit and pull it far enough from the wall to reach the back, then take off the rear access panel to reveal the board. Snap a photo of every connection before you touch anything, then touch the metal frame to discharge static. Carefully unplug the old board, working from your photo, and set the replacement into place. Reconnect each wire the way it came out, seal the panel back up, and plug the fridge back in.
Installed 245D1899G004 and the Fridge Still Won't Cool?
If the refrigerator still is not cooling after you install 245D1899G004, do not assume the new board is bad. Recheck every connection and the ground first, since a loose one can look exactly like a failed board.
A board that does not match yours
Compare against the photo you took before the swap. Header positions, plug count and mounting points should all line up with the board you pulled. If something is off, stop there: a board that looks meaningfully different usually points to the wrong part in hand.
Recheck the ground connection
A weak ground can leave a perfectly healthy board behaving as though it never got power.
Go back to the thermistors
Still no cooling after the swap? Retest the thermistors. A bad one drags down a new board the same way it dragged down the old one.
Confirm every connection is back where it came from
Pull up the photo you took before the old board came out and step through it, connection by connection, to confirm each one landed where it started.
Still stuck
Cooling still off after working through all of that? Email info@applianceprousa.com and our team will help you sort it out.
What Can I Do to Keep My New 245D1899G004 Board From Failing Again?
Surges, heat and moisture are typically what shorten a control board's life. A surge protector rated for a large appliance and good airflow around the back of the fridge both help 245D1899G004 hold up over time.
A handful of habits go a long way toward keeping a new board healthy, especially in the months after a surge or an outage.
- Protect it from power surges. Lightning, a utility fault or even a generator switchover sends a spike straight through the board, and a run of short outages can do more damage than one long one. A surge protector rated for a large appliance is cheap insurance.
- Keep the condenser coil clean. A coil caked in dust makes the compressor and fans work longer and hotter, and the board heats up right alongside them. Pull the lower grille and vacuum out the coil and shroud, and confirm the condenser fan turns freely.
- Watch the door seals and the drain. A worn gasket keeps the compressor running nonstop, and a blocked defrost drain or a leaking water valve can send moisture toward the board housing. Wipe things dry and look for staining before buttoning everything back up.
What Else Should I Replace While the Rear Panel Is Off?
With the rear panel already open to install 245D1899G004, it costs little extra time to check the thermistors and defrost parts too. Catching a marginal part now saves a second teardown later.
How Do I Know This 245D1899G004 Board Was Actually Tested?
Every 245D1899G004 board we sell goes through testing and gets restored to solid working condition before it leaves us. That process is what lets us stand behind it with a 1-year warranty.
FailSafe Precision Protocol
Failure Pattern Analysis
We track where GE refrigerator main control boards like this one tend to break down, so we know which components are first to go.
Targeted Component Replacement
Parts with a track record of wearing out on a board like this get swapped before they have a chance to cause a failure.
Proactive Rebuild Standard
Every board we certify gets its high-failure components replaced with new parts, whether or not they show a problem yet. Nothing marginal goes out the door.
Final Certification
Each board is checked and signed off against our internal FailSafe standard for function and expected service life before it ships.
Boards come from tested stock and can show light cosmetic wear. Every one is confirmed fully functional before it ships.
How Much Does the 245D1899G004 Control Board Cost?
Appliance Pro USA sells the 245D1899G004 as a FailSafe Certified board with free shipping, a 1-year warranty once you register it, and 30 days to return it. The current price is in the cost card on this page.
What this board costs
Reconditioned replacement control boards are our focus. Every board runs through the FailSafe Precision Protocol first, we swap out the parts with a known wear history on boards like this one, then test and certify the result against our internal standard for function and lifespan.
Free priority shipping on every order, and orders placed before 4 PM EST ship same day, Monday through Friday, excluding holidays and scheduled closures. The board carries a 1-year warranty (registration required). Warranty coverage is determined at Appliance Pro USA's discretion. Boards that have been tampered with, or with our verification stickers or holograms removed or damaged, are not eligible for warranty coverage. Returns are accepted within 30 days in original condition; restocking and retesting fees may apply to opened or installed boards, waived on exchanges. Boards returned with missing or damaged hologram stickers may not be eligible for a full refund. Any board that has been flashed, reprogrammed, or had its firmware altered is not eligible for return or warranty coverage.
Ask us about MarkUp Pro, exclusive pricing on every order.
What Do I Need to Know Before Ordering 245D1899G004?
245D1899G004 is a GE refrigerator main control board that ships FailSafe Certified with a 1-year warranty. There is no GE service number published for it, so order by the number on your sticker.
What does the number on my sticker mean, and why isn't there a GE service number listed?
The number on your sticker, 245D1899G004, is the production number GE stamped on the board when it was built. GE also runs a separate service number system for ordering through its own parts channels, but no service number is published for this board. We order 245D1899G004 by the number on the sticker, so match it directly when you order.
The board I received does not look like my old one. Did I get the wrong part?
Possibly, and it is worth confirming before you install it. Your replacement should match the board you pulled in size, connector layout and mounting points. Hold it up against the photo you took, and if anything is off, email us a photo of the board you removed with all of its stickers plus a photo of the one that arrived. We will confirm the right part before anything goes in.
Does the board need programming after installation?
Installing 245D1899G004 is a physical swap. Give the new board several hours before judging results. Any board that has been flashed, reprogrammed, or had its firmware altered is not eligible for return or warranty coverage.
How can I tell if my refrigerator uses this board?
The sticker on your old board is the most reliable way to confirm fitment. If it reads 245D1899G004, you have a match. The models listed above are a starting point based on what we have on file, not a complete list, so lean on your sticker over the model list if the two ever disagree.
My refrigerator is completely dead, what should I check first?
Start with the outlet and the power cord before assuming 245D1899G004 has failed, since a dead refrigerator is often just a power problem. Test the outlet with another appliance, check the cord for damage, and confirm nothing tripped at the breaker. If power checks out fine and the refrigerator still will not respond, the board becomes the more likely cause.
The sticker on my old board is worn away, what do I do?
If you cannot read the number, do not guess between 245D1899G004 and a similar board. Use the contact option above under the fitment check, and we will help identify what you have before you order anything.
What comes in the box with 245D1899G004?
Every order ships with the board sealed in an anti-static bag, a quick start guide covering install steps and FAQs, a pair of 5-mil nitrile install gloves, a warranty card to scan and activate your 1-year coverage, and a Friends & Family discount card to share.
