245D1876G003 GE Refrigerator Main Control Board: WR55X31697 Cross-Reference, Symptoms and Install Guide
GE refrigerator stuck warm, running nonstop, or showing heavy frost. This guide covers which number to order by, which GE models use it, five checks before you buy, and the swap.
20,000+ control boards restored at the bench
✓ FailSafe CertifiedClick to enlarge
WR55X31697 vs 245D1876G003: Which Number Do You Order By?

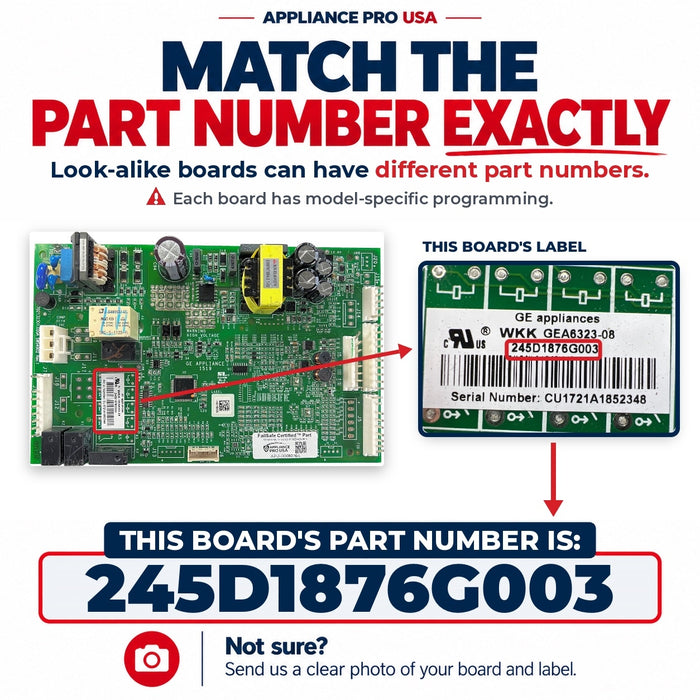

GE's label may show this board under more than one printed number, including 245D1876G001, G002 or G003. Match the exact string your sticker shows, not just the first few digits.
This service number covers more than one production version, so a different printing or label can show up. Size, connector layout and mounting points should still match the board you removed. If anything looks off, stop before installing and send us both photos: the board that came out with all of its stickers, and the one that arrived.
This is not a universal main control board - it is a direct replacement for the part number printed on your original board. Boards that look identical can be programmed differently, so always match the number on the sticker.
Which GE Refrigerators Use the 245D1876G003, and Is Yours One of Them?
Not listed? A missing model is not the same as incompatible. Go by the sticker on your old board, or use the check above and send us a photo.
This board sits inside the cabinet as the T Main board, typically behind a rear access or base grille panel, wired to the compressor, fan motors, defrost heater and sensor harnesses. This model list is for reference only. GE may change boards between production runs, so two refrigerators with the same model number can use different boards. Always order by the part number printed on your original board - it is the only identifier that decides.
Opened or installed boards may carry a restocking and retesting fee, so compare the sticker before you open the anti-static bag. Hold yours next to 245D1876G003 and check it character by character.
GE Refrigerator Not Cooling: Is It the 245D1876G003 or Something Else?
These checks help you rule out the common causes before you order. Only a qualified technician on site can confirm the fault in your refrigerator. Unplug the refrigerator before you take any panel off, and stop at any step you are not comfortable with.
This board does not drive a numbered error code display, so diagnose by symptom rather than a code.
Let's verify it is the board by checking the common parts that contribute to these failures. They are inexpensive, easy to check, and ruling them out means you order once, with confidence.

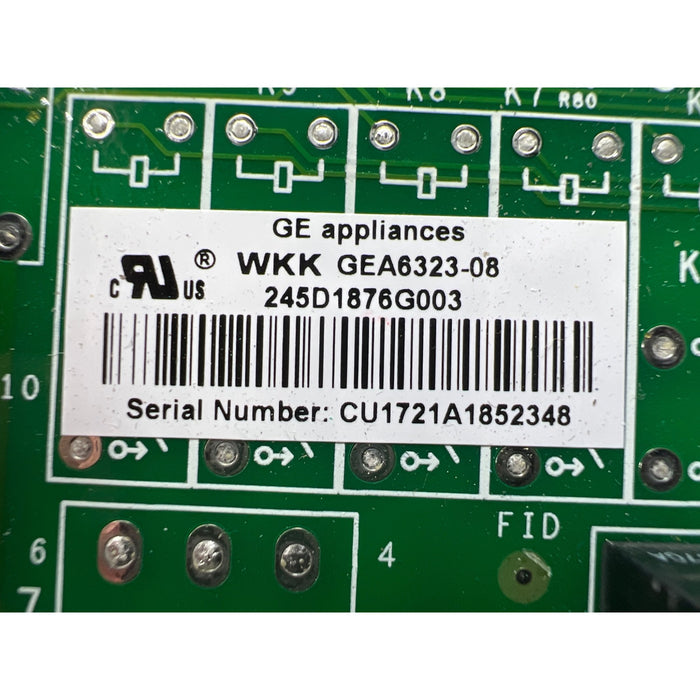

Confirm the number on your sticker
Read it before you open any packaging. If it reads 245D1876G003, or matches the WR55X31697 service number, this is your board.
Test the temperature sensors
If a sensor shorts or opens, the board acts on bad information, and that is not the board's fault. Compare each reading against the chart in the refrigerator's mini-manual (the tech sheet, usually folded behind the toe-kick grille).
Defrost heater and thermal fuse
Both should pass a continuity check. Heavy frost on the back wall with a good board usually means one of these failed instead.
Start relay, overload and both fans
A struggling relay drags on the board that drives it. Both fans should spin freely by hand, and a compressor that hums then clicks off points here first.
Confirm the outlet and cord
Plug a lamp into the same outlet to confirm it is live, and check the cord for damage. A dead outlet looks exactly like a dead board.
Once the power, the sticker, the sensors, the defrost parts and the start circuit all check out, the board is what is left. You need a replacement main control board. Order it once and move on. A sensor or fan that has been failing quietly can stress the board for months before it finally gives out. Keep a spare on the shelf and a warm refrigerator becomes a short swap instead of a week of coolers.
How Do You Replace a GE Refrigerator Main Control Board (245D1876G003)?
Repair times and difficulty levels are general estimates and may vary by model, tool availability, and experience. This is provided as general guidance only and is not a substitute for professional service. Food is normally fine during a typical install, but we highly recommend moving it to a cooler with ice as a precaution - Appliance Pro USA is not responsible for lost or spoiled food.
Pull the plug and, if your model has an icemaker or dispenser, shut off the water supply too. Give it a few minutes before you start.
Remove the panel covering the rear access area or base grille to expose the control board enclosure.
Shoot the board with all harnesses still plugged in. This is your map for reinstalling.
Touch bare metal to drain static, then unplug each connector and release the screws or tabs holding the board in place.
Set the new board in place and reconnect every harness exactly as your photo shows.
Reinstall the mounting hardware and the rear panel, then restore power.
- ✓I photographed my board's sticker and read every character
- ✓I checked the sensors and they read in range, or I already replaced them
- ✓I confirmed the defrost heater and thermal fuse both pass a continuity check
- ✓I looked at the start relay and overload, and both fans spin freely
- ✓I shut off the water supply before starting, since my model has an icemaker
On this board it goes in as a straight swap. We have not run into a programming step on a standard replacement. Let the refrigerator run for several hours at a normal setting before you judge it. The 5-mil nitrile gloves in the box give grip and some protection, but they are not cut-proof. Hold the board by its edges and mind the sheet-metal edges of the cover.
Why Is Your GE Refrigerator Still Not Cooling After the 245D1876G003 Swap?
Clicks and relay sounds are normal. The compressor may stay off for several minutes as a protection delay.
Fans run, compressor hums, and cold air shows up in the freezer first.
Both sections reach near set temperature. Do not load warm groceries before this.
Temperatures stabilize and the ice maker resumes. Now decide whether anything is wrong.
Once power is back on, the board compartment is live. Do not reach into it or reseat a plug with the refrigerator plugged in. Unplug first, every time.
Check the new board against your photo
Lay it next to your photo and compare size, connector layout and mounting points. If anything differs, stop and recheck before you install anything.
Recheck every connector
A harness pushed on one position over acts like a dead board. Match each plug to your photo again.
Go back to the sensors
A sensor stuck open or shorted hands the new board the same bad reading it gave the old one.
Confirm the ground connection
A missed ground point reads as a dead board even with a good control board installed.
Still stuck? Talk to us before you return anything
Let the unit run for several hours at a normal setting before you decide.
The troubleshooting steps above are general guidance only and may not apply to every model or situation. If you are unable to resolve the issue after following these steps, we recommend contacting our team or consulting a qualified appliance technician before taking further action.
How Do You Help a GE Refrigerator Control Board Last Longer?
Protect against power surges
A utility fault or storm sends a spike straight through the board. A basic surge protector on the outlet helps.
Keep the condenser coil clean
A dusty coil makes the compressor and fans run longer and hotter, and the board runs hot with them.
Watch for moisture near the board
A blocked defrost drain or a weeping water line can wet the board housing. Wipe it dry and check for staining.
Which GE Refrigerator Parts Are Worth Replacing With the 245D1876G003?
Temperature sensors Do it now
Inexpensive and often behind the same panel. A bad sensor can make a good board look like it failed.
Defrost heater and thermal fuse On frost
Already exposed once the rear panel is off. A failed heater causes the same frost symptoms as a bad board.
Start relay and overload On clicking
Sits near the compressor and drags on the board that drives it. A few minutes once the cover is off.
Evaporator and condenser fans If a fan drags
A fan with a worn bearing runs hot and works the board harder. Change it if either one drags or rumbles.
Why Are Appliance Pro USA Boards So Reliable?
Failure Pattern Analysis
We've mapped the failure signatures specific to this board, identifying which components degrade and fail over time.
Targeted Component Replacement
The components this board is known to lose are replaced before they get the chance to fail.
Proactive Rebuild Standard
Known high-failure components are replaced with new parts on every board, regardless of whether they show a problem yet. Degraded parts don't ship.
Final Certification
Every board is certified to our internal FailSafe Precision Protocol standard before it ships.
Why Buy the 245D1876G003 from Appliance Pro USA?
Appliance technician? MarkUp Pro members get professional pricing on every order, applied automatically once approved. Learn about MarkUp Pro
Warranty coverage is determined at Appliance Pro USA's discretion. Boards that have been tampered with, or with our verification stickers or holograms removed or damaged, are not eligible for warranty coverage. Any board that has been flashed, reprogrammed, or had its firmware altered is not eligible for return or warranty coverage. Opened or installed boards may carry a restocking and retesting fee, so compare the sticker before you open the anti-static bag. Minor cosmetic wear may be present due to prior installation - it does not affect performance.
What Else Do People Ask About the 245D1876G003?
Why does searching 245D1876G003 bring up so few results?
GE sells this board under the service number WR55X31697, and that is the number most listings use. 245D1876G003 is one of several production numbers stamped on that same service board, so search WR55X31697 to find it in stock, then match the sticker on your old board for an exact fit.
What ships in the box with the 245D1876G003?
The board sealed in an anti-static bag, the Quick Start Guide, a pair of install gloves, and the warranty registration card.
My new board does not look like the one I removed. Is that a problem?
Stop and compare size, connector layout and mounting points before you install anything. If they do not line up, send us a photo of the board you removed with all of its stickers and a photo of the one that arrived.
I ordered the wrong board. What now?
Keep the bag sealed and reach out to us before doing anything else. An exchange is the fastest path, and opened or installed boards may carry a restocking fee.
Does the 245D1876G003 need programming after I install it?
On this board it goes in as a straight swap. Let it run for several hours at a normal setting before you judge the result. Any board that has been flashed, reprogrammed, or had its firmware altered is not eligible for return or warranty coverage.
Is the 245D1876G003 still available directly from GE?
GE lists this board as discontinued and no longer manufactured. That is exactly why matching your sticker number and ordering once matters.
My GE refrigerator is completely dead. Is it the board?
Check the outlet, the cord and the breaker first. If power is live at the outlet and nothing inside responds, the control board is a strong candidate.
