225D8662G004 GE Refrigerator Main Control Board Replacement and Diagnosis Guide
Find out if 225D8662G004 is the right GE refrigerator main control board for your repair, confirm the number on your sticker, and see how our FailSafe Certified board is tested before it ships.
The fridge side stays warm while the freezer still works, or nothing runs at all and the refrigerator sits there clicking. On a GE refrigerator that pattern points at the main control board, and on this one the number to order by is 225D8662G004, the GE production number printed on the board's own label. Read it off the sticker and match it character for character, including the G004 suffix, before you order anything. This guide covers how to confirm the number, how to rule out the cheaper parts first so you are not replacing a board that was never the problem, and what the swap actually involves. Appliance Pro USA tests and certifies every board on our own bench before it ships. If the number on your sticker does not match, get in touch before you order and we will confirm the right board.
Even if you end up calling a tech, these checks mean you can tell them exactly what you found, which usually shortens the visit and the bill.
How Do I Know 225D8662G004 Is The Right Board?

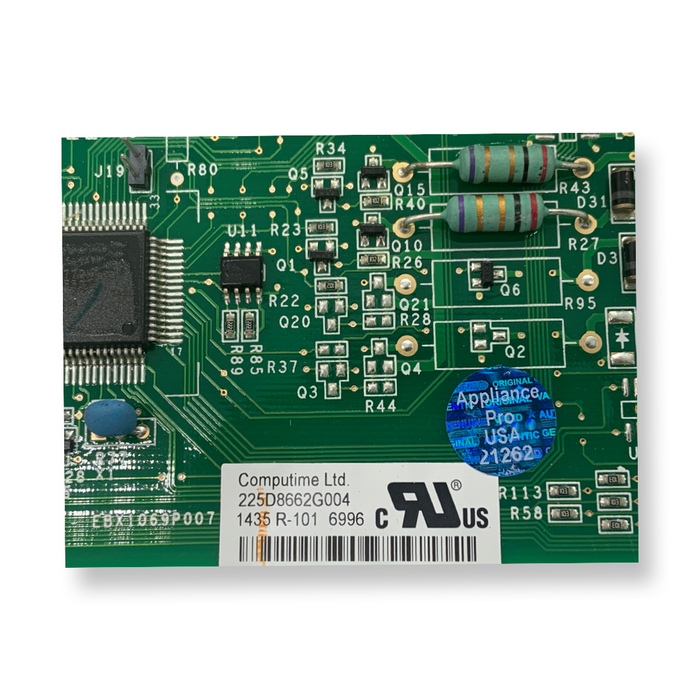

225D8662G004 is the GE production number printed on the board's own label. Confirm it against your old board's sticker before you order from Appliance Pro USA.
GE prints a production number on the label applied to the board or its housing. You order by that production number rather than by the model number on the refrigerator, and a different suffix at the end means a different build.
| What it does | Runs the cooling and defrost cycle for this refrigerator. |
| Location | Back of the refrigerator, behind a metal access cover on the rear panel, near the compressor area. |
| Sticker check | The production number is printed on the board's own label, including the G004 suffix. |
| Install time | Under 30 minutes for most people, power off before the rear cover comes off. |
| Warranty and registration | Every board carries a 1-year warranty, registration required, backed by Appliance Pro USA's own bench testing. Coverage is limited to boards that arrive with their hologram stickers intact and have not had their firmware altered, and it is decided at our discretion based on the condition of the board and the sticker record on file. |
| Returns policy | Returns are accepted within 30 days in original condition, provided the board still has its stickers intact. |
| Shipping details | Ships from our own warehouse, with orders placed before 4 PM EST usually going out the same business day. |
| Condition | FailSafe Certified Reconditioned OEM, tested at our bench before it ships. |
| In the box | The control board, a quick start guide, nitrile gloves, a warranty card and a Friends & Family card. |
How Do I Confirm 225D8662G004 Fits My GE Refrigerator?
Order 225D8662G004 by the production number printed on your old board's own label. Appliance Pro USA found no published fitment list keyed to this production number. The label on the board you remove is what decides for this GE part.
The production number is printed on the label attached to the board. Read it carefully and match every character before you order.
This board sits at the back of the refrigerator, behind the rear access cover, and its production number is printed on the board's own sticker.
No models are confirmed for this board, so the sticker on your old board is what decides.
Is My GE Refrigerator Not Cooling Because Of The Control Board?
Five checks point to whether GE board 225D8662G004 is the cause: power, airflow, fans, compressor startup and display. Appliance Pro USA recommends ruling out the cheaper parts first.
Board failures on this refrigerator usually show up as several of these symptoms at once rather than one in isolation:
- Refrigerator and freezer not cooling at all
- Compressor not running at all, or it clicks and then shuts back off
- Evaporator and condenser fans not turning on when they should
- No defrost cycle, frost building on the evaporator
- Display or dispenser panel completely dead or unresponsive
- Ice maker dead, or compartment temperatures drifting away from the setpoint
We have not found a published fault-code set for this board family, so diagnose by symptom. None of these symptoms by themselves confirm the board. Loose connections and the cheaper parts around the board can cause the same symptoms, so let's verify it is the board by checking the common parts that contribute to these failures. They are inexpensive, easy to check, and ruling them out means you order once, with confidence.
Work through these in order. Each one rules out a cheaper cause before you move on, so you do not replace a working board by mistake.
Confirm the refrigerator has power. Check that it is plugged in, the outlet works, and the breaker has not tripped.
Poor airflow can mimic a board problem. Check that the area around the base is not blocked, the doors seal fully, and nothing is propping a door open and running the compressor nonstop.
If the compressor runs but the compartments still are not cooling, or heavy frost is building up, the evaporator fan or the defrost heater may be the actual cause rather than the board itself failing to drive them.
Listen to how the compressor behaves when the refrigerator calls for cooling. A compressor that clicks repeatedly and never starts, or starts and shuts off quickly, points toward either the compressor itself or the board driving it.
If the display or dispenser panel is dead, dim, or frozen while the rest of the refrigerator seems to have power, that points at the board. A display that works normally while cooling fails points more toward the compressor or sealed system.
If all five checks point back to the board, you need a replacement main control board, and 225D8662G004 is the part number to order for this refrigerator.
How Do I Replace The GE Refrigerator Control Board 225D8662G004?
For GE board 225D8662G004, on these boards it goes in as a straight swap with under 30 minutes of work. Appliance Pro USA recommends unplugging the refrigerator before removing any panel for safety.
Power off the refrigerator at the outlet or breaker before you start. Photograph connector positions before unplugging anything so you can put everything back the same way. On these boards it goes in as a straight swap, no jumper and no programming step required. The sheet-metal edges behind the rear panel are sharp. The 5-mil nitrile gloves in the box give grip and some protection, but they are not cut-proof, so keep your hands clear of the edges. GE packs a wiring diagram, which GE calls a mini-manual, with every refrigerator. It is usually behind the front grille (toe-kick), on the side panel near the condenser, or inside the fresh-food control panel; check all three, the spot varies. If it is gone, send us your full model number and we will tell you what that cabinet was built with before you order.
What Should I Check After Installing The 225D8662G004 Board?
After installing 225D8662G004, confirm cooling resumes and the compartments hold temperature. Appliance Pro USA lists the after-swap mistakes that cause callbacks on this GE board.
The New Board Does Not Match Yours
Work from the photo you took of the old board before you removed it. If header positions, plug count, or mounting points do not line up with what you took out, stop before you install it.
Not Photographing The Connectors Before You Started
Without a reference photo, reconnecting the harness becomes guesswork, and a connector in the wrong position can leave you chasing a symptom the new board never caused.
Not Cutting Power Completely First
Working on the board or the panel behind it with the refrigerator still plugged in is a safety risk and can damage the new board if anything shorts during the swap.
Forgetting To Check For Normal Cooling
Give the refrigerator time to run a cycle and confirm the compartments are actually cooling before you close the panel back up.
Closing Up Before The Frost Clears
If frost was already heavy before the swap, it can take a day or two to fully clear once the new board is running.
How Do I Make My New GE Control Board Last?
A few habits help your new GE board avoid the same failure that took out the old one. Appliance Pro USA recommends simple upkeep for 225D8662G004.
Control boards mostly fail from heat, airflow starvation and power events, and all three are things you can manage.
- Keep the back of the refrigerator clearThis board sits behind the rear access cover, right next to the compressor, so it lives in whatever heat that area holds. Pull the refrigerator out every few months, clear the dust off the condenser area, and leave a few inches of clearance behind it.
- Protect against power surgesSudden power loss and surges are hard on control boards. A basic surge protector on the outlet is inexpensive insurance and can help your new board live a long life.
- Do not ignore small early signsIf cooling starts drifting, a fan sounds different, or the display flickers occasionally, address it early, since small symptoms caught early are cheaper to fix than a full failure later.
What Other Parts Should I Check While The Refrigerator Is Open?
While 225D8662G004 is out, check the condenser fan, evaporator fan, defrost heater and door seals. Appliance Pro USA sees these fail alongside GE main control boards.
Why Are Appliance Pro USA Boards So Reliable?
FailSafe Certified means 225D8662G004 went through a four-step protocol at our bench. Appliance Pro USA replaces the parts that fail on GE boards before they ship.
FailSafe Precision Protocol
Failure Pattern Analysis
We map the failure signatures on the GE boards that reach our bench and note which components degrade first.
Targeted Component Replacement
Every board is stripped back to the components that carry the load, and the ones showing measurable degradation come off the board.
Proactive Rebuild Standard
Known high-failure components are replaced with new parts on every board, whether or not they show a problem yet. Degraded parts do not ship.
Final Certification
Every board is tested and certified to our internal FailSafe Precision Protocol standard for function and lifespan before it ships.
Every 225D8662G004 we ship is a genuine OEM GE board restored to reliable working condition through that protocol.
Why Buy 225D8662G004 From Appliance Pro USA?
Appliance Pro USA tests and certifies every 225D8662G004 board before it ships to you. Every order includes a 1-year warranty and a 30-day return window on this GE board.
Once you have confirmed through the checks above that you need a replacement main control board, 225D8662G004 is the number to order for this refrigerator, and orders placed before 4 PM EST usually ship the same business day from our warehouse.
Every order carries a 1-year warranty (registration required) backed by our own bench testing. Warranty coverage is determined at Appliance Pro USA's discretion. Boards that have been tampered with, or with our verification stickers or holograms removed or damaged, are not eligible for warranty coverage. A board that has had its firmware altered is not eligible for return or warranty coverage. The board you receive may show minor cosmetic wear from testing, which does not affect function or coverage.
Returns are accepted within 30 days in original condition. A board sent back with missing or damaged hologram stickers, or one that does not match the part ordered, is not eligible for return. Opened or installed boards may carry a restocking and retesting fee, so compare the sticker before you open the anti-static bag.
What this board costs
Appliance Pro USA tests and certifies every 225D8662G004 board on our own bench before it ships, so you are not gambling on an untested part for a repair that needs to hold up.
We built this guide because GE main control boards are not always easy to identify from a listing, and we would rather you confirm the number against your old board's sticker than order the wrong part and go through a return. If you have any doubt after reading the sections above, contact our support team before you order.
Ask us about MarkUp Pro, exclusive pricing on every order.
What Else Should I Know Before Ordering 225D8662G004?
Buyers of GE board 225D8662G004 most often ask about fitment, install time, warranty and returns. Appliance Pro USA covers each of those on this page.
How do I know 225D8662G004 is the right part?
Read the production number off the label on your old board and match it to 225D8662G004 character for character, including the suffix at the end. That match on the label is what tells you this is the board to order.
What if my board looks different when it arrives?
A correct replacement should look like the board it replaces, same size, same connector layout, same mounting points. If the board that arrives does not match what you removed, stop before installing it. Email us a photo of the old board with its stickers, plus a photo of the one that arrived, and we will get it sorted before you go any further.
My refrigerator stopped cooling but the compressor still runs, could it still be the board?
It can be, but a running compressor with no cooling often points first at the evaporator fan, the defrost heater, or blocked airflow around the base. Work through those cheaper parts before you decide you need a replacement main control board, since ruling them out first saves you time either way.
How long does it take to install this control board myself?
Most people finish in under 30 minutes once the refrigerator is unplugged and pulled out. On these boards it goes in as a straight swap, no jumper and no programming step required, though you should still have a qualified technician install this part if you are not comfortable working around the back panel.
Does this board come with any kind of warranty?
Yes, every board carries a 1-year warranty (registration required). Warranty coverage is determined at Appliance Pro USA's discretion, and a board with missing or damaged hologram stickers, or one that had its firmware altered is not eligible for return or warranty coverage, so keep the stickers intact.
What is your return policy if this is not the right board?
Returns are accepted within 30 days in original condition. A board that comes back without its original stickers, or that shows signs it was installed, may carry a restocking and retesting fee, so compare the sticker before you open the box. Restocking and retesting fees may apply once packaging or stickers have been disturbed.
Do I need to know my refrigerator model number to order this board?
No. Ordering runs off the production number on the board's own label, not the model tag inside the refrigerator.
Where Can I Get Help Replacing 225D8662G004?
Appliance Pro USA publishes repair guides covering control board identification, failure causes and post-swap troubleshooting. Support for 225D8662G004 is available from our contact page.
Ownership. This product guide is the original work of Appliance Pro USA. It may not be copied, reproduced, republished, or used to create derivative works without written permission. All rights reserved.
Match the sticker, then order your GE main control board 225D8662G004 direct from Appliance Pro USA, tested and backed by a 1-year warranty.
See 225D8662G004 In Stock
