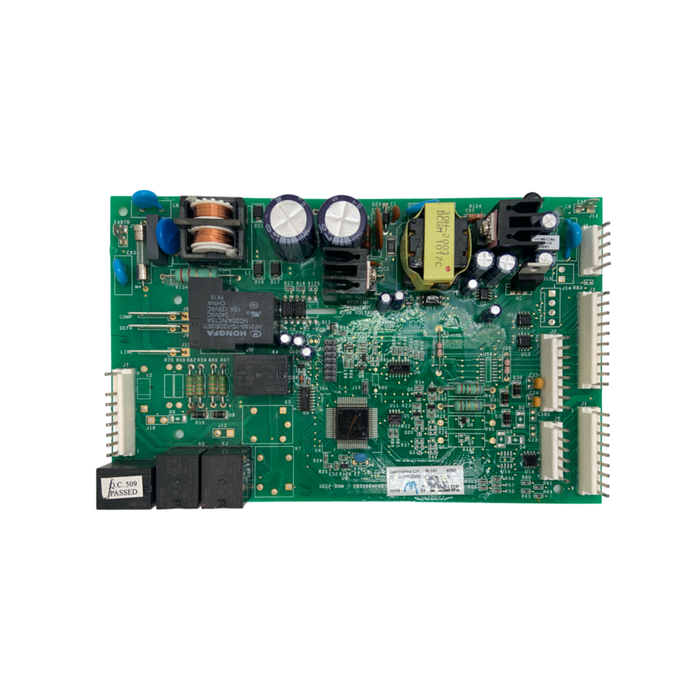

225D4206G003 GE Refrigerator Main Control Board Replacement Guide
When a GE refrigerator will not cool, the compressor never starts, the fans stay silent, or the controls stop responding, a failed main control board can be the cause.
A GE refrigerator that stays warm no matter the setting, runs constantly without cycling off, or has dead fans and unresponsive controls is usually pointing at one component: the main control board. Match the number on your old board's sticker to 225D4206G003 before you order, since the appliance model number alone will not confirm fit. This replacement board ships ready to install, carrying GE's production number, 225D4206G003, as the number to order by. Every board Appliance Pro USA ships has been bench tested before it leaves our shop and is backed by our FailSafe Certified inspection and one-year warranty coverage, so you can install it once and put the repair behind you.
Even if you end up calling a tech, these checks mean you can tell them exactly what you found, which usually shortens the visit and the bill.
How Do I Find the Production Number on My GE Control Board?

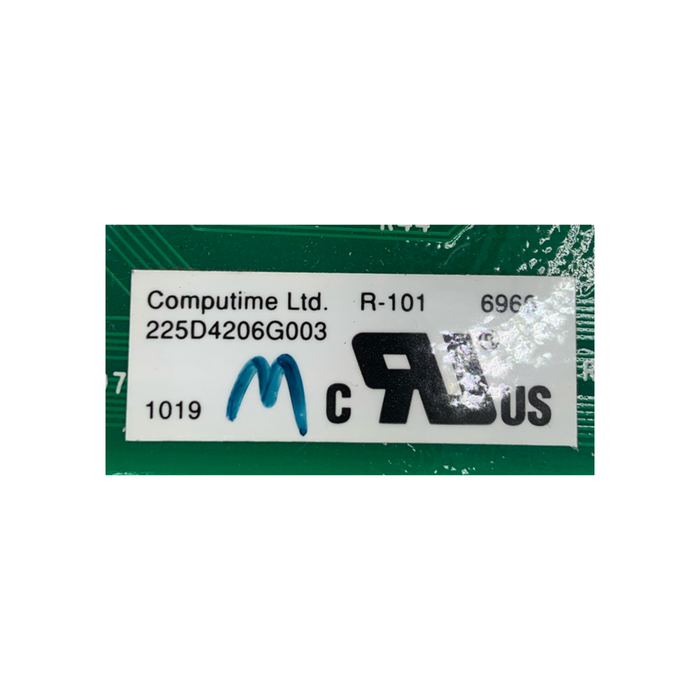

Match the production number stamped on your GE board's label to 225D4206G003 before ordering a replacement. GE prints that number directly on the board's identification label.
GE stamps the production number on a label fixed to the control board itself. Appliance Pro USA matches your order to that exact number, so locate the label on your old board and read it carefully. If that number reads 225D4206G003, you need a replacement main control board with that exact production number, and this page is written for exactly that board. Boards that look identical may be programmed differently at the factory, so the production number on the label, rather than the general appearance of the board, is what actually determines the correct part.
| Board Production Number | 225D4206G003, the exact number stamped on the board's own label |
| Location | At the rear of the refrigerator behind a removable cover, usually reached by pulling the refrigerator from the wall |
| Sticker check | Compare the production number on your old board's label to 225D4206G003 before ordering |
| Install time | The swap itself is quick once the refrigerator is unplugged and pulled out; afterward, give the refrigerator several hours to pull down to temperature |
| Warranty Coverage Terms | Every 225D4206G003 board is FailSafe Certified and bench tested by Appliance Pro USA before it ships to you. Coverage is a one-year warranty with registration required, so keep your order confirmation and the board's label handy. |
| Returns policy | Contact Appliance Pro USA before returning a board; boards installed or damaged in attempted installation may not qualify, so reach out first if the fit looks wrong |
| Testing | Every board is bench tested before it ships. FailSafe Certified means our technicians tested it on the bench for proper function before it was packaged. |
| Questions Before Ordering | Appliance Pro USA answers sticker and fitment questions. We will help confirm the production number, the sticker, and whether 225D4206G003 is the board your refrigerator actually needs. |
How Do I Know 225D4206G003 Fits My Refrigerator?
225D4206G003 is a GE main control board identified by production number. Appliance Pro USA has not published a verified model list for this FailSafe Certified board.
The production number is printed on a label fixed directly to the control board you are replacing.
GE mounts this board at the rear of the refrigerator, behind a removable cover, usually reached by pulling the refrigerator away from the wall.
Many parts catalogs list refrigerator models for a control board, but we have not published a verified fitment list for this board. As it stands, no models are confirmed for this board, so the sticker on your old board is what decides.
Is My GE Refrigerator's Control Board Really Bad?
Rule out power, dirty coils, evaporator frost and bad sensors before you condemn a GE main control board. Once those check out clean, order 225D4206G003 from Appliance Pro USA with confidence.
Before condemning the board, here are the symptoms a failing main control board can produce.
- The refrigerator is not cooling at all.
- The compressor never starts, even after the refrigerator warms considerably.
- Condenser or evaporator fans stay dead when they should run.
- The refrigerator runs constantly and never cycles off.
- Dispenser and water functions misbehave or die.
- Controls respond erratically or ignore commands, or settings reset after every power cycle.
These are the failure patterns a technician watches for on a refrigerator main control board. Here at Appliance Pro USA, we have not found a published fault-code set for this board family, so diagnose by symptom instead of waiting for a code.
Before you assume the worst, let's verify it is the board by checking the common parts that fail first. Work through them in order, cheapest and fastest checks first, before you replace anything. GE puts the mini-manual or wiring diagram in one of a few places: behind the front toe-kick grille, on the side panel near the condenser, or inside the fresh-food control panel, so check all three before you start. If the sheet is missing, send us your full model number and we will tell you what the diagram shows for your unit.
Check the breaker and confirm the outlet is actually live. Make sure the power cord is fully seated, and test the outlet with another appliance before assuming the board failed.
Stand still for a couple of minutes and note which loads run: the compressor, the condenser fan, and the evaporator fan.
Pull the refrigerator out, unplug it, and clean the condenser coils with a coil brush, checking that the refrigerator has clearance for airflow on all sides once it goes back.
Remove the back panel inside the freezer and look at the evaporator coil directly, since a coil buried in ice points at the defrost system rather than the control board, while a clean coil with warm air moving over it points elsewhere entirely.
A thermistor that has drifted out of range, or a door switch stuck closed, can make a perfectly good control board behave as though it has failed, because the board is only acting on the information it receives. Test each sensor with a multimeter and compare it against your appliance's own mini-manual.
These five checks narrow the problem down, but on their own they are not always definitive, so weigh them together with what you see on the board once the cover is off. If your checks come back clean and the board itself shows damage or simply will not respond, you need a replacement main control board rather than another round of guessing. Once you know 225D4206G003 is the confirmed number for your refrigerator, it can be practical to keep a spare on the shelf so the next failure does not mean another diagnostic trip.
How Do I Replace 225D4206G003 on My GE Refrigerator?
Replacing 225D4206G003 on a GE refrigerator is a straightforward cover-and-connector swap many owners can do. Appliance Pro USA recommends photographing every connector before you start, then working carefully and methodically.
GE places the control board at the rear of the refrigerator behind a removable cover. On these boards it goes in as a straight swap. The board sits on mounting studs with locking tabs, and every harness plug returns to its original spot. The sheet-metal edges behind the rear panel are sharp. Work slowly around those edges, since the 5-mil nitrile gloves in the box give grip and some protection, but they are not cut-proof. Consider a second pair of cut-resistant gloves if you plan to do this often. Free the board by squeezing each mounting-stud locking tab with the pliers while easing the board outward, working across the board rather than levering one corner. Set the new board onto the same mounting studs. Reconnect every harness in the position shown in your photographs.
Why Is My GE Refrigerator Still Not Cooling After A Board Swap?
A 225D4206G003 swap that still leaves the refrigerator warm usually traces to a simple oversight. Recheck connectors, give the GE refrigerator time, then look at the compressor, fans, defrost and sealed system.
The Replacement Board Doesn't Match
A genuine GE main control board matches the board it replaces in size, mounting layout and connector arrangement. If what arrived looks materially different, stop before installing it and email us a photo of the old board's stickers plus a photo of the new one.
A Connector Isn't Fully Seated
Go back to the photos you took and check every harness connector again. A partly seated plug is the most common outcome of a swap that seemed to change nothing.
You Judged It Too Soon
A refrigerator needs several hours to settle down to temperature after a board swap and a fresh power-up. Checking the results within the first few minutes turns a working repair into what looks like a second failed part.
The Compressor Or A Fan Stays Dead
If the board is now calling for cooling and the compressor still will not start, or a condenser or evaporator fan will not turn, the fault sits downstream of the board itself.
The Evaporator Or Sealed System
A frosted-over evaporator points at the defrost heater, thermostat or sensor, and a refrigerant restriction or leak in the sealed system will keep a fridge warm no matter how healthy the new control board is.
How Do I Make This Control Board Last?
Heat, dirty power and moisture are the three conditions a technician can control around a GE refrigerator control board. Keep the coils clean, the power stable and the 225D4206G003 board dry.
These three habits help your new board live a long life.
- Keep the coils clean and clear.Heat is what damages refrigerator electronics, and a machine compartment that cannot shed heat cooks its own control board over time. Give the refrigerator clearance so air can move freely around the condenser.
- Give it clean power.Plug the refrigerator into its own grounded outlet. Avoid extension cords and shared circuits, and consider surge protection since voltage events are hard on control boards.
- Keep water away from it.Fix a blocked defrost drain, a leaking water line or a worn door gasket promptly, because condensation and drips that reach the board area cause corrosion that often does not surface as an intermittent failure until months later.
What Other Parts Are Worth Checking During This Repair?
Four components are worth inspecting while the panels are off during a GE refrigerator repair. Check each one on a 225D4206G003 job before you close the panels.
Is This Control Board Tested Before It Ships?
Yes, every 225D4206G003 from Appliance Pro USA is tested to the FailSafe Precision Protocol before it ships. The four-step FailSafe Precision Protocol is how weak components get caught before the board ships.
FailSafe Precision Protocol
Failure Pattern Analysis
Every board that comes through the Protocol starts with a review of how that type of board tends to fail, so testing targets the weaknesses that matter most.
Targeted Component Replacement
Components identified in that review are replaced proactively as part of the Protocol, rather than waiting for them to fail again.
Proactive Rebuild Standard
Every board that passes through our shop is brought up to a consistent internal standard and restored to reliable working condition before it ships.
Final Certification
Every board is tested and certified to our internal FailSafe Precision Protocol standard for function and lifespan before it ships.
This protocol is the same standard we apply to every control board that leaves our shop, regardless of make or model.
What Comes With The 225D4206G003 Control Board?
Every 225D4206G003 from Appliance Pro USA ships FailSafe Certified with a one-year warranty. Free shipping from Appliance Pro USA is included on every order.
Pricing reflects a board that has been tested, certified and backed by a warranty before it ships. See the current price and shipping details on the product page below.
We stand behind every board we certify, and warranty terms are straightforward. Warranty coverage is determined at Appliance Pro USA's discretion. A board that has had its firmware altered is not eligible for return or warranty coverage. This board ships with a one-year warranty, registration required, so keep your order confirmation on file. Warranty support and any return request should start with our own team rather than through a marketplace message.
Orders placed before 4 PM EST ship the same day. Compare your part number carefully before you open anything. A returned board that does not match your original part number may carry a restocking and retesting fee, so compare the sticker before you open the package. This protects both sides when the wrong part gets ordered by mistake. Reach out first if anything about your order looks wrong.
Returns are accepted within 30 days in original condition. A board may show minor cosmetic wear from testing without affecting function or eligibility. Boards with holograms removed or damaged, are not eligible for warranty coverage, and missing or damaged hologram stickers carry the same restriction. Restocking and retesting fees may apply on any return that does not meet these conditions.
What this board costs
Buying from Appliance Pro USA means the board arrives already tested to the FailSafe Precision Protocol standard, backed by a warranty and ready to install once the five checks above point at the board.
Ask us about MarkUp Pro, exclusive pricing on every order.
Does 225D4206G003 Fit My Refrigerator, Where Is It Located, And Is It Under Warranty?
These seven questions cover fit, service numbers, location and warranty for 225D4206G003.
How do I know this is the right board for my refrigerator?
Match the production number printed on your existing board's label to 225D4206G003 exactly. That number is the reliable identifier. If it looks different once it arrives, stop before installing and email a photo of the board that came out, stickers included, along with a photo of the new one.
Is there a GE service number for this board?
Our record for this part carries the production number 225D4206G003 only. Match the number printed on your own board rather than a cross-reference from a listing. Ordering by the production number stamped on the board you are replacing is the most reliable way to get the right part.
Where do I find the wiring diagram for my GE refrigerator?
GE places the wiring diagram in one of a few spots, and it moves by model. Check behind the front grille near the center or left side, along the left or right side by the condenser, or inside the fresh-food section behind the control panel. Check all three locations if the first spot comes up empty.
My fridge still is not cooling after the swap, what now?
Recheck every connector against your photos, then look downstream at the compressor, the fans, the defrost system and the sealed system, since a control board cannot fix a mechanical fault.
Where is the main control board on a GE refrigerator?
GE places it at the rear of the refrigerator. It sits behind a removable cover, and the refrigerator usually has to be pulled away from the wall to reach it.
Can I replace this GE refrigerator main control board myself?
Many people can replace this board themselves. Once you know you need a replacement main control board, the job is mostly a cover, a set of harness connectors and a board on mounting studs held together by patience. Unplug the refrigerator before you start and photograph every connector first.
How long before the refrigerator gets cold again after the swap?
Give it several hours to pull down to temperature. Judging the repair within the first few minutes is the most common reason people think a good board did not work.
