225D4204G003 GE Refrigerator Main Control Board (WR55X10968), The Discontinued Board With No Factory Successor
If the board in your GE side-by-side refrigerator is stamped 225D4204G003 or WR55X10968, you are dealing with a part GE has discontinued without naming a replacement. Unlike some GE boards that have an official successor number, this one's realistic path is a professionally restored original. The board is the central controller on GSF25, GSH22, GSH25, GSL22, GSL25, and GSS20 series side-by-sides, managing the compressor circuit, defrost, fans, and the dispenser on equipped models. This guide covers how to confirm the board is actually your problem, the separate inverter board that gets confused with this part, and how to order correctly the first time.
What Are the Signs of a Failing 225D4204G003 Board in a GE Side-by-Side?
Commonly reported signs of a failing 225D4204G003 (WR55X10968) GE main control board include a refrigerator and freezer that both run warm while fans and lights keep working, a compressor that never starts, defrost failure with frost building behind the freezer's rear panel, erratic defrost timing with temperatures that swing over days, and ice or water dispensing problems on dispenser-equipped models.
Because this board sits at the center of the refrigerator's cooling, defrost, and dispenser functions, its failure tends to show up as several problems at once or as a compressor that simply never gets its start command. Review the list below, then use the diagnosis sections that follow, because a separate inverter board and a handful of cheaper components can each imitate these signs.
- Refrigerator and freezer both running warm while interior lights and fans continue working
- Compressor never starting, including after a power outage, with the rest of the unit seemingly alive
- Frost or ice sheet forming behind the freezer's rear panel from missed defrost cycles
- Temperatures that recover for a few days and then swing warm again as defrost timing drifts
- Ice maker or water dispenser misbehaving on dispenser-equipped models
- A unit that acts stuck, with the compressor held off as if in an endless defrost
FailSafe Certified, 1-year warranty (registration required), 30-day returns, ships today*

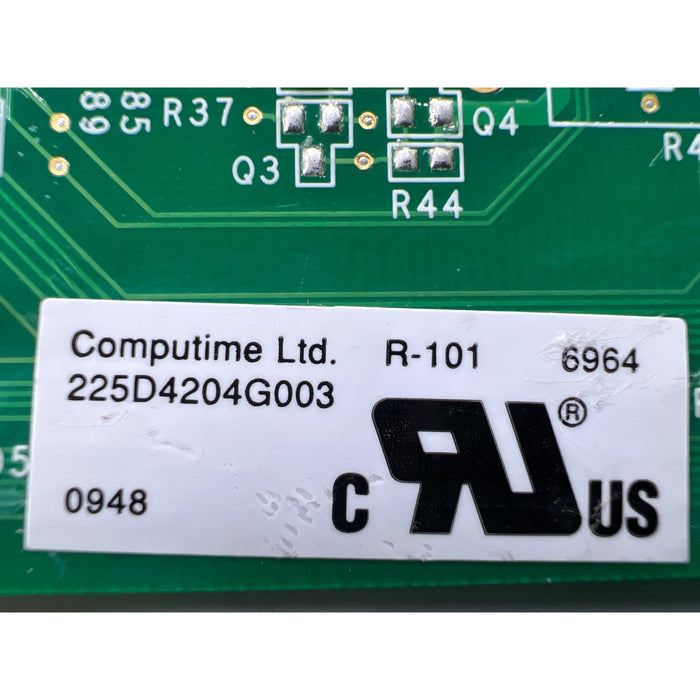

Where Do I Find the Part Number on This GE Control Board? Watch the Video
The 225D4204G003 carries two printed numbers on the board itself: the production number 225D4204G003 and the GE service number WR55X10968. Either one identifies the part. To verify, unplug the refrigerator, open the access cover on the lower back of the unit, and read the numbers printed on the board before ordering anything.
This short video shows how to locate and read the part number sticker on an appliance control board and how to confirm you have the right part before opening the packaging. The same method applies here, and it carries extra weight for this part: several GE boards of this era look nearly identical, sit in the same location, and are not interchangeable, so the printed number, not the appearance, is what you match. General installation guidance is included in the Quick Start Guide shipped with every order.
GE Side-by-Side Symptoms and Whether They Point to This Main Board
The most useful diagnostic for the 225D4204G003 is whether the main board is delivering voltage to the compressor circuit. No voltage leaving the board with good power coming in commonly points to this board, while voltage present with a compressor that still will not run commonly points to the separate inverter board or the compressor itself. Frost and temperature-swing symptoms have their own cheaper suspects to clear first.
Use this table to sort the symptom you are seeing into the right bucket before spending money. The single most valuable check on this platform is a voltage test at the board's compressor output, which cleanly separates a main board problem from a compressor-side problem.
| Symptom | What It May Indicate | Recommended Next Step | Board? |
|---|---|---|---|
| Both compartments warm, fans and lights fine | Compressor circuit not being powered or driven | This is the classic presentation. Have the compressor output from the main board voltage-tested. Power in with nothing out is a commonly reported failure mode of this board. | Common |
| Voltage leaving the board, compressor still not running | The separate inverter board or the compressor itself | When the main board is delivering voltage and the compressor stays silent, the fault has moved downstream. That is a different repair and a different part, not this board. | Not this board |
| Frost sheet behind the freezer's back wall | Defrost heater, defrost thermostat, or the board's defrost control | Continuity-test the heater and thermostat before anything else, since either one failing produces this exact picture for far less money. If both pass, the board's defrost control becomes the suspect. | Check defrost parts first |
| Temperatures normalize, then swing warm again over days | Erratic defrost timing or a drifting sensor | Test the thermistors against the service chart first. Erratic behavior with sensors that read correctly is commonly associated with this board. | Possible |
| Repeated defrost heater burnout | Board holding the heater on or cycling it wrongly | A heater that keeps failing is commonly a symptom, not the root cause. Have the board's defrost output evaluated before installing a third heater. | Possible |
| Ice maker overfilling | Water inlet valve, not the board | Overfilling is commonly a valve that no longer shuts off cleanly. Replace the valve before considering any electronics. | Usually not the board |
Does a GE Side-by-Side Show an Error Code When the 225D4204G003 Fails?
Most failures of the 225D4204G003 produce symptoms without any code. Only dispenser-equipped sub-models in this family have a display that can show anything, and code documentation for this specific platform is thin. CC, commonly reported as a compartment running too warm, and HRS, commonly reported as lost communication with the control board, are the two indications with meaningful support, and both still require physical checks before condemning the board.
Set expectations low here. Many of the GSF, GSH, GSL, and GSS models this board serves have no fault-code display at all, and even on dispenser models the published documentation for this generation is sparse. Treat anything the display shows as a starting point for the checks below, never as a verdict.
| What You See | What It May Indicate | Is It This Board? |
|---|---|---|
| Nothing, ever | Normal for much of this model family. The absence of a code means nothing either way. Diagnose using the symptom patterns and the voltage check described above. | Diagnose by pattern |
| CC on a dispenser display | A compartment running too warm. This reports the problem, not the cause. Check sensors, fans, and the defrost system before the board. | Board or sensor |
| HRS on a dispenser display | Commonly reported as lost communication with the main control board. Inspect the harnesses between the display and the board first, then suspect the board. | Board-related |
| A code not covered in your manual | Documentation for this board generation is thin and inconsistent across sub-models. Confirm the meaning in your specific model's service manual before buying any part. | Model-dependent |
Will the 225D4204G003 Fix My GE Refrigerator? Clear These First
The 225D4204G003 commonly resolves GE side-by-side faults where the compressor circuit receives no voltage from the board with good power confirmed into it, where defrost never runs with a good heater and thermostat, and where defrost timing has become erratic with sensors that test correctly. Before ordering, rule out the separate inverter board, the thermistors, the defrost heater and thermostat, and the wiring, and confirm the printed number on your existing board matches.
Many models in this family pair this main board with a completely separate compressor inverter board, and the two get confused constantly. If the main board is delivering voltage toward the compressor and the compressor still will not run, replacing this board changes nothing, because the fault lives on the inverter side.
A sensor that drifts out of range feeds the board bad data, and the board's response looks exactly like its own failure, including temperature swings and defrost misbehavior. Sensors are cheap, age along with the rest of the unit, and take minutes to test.
Frost behind the freezer panel implicates the heater, the thermostat, or the board's defrost control, in that order of likelihood and cost. Testing the two cheap parts first prevents the most common wrong purchase on this platform.
The board can only work with clean power in and intact harnesses out. Low or missing voltage measured at the board's connectors has been the real culprit in documented cases where the board itself was healthy, including on freshly installed replacements.
How Hard Is It to Replace the 225D4204G003 Myself?
Replacing the 225D4204G003 is a moderate DIY repair, typically 20 to 30 minutes with a Phillips screwdriver and a nut driver. The board sits behind the access cover on the lower back of the refrigerator. The two failure points of the job are reconnecting the many harness connectors correctly and accidentally ordering a look-alike board, so photograph the wiring and match the printed part number before starting.
The physical work is a straightforward panel-off, connectors-off, board-out swap that most careful owners finish in under half an hour. What earns respect here is the identification step: boards of this GE era look alike, mount alike, and refuse to interchange, and documented cases exist of visually similar boards arriving with different connectors entirely. Match the printed number, photograph every harness before touching it, and reconnect against your photos. If any of that feels uncertain, a qualified technician is the right call.
Does the 225D4204G003 Fit My GE Refrigerator? Check Your Model
To confirm the 225D4204G003 fits, match the number printed on your existing board to 225D4204G003 or WR55X10968. Model lookups are a starting point only, because GE fitted different, non-interchangeable boards across similar side-by-side models and production years, and look-alike boards from the same era do not substitute for this one.
Model Number Check
Enter your refrigerator's model number to check it against our 225D4204G003 compatibility records. Not found? Use the buttons below to reach our team directly.
GE boards of this generation are notorious look-alikes, and documented repair cases show visually similar boards that would not work in place of this one. The number printed on the board in your machine compartment is the deciding factor, not appearance and not a model lookup. Click the image to zoom in.
Which GE Models Are Reported to Use the 225D4204G003?
The 225D4204G003 (WR55X10968) is reported across GE's GSF25, GSH22, GSH25, GSL22, GSL25, and GSS20 series side-by-side refrigerators, including field-verified repairs on GSH22JFXLWW, GSF25JGCBBB, and GSH25JSXLSS. Because GE used different boards across similar models and production years, always verify by the number printed on your existing board.
GSF25 Series, Side-by-Side
GSH22 Series, Side-by-Side
GSH25 Series, Side-by-Side
GSL22 / GSL25 / GSS20 Series, Side-by-Side
This list is compiled from cross-reference data and documented repairs and is provided as general guidance only. Two cautions specific to this part: some suffix variants in the GSL22 and GSS20 groups are reported less consistently across databases, and GSS25LGTAWW, which appears in some listings for this board, is also reported under a different GE board family, so we do not list it here without a sticker check. If your model is not shown, or the databases disagree about it, send us a photo of your board's printed number and we will confirm before you buy.
How Is the 225D4204G003 Restored to Spec? The FailSafe Precision Protocol
Every 225D4204G003 sold by Appliance Pro USA goes through the FailSafe Precision Protocol, a proprietary 4-step process covering failure pattern analysis, precision diagnostic testing, proactive component replacement using equal or higher-rated parts, and final certification before the board ships.
FailSafe Precision Protocol
Failure Pattern Analysis
Known failure patterns for the 225D4204G003 are mapped before any board enters the process, so we know exactly which components to focus on for this specific board type.
Precision Diagnostic Testing
Multi-point diagnostic testing identifies faults and confirms overall board condition. Boards that do not pass diagnostic testing do not advance.
Proactive Component Replacement
Components identified through failure pattern analysis as common weak points are replaced using equal or higher-rated parts, before the board is cleared to ship.
Final Certification
Certified to meet or exceed original GE factory specifications. Tamper-evident hologram applied. Anti-static packaged and sealed for shipping.
225D4204G003 Specifications and Cross-Reference Part Numbers
The 225D4204G003 is a GE refrigerator main control board, service number WR55X10968, mounted behind the access cover on the lower back of the unit. GE has discontinued the part, and unlike some GE boards of this era, no official successor number is documented for it, which makes restored original boards the realistic replacement path. It is a distinct board family from the WR55X10942 and 200D6221 boards and does not interchange with them.
| Manufacturer Part Number | 225D4204G003 (GE service number WR55X10968; both numbers are printed on the board) |
| Board Type | Main Control Board / Motherboard (manages compressor circuit, defrost timing, fans, and dispenser functions on equipped models) |
| Board Location | Behind the access cover on the lower back of the refrigerator |
| OEM Availability | Discontinued by GE with no documented successor part number. Restored original boards are the realistic replacement path. APU supplies the original number as a genuine OEM FailSafe Certified unit. |
| Not Interchangeable With | WR55X10942 family, 200D6221G009, 200D4850G022, and the separate compressor inverter board used on many of these models. Documented repair cases confirm these do not substitute despite similar appearance. |
| Onboard Diagnostics | None customer-readable on the board itself. Dispenser-equipped sub-models may show limited display indications; many models in this family have no fault display at all. |
| Cross-Reference Numbers | WR55X10968, AP4436215, PS2364948, EAP2364948, 2002663 |
| APU Status | In Stock, FailSafe Certified, 1-year warranty (registration required), same-day shipping* |
Is Fixing This Discontinued GE Board Worth It? The Numbers
Replacing the 225D4204G003 costs far less than a comparable new GE side-by-side refrigerator, which commonly runs $1,700 to $2,100 for current production models, or a technician control-board replacement, which commonly runs $200 to $500 plus diagnostic fees. Because the part is discontinued with no successor, remaining stock varies widely in price and condition, which makes a certified restored board with a warranty the predictable option. Figures are general estimates and vary by region and provider.
What your options typically cost
Installed the 225D4204G003 and Still Having Trouble? Check These
The most commonly reported reasons a GE side-by-side seems unfixed after a 225D4204G003 replacement are a fault that actually lives on the separate inverter board or compressor, a harness connector that never clicked fully home, judging the unit while the new board is holding the compressor off in a defrost or protection state, and a look-alike board that was never the correct part for the unit.
Confirm the fault was ever on this board
Documented cases exist where two replacement boards in a row were blamed while the real problem sat downstream in the compressor circuit or the sealed system. If a healthy new board produces the same silence, the diagnosis, not the part, is what needs revisiting.
Reseat the harnesses and verify power delivery
Low voltage measured at the board's connectors has been the actual culprit in real repairs on this exact part. A connector resting in place without locking, or a damaged harness, starves the board and reproduces the original symptom perfectly.
Give the board time to exit its startup state
A newly powered board can hold the compressor off while it works through a defrost or protection cycle, which is easy to mistake for a dead part. Quiet immediately after power-up is not a verdict.
Recheck the number, not the appearance
Boards of this generation look nearly identical and are not interchangeable, and mismatched substitutes have arrived with different connectors in documented cases. If behavior is wrong from the first minute, compare the printed numbers again before troubleshooting deeper.
Protect the electronics while you work
Static discharge quietly kills replacement boards during installation. Ground yourself on the cabinet before handling the board, keep it bagged until the moment it goes in, wear the included install gloves, and hold it by the edges.
Still not working after all of the above?
Contact our team before returning anything. A brief conversation resolves the majority of post-install situations. We stand behind every board we sell and are here to help you get the result you need.
Other Components on These GE Models Worth a Look
Components that commonly fail alongside or instead of the 225D4204G003 include the separate compressor inverter board, the thermistors, the defrost heater and thermostat, the water inlet valve, and the fan motors. The inverter board deserves special attention because it is the part most often confused with this one.
Share your model number and a photo of your existing board's sticker. Our team will help confirm the right part before you spend a dollar. No pressure, no obligation.
Why Buy the 225D4204G003 from Appliance Pro USA?
Appliance Pro USA supplies the 225D4204G003 as a genuine OEM board restored through the FailSafe Precision Protocol to meet or exceed OEM specifications, backed by a 1-year warranty (registration required), a 30-day return policy, free priority shipping, and same-day shipping on orders placed before 4 PM EST, Monday through Friday.
At Appliance Pro USA, we specialize in high-quality reconditioned replacement control boards, professionally inspected and tested to meet or exceed OEM specifications. Every board we sell undergoes our FailSafe Precision Protocol, meaning components identified through failure pattern analysis as common weak points are replaced proactively using equal or higher-rated parts before the board ever ships to you. With a replacement board from Appliance Pro USA, you're getting a board that's been evaluated and restored to reliable working condition, backed by our 1-year limited warranty (registration required) and 30-day return policy, so you can order with complete confidence.
We offer free priority shipping on every order, and orders placed before 4 PM EST ship same day, Monday through Friday, excluding holidays and scheduled closures. Whether you're a homeowner tackling this repair yourself or a professional technician who needs a reliable source, we're here to help you get the right part and get the job done right the first time.
Not sure this is your board? Send us a photo of your original board's part number sticker and we'll confirm before you buy. Reach us at info@applianceprousa.com
Ask us about MarkUp Pro, exclusive pricing on every order.
225D4204G003 GE Main Control Board, Frequently Asked Questions
Common questions about the 225D4204G003 cover whether it is the same part as WR55X10968, what to do now that GE has discontinued it without a successor, how it differs from the separate inverter board, whether look-alike boards such as the WR55X10942 family can substitute, why a new board might not start the compressor, and what CC or HRS on a dispenser display actually mean.
Are 225D4204G003 and WR55X10968 the same part?
Yes. 225D4204G003 is the production number printed on the board during manufacture, and WR55X10968 is the GE service number used for ordering. Both are printed on the same physical board, and matching either one against your existing board confirms the part.
GE discontinued this board and I cannot find a replacement number. Is my refrigerator done?
No, but the situation is different from most GE boards. Our research found no official successor number for this part, so there is no current-production board to buy from GE. What remains is original stock in varying conditions, which is exactly the case a professionally restored, warrantied board is built for. The refrigerator itself is usually worth saving, since everything else about these units is straightforward to service.
Is this the same thing as the inverter board my technician mentioned?
No, and this is the most important distinction on this platform. Many of these models use two boards: this main control board, which runs the refrigerator and commands the compressor circuit, and a separate inverter board that actually drives the compressor. The voltage test described in this guide tells you which side of that handoff failed. Buying the wrong one of the two is the most common wrong-part order we see for these units.
Can I substitute a WR55X10942, 200D6221G009, or 200D4850G022 board since they look the same?
No. Documented repair cases show these substitutions failing outright, with one substitute even arriving with a connector the original board never had. GE boards of this era look alike and do not interchange across families. The printed number on your existing board is the only safe ordering guide.
I installed the new board and the compressor still will not start. Bad board?
Usually not. In real cases on this exact part, the causes ranked like this: power or harness problems starving the board, the board correctly holding the compressor off during a defrost or protection state, and faults downstream in the inverter board, compressor, or sealed system that no main board can fix. Verify supply voltage at the board, give it a patient first hour, and run the voltage-out check before concluding anything about the new part.
My model shows up under this board on one site and under a different board somewhere else. Which is right?
Both can be partially right, which is the problem. GE built these model numbers across production years while fitting different boards underneath, and at least one model number appears in databases for this board and for a different GE board family at the same time. Treat every lookup as a starting point and let the number printed on your actual board make the final call. If the databases disagree about your model, send us a sticker photo and we will confirm for free.
What do CC or HRS on my display mean, and do they condemn this board?
On dispenser-equipped GE models, CC is commonly reported as a compartment running too warm and HRS as lost communication with the control board. Neither is a conviction. CC reports a result whose cause is usually a sensor, fan, or defrost part, and HRS calls for a harness inspection before any board replacement. Many models in this family have no display at all, so the absence of a code means nothing either way.
