200D6221G028 GE Refrigerator Main Control Board: What It Controls, What Fails and How to Swap It
GE fridge not cooling properly, or a compressor that will not run or cycle? Confirm the sticker number, run five checks first, then make the swap.
If your GE refrigerator will not cool properly, or the compressor will not run or cycle, this main control board is a real suspect once the cheaper parts check out clean. 200D6221G028 is the number stamped on your board's sticker, and that is what you order by. Send us a photo of your board sticker if you want it confirmed first.
Work through these checks in order and you will know, before you spend a dollar, whether the board is really the fix. Even if a tech ends up doing the swap, handing over exactly what you found usually shortens the visit and the bill.
Is 200D6221G028 the Right Number to Order By?
200D6221G028 is the production number GE stamps onto this board's sticker, and it is the number that decides fit. Match it character for character before you order.
GE stamps 200D6221G028 onto the white sticker at the factory, and that stamped number is the whole identity of this part. If a character is worn or faded, photograph it and send it to us rather than guessing.
This is not a universal board. It replaces the exact production number printed on your original board. Boards that look identical may be programmed differently, so match your sticker first.
| Number on the board | 200D6221G028, GE's factory production number, printed on the white sticker |
| Board type | Main control board assembly. It reads the thermistors and door switches and drives the evaporator fan, condenser fan, compressor, defrost heater and fresh-food damper |
| Board location | Rear of the refrigerator, under a screwed-on cover, on mounting studs with locking tabs |
| Board family | Part of the 200D6221 GE main control board family. Suffixes vary by production run and are not interchangeable, see the FAQ below |
| Availability | In stock and actively supplied |
| APU status | FailSafe Certified, 1-year warranty (registration required), same-day shipping on orders placed before 4 PM EST |
Does the 200D6221G028 Fit Your GE Refrigerator?
No refrigerator models are confirmed or reported for the 200D6221G028. The sticker on your old board decides fitment. Match it character by character before you order.
Order By Your Sticker Number

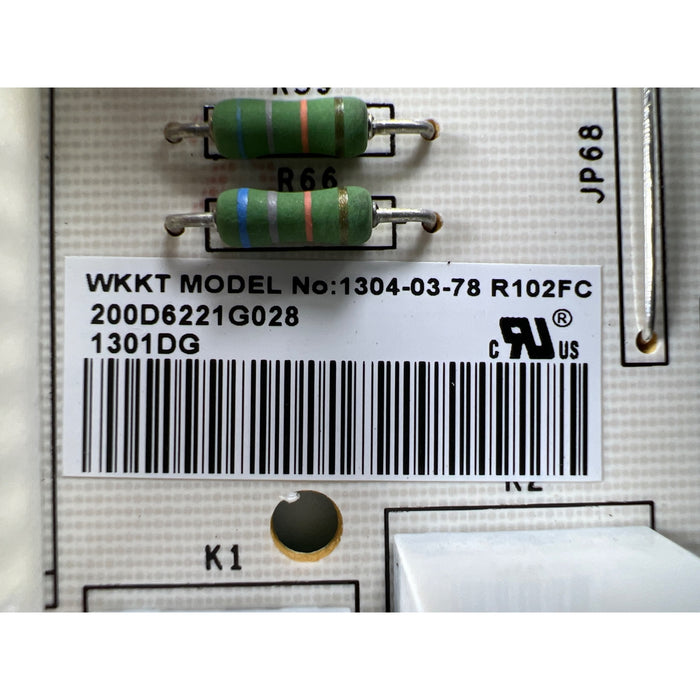

The white sticker carries 200D6221G028 in full. Photograph it before the board comes out and order against what it says.
This board mounts at the rear of the refrigerator, under a screwed-on cover, on studs with locking tabs.
No models are confirmed for this board, so the sticker on your old board is what decides.
GE Fridge Not Cooling or Clicking: Is It the 200D6221G028?
A GE refrigerator main control board like the 200D6221G028 drives the compressor, fans, defrost heater and fresh-food damper. Its clearest failure signs are a refrigerator that will not cool and a compressor that will not run or cycle. Rule out the power supply, airflow, the damper, the thermistors and the defrost parts before you order this board.
Unplug the refrigerator before you take any panel off. These are the complaints that bring people to this board.
- GE refrigerator not cooling properly, whether or not the freezer keeps running
- Compressor that will not run or will not cycle at all
- Freezer cold while the fresh food side stays warm, which is usually the damper or a thermistor rather than the board
- Frost buildup behind the freezer panel may also point here, along with fans that seem to stop cycling
- Ice maker and water dispenser affected as the fridge warms up, on dispenser-equipped models
We have not found a published fault-code set for this board family, so diagnose by symptom.
Let's verify it is the board by checking the common parts that contribute to these failures. They are inexpensive, easy to check, and ruling them out means you order once, with confidence.
Before you suspect anything on the board, confirm the refrigerator is getting power and the outlet it plugs into is live.
Coils packed with dust under or behind the refrigerator make the compressor work overtime, and a condenser fan that will not spin leaves that heat with nowhere to go.
Open the freezer and listen while the compressor is running. Silence here points at the fan motor, rather than at the board driving it.
For a freezer that stays cold while the fresh food side stays warm, check the damper door and the thermistors first. A thermistor feeding the board bad information makes a healthy board look guilty, and that is not the board's fault.
Ice buildup and uneven temperatures usually track back to the defrost circuit, and a stuck door switch changes fan and light behavior in ways that mimic a bad board.
Worth a look too: the compressor start relay and overload. A weak relay can make the compressor try and give up, which looks just like a board that lost the compressor circuit entirely. Even if a fan turns out to be your culprit today, it has been straining the board for months already. Keep a spare on the shelf and a warm fridge becomes a same-day fix instead of days of coolers.
How Do You Replace the 200D6221G028 Control Board?
The 200D6221G028 sits at the rear of the refrigerator, under a screwed-on cover. Most installs finish in under 30 minutes with basic hand tools.
Unplug the refrigerator and pull it out far enough to work behind it comfortably. Remove the cover screws with a quarter inch nut driver and set them aside, then photograph the board with every plug still connected before you disturb anything. Touch the metal frame first to discharge any static, release each connector by its latch, then squeeze the mounting tabs with long-nose pliers and lift the old board free. Set the new board on the same studs, reconnect every plug from your photo, and refit the cover.
New 200D6221G028 Installed and Still Not Cooling: What Now?
A new 200D6221G028 that does not fix the problem usually means something else is still wrong. Recheck the board itself, the ground wire and every connector before you call the swap a failure.
A board that does not match yours
Compare the new board to the photo you took of the old one. The footprint, connector count and mounting points should all line up. If something looks off, stop before you install it.
Reseat the ground wire under the cover screw
The ground eyelet needs to sit where the cover screw passes through it and bites into the chassis metal. Miss that connection and a good board can act exactly like a dead one.
Recheck the damper and thermistors
A thermistor that is stuck or shorted, or a damper door that will not move, feeds the new board the same bad information it gave the old one.
Confirm every plug landed on the right header
One connector on the wrong pin behaves just like a failed board. Work through your before photo and match each plug to where it came from.
Give it several hours before you judge the new board.
Compressors and fans need time to settle into a normal cycle. Let the refrigerator run several hours before deciding the swap did not work.
What Protects a New GE Refrigerator Control Board From Failing Again?
Power surges, heat and trapped moisture are what typically take out a GE refrigerator control board. Three checks while the rear cover is off help a new 200D6221G028 last.
Handle these three things while you already have the cover open, and help your new board live a long life.
- Plug the refrigerator into a dedicated surge protector. A lightning strike, a grid fault, or a generator changeover can send a spike straight through this board, and several short outages back to back add up just like one big one. A surge protector rated for major appliances costs far less than another board.
- Keep the condenser coil free of dust. A clogged coil makes the compressor and both fans run longer and hotter, and the board runs hot right along with them. Vacuum the coil and shroud through the lower grille and confirm the condenser fan turns freely while you are in there.
- Check the door gaskets and the defrost drain. A worn gasket keeps the compressor cycling nonstop and stresses everything downstream of it. A blocked drain or a weeping water valve lets moisture reach the board housing, so dry it out and look for staining before you close the cover.
What Other Parts Should You Replace With a GE Refrigerator Control Board?
A few other GE refrigerator parts are worth doing while the back of the fridge is open. Swap a worn one now instead of opening the back again later.
Why Are Appliance Pro USA Boards So Reliable?
Every 200D6221G028 from Appliance Pro USA is restored to reliable working condition through the FailSafe Precision Protocol. Appliance Pro USA replaces the parts this board is known to lose, then tests every board before it ships.
FailSafe Precision Protocol
Failure Pattern Analysis
We've mapped the failure signatures specific to the 200D6221G028, identifying which components degrade and fail over time.
Targeted Component Replacement
The components this board is known to lose are replaced before they get the chance to fail.
Proactive Rebuild Standard
Known high-failure components are replaced with new parts on every board, regardless of whether they show a problem yet. Degraded parts don't ship.
Final Certification
Every board is tested and certified to our internal FailSafe Precision Protocol standard for function and lifespan before it ships.
Boards are supplied from tested stock and may show minor cosmetic wear. Every board is verified fully functional before shipping.
Where Should You Buy the 200D6221G028?
Appliance Pro USA sells the 200D6221G028 with free priority shipping, a 1-year warranty with registration and 30-day returns. Orders placed before 4 PM EST ship the same day.
The price for this board appears in the module below on this page. We specialize in reconditioned replacement control boards, and every 200D6221G028 goes through the FailSafe Precision Protocol before it ships.
Free priority shipping on every order, and orders placed before 4 PM EST ship same day, Monday through Friday, excluding holidays and scheduled closures. The board carries a 1-year warranty (registration required). Warranty coverage is determined at Appliance Pro USA's discretion. Boards that have been tampered with, or with our verification stickers or holograms removed or damaged, are not eligible for warranty coverage. Returns are accepted within 30 days in original condition; restocking and retesting fees may apply to opened or installed boards, waived on exchanges. Boards returned with missing or damaged hologram stickers may not be eligible for a full refund. Any board that has been flashed, reprogrammed, or had its firmware altered is not eligible for return or warranty coverage.
Ask us about MarkUp Pro, exclusive pricing on every order.
What Should You Check Before You Order a 200D6221G028?
The 200D6221G028 is ordered by the production number on its sticker. Read every character before you order, since that number decides fit.
Why does searching 200D6221G028 turn up so few results?
Order by the number on your sticker. 200D6221G028 is the full identity of this board.
Can I order by my refrigerator's model number instead?
No refrigerator models are confirmed for the 200D6221G028, so there is no model list to order from. Pull the old board, read the white sticker, and match it character for character.
My old board says 200D6221G014, not G028. Is that the same board?
No. Suffixes in this GE board family are separate parts and do not interchange, so G014 and G028 are different boards even though the base number matches. Order by the exact suffix printed on your sticker.
My new board does not look like the one I removed. Did I get sent the wrong part?
Possibly, and it is worth checking before it goes in. Your replacement should match the board you took out in size, connector layout and mounting points. Hold it against the photo you took, and if it does not line up, email us a photo of the board you removed with all of its stickers along with a photo of the one that arrived. We will confirm the right board before you install anything.
Does the 200D6221G028 need programming after I install it?
On these boards it goes in as a straight swap. Any board that has been flashed, reprogrammed, or had its firmware altered is not eligible for return or warranty coverage.
My refrigerator is completely dead. Does that mean it is the board?
That is a strong sign, but confirm two things before you order. Make sure the outlet actually has power, and listen at the back for a compressor that struggles to start, which can point at the start relay instead. Once power is confirmed and the airflow, damper and thermistors all check out, you need a replacement main control board.
I installed the new board and nothing changed. What happened?
A board swap that changes nothing means the real fault is still out there somewhere. Go back through the ground connection, every connector, and the damper and thermistors before you write off the new board.
Where Can You Learn More About GE Refrigerator Control Boards?
Appliance Pro USA publishes Help Center articles on part-number lookup and what a refrigerator main control board does. They also explain why boards fail and what to check when a new board changes nothing.
Ownership. This product guide is the original work of Appliance Pro USA. It may not be copied, reproduced, republished, or used to create derivative works without written permission. All rights reserved.
Ready to order the 200D6221G028? Send us a photo of the sticker at info@applianceprousa.com if you want it confirmed first.
