200D6221G015 GE Refrigerator Main Control Board (WR55X10715), The Discontinued Board You Can Still Replace
The sticker on your GE refrigerator's control board reads 200D6221G015 or WR55X10715, and the first thing to know is that GE no longer manufactures this number. That does not mean your refrigerator is out of options. Restored original boards remain available, and GE's official replacement path leads to the current WR55X10942C family for units that need a new-production part. This guide explains what this main control board does on GE and Hotpoint side-by-side models, how to diagnose it, how the supersession works, and how to order the right part the first time.
What Are the Signs of a Failing 200D6221G015 Control Board in a GE Refrigerator?
Commonly reported signs of a failing 200D6221G015 (WR55X10715) GE main control board include cooling loss in one or both compartments, defrost problems with frost accumulating behind the freezer's rear panel, a compressor that will not start or short-cycles, controls that stop responding, and a unit that intermittently powers off. Because this board manages compressor, fans, defrost, and sensors together, several functions often falter at the same time.
This board is the central controller on its models, so its failure signature is usually broader than a single bad component. If you recognize several of the following at once, the board deserves a close look. Work through the diagnosis sections below before ordering, because individual components can imitate some of these signs on their own.
- Cooling loss or inconsistent temperatures in the fresh food section, the freezer, or both
- Frost or ice accumulating behind the rear freezer panel from missed defrost cycles
- Compressor not starting, or starting and cutting out in short cycles
- Freezer swinging too warm or too cold without a settings change
- Control panel unresponsive, or settings that will not take
- Unit intermittently shutting off, or appearing completely dead
FailSafe Certified, 1-year warranty (registration required), 30-day returns, ships today*
Where Is the Part Number on a GE Main Control Board? Watch the Video

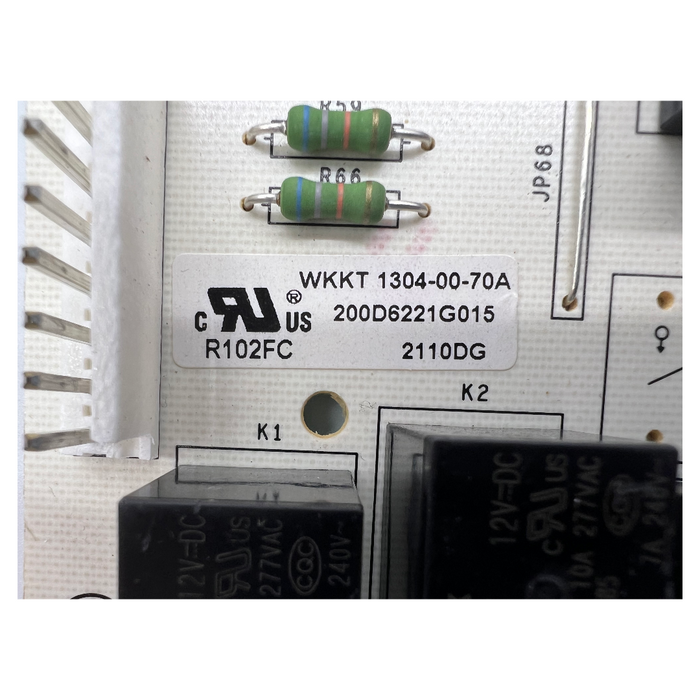

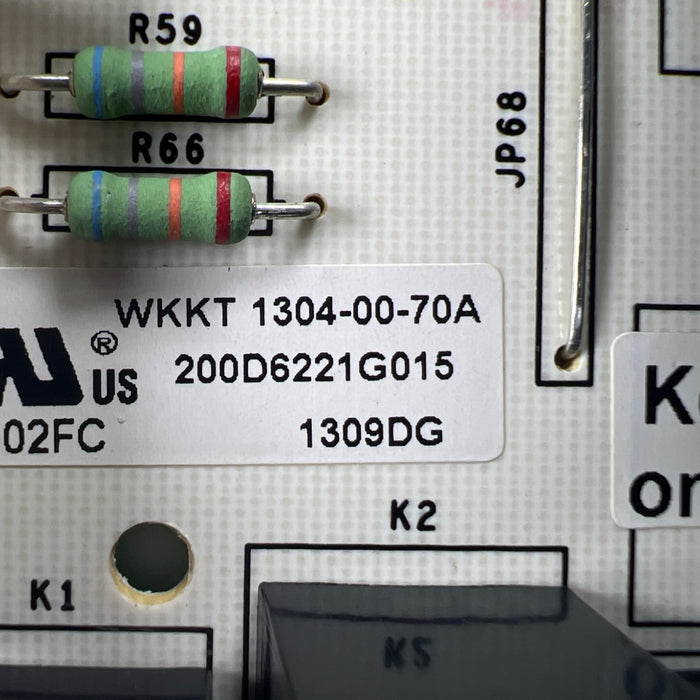

The production number on this GE main control board family is printed on a white sticker on the board itself, reading 200D6221G015, with WR55X10715 as the matching GE service number. To verify your board, unplug the refrigerator, open the access cover on the lower back of the unit, and read the sticker before ordering anything.
This short video shows how to locate and read the part number sticker on an appliance control board and how to confirm you have the right part before opening the packaging. The same method applies here, and it matters more than usual for this part, because several GE board revisions served the same model numbers over the years and only the sticker tells you which one your unit actually has. General installation guidance is included in the Quick Start Guide shipped with every order.
GE Side-by-Side Refrigerator Symptoms and What They Mean for This Board
The 200D6221G015 is diagnosed primarily by symptom pattern. Broad, multi-system failures commonly point to this main control board, while a single isolated fault usually points to that function's own component first. The table below maps the most commonly reported symptoms on the GE and Hotpoint side-by-side models this board serves to a likely cause and a next step.
Treat this table as a triage guide rather than a verdict. The strongest board indicator is breadth: when cooling, defrost, and controls misbehave together, the shared controller is the common denominator. When only one thing is wrong, check that one thing's own component before the board.
| Symptom | What It May Indicate | Recommended Next Step | Board? |
|---|---|---|---|
| Several systems failing together (cooling, defrost, controls) | Central board fault affecting multiple outputs | This pattern is the classic main control board signature on these models. Reseat the wiring connectors at the board, and if the pattern persists, the board is the leading suspect. | Common |
| Warm refrigerator with the freezer still working | Damper or thermistor before the board | Uneven cooling usually starts at a sensor or airflow component. Test the thermistors against the service manual chart before considering the board. | Check sensors first |
| Frost sheet behind the freezer's back wall | Defrost heater, defrost thermostat, or board defrost control | Continuity-test the heater and thermostat first, since either failing produces this exact result. If both pass and defrost still never initiates, the board's defrost control becomes the likely cause. | Check defrost parts first |
| Repeated clicking from the machine compartment | Start relay and overload on the compressor | The start relay and overload protector click when they fail, and they cost far less than a board. Rule them out first. | Possible |
| Unit completely dead with a good outlet | Board power section failure | Confirm 120VAC at the outlet, then confirm power is arriving at the board. Power in with nothing out is a commonly reported board failure mode. | Common |
| Everything runs but temperatures drift over days | Aging board components or a drifting sensor | Commonly reported on boards of this generation as components age. Verify the thermistors first, then consider the board if readings are accurate but control is not. | Possible |
Do GE Models Using the 200D6221G015 Show Error Codes? It Depends on the Model
Only some models that use the 200D6221G015 have a digital dispenser display capable of showing a fault code. On this GE platform, dispenser-equipped models generally carry an S in the model suffix, such as BSS25JS, while F-suffix models such as BSS25JF have no dispenser display and show no codes at all, so those units are diagnosed purely by symptom pattern.
Whether you can read a code depends on which sub-model you own. Dispenser models can store and flash a code; non-dispenser models cannot, and a silent display on those units means nothing either way. The table below covers what a display, where present, can tell you. Code behavior on this exact board generation is less documented than on its successor, so treat everything here as a starting point for your service manual, not a verdict.
| What You See | What It May Indicate | Is It This Board? |
|---|---|---|
| No display on the unit at all | Normal for F-suffix models. This sub-model has no dispenser display and never shows codes. Diagnose by the symptom patterns above. | Diagnose by pattern |
| HRS on a dispenser display | On this GE side-by-side platform, HRS is the code most commonly associated with a main control board that has crashed or locked in defrost. Check the wire harnesses first, then the board. | Board-related |
| CC on a dispenser display | A compartment is running too warm. The board is reporting a cooling problem whose root cause may be a sensor, a fan, or the sealed system. Check those before the board. | Board or sensor |
| PF on a dispenser display | A power interruption was recorded. Clear it and confirm the outlet. Not a board fault by itself. | Not the board |
| An unfamiliar letter code | Code definitions on this older board generation are not consistently documented and vary by series. Confirm the meaning in your model's service manual before buying any part. | Model-dependent |
Will the 200D6221G015 Fix My GE Refrigerator? Confirm These Things First
The 200D6221G015 commonly resolves GE side-by-side faults where multiple systems fail together, where the unit is dead with power confirmed at the board, or where defrost never runs with a good heater and thermostat. Before ordering, verify the sticker on your existing board, then rule out the thermistors, the defrost heater and thermostat, and the compressor start relay, each of which can imitate a board failure.
GE used at least three board revisions across the same side-by-side model numbers over multi-year production runs, and parts databases disagree about which models used this specific revision. Your model number alone genuinely cannot settle which board your unit has. The sticker on the board in your machine compartment is the only reliable answer, and checking it costs nothing.
A thermistor drifting out of range feeds the board bad temperature data, and the board responds with cooling behavior that looks exactly like its own failure. Uneven or drifting temperatures with everything else working is the thermistor's signature.
Frost buildup behind the freezer panel implicates three parts: the heater, the thermostat, and the board's defrost control. The first two are inexpensive and fail more often, so testing them first prevents the most common wrong-part purchase on this platform.
The relay and overload on the compressor produce clicking and no-start symptoms nearly identical to a board that will not command the compressor. They are a fraction of the cost of a board and a frequent root cause on units of this age.
How Hard Is It to Replace the 200D6221G015 Board Myself?
Replacing the 200D6221G015 is a moderate DIY repair, typically 20 to 30 minutes with a Phillips screwdriver and a nut driver. The board lives behind an access cover on the lower back of the refrigerator. Photographing every wiring connector before disconnecting anything is the single most important step, because this board family uses many connectors.
Most DIY-confident owners finish this swap in under half an hour. Pull the unit out, remove the access cover on the lower back, and the board is in front of you. The work itself is simple; the risk is reconnecting the many harness connectors correctly, which is why photos of the original wiring are your best tool. If working with electronic components is not comfortable territory, a qualified technician is always the right call.
Which Board Revision Does My GE Refrigerator Actually Have? Check Your Model
Model lookups for the 200D6221G015 are genuinely unreliable, because GE used this board and at least two sibling revisions across the same side-by-side model numbers during different production runs, and parts databases disagree about the boundaries. The checker below searches models reported for this board, but the sticker on your existing board is the deciding answer.
Model Number Check
Enter your refrigerator's model number to check it against our 200D6221G015 compatibility records. Not found? Use the buttons below to reach our team directly.
For this part in particular, databases conflict about which models used which board revision, because the same model number was built for years while GE rotated board revisions underneath it. The sticker on the board in your machine compartment outranks every lookup, including this one. Click the image to zoom in.
Which GE and Hotpoint Models Are Reported to Use the 200D6221G015?
The 200D6221G015 (WR55X10715) is reported across two clusters of GE side-by-side refrigerators: GE's own catalog confirms it on GSS20 and GSH25 units such as GSS20IETGBB, while parts databases additionally report it across BSS25, BSY25, CSS25, DSS25, ESF25, GBS20, GBS22, GSS25, PDS20, PDS22, and PSF23 series units built during this board's production window. Because these model numbers spanned multiple board revisions, always verify by the sticker on your existing board.
Confirmed in GE's Own Parts Catalog
BSS25 Series, Reported by Parts Databases
Other Series, Reported by Parts Databases
A candid note on this list: parts databases genuinely disagree about which models used this specific board revision, and several of these model numbers were also built with sibling boards during other production runs. That is not sloppiness in the list, it is how GE manufactured this platform. The sticker on your existing board is the only reliable confirmation, and if your model is not listed or the databases leave you unsure, send us the sticker photo and we will confirm before you buy.
How Is the 200D6221G015 Restored to Spec? The FailSafe Precision Protocol
Every 200D6221G015 sold by Appliance Pro USA goes through the FailSafe Precision Protocol, a proprietary 4-step process covering failure pattern analysis, precision diagnostic testing, proactive component replacement using equal or higher-rated parts, and final certification before the board ships.
FailSafe Precision Protocol
Failure Pattern Analysis
Known failure patterns for the 200D6221G015 are mapped before any board enters the process, so we know exactly which components to focus on for this specific board type.
Precision Diagnostic Testing
Multi-point diagnostic testing identifies faults and confirms overall board condition. Boards that do not pass diagnostic testing do not advance.
Proactive Component Replacement
Components identified through failure pattern analysis as common weak points are replaced using equal or higher-rated parts, before the board is cleared to ship.
Final Certification
Certified to meet or exceed original GE factory specifications. Tamper-evident hologram applied. Anti-static packaged and sealed for shipping.
200D6221G015 Specifications and Cross-Reference Part Numbers

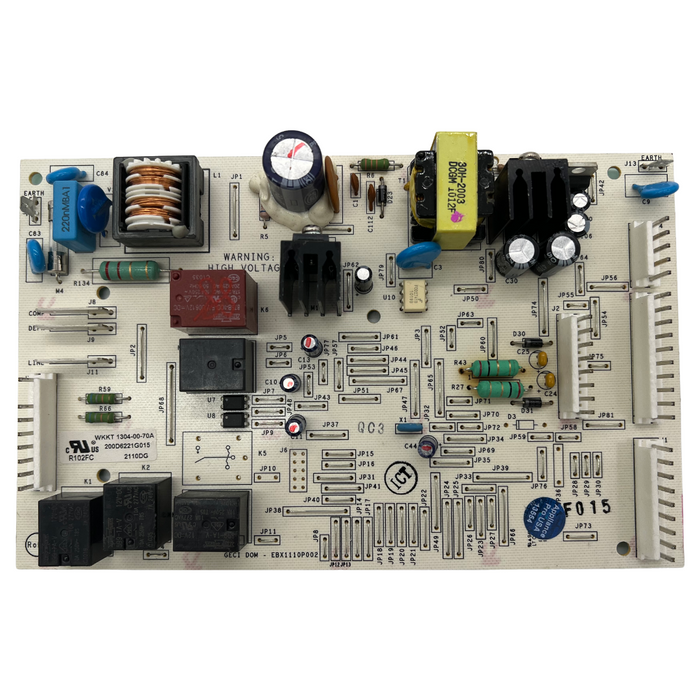

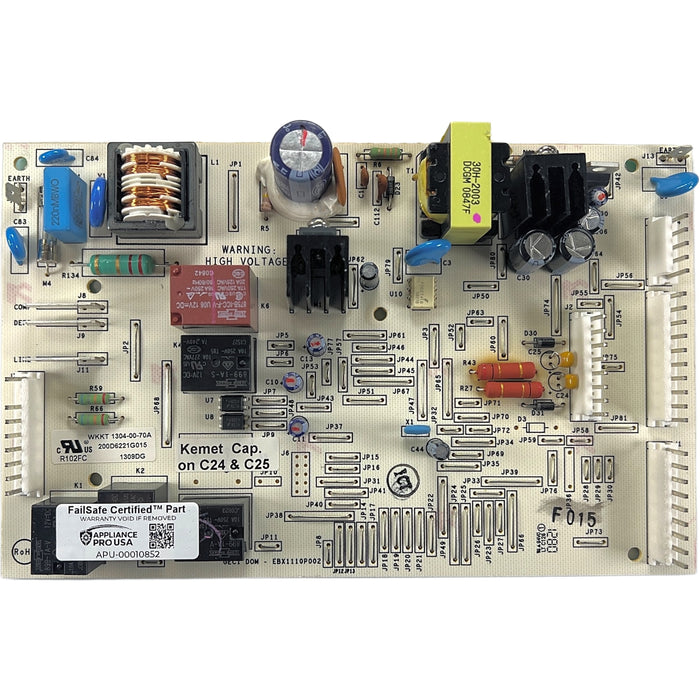

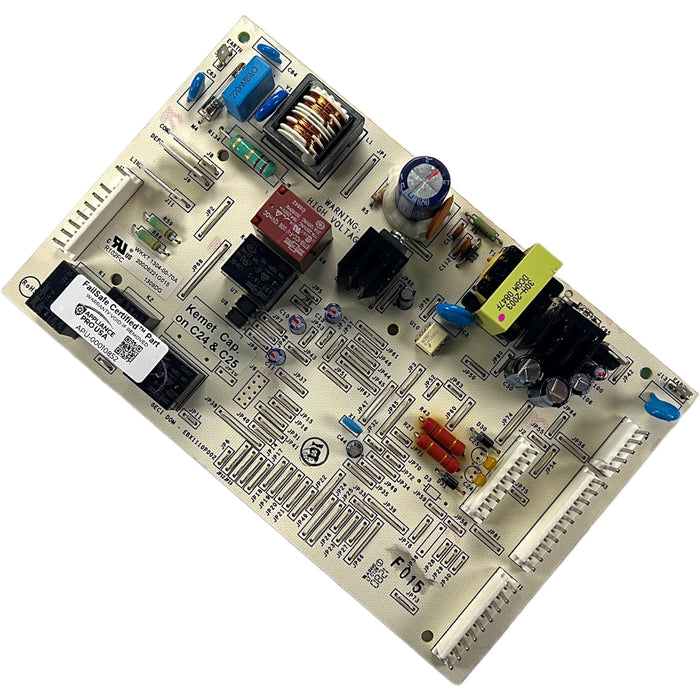

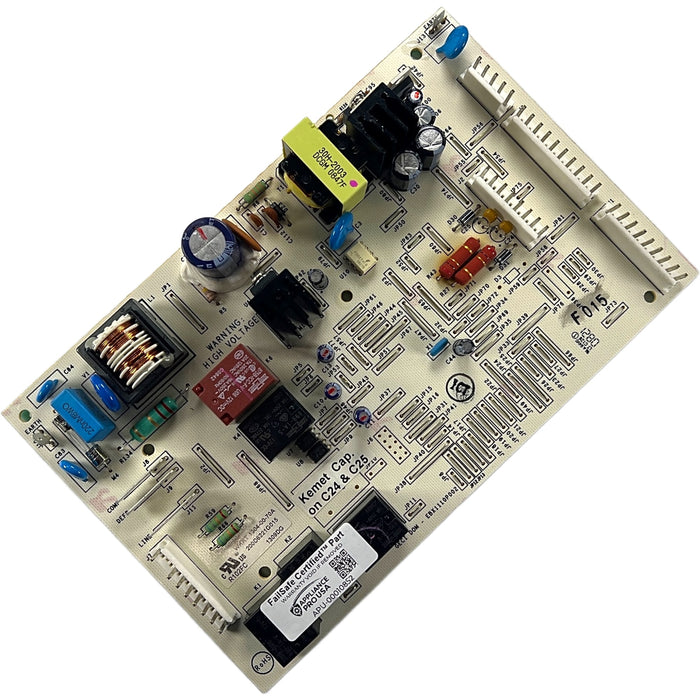

The 200D6221G015 is a GE refrigerator main control board, service number WR55X10715, located behind an access cover on the lower back of the unit. GE has discontinued this number, and GE's official catalog directs units that used it to the current WR55X10942C board family. Appliance Pro USA supplies the original board as a genuine OEM FailSafe Certified unit with a 1-year warranty (registration required).
| Manufacturer Part Number | 200D6221G015 (GE service number WR55X10715) |
| Board Type | Main Control Board / Motherboard (manages compressor, fans, defrost timing, and sensors) |
| Board Location | Lower back of the refrigerator behind an access cover, in the machine compartment area |
| Onboard Diagnostics | No customer-readable code on the board itself. Dispenser-equipped sub-models may show display codes; non-dispenser sub-models are diagnosed by symptom pattern only. |
| OEM Availability | Discontinued by GE. GE's official catalog lists WR55X10942 (current revision WR55X10942C) as the replacement path for units that used this board. APU supplies the original number as a genuine OEM FailSafe Certified unit. |
| Cross-Reference Numbers | WR55X10715, 200D6221G015. Official GE supersession: WR55X10942 / WR55X10942C. Note: WR55X11072 and its revisions are a separate, still-active board for different models and are not a confirmed cross-reference for this part. |
| APU Status | In Stock, FailSafe Certified, 1-year warranty (registration required), same-day shipping* |
Is Replacing a Discontinued GE Control Board Worth It Compared to the Alternatives?
Replacing the 200D6221G015 board is typically far less expensive than a comparable new GE side-by-side refrigerator, which commonly runs $1,700 or more, or a technician board replacement, which commonly runs $300 to $500. Because GE has discontinued this number, a professionally restored original board is one of the few ways to keep the refrigerator's existing wiring and configuration untouched. Figures are general estimates and vary by region and provider.
What your options typically cost
Replaced the 200D6221G015 and the Refrigerator Still Acts Up? Work Through These
The most commonly reported reasons a GE refrigerator seems unchanged after a 200D6221G015 board replacement are a harness connector that did not fully click home, judging the unit before the compressor's startup delay has passed, evaluating temperatures before the 12 to 24 hour stabilization window, and, specific to this part, an original board that was actually a different revision than the one installed.
Double-check you replaced like with like
Because several board revisions served these model numbers, the single most common ordering mistake on this part is swapping in a board that does not match the original's sticker. If results are wrong from the first minute, re-compare the old board's sticker against the new board before troubleshooting anything else.
Reseat every harness connector
This board family carries many connectors, and one that rests in place without clicking fully home reproduces the original failure exactly. Disconnect and firmly reseat each connector until it clicks.
Let the startup delay pass
A newly powered board on this platform may hold the compressor off for several minutes as a protection measure. Quiet for the first 10 to 15 minutes after power-up is normal and not a verdict on the board.
Give it a full day before judging temperatures
These units commonly need 12 to 24 hours to stabilize after a board swap, with the first automatic defrost cycle following hours later and ice production returning within about a day once the freezer is cold. Early readings mislead.
Handle the board like the electronics it is
Static discharge during installation is a quiet killer of replacement boards. Ground yourself on the refrigerator frame, wear the included install gloves, and hold the board by its edges.
Still not working after all of the above?
Contact our team before returning anything. A brief conversation resolves the majority of post-install situations. We stand behind every board we sell and are here to help you get the result you need.
Other Components on These GE Models That Deserve a Look
Components that commonly fail alongside or instead of the 200D6221G015 include the compressor start relay and overload, the defrost heater and thermostat pair, the compartment thermistors, and the evaporator fan motor. On units of this generation's age, more than one aging component at a time is common, so a quick check of each protects the repair.
Share your model number and a photo of your existing board's sticker. Our team will help confirm the right part before you spend a dollar. No pressure, no obligation.
Why Buy the 200D6221G015 from Appliance Pro USA?
Appliance Pro USA supplies the 200D6221G015 as a genuine OEM board restored through the FailSafe Precision Protocol to meet or exceed OEM specifications, backed by a 1-year warranty (registration required), a 30-day return policy, free priority shipping, and same-day shipping on orders placed before 4 PM EST, Monday through Friday.
At Appliance Pro USA, we specialize in high-quality reconditioned replacement control boards, professionally inspected and tested to meet or exceed OEM specifications. Every board we sell undergoes our FailSafe Precision Protocol, meaning components identified through failure pattern analysis as common weak points are replaced proactively using equal or higher-rated parts before the board ever ships to you. With a replacement board from Appliance Pro USA, you're getting a board that's been evaluated and restored to reliable working condition, backed by our 1-year limited warranty (registration required) and 30-day return policy, so you can order with complete confidence.
We offer free priority shipping on every order, and orders placed before 4 PM EST ship same day, Monday through Friday, excluding holidays and scheduled closures. Whether you're a homeowner tackling this repair yourself or a professional technician who needs a reliable source, we're here to help you get the right part and get the job done right the first time.
Not sure this is your board? Send us a photo of your original board's part number sticker and we'll confirm before you buy. Reach us at info@applianceprousa.com
Ask us about MarkUp Pro, exclusive pricing on every order.
200D6221G015 GE Main Control Board, Frequently Asked Questions
Common questions about the 200D6221G015 cover why replacements are sold under WR55X10942, whether WR55X11072 is the same part, why the same model number appears under multiple boards, why parts sites disagree about its model list, whether new stock still exists, and why no AP or PS retail number seems to match this part.
My board says WR55X10715, but every replacement I find is sold as WR55X10942 or WR55X10942C. Did I find the wrong part?
No, that is the supersession at work. GE discontinued WR55X10715 and its own parts catalog directs those units to WR55X10942, currently revision WR55X10942C, as the official replacement. A unit that originally used WR55X10715 can be serviced either with a restored original board like the one on this page, which keeps everything exactly as the unit was built, or with the current WR55X10942C. Both are correct answers to the same problem.
Several listings group this board with WR55X11072. Are they the same thing?
The evidence says no. WR55X11072 and its current revision WR55X11072C form a separate board that GE still produces for a different set of models, mostly GSE and GSF series units, and nothing in GE's own catalog links it to WR55X10715 as a replacement or cross-reference. Sellers sometimes bundle the two numbers in one listing, which creates the confusion. Match the sticker on your board, not a bundled listing title.
My model number shows up under this board and under other GE boards too. How is that possible?
GE built these side-by-side model numbers for years and rotated control board revisions during production without changing the model number on the door. A BSS25 or GSS22 from one production year can carry a different board than the same model from another year. That is why every lookup, including ours, is a starting point, and the sticker on the board inside your machine compartment is the finish line.
Different parts sites list completely different models for this exact part number. Which list is right?
Possibly both, and neither completely. One database clusters this board with GSS20 and GSS22 units, another with BSS25 and related series, and the two lists barely overlap. Given how GE rotated revisions across production runs, each list likely captures part of the truth from different sourcing. We publish both clusters with that caveat rather than pretending to a certainty the data does not support, and we verify any uncertain case from your board's sticker photo for free.
Is anyone still making this board new?
No. GE has discontinued the number, and what circulates today is restored original stock rather than new production. That is exactly what our FailSafe process is built for: the original board your unit was designed around, professionally evaluated and restored, with the weak-point components proactively replaced. The alternative is the current WR55X10942C, which GE still produces.
I searched the usual AP and PS retailer numbers for this board and nothing comes up. Why?
Because the retail catalogs largely retired this number along with GE. The AP and PS numbers that surface in searches for it actually belong to the separate WR55X11072 family, which adds to the confusion. The reliable identifiers for this part are the two printed on the board itself: 200D6221G015 and WR55X10715.
Will my unit show an error code when this board fails?
Only if it has a digital dispenser display, which on this platform generally means an S in the model suffix, like BSS25JS. Those units may flash a code such as HRS when the board locks up. F-suffix models have no dispenser display and no codes at all, so a blank front panel on those units tells you nothing, and diagnosis runs entirely on the symptom patterns covered above.
