200D6221G014 GE Refrigerator Main Control Board: What It Controls, What Fails and How to Swap It
Refrigerator running warm or compressor not cycling? This board drives the fans, compressor and defrost. Diagnose the cheap parts first, then swap the board with confidence.
If your GE refrigerator will not cool at all, or the compressor never cycles on, the main control board stamped 200D6221G014 is one of the parts to look at. A different symptom, a fresh food section that runs warm while the freezer still works fine, points somewhere else first, normally the damper or a thermistor. Once the cheaper parts check out clean, you need a replacement main control board, and a correct replacement should look and connect just like the board you pulled out, screw for screw.
Work through these checks in order and you will know, before you spend a dollar, whether the board is really the fix. If you end up calling in a technician anyway, walking them through what you already ruled out shortens the visit and the bill.
What Does the Number on the 200D6221G014 Board Mean?
200D6221G014 is the production number GE stamps on the board itself. Order by the number on your sticker, since that number decides fit.
GE builds this main control board under the production number stamped right on the board: 200D6221G014. That number is the one to match when you shop, because it identifies this exact revision of the board inside the 200D6221 family. The family covers a range of suffixes, and those suffixes are not interchangeable, so a board stamped G009 or G028 is a different part even though the base number looks the same.
We order and stock this board by 200D6221G014 alone. The printed number on your sticker is the only number this listing asks you to match.
This is not a universal board. Boards that look identical may be programmed differently, so match the number on your sticker.
| Number on the board | 200D6221G014 |
| Board location | Rear of the refrigerator, under a cover |
| Board family | 200D6221 family (suffixes are not interchangeable) |
| Board type | GE refrigerator main control board |
| Availability | In stock, ready to ship |
| APU status | FailSafe Certified, tested before it ships |
Which GE Refrigerators Fit the 200D6221G014 Main Control Board?
There is no published fitment list for 200D6221G014, so we do not attach model numbers to this part. Match the number on your old board's sticker and you have the right board.
Order By Your Sticker Number

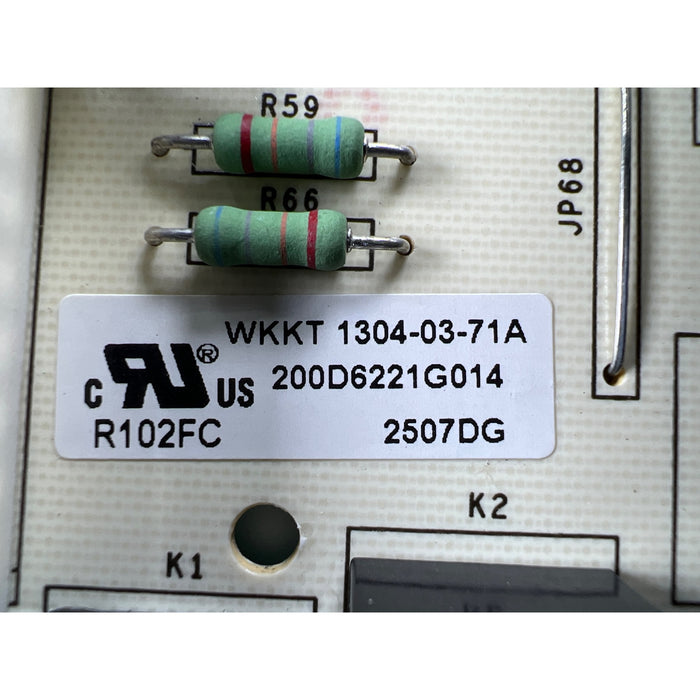

The white sticker carries 200D6221G014 in full. Photograph it before the board comes out and order against what it says.
The main control board sits at the rear of the refrigerator, under a screwed-on cover, on studs with locking tabs. Unplug the refrigerator before you remove it.
No models are confirmed for this board, so the sticker on your old board is what decides.
How Do You Know the 200D6221G014 Board Is Bad?
The 200D6221G014 drives the evaporator fan, condenser fan, compressor, defrost heater and fresh-food damper. The clearest signs of trouble are a refrigerator that will not cool and a compressor that will not cycle. Rule out the condenser fan, the evaporator fan, the damper and the thermistors before you order a new board.
These are the symptoms that most often bring people to this board, strongest first.
- The refrigerator will not cool properly, even with the thermostat set correctly.
- The compressor does not run, or it cycles on and off with no clear pattern.
- The freezer stays cold but the fresh food side runs warm.
- Frost builds up and the defrost cycle or the fans seem to stop working.
- On dispenser models, the water or ice dispenser stops working correctly.
Let's verify it is the board by checking the common parts that contribute to these failures. They are inexpensive, easy to check, and ruling them out means you order the right part the first time.
Work through these in order, cheapest and easiest first. Each one takes just a few minutes and most need no tools beyond your hands and a flashlight.
Before you suspect anything inside the refrigerator, confirm the outlet itself is live. A tripped breaker or a dead outlet produces the exact same complaint as a dead board.
Coils beneath or behind the refrigerator clog with dust and pet hair over time, and a condenser fan that will not spin makes the compressor work against a wall of heat. This is the cheapest fix on the list.
The evaporator fan pushes cold air from the freezer into the fresh food section, and a fan that has quit running will leave the freezer cold while the rest of the refrigerator warms up.
When the freezer is cold but the fresh food side is warm, check the damper door and the thermistors before you suspect the board. A thermistor that reports the wrong temperature can make a healthy board make a bad decision, and that is not the board's fault.
Ice buildup and uneven temperatures track back to the defrost circuit, and a stuck door switch changes how the fans and lights behave. Both can look like a board problem from the outside.
One part worth checking before you buy a board: the compressor start relay and overload, mounted right on the compressor. A failed relay produces a no-cooling complaint that looks identical to a dead board, and it is an easy thing to miss while you are focused on the control board itself.
If the outlet is live, the condenser and evaporator fans run, and the damper and thermistors check out, but the refrigerator still will not cool or the compressor still will not cycle, you need a replacement main control board.
We have not found a published fault-code set for this board family, so diagnose by symptom.
A fan that has been dragging for months has been working the board hard the whole time. Keep a spare on the shelf and a warm fridge becomes a fifteen-minute swap instead of a week of coolers.
How Do You Replace the 200D6221G014 Main Control Board?
The 200D6221G014 sits at the rear of the refrigerator, under a cover held by a few screws. On these boards it goes in as a straight swap. Most installs take fifteen to thirty minutes with basic hand tools.
Start by unplugging the refrigerator and pulling it out enough to reach the back. Remove the screws holding the rear cover with a 1/4 inch nut driver and set the cover aside, then photograph how every connector is plugged in before you touch anything. Squeeze the locking tabs with long-nose pliers to free the board from its mounting studs, disconnect the connectors in the order you photographed, and set the old board next to the new one to compare the sticker, the connector layout and the mounting points. If they do not match, stop before going any further. Seat the new board on the studs, reconnect every plug the way it came off, replace the cover, and plug the refrigerator back in.
GE publishes a mini-manual (tech sheet) for this refrigerator that lists connector layouts and basic checks. Its location varies by platform, so check behind the rear access panel and behind the control or display panel. If you cannot find yours, do not work from the sheet for a nearby model, because the code list changes between platforms.
What Should You Check After Installing the New Board?
Give the refrigerator a few hours to reach temperature before you judge the repair. Confirm the new 200D6221G014 matches the board you removed and that every connector is fully seated. Watch the fans and compressor cycle normally before you call the job done.
A Board That Does Not Match Yours
Work from the photo you took before you pulled the old board. Header positions, plug count and mounting points should line up with the board you removed. If they do not, stop: a board that looks materially different usually means the wrong part is in hand.
A Connector That Is Not Fully Seated
A locking tab that did not click all the way can leave a fan, the compressor or the defrost heater without power even with a good board correctly installed and seated on its studs.
Fans or Compressor Not Cycling
Give the system a few minutes before judging it, then go back to the evaporator and condenser fan checks above.
Fresh Food Side Still Running Warm
If the freezer is cold but the fresh food side is still warm after the swap, check the damper and the thermistors again before you suspect the new board.
Judging the Fix Too Soon
A refrigerator can take several hours to pull back down to temperature after any repair, especially if the door was open a lot during the swap.
How Do You Make a New Control Board Last?
Boards rarely fail from age alone. Surges, dusty coils and a struggling fan all strain the board that drives them. A few minutes of prevention can help a new 200D6221G014 last.
While you are back there with the cover off, three quick habits help your new board live a long life.
- Protect it from power surges. A cheap surge protector on the refrigerator's outlet, or a dedicated one built for major appliances, absorbs the spikes that come from storms and the power grid switching load.
- Keep the condenser coils clean. Dust and pet hair make the compressor and the board work harder to move the same amount of heat. Vacuum the coils every few months and the board runs cooler for it.
- Keep water away from the housing. A slow leak from the water valve or the door gasket can drip onto the board housing over time. Check the water line fittings and the door seals when you have the cover off, and dry up any moisture you find.
What Else Should You Check While the Cover Is Off?
Four parts on a GE refrigerator are worth checking while the 200D6221G014 access panel is open. Check the condenser fan motor, the compressor start relay and overload, the defrost heater assembly, and the wiring harness connectors. Checking these parts now can save a second repair trip later.
Why Are Appliance Pro USA Boards So Reliable?
Every board goes through our FailSafe Precision Protocol before it ships. It is tested and certified to our internal standard for function and lifespan. That standard is why we back this 200D6221G014 with a one-year warranty.
FailSafe Precision Protocol
Failure Pattern Analysis
We've mapped the failure signatures specific to the 200D6221G014, identifying which components degrade and fail over time.
Targeted Component Replacement
The components this board is known to lose are replaced before they get the chance to fail.
Proactive Rebuild Standard
Known high-failure components are replaced with new parts on every board, regardless of whether they show a problem yet. Degraded parts don't ship.
Final Certification
Every board is tested and certified to our internal FailSafe Precision Protocol standard for function and lifespan before it ships.
Boards are supplied from tested stock and may show minor cosmetic wear. Every board is verified fully functional before shipping.
What Do You Get When You Order the 200D6221G014?
This 200D6221G014 ships free with priority shipping on every order. It carries a one-year warranty with registration and a thirty-day return window. It is FailSafe Certified and tested before it leaves our bench.
What this board costs
The price for this board appears in the module below on this page. Every 200D6221G014 we ship has been restored to reliable working condition through our FailSafe Precision Protocol before it goes out the door.
Free priority shipping on every order, and orders placed before 4 PM EST ship same day, Monday through Friday, excluding holidays and scheduled closures. The board carries a 1-year warranty (registration required). Warranty coverage is determined at Appliance Pro USA's discretion. Boards that have been tampered with, or with our verification stickers or holograms removed or damaged, are not eligible for warranty coverage. Returns are accepted within 30 days in original condition; restocking and retesting fees may apply to opened or installed boards, waived on exchanges. Boards returned with missing or damaged hologram stickers may not be eligible for a full refund. Any board that has been flashed, reprogrammed, or had its firmware altered is not eligible for return or warranty coverage.
Ask us about MarkUp Pro, exclusive pricing on every order.
What Do Customers Ask About the 200D6221G014?
The 200D6221G014 is a GE refrigerator main control board identified by the number on its sticker. Appliance Pro USA answers fit, installation and shipping questions about this board below. FailSafe testing backs every board before it ships.
What does the 200D6221G014 main control board do?
It reads the thermistors and door switches, then drives the evaporator fan, condenser fan, compressor, defrost heater and fresh-food damper, plus the water valve and compartment lighting on models equipped with them.
How do I know 200D6221G014 is the right board for my refrigerator?
Match the number stamped on your old board's sticker against 200D6221G014. That printed number is what decides fit, not a model number or anything printed on a marketplace listing.
My old board says a different suffix, like G009 or G028. Is that the same board?
No. Suffixes within the 200D6221 family are not interchangeable, so a board stamped with a different suffix is a different part even though the base number matches.
Where is the main control board located on my refrigerator?
It sits at the rear of the refrigerator, under a cover held on by a few screws. Unplug the refrigerator before you go looking for it, since the cover comes off with a basic nut driver.
My refrigerator is running warm. Is the board definitely the problem?
Not necessarily. Check the condenser coils and fan, the evaporator fan, the damper and thermistors, and the defrost circuit first, since any of those cheaper parts can produce the same complaint as a bad board. If they all check out and the refrigerator still will not cool, you need a replacement main control board.
The board I received does not look like my old one. Did I get the wrong part?
Possibly, and it is worth checking before you install it. Your replacement should match the board you removed in size, connector layout and mounting points. Compare it against the photo you took, and if it does not line up, email us a photo of the board you removed with all of its stickers along with a photo of the one that arrived. We will confirm the right part before anything goes in.
Is there a fault code I should look for on this board?
We have not found a published fault code set for this board family, so diagnosis on these refrigerators goes by symptom and by the five checks above.
Need More Help With Your GE Refrigerator?
GE refrigerator control boards like the 200D6221G014 work alongside fans, dampers and thermistors. Appliance Pro USA publishes related guides on cooling symptoms, part identification and rear-panel repairs. These guides help narrow down a refrigerator problem before you replace a board.
