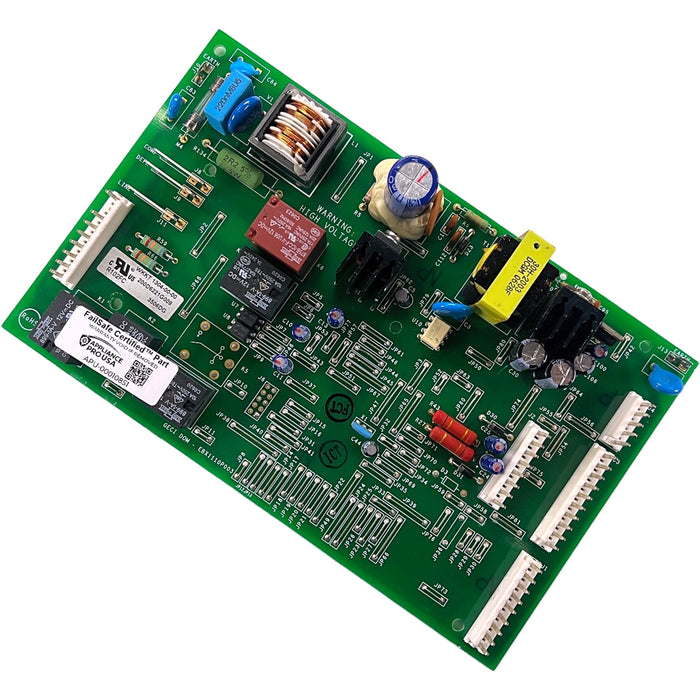

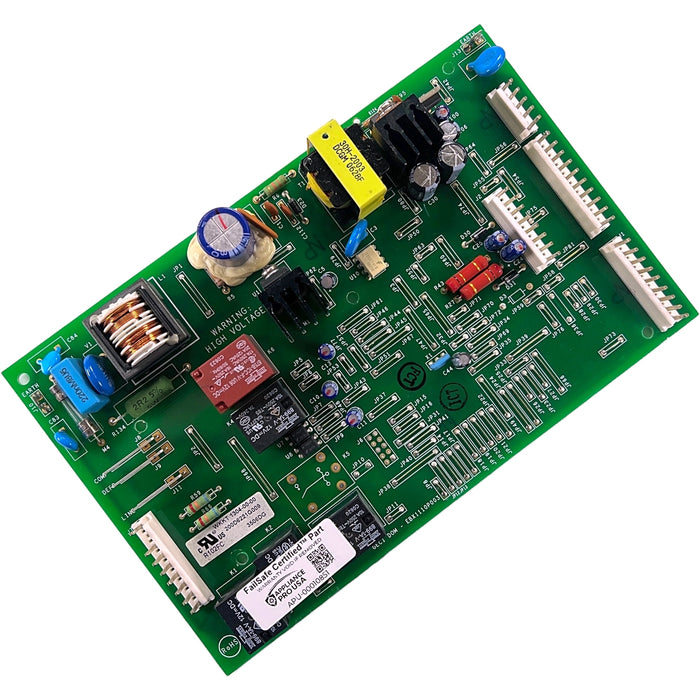

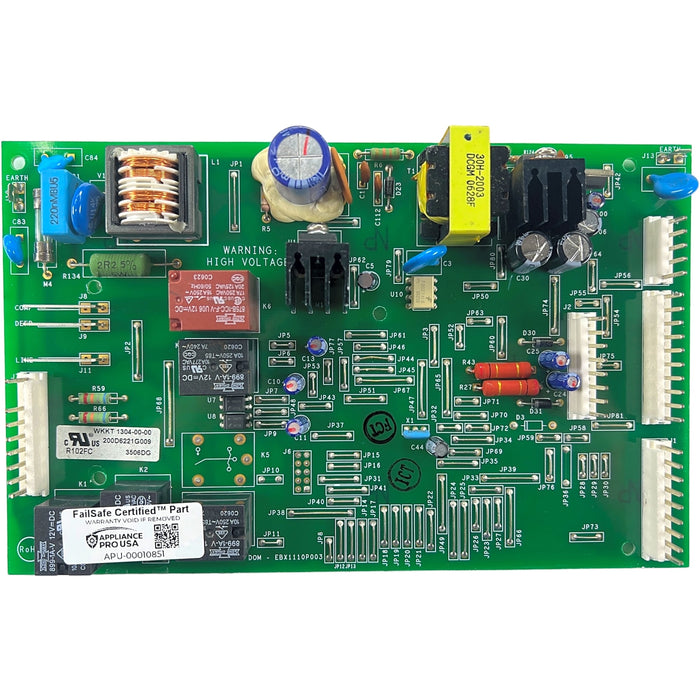

200D6221G009 GE Refrigerator Main Control Board (WR55X10603), The Earliest Board in a Three-Revision Family
GE built the 200D6221 control board in at least three revisions over the years, and 200D6221G009, service number WR55X10603, is the earliest of them, followed by the G015 and G028 revisions, all of them rotated under the same side-by-side model numbers without any change on the refrigerator's door. That history is exactly why ordering by model number alone goes wrong so often for this family, and why the number printed on your existing board is the only reliable guide. GE has retired this number, and its documented replacement path leads to the current WR55X10942C. This page covers the G009 specifically: how to confirm it is your board, how to diagnose it, and how to buy the right revision the first time.
How Does a Failing 200D6221G009 Board Show Up in a GE Refrigerator?
Commonly reported signs of a failing 200D6221G009 (WR55X10603) GE main control board include cooling that fades or fails in one or both compartments, defrost failure with frost collecting behind the freezer wall, compressor and fan cycling that turns erratic, controls that stop responding, and on dispenser-equipped models, water or ice dispensing that quits alongside the cooling trouble.
As the refrigerator's central controller, this board rarely fails politely in just one system. Look for combinations: cooling plus defrost trouble, or cycling problems plus a dead dispenser. Then work the checks in the sections below, because single-system complaints usually trace to that system's own cheaper component first.
- Cooling fading or failing in the fresh food section, the freezer, or both
- Frost collecting behind the freezer's rear wall as defrost cycles are missed
- Compressor and fans cycling erratically or refusing to start
- Controls that ignore presses or settings that will not hold
- Water or ice dispensing quitting on dispenser-equipped models
- Intermittent shutdowns, or a unit that appears completely dead
FailSafe Certified, 1-year warranty (registration required), 30-day returns, ships today*
Which 200D6221 Revision Do I Have? Read the Board Before You Order

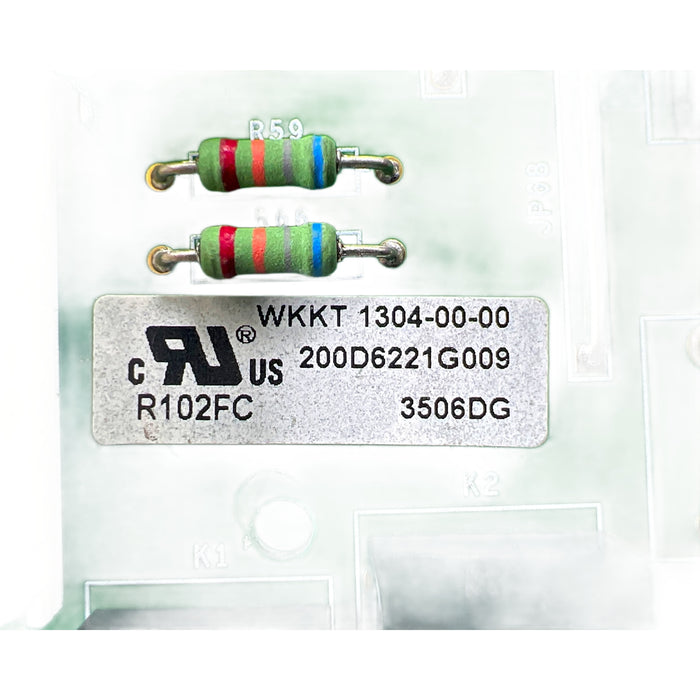

The revision letter matters in this board family. Your board's printed number ends the question: 200D6221G009 is this part, with WR55X10603 as its GE service number, while G015 and G028 endings mark different revisions with their own service numbers. Unplug the refrigerator, open the lower rear access cover, and read the full printed number including the final characters before ordering.
This short video shows how to locate and read the part number sticker on an appliance control board and how to confirm you have the right part before opening the packaging. For this board family, read all the way to the end of the number: the difference between G009, G015, and G028 is the difference between the right part and a return. General installation guidance is included in the Quick Start Guide shipped with every order.
Sorting GE Side-by-Side Symptoms, Board Fault or Something Cheaper
Diagnosis for the 200D6221G009 runs on symptom patterns rather than codes. Multi-system failures, cooling and defrost and controls faltering together, are the classic board signature, while a single misbehaving function usually implicates that function's own component. A completely dead unit with confirmed power at the board is also commonly the board.
The question to ask of every symptom is whether it stands alone. One system misbehaving points at that system's own parts. Two or three misbehaving at once points at the controller they share, which is this board.
| Symptom | What It May Indicate | Recommended Next Step | Board? |
|---|---|---|---|
| Cooling, defrost, and control problems arriving together | The shared controller failing across its outputs | This combination is the board's signature on these models. Reseat the harness connectors first, and if the pattern holds, the board leads the suspect list. | Common |
| Only one compartment warming | Airflow or a sensor serving that compartment | Single-compartment trouble usually starts at a thermistor or air path, not the shared board. Test those before anything else. | Check sensors first |
| Frost accumulating behind the freezer wall | Defrost heater, defrost thermostat, or the board's defrost output | The heater and thermostat continuity-test in minutes and fail far more often. Only when both pass does the board's defrost control take the blame. | Check defrost parts first |
| Clicking from the machine compartment, compressor not starting | Start relay and overload on the compressor | The relay assembly clicks as it fails and costs a small fraction of any board. Rule it out before considering electronics. | Relay first |
| Dispenser dead along with cooling trouble | The board's dispenser outputs failing alongside its other outputs | On dispenser-equipped models this pairing strengthens the board's case, since the board feeds both systems. Confirm harnesses, then suspect the board. | Common |
| Unit completely dead with a live outlet | Board power section, or wiring before it | Verify power is arriving at the board. Power in with nothing out is a commonly reported end state for boards of this generation. | Possible |
Will a GE Refrigerator Using the 200D6221G009 Display an Error Code?
Usually not. Many models served by the 200D6221G009 have no fault display at all and fail silently, and code documentation for this early board revision is thinner than for its later siblings. On dispenser-equipped models, PF commonly marks a recorded power interruption, CC commonly marks a compartment running too warm, and HRS is commonly associated with a lost connection to the control board, but none of these condemns the board on its own.
Do not wait for the display to tell you anything on this platform. Models without a dispenser display never show codes, and even on models with one, this early revision's code behavior is sparsely documented. The short table below covers the realistic possibilities; the symptom patterns above carry the actual diagnostic weight.
| Display Behavior | What It May Indicate | Is It This Board? |
|---|---|---|
| Silent display, or no display fitted | The normal state for much of this model family, fault or no fault. Diagnose entirely by symptom pattern and component tests. | Diagnose by pattern |
| PF | A power interruption was recorded. Clear it, confirm the outlet, and move on. Alone, it indicts nothing. | Not the board |
| CC | A compartment reporting itself too warm. The message is real, but the cause is usually a sensor, fan, or defrost part rather than the messenger. | Board or sensor |
| HRS | Commonly associated with the display losing its connection to the main board. Inspect the harness between them before blaming either end. | Board-related |
| Anything else | Documentation for this early revision is thin and varies by sub-model. Your model's service manual is the only authority worth trusting for an unfamiliar code. | Model-dependent |
Will the 200D6221G009 Fix It? Rule These Out Before Ordering
The 200D6221G009 commonly resolves GE side-by-side faults where several systems fail together, where the unit is dead with power confirmed at the board, and where defrost never initiates after the heater and thermostat pass testing. Before ordering, confirm the printed revision on your existing board, then clear the start relay, the defrost pair, the thermistors, and the evaporator fan, each of which can wear a board costume.
Three revisions of this board, G009, G015, and G028, served overlapping model ranges over the years, and no source documents them as interchangeable with one another. A model lookup cannot tell you which revision your unit was built with; only the board's own printed number can, and getting this wrong is the leading cause of returns in this family.
On units of this age the compressor's relay and overload fail constantly, and their signature clicking no-start act is indistinguishable from a board that has stopped commanding the compressor. The relay costs a small fraction of a board and takes minutes to check.
Frost behind the freezer wall implicates the heater and defrost thermostat long before the board, both by failure rate and by price. Every frost complaint should pass through these two parts first.
A drifted sensor feeds the board fiction and gets the board blamed for believing it, while a stalled evaporator fan starves the fresh food section of cold air the compressor is faithfully producing. Both mimic board trouble from the outside.
Replacing the 200D6221G009 Yourself, What the Job Involves
Replacing the 200D6221G009 is a moderate DIY job of roughly 20 to 30 minutes with a Phillips screwdriver and a nut driver, working at the access cover on the lower back of the refrigerator. The mechanical work is simple; the care goes into reconnecting the board's many harness connectors correctly and confirming the revision number matches before anything is opened.
Pull the unit from the wall, open the lower rear cover, and the board is in front of you. Photograph the wiring before touching a single connector, transfer them one at a time, and press each home until it locks. One note from our own listing for this part: some units may require a firmware or configuration step after installation, which is best handled by a qualified technician, so if your unit behaves oddly on first power-up, reach out before assuming a fault. As always, if any step feels beyond comfortable, a technician is the right answer.
Does the 200D6221G009 Match My Refrigerator? Check Your Model
A model lookup alone cannot settle which 200D6221 revision your GE refrigerator uses, because GE rotated the G009, G015, and G028 revisions under the same model numbers across production years. Check your model below as a starting point, then let the full number printed on your existing board, 200D6221G009 or WR55X10603 for this part, make the final call.
Model Number Check
Enter your refrigerator's model number to check it against our 200D6221G009 compatibility records. Not found? Use the buttons below to reach our team directly.
Three revisions of this board served overlapping models, and parts databases do not agree on where the lines fall. The complete printed number on your board, read through its final characters, outranks every lookup including this one. Click the image to zoom in.
Which GE Models Are Reported With the 200D6221G009?
The 200D6221G009 (WR55X10603) is most consistently reported on GE BSS25GFP-series side-by-sides such as BSS25GFPAWW and BSS25GFPDCC, along with GSS25UFMABB. Parts databases additionally report it across GE's GSS22, GSH22, GSL22, and MSS22 side-by-side families. Because the G015 and G028 revisions served overlapping models, the printed number on your existing board is the only reliable confirmation.
Most Consistently Reported, Side-by-Side
Additionally Reported by Parts Databases
An honest word about this list: the databases that track this early revision disagree with each other more than usual, with different sources reporting different clusters of 22 and 25 cubic foot side-by-sides, and some blurring the G009 and G015 revisions together entirely. That reflects how GE built this family, not carelessness in any one database. Treat the list as a starting point, verify by the full printed number on your board, and when in doubt send us a sticker photo and we will confirm the revision before you buy.
How Is the 200D6221G009 Restored to Spec? The FailSafe Precision Protocol
Every 200D6221G009 sold by Appliance Pro USA goes through the FailSafe Precision Protocol, a proprietary 4-step process covering failure pattern analysis, precision diagnostic testing, proactive component replacement using equal or higher-rated parts, and final certification before the board ships.
FailSafe Precision Protocol
Failure Pattern Analysis
Known failure patterns for the 200D6221G009 are mapped before any board enters the process, so we know exactly which components to focus on for this specific board type.
Precision Diagnostic Testing
Multi-point diagnostic testing identifies faults and confirms overall board condition. Boards that do not pass diagnostic testing do not advance.
Proactive Component Replacement
Components identified through failure pattern analysis as common weak points are replaced using equal or higher-rated parts, before the board is cleared to ship.
Final Certification
Certified to meet or exceed original GE factory specifications. Tamper-evident hologram applied. Anti-static packaged and sealed for shipping.
200D6221G009 Specifications and Cross-Reference Part Numbers
The 200D6221G009 is a GE refrigerator main control board, service number WR55X10603, the earliest documented revision in the 200D6221 family that later produced the G015 and G028 boards. GE has retired the number, and parts cross-reference data documents the current WR55X10942C as the successor path for units that used it. It no longer holds a standalone listing in the major retail parts catalogs, appearing only inside the successor's replacement list.
| Manufacturer Part Number | 200D6221G009 (GE service number WR55X10603) |
| Revision Family | Earliest documented revision of the 200D6221 board family; later revisions include 200D6221G015 (WR55X10715) and 200D6221G028 (WR55X11036). Revisions are not documented as interchangeable with one another. |
| Board Type | Main Control Board / Motherboard (manages compressor, fans, defrost timing, temperature regulation, and dispenser outputs on equipped models) |
| Board Location | Behind the access cover on the lower back of the refrigerator |
| OEM Availability | No longer manufactured per GE's own catalog. Cross-reference data documents WR55X10942 (current revision WR55X10942C) as the successor path. The original number holds no standalone listing in major retail parts catalogs. APU supplies it as a genuine OEM FailSafe Certified unit. |
| Onboard Diagnostics | None on the board itself. Dispenser-equipped sub-models may show limited display indications; many models in this family have no fault display. |
| Cross-Reference Numbers | WR55X10603, 200D6221G009. Documented successor path: WR55X10942 / WR55X10942C. Caution: one circulating listing pairs this board with WR55X10597 alongside a Whirlpool number, which we treat as a listing error rather than a confirmed cross-reference. |
| APU Status | In Stock, FailSafe Certified, 1-year warranty (registration required), same-day shipping* |
The Math on Repairing a Refrigerator With a Retired Board
Repairing a GE side-by-side with a 200D6221G009 costs far less than replacing the appliance, with current GE side-by-sides commonly starting around $1,200 and climbing quickly, and a technician control-board replacement commonly running $200 to $500. The current-production successor board alone retails above $300, which makes a warrantied restored original at a lower price the value play for these units. Figures are general estimates and vary by region and provider.
What your options typically cost
Swapped the 200D6221G009 and Something Is Still Wrong? Work This List
The most commonly reported reasons a GE refrigerator seems unfixed after a 200D6221G009 swap are an original board that was actually a G015 or G028 revision, a harness connector short of fully locked, impatience with the compressor's protective startup behavior and the long pull-down that follows, and units that need a configuration step after installation.
Re-read both boards' full numbers
The revision trap catches people at install time too. If behavior is wrong from the first minute, put the old and new boards side by side and read both numbers to their final characters. An original that turns out to be a G015 or G028 explains everything, and no amount of troubleshooting fixes a revision mismatch.
Lock every connector, not most of them
This board carries many harnesses, and the one connector resting unseated recreates the original fault with perfect fidelity. Work through them methodically rather than trusting a glance.
Respect the startup hold and the pull-down
A newly powered board on this platform can hold the compressor off for a protective stretch, and a warm refrigerator then needs hours of running before temperatures prove anything. Early silence and early warmth are both normal.
Ask about the configuration step
Our listing for this part notes some units may require a firmware or configuration step after installation, best performed by a qualified technician. If the unit powers up but behaves oddly, this is worth checking before anything else gets blamed.
Treat static as the silent risk
A static discharge you never feel can end a replacement board before its first power-up. Ground yourself on the cabinet, keep the board in its bag until the last moment, use the included install gloves, and handle edges only.
Still not working after all of the above?
Contact our team before returning anything. A brief conversation resolves the majority of post-install situations. We stand behind every board we sell and are here to help you get the result you need.
Other Components Worth Checking on These GE Side-by-Sides
Components that commonly fail alongside or instead of the 200D6221G009 include the compressor start relay and overload, the defrost heater and thermostat, the thermistors, and the evaporator fan motor, all of them cheaper than the board and all capable of imitating one of its failure modes.
Share your model number and a photo of your existing board's sticker. Our team will help confirm the right part before you spend a dollar. No pressure, no obligation.
Why Buy the 200D6221G009 from Appliance Pro USA?
Appliance Pro USA supplies the 200D6221G009 as a genuine OEM board restored through the FailSafe Precision Protocol to meet or exceed OEM specifications, backed by a 1-year warranty (registration required), a 30-day return policy, free priority shipping, and same-day shipping on orders placed before 4 PM EST, Monday through Friday.
At Appliance Pro USA, we specialize in high-quality reconditioned replacement control boards, professionally inspected and tested to meet or exceed OEM specifications. Every board we sell undergoes our FailSafe Precision Protocol, meaning components identified through failure pattern analysis as common weak points are replaced proactively using equal or higher-rated parts before the board ever ships to you. With a replacement board from Appliance Pro USA, you're getting a board that's been evaluated and restored to reliable working condition, backed by our 1-year limited warranty (registration required) and 30-day return policy, so you can order with complete confidence.
We offer free priority shipping on every order, and orders placed before 4 PM EST ship same day, Monday through Friday, excluding holidays and scheduled closures. Whether you're a homeowner tackling this repair yourself or a professional technician who needs a reliable source, we're here to help you get the right part and get the job done right the first time.
Not sure this is your board? Send us a photo of your original board's part number sticker and we'll confirm before you buy. Reach us at info@applianceprousa.com
Ask us about MarkUp Pro, exclusive pricing on every order.
200D6221G009 GE Main Control Board, Frequently Asked Questions
Common questions about the 200D6221G009 cover how it relates to the G015 and G028 revisions and the WR55X10942C successor, whether the revisions interchange, whether GE still makes it, why it has no listing under the usual AP and PS retail numbers, why databases disagree about its model list, and what the WR55X10597 pairing seen on one listing actually means.
What is the difference between 200D6221G009, G015, and G028?
They are successive revisions of one GE board family, with G009 the earliest, and GE rotated them under the same refrigerator model numbers across production years. Each revision carries its own service number, WR55X10603 for this one, and no source documents the revisions as interchangeable with each other. The right one for your unit is whichever number is printed on the board inside it.
Can I install a G015 board in place of my G009?
We do not recommend it, and no cross-reference source supports it. The revisions fed the same successor part but are not documented as substitutes for one another. Match your board's full printed number, and if you are unsure which you have, send us a photo before ordering.
So which part do I actually buy, G009 or the WR55X10942C?
Both are legitimate answers for a unit built with a G009. The WR55X10942C is the current-production successor that cross-reference data documents for units in this family, sold at current retail pricing. A restored original G009 keeps the exact board the unit was designed and wired around, at a lower price, with our warranty behind it. What settles it is the number on your existing board and your preference between original and successor.
Is the 200D6221G009 still made new?
No. GE's own catalog marks it as no longer manufactured, so what exists today is original stock in varying conditions. That is precisely the situation our FailSafe process exists for: the original part, professionally evaluated and restored, with its weak points addressed before it ships.
Why does searching the usual AP or PS numbers for this board find nothing?
Because the retail catalogs delisted this number when GE retired it. Today it appears only inside the successor board's replacement list rather than as its own listing, which is normal for a superseded part and not a sign you have the number wrong. The two identifiers that matter are the ones on the board itself: 200D6221G009 and WR55X10603.
One site pairs this board with WR55X10597. Is that a real cross-reference?
We treat it as a listing error. The page in question also labels the part with a Whirlpool number, which does not belong anywhere near a GE board of this family, and no other source repeats the pairing. Order by the numbers printed on your own board and ignore bundled listing titles.
Different sites list completely different models for this board. Why?
Because GE built these model numbers for years while rotating the three board revisions underneath them, and each database captured a different slice of that history. One source clusters this board with 25 cubic foot BSS25 units, another with 22 cubic foot GSS22 and GSH22 units, and some blur the G009 and G015 revisions together outright. None of them outranks the number printed on your board, and we will confirm any uncertain case from a sticker photo for free.
