200D4864G045 GE Refrigerator Main Control Board (WR55X10697), The Profile and Cafe Board With a Built-In Self-Test
Part 200D4864G045, GE service number WR55X10697, is the main control board behind a generation of GE Profile and Cafe refrigerators, mostly French-door and bottom-freezer models in the PFCF, PDCF, PDSF, PDSS, PCF, CFCP, and CSCP families, plus select side-by-sides. Two things make diagnosing this platform genuinely different. First, these units do not use traditional error codes at all; they carry a hidden self-test system you run from the temperature buttons, including a sensor test that grades every thermistor pass or fail for free. Second, they use an inverter-driven variable-speed compressor whose built-in protection behavior is regularly mistaken for a dead board. This guide walks you through both before you spend a dollar.
Why Is My GE Profile or Cafe Refrigerator Not Cooling? Main Board Symptoms
Common symptoms associated with a failing 200D4864G045 main control board include a refrigerator and freezer that stop cooling together, a freezer that runs warm while the fresh food section stays normal, an ice wall or heavy frost forming on the freezer's rear panel from defrost failure, repeated clicking and restart attempts, an unresponsive control panel, and an ice maker that overflows or quits.
This board manages temperature control, the compressor's run commands, the fans, defrost timing, and the ice maker's power, so its failure can surface in any of those systems. The list below covers the commonly reported presentations. Several of them have cheaper causes this platform lets you test for free, so run the self-test in the diagnosis section before deciding anything.
- Refrigerator and freezer sections losing cooling together
- Freezer running warm while the fresh food section holds temperature, or the reverse
- An ice wall or thick frost sheet forming on the freezer's rear panel
- Clicking or gurgling followed by repeated restart attempts that never settle into normal running
- Control panel or display going blank or ignoring presses
- Ice maker overflowing, building icicles, or quitting entirely
FailSafe Certified, 1-year warranty (registration required), 30-day returns, ships today*
How Do I Verify the Part Number on My GE Profile Board? Watch the Video

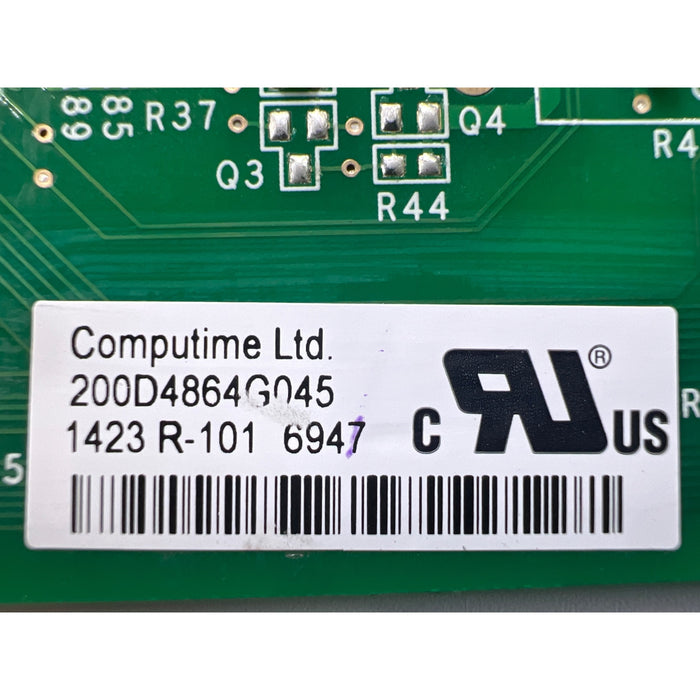

The 200D4864G045 carries its silkscreen number on the board itself, with WR55X10697 as the matching GE service number. To verify, unplug the refrigerator, open the access panel on the back of the unit, and read the number printed on the board. GE built several visually similar boards for this era, so match the printed number exactly rather than going by appearance.
This short video shows how to locate and read the part number sticker on an appliance control board and how to confirm you have the right part before opening the packaging. The same method applies to the 200D4864G045, and precision matters here: GE's boards from this era are known look-alikes that differ functionally, so the printed number is your only reliable match. General installation guidance is included in the Quick Start Guide shipped with every order.
GE Profile and Cafe Symptoms, What Each One Suggests on This Platform
On refrigerators using the 200D4864G045, the most diagnostic behaviors are the compressor's retry pattern and the built-in sensor self-test. A compressor that attempts starts in short bursts and then pauses for long stretches is commonly running its own protection routine, which points at the compressor circuit rather than the board, while a failed sensor self-test points at a thermistor.
Work through the table before ordering anything. This platform gives you more free diagnostic information than most refrigerators, and two of its behaviors, the compressor retry cycle and the sensor self-test, settle a large share of cases on their own.
| Symptom | What It May Indicate | Recommended Next Step | Board? |
|---|---|---|---|
| Both sections warm, unit seems otherwise alive | Board not commanding cooling, or compressor circuit fault | Run the built-in self-test first. Sensors that pass with a compressor that never receives its run signal shift suspicion toward the board. | Common |
| Short start attempts, then minutes of silence, repeating | The inverter compressor's own protection retry routine | This documented behavior means excess current was sensed on the compressor side. The board is commonly doing its job here. Have the compressor circuit evaluated before replacing electronics. | Compressor side first |
| Freezer warm, fresh food fine, or the reverse | A thermistor or airflow component before the board | The sensor self-test grades every thermistor in seconds. A failed sensor explains this symptom for a fraction of the board's cost. | Run sensor test first |
| Ice wall or glacier on the freezer back panel | Defrost failure, heater, thermostat, or board control | Continuity-test the defrost heater and thermostat first. If both pass and sensors pass, the board's defrost control becomes the leading suspect, and board replacement has resolved documented cases of this exact symptom. | Board or defrost parts |
| Ice maker overflowing or quit | Board-supplied ice maker power, or the water valve | The board feeds the ice maker its voltage, so both the valve and the board are candidates. Check the valve first as the cheaper part. | Possible |
| Display blank or unresponsive | Display assembly, its link to the main board, or the main board | The self-test system includes a communication check between the display and the main board. A failed communication test isolates the fault to that link rather than guessing. | Run comm test |
No Error Codes on This GE Platform, Use the Hidden Self-Test Instead
GE's service documentation for this platform states plainly that it does not use error codes. Instead, refrigerators using the 200D4864G045 carry a built-in self-diagnostic system entered from the temperature pads: press and hold all four temperature buttons for about three seconds until 00 blinks in the displays, then select a test mode. Mode 6 tests every thermistor and displays P for pass, 0 for an open sensor, or S for a shorted sensor, and other modes verify the display and dispenser communication links.
If you have been searching for an error code list for this refrigerator, stop, because there is not one, and that is by design. What the platform gives you instead is better: a self-test you can run in a minute from the front panel. Enter it by holding all four temperature pads, both up and down for fridge and freezer, about three seconds until 00 blinks, then press a pad to lock in and step to the mode you want. The table below covers what the useful modes tell you. Confirm the exact entry procedure in your model's service data, since button layouts vary across the family.
| Test Mode / Result | What It May Indicate | Is It This Board? |
|---|---|---|
| Mode 6 shows P | That thermistor passed. All sensors showing P clears the temperature sensors as suspects and shifts attention to the board or the compressor circuit. | Sensors cleared |
| Mode 6 shows 0 | An open sensor circuit. That thermistor or its wiring has failed, and it explains temperature symptoms for a fraction of a board's cost. Replace the sensor, not the board. | Not the board |
| Mode 6 shows S | A shorted sensor circuit. Same verdict: the thermistor or harness is the fault, and a new board would change nothing. | Not the board |
| Mode 2 or 3 communication test fails | The link between the display or dispenser and the main board is down. Inspect the harness between them first; a persistent failure with good wiring points at one of the boards. | Harness, then boards |
| Display shows 00 blinking | You are at the self-test entry point, not looking at a fault. Lock in within about five seconds or the unit returns to normal operation on its own. | Not a fault |
| No code, ever, despite real problems | Completely normal for this platform. Diagnosis runs on the self-test and the symptom patterns above, not on waiting for a code. | Use the self-test |
Will the 200D4864G045 Fix My Refrigerator? Run These Checks First
The 200D4864G045 commonly resolves faults where cooling commands never reach a healthy compressor, defrost never initiates with a good heater and thermostat, the ice maker loses its board-supplied power, or the unit fails after every sensor passes the built-in self-test. Before ordering, run the Mode 6 sensor test, understand the inverter compressor's retry behavior, test the defrost pair, and reseat the harnesses, because each of those imitates a board failure.
This platform will grade its own thermistors if you ask. A drifted or failed sensor produces warm compartments, wrong cycling, and defrost misbehavior that look exactly like board failure, and the test separates them in under a minute without tools.
These models drive a variable-speed compressor through an inverter, and when excess current is sensed the system deliberately makes a burst of short start attempts and then waits minutes before trying again. That pattern reads as a dying board to most owners, and a new board cannot fix a compressor-side fault.
The ice wall symptom implicates three parts, and the two cheap ones fail more often. Testing them first prevents the most common wrong purchase on this platform, though documented cases do exist where the board's defrost control was the real fault.
The main board talks to the display, the dispenser, the inverter, and every sensor through harnesses that loosen with age and service work. The platform's own communication tests exist because link failures mimic board failures, and the dispenser has its own separate board that fails independently.
Can I Replace the 200D4864G045 Myself? Time, Tools, and What to Expect
Replacing the 200D4864G045 is a moderate DIY repair, typically 25 to 40 minutes with a Phillips screwdriver. The board mounts behind the access panel on the back of the refrigerator. The connectors are the whole job: photograph everything before disconnecting, reseat each plug until it locks, and use the built-in self-test afterward to confirm the sensors and communication links all pass on the new board.
This is a careful-hands job rather than a hard one. Pull the unit out, open the rear access panel, and transfer the harnesses one photographed connector at a time. What this platform gives you that most do not is a built-in way to verify your work: after the swap, run the self-test and confirm the sensors grade P and the communication modes pass, which proves the new board is talking to everything before you wait on temperatures. If wiring around a high-voltage inverter circuit is outside your comfort zone, a qualified technician is the right call.
Does the 200D4864G045 Fit My GE Profile or Cafe Refrigerator? Check Your Model
To confirm the 200D4864G045 fits, match the number printed on your existing board to 200D4864G045 or WR55X10697. GE built several visually similar boards for this era that differ functionally, and trim suffixes on these model numbers vary by color and production run, so the printed board number outranks any model lookup.
Model Number Check
Enter your refrigerator's model number to check it against our 200D4864G045 compatibility records. Not found? Use the buttons below to reach our team directly.
GE boards from this era are documented look-alikes, near-identical in appearance and different in function. The silkscreen number on the board in your machine compartment is the deciding factor, not the board's appearance and not a model lookup alone. Click the image to zoom in.
Which GE Profile and Cafe Models Use the 200D4864G045?
Part 200D4864G045 (WR55X10697) serves GE Profile and Cafe refrigerators including the PFCF1, PFIC1, PDCF1, PDCS1, PDSF5, and PDSS5 French-door and bottom-freezer families, the PCF23 and PCF25 series, the Cafe CFCP1 and CSCP5 series, and select side-by-sides such as GSHS9NGYBCSS. Trim suffixes denote color and production run, so verify by the number printed on your existing board.
Cafe CFCP1 / CSCP5 Series, French Door
Profile PDCF1 / PDCS1 / PDSF5 / PDSS5 Series, Bottom Freezer
Profile PFCF1 / PFIC1 / PCF Series, French Door
Side-by-Side Models
Model families are confirmed in GE service literature for this platform, while individual trim suffixes, the trailing color and production codes, are reported with less consistency across parts databases. A model whose suffix differs slightly from this list, for example an AC where the list shows a BC, is often the same refrigerator from a different production run, but that is not guaranteed. The printed number on your existing board settles it, and if anything is unclear, send us a photo and we will confirm before you buy.
How Is the 200D4864G045 Restored to Spec? The FailSafe Precision Protocol
Every 200D4864G045 sold by Appliance Pro USA goes through the FailSafe Precision Protocol, a proprietary 4-step process covering failure pattern analysis, precision diagnostic testing, proactive component replacement using equal or higher-rated parts, and final certification before the board ships.
FailSafe Precision Protocol
Failure Pattern Analysis
Known failure patterns for the 200D4864G045 are mapped before any board enters the process, so we know exactly which components to focus on for this specific board type.
Precision Diagnostic Testing
Multi-point diagnostic testing identifies faults and confirms overall board condition. Boards that do not pass diagnostic testing do not advance.
Proactive Component Replacement
Components identified through failure pattern analysis as common weak points are replaced using equal or higher-rated parts, before the board is cleared to ship.
Final Certification
Certified to meet or exceed original GE factory specifications. Tamper-evident hologram applied. Anti-static packaged and sealed for shipping.
200D4864G045 Specifications and Cross-Reference Part Numbers
The 200D4864G045 is the main control board, GE service number WR55X10697, for a generation of GE Profile and Cafe refrigerators built around an inverter-driven variable-speed compressor. GE has discontinued the original number and folded it into the current successor WR55X10956. The platform uses a self-diagnostic test-mode system instead of error codes, and the board communicates with the compressor's inverter through a low-voltage run signal.
| Manufacturer Part Number | 200D4864G045 (GE service number WR55X10697) |
| Board Type | Main Control Board (manages temperature regulation, compressor run commands, fans, defrost timing, and ice maker power) |
| Board Location | Behind the access panel on the back of the refrigerator |
| Compressor System | Inverter-driven variable-speed compressor, commanded by the board through a low-voltage signal. Never direct-start this compressor on household power; doing so causes permanent damage. |
| Onboard Diagnostics | No traditional error codes. The platform carries a self-diagnostic test-mode system entered from the temperature pads, including a per-thermistor pass, open, or short test and display and dispenser communication tests. |
| OEM Availability | Original number discontinued by GE and superseded by WR55X10956, the current production replacement. APU supplies the original number as a genuine OEM FailSafe Certified unit. |
| Cross-Reference Numbers | WR55X10697, 200D4864G045. Official GE supersession: WR55X10956 (successor catalog references PS2371144, AP4481481). |
| APU Status | In Stock, FailSafe Certified, 1-year warranty (registration required), same-day shipping* |
What the 200D4864G045 Costs Compared to Your Alternatives
Replacing the 200D4864G045 costs a fraction of a comparable new GE Profile French-door refrigerator, which commonly runs $2,500 or more, and less than a technician board replacement, which commonly runs $200 to $500 plus a diagnostic fee. The current-production successor board alone retails around $200 to $240 at major channels, which makes a warrantied restored original at a lower price a strong value. Figures are general estimates and vary by region and provider.
What your options typically cost
Refrigerator Still Struggling After Replacing the 200D4864G045? Start Here
The most commonly reported reasons a GE Profile or Cafe refrigerator seems unfixed after a 200D4864G045 replacement are a compressor-side fault that the inverter's retry routine keeps masking as a board problem, a thermistor that still fails the sensor self-test, a harness connector that never locked, and judging temperatures before the unit has had hours to pull down.
Run the self-test on the new board first
The fastest way to validate the installation is the platform's own diagnostics. Enter the test mode and confirm every thermistor grades P and the display and dispenser communication tests pass. A clean sweep proves the new board is connected and talking to everything.
Do not mistake the compressor's retry routine for a dead board
If you hear short start attempts followed by long silent pauses, the system is protecting itself from a compressor-circuit fault, and it will do that with a brand-new board installed. That rhythm means the remaining problem is downstream, and it needs a technician's evaluation rather than more electronics.
Chase any sensor that grades 0 or S
A thermistor that fails the self-test keeps feeding the new board the same bad data the old board got. The board can only act on what the sensors report, so a failed sensor keeps the original symptom alive right through the board swap.
Reseat, then give it real time
A connector that looks seated but never locked reproduces the original fault perfectly, and even a correct repair needs patience afterward. These units take hours of continuous running to pull down, and a defrost cycle and ice production follow later still.
Handle the board with static discipline
Replacement electronics are most vulnerable in the minute before installation. Ground yourself on the cabinet, keep the board bagged until it goes in, wear the included install gloves, and hold it by its edges only.
Still not working after all of the above?
Contact our team before returning anything. A brief conversation resolves the majority of post-install situations. We stand behind every board we sell and are here to help you get the result you need.
Other Parts on These GE Profile and Cafe Models Worth Attention
Components that commonly fail alongside or instead of the 200D4864G045 include the thermistors the self-test grades, the inverter and compressor pairing, the defrost heater and thermostat, the water inlet valve behind ice maker overflow complaints, and the separate dispenser board.
Share your model number and a photo of your existing board's sticker. Our team will help confirm the right part before you spend a dollar. No pressure, no obligation.
Why Buy the 200D4864G045 from Appliance Pro USA?
Appliance Pro USA supplies the 200D4864G045 as a genuine OEM board restored through the FailSafe Precision Protocol to meet or exceed OEM specifications, backed by a 1-year warranty (registration required), a 30-day return policy, free priority shipping, and same-day shipping on orders placed before 4 PM EST, Monday through Friday.
At Appliance Pro USA, we specialize in high-quality reconditioned replacement control boards, professionally inspected and tested to meet or exceed OEM specifications. Every board we sell undergoes our FailSafe Precision Protocol, meaning components identified through failure pattern analysis as common weak points are replaced proactively using equal or higher-rated parts before the board ever ships to you. With a replacement board from Appliance Pro USA, you're getting a board that's been evaluated and restored to reliable working condition, backed by our 1-year limited warranty (registration required) and 30-day return policy, so you can order with complete confidence.
We offer free priority shipping on every order, and orders placed before 4 PM EST ship same day, Monday through Friday, excluding holidays and scheduled closures. Whether you're a homeowner tackling this repair yourself or a professional technician who needs a reliable source, we're here to help you get the right part and get the job done right the first time.
Not sure this is your board? Send us a photo of your original board's part number sticker and we'll confirm before you buy. Reach us at info@applianceprousa.com
Ask us about MarkUp Pro, exclusive pricing on every order.
200D4864G045 GE Main Control Board, Frequently Asked Questions
Common questions about the 200D4864G045 cover whether it is the same part as WR55X10697, its supersession to WR55X10956, why these refrigerators show no error codes, how to run the hidden self-test, why a new board may not fix a no-cooling complaint, the danger of direct-starting the inverter compressor, and how much trim suffixes on the model number matter.
Are 200D4864G045 and WR55X10697 the same part?
Yes. 200D4864G045 is the number silkscreened on the board during manufacture, and WR55X10697 is the GE service number used in parts catalogs. They identify the same physical board, and either one matched against your existing board confirms the part.
This number is discontinued. What replaced it?
GE folded WR55X10697 into a current-production successor, WR55X10956, which absorbed several related board numbers from this platform. That gives owners two valid paths: the successor at current retail pricing, or a restored original board like the one on this page, which keeps the exact part the unit was built with. Both answer the same repair.
Why can I not find an error code list for my GE Profile refrigerator?
Because this platform genuinely does not use error codes, and GE's service documentation says so directly. In their place is a self-diagnostic test system run from the temperature pads, and its sensor mode is more useful than a code list anyway, since it grades every thermistor pass, open, or short on demand.
How do I run the self-test?
Press and hold all four temperature pads, the up and down buttons for both the fridge and freezer, for about three seconds until 00 blinks in the displays, then press a pad within about five seconds to lock in. From there you can step through the modes, including the sensor test that grades each thermistor P, 0, or S. Button layouts vary a little across the family, so confirm the procedure in your model's service data if the entry does not take.
I put in the new board and it still will not cool. Was the board ever the problem?
Possibly not, and this platform tells you. If you hear short start attempts followed by long silent gaps, the inverter is protecting itself from a compressor-circuit fault, which no main board can fix, and that same rhythm will continue with ten new boards installed. If the self-test passes and the compressor runs steadily but cooling never arrives, the sealed system needs professional evaluation. The board is only the answer when the commands themselves stop flowing.
Can I jump the compressor to test it like on an older refrigerator?
No, and this warning comes straight from GE's service literature. These are three-phase variable-speed compressors driven by an inverter, and connecting one directly to household power destroys it permanently. Compressor-side testing on this platform belongs to a qualified technician with the right equipment.
My model number is one letter off from the list, an AC where you show a BC. Does that matter?
Usually it marks a different production run or color trim of the same refrigerator rather than a different machine, but this platform is exactly where we refuse to guess, because GE also built look-alike boards that do not interchange. Match the number printed on your existing board, or send us your model number and a sticker photo and we will verify the right part for free.
