GE Refrigerator Not Cooling? 200D4852G016 Main Control Board Replacement and Install Guide
When your GE refrigerator stops cooling, runs but never chills, clicks every few minutes, or died after a power outage, a failed main control board is often the cause.
If your GE refrigerator has stopped cooling while the freezer still runs, is dead on a live outlet, or keeps clicking every few minutes, a failed control board is a common cause. This guide covers the 200D4852G016 board, which sits behind the access cover on the back panel and runs the compressor, both fans and the defrost cycle. The number stamped on your sticker is the one that identifies it. If you are not sure what you have, Send us a photo of your board sticker and we will confirm it for you.
Even if you end up calling a tech, these checks mean you can tell them exactly what you found, which usually shortens the visit and the bill.
Should I Order by the Number on My Board for 200D4852G016?
The sticker number decides fitment, and yours must read 200D4852G016. We do not publish a GE service number for this board.
GE runs two numbering systems on its appliance boards. The production number is stamped on the board sticker and tells you exactly what left the factory on that board. The service number is what GE and the parts channels order against, and the two do not always line up in a clean, documented way.
We order 200D4852G016 by the number stamped on the sticker. We do not publish a GE service number for this board. Match the sticker number on your board to 200D4852G016 before you order.
This is not a universal board. Boards that look identical may be programmed differently, so match your sticker first.

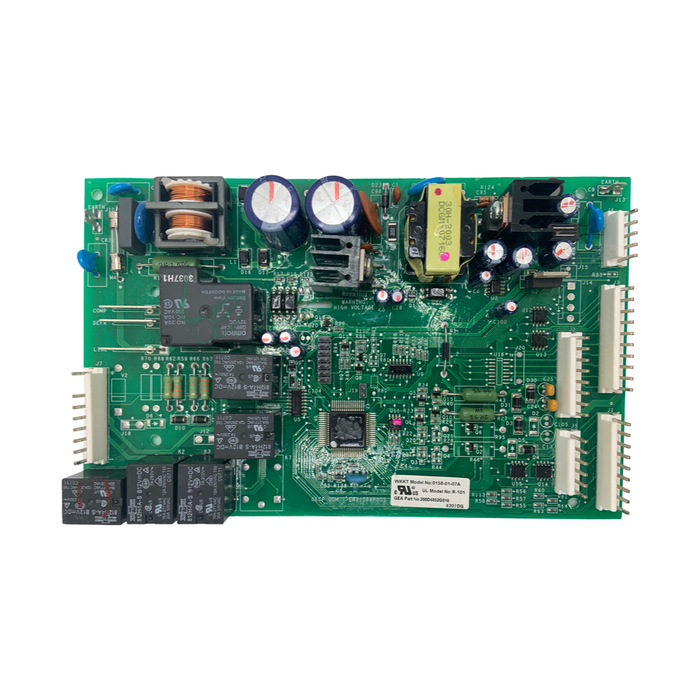

| Number on the board | 200D4852G016 |
| Board type | Main control board |
| What it controls | Compressor, evaporator and condenser fans, and the defrost cycle |
| Where it sits | Behind the access cover on the back panel |
| APU status | FailSafe Certified, 1-year warranty (registration required), same-day shipping on orders placed before 4 PM EST |
Will 200D4852G016 Fit My GE Refrigerator?
The sticker on your old board is what confirms fitment for 200D4852G016. Send us a photo of that sticker and we will confirm it free.
Check Your Board Sticker

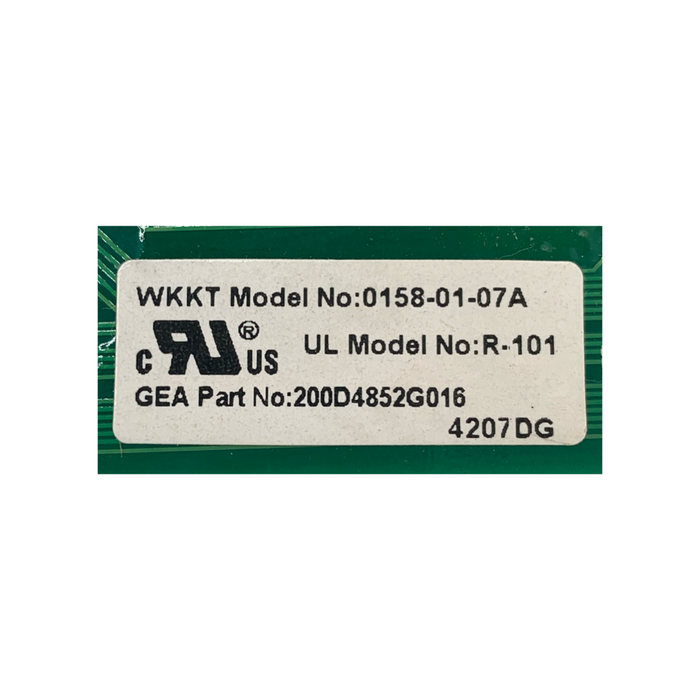

The white sticker carries the number in full. Photograph it before the board comes out and order against what it says.
Wherever it fits, the board sits in the same place: behind the access cover on the back panel.
This model list is for reference only. GE may change boards between production runs, so two refrigerators with the same model number can use different boards. Always order by the part number printed on your original board, it is the only identifier that decides.
Is It the 200D4852G016 Board, or Something Cheaper to Fix First?
200D4852G016 runs the compressor, both fans and the defrost cycle. Rule out the thermistors, defrost parts, start relay and fans first.
Unplug the refrigerator before you take any panel off. These are the complaints that bring people to this board.
- Refrigerator section will not cool while the freezer keeps working
- Refrigerator will not power on after an outage or a surge
- Compressor clicks every few minutes and then goes quiet
- Heavy frost builds up behind the rear freezer panel, defrost not keeping up
- No cooling at all even though the outlet has power
- Ice maker and water dispenser stop working as the fridge warms up
Many of the refrigerators this board fits have no digital display, so there is no code to read. Diagnose by symptom. If your model does have a display, treat any code as a place to start testing.
Let's verify it is the board by checking the common parts that contribute to these failures. They are inexpensive, easy to check, and ruling them out means you order once, with confidence.
Before you test anything, confirm the number on your board's sticker reads 200D4852G016.
A failed thermistor feeds the board bad temperature data, and the board then makes a bad call on bad information. That is not the board's fault.
Thick frost behind the rear freezer panel usually traces back to the defrost system.
Clicking every few minutes usually means the compressor is trying and failing to start.
Loose plugs and a bad ground connection can look exactly like a dead board.
Even if the fan turns out to be your culprit today, it has been working the board hard for months. Keep a spare on the shelf and a warm fridge becomes a fifteen-minute swap instead of a week of coolers.
How Do I Replace the 200D4852G016 Main Control Board?
200D4852G016 sits behind the access cover on the back of the refrigerator. Most installs take under 30 minutes.
Unplug the refrigerator and pull it out to reach the back panel, then remove the screws around the access cover. Photograph the board with every plug still connected, then discharge static by touching the metal frame. Release each plug by its latch and lift the old board off its mounting tabs. Fit the new board onto those tabs, reconnect every plug from your photo, and set the ground wire eyelet so the cover screw passes through it into the chassis as you close up.
Refrigerator Still Not Cooling After Installing the New Board?
If 200D4852G016 still is not cooling after the swap, do not assume the board is bad. Recheck the ground eyelet under the cover screw and every plug position first.
Compare the board before you install it
The replacement should match the board you removed in size, connector layout and mounting points. If it does not, stop before you install it. Email us a photo of the board that came out with all of its stickers, along with a photo of the board that arrived.
Recheck the ground eyelet
A loose ground eyelet under the cover screw can leave a good board acting like it never powered on.
Go back to the thermistors
If cooling is still off after the swap, test the thermistors again, since a bad one affects a new board the same way it affected the old one.
Confirm every plug is back where it came from
Use the photo you took before removing the old board to check that each plug landed on the same pin it started on.
Still stuck
If the refrigerator still is not cooling after all of that, contact us at info@applianceprousa.com and we will help you sort it out.
How Do I Help My New 200D4852G016 Board Last?
Surges, heat and moisture are the biggest threats to 200D4852G016. A surge protector rated for a large appliance and good airflow around the back help it survive load changes.
A few simple habits help your new board live a long life, especially after a surge or a power outage.
- Protect it from power surges. A spike from lightning, a utility fault or a generator changeover runs straight through the board, and several short outages in a row wear on it more than one long one does. Plug the refrigerator into a surge protector built for a large appliance.
- Keep the condenser coil clean. When the coil is coated in dust, the compressor and both fans have to run longer and hotter, and the board heats up right along with them. Pull the lower grille, vacuum out the coil and shroud, and confirm the condenser fan turns freely.
- Watch the door seals and the drain. A worn gasket forces the refrigerator to run nonstop. A clogged defrost drain or a leaking water valve lets moisture reach the board housing, so dry it off and check for staining before closing everything back up.
What Else Should I Replace While I Have the Back Panel Open?
While the back panel is open for 200D4852G016, it is worth checking the thermistors and defrost parts. Replacing a marginal part now saves a second teardown later.
Why Are Appliance Pro USA Boards Reliable?
Every 200D4852G016 board sold by Appliance Pro USA is tested and restored to reliable working condition before it ships. That FailSafe process is why we back it with a 1-year warranty.
FailSafe Precision Protocol
Failure Pattern Analysis
We've mapped the failure signatures specific to the 200D4852G016, identifying which components degrade and fail over time.
Targeted Component Replacement
The components this board is known to lose are replaced before they get the chance to fail.
Proactive Rebuild Standard
Known high-failure components are replaced with new parts on every board, regardless of whether they show a problem yet. Degraded parts don't ship.
Final Certification
Every board is tested and certified to our internal FailSafe Precision Protocol standard for function and lifespan before it ships.
Boards are supplied from tested stock and may show minor cosmetic wear. Every board is verified fully functional before shipping.
Where Can I Buy the 200D4852G016 Control Board?
Buy 200D4852G016 from Appliance Pro USA with a 1-year warranty when you register it. Returns are accepted within 30 days if you change your mind.
What this board costs
Replacement control boards, reconditioned, are what we focus on here. Each board goes through the FailSafe Precision Protocol before it ships: we replace the components this board is known to lose with new parts, then test and certify the board against our internal standard for function and lifespan.
Free priority shipping on every order, and orders placed before 4 PM EST ship same day, Monday through Friday, excluding holidays and scheduled closures. The board carries a 1-year warranty (registration required). Warranty coverage is determined at Appliance Pro USA's discretion. Boards that have been tampered with, or with our verification stickers or holograms removed or damaged, are not eligible for warranty coverage. Returns are accepted within 30 days in original condition; restocking and retesting fees may apply to opened or installed boards, waived on exchanges. Boards returned with missing or damaged hologram stickers may not be eligible for a full refund. Any board that has been flashed, reprogrammed, or had its firmware altered is not eligible for return or warranty coverage.
Ask us about MarkUp Pro, exclusive pricing on every order.
What Should I Know Before I Order GE Board 200D4852G016?
200D4852G016 is a GE refrigerator main control board that ships FailSafe Certified with a 1-year warranty. Order by the sticker number, since no GE service number is published for this board.
Why does searching 200D4852G016 online turn up so little?
200D4852G016 is the production number stamped on the board sticker, and parts sites are mostly indexed by GE service numbers. We order this board by the number on the sticker, and we do not publish a GE service number for it. The sticker number is what decides fitment, and it is what we use to confirm your order.
What does the number on my sticker mean, and why don't you list a GE service number for this board?
The number on your sticker, 200D4852G016, is the production number GE stamped on the board when it was built. GE also runs a separate service number system for ordering through its own parts channels. We order this board by the number on the sticker, and we do not publish a GE service number for it. Match the sticker number directly when you order.
My replacement board looks different from the one I took out, is it wrong?
It should not look different. A correct 200D4852G016 replacement matches the board you removed in size, connector layout and mounting points. If what arrived looks materially different, stop before you install anything. Get a photo of the board that came out, including all of its stickers, along with a photo of the board that arrived, over to us and we will sort it out with you.
Does the board need programming after installation?
For a straight swap, we have not run into a jumper or a setup step for 200D4852G016. Some models may require a firmware update after installation, and firmware changes should be performed by a qualified technician. Give the new board several hours before judging results. Any board that has been flashed, reprogrammed, or had its firmware altered is not eligible for return or warranty coverage.
How can I tell if my refrigerator uses this board?
The sticker on your old board is the only reliable way to confirm fitment. If it reads 200D4852G016, you have a match. We do not publish a model list for this board, so tell us your model number and we will check it against what we know before you order.
My refrigerator is completely dead, what should I check first?
Start with the outlet and the power cord before assuming 200D4852G016 has failed, since a dead refrigerator is often caused by a power problem. Check the outlet with another appliance, inspect the cord for damage, and confirm nothing tripped at the breaker. If power checks out good and the refrigerator still will not respond, the board becomes the more likely cause.
The sticker on my old board is worn away, what do I do?
If you cannot read the number, do not guess at 200D4852G016 or any other board. Photograph the board and the area around it and send it to us, and we will help identify what you have from the connector layout and mounting points before you order anything.
