200D4850G014 GE Refrigerator Main Control Board: Symptoms, Part Number Check and Install Guide
Warm fridge, a click every few minutes, or thick frost building up behind the rear freezer panel? Confirm the 200D4850G014 is the part you need, run five checks first, then make the swap.
If your GE refrigerator has stopped cooling, keeps clicking every few minutes, or is packing frost behind the rear freezer panel, a failed control board is a common cause. This guide covers the 200D4850G014, the board that runs the compressor, both fans and the defrost cycle from its spot behind the access cover on the back panel. The sticker on your board carries the number that decides fitment, and the section below walks through which one to order by.
Even if you end up calling a tech, these checks mean you can tell them exactly what you found, which usually shortens the visit and the bill.
Which Part Number Do You Order the 200D4850G014 By?
200D4850G014 is the production number stamped on your GE control board's sticker. That is the number to order this board by. Match every character on your old sticker before you buy.
Order against what your board actually shows: 200D4850G014. GE stamps this production number on the board itself. If a listing pairs a different number with 200D4850G014, treat the sticker on your board as the final word, since that is the only identifier that decides fitment.
This is not a universal board. Boards that look identical may be programmed differently, so match your sticker before you order.
Does the 200D4850G014 Fit Your GE Refrigerator?
Appliance Pro USA has not published a confirmed compatible model list for the 200D4850G014. Match the number on your sticker before you order.
Confirm Your Board
Use the button below if you want your sticker checked before you order.

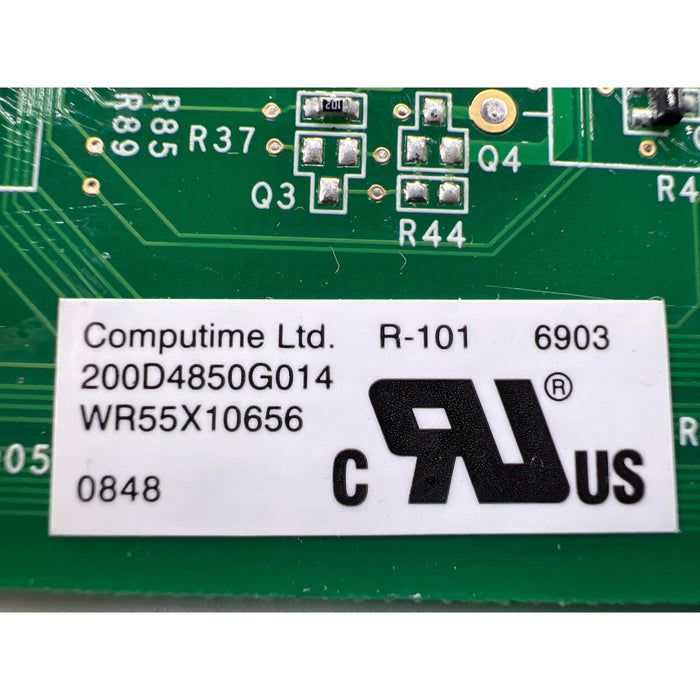

This is the sticker that matters. Photograph the full number before you pull the board and order against exactly what it says.
This board mounts in one place: the back of the refrigerator, behind a screwed-on access cover, on its mounting tabs.
No models are confirmed for this board, so the sticker on your old board is what decides.
Treat this section as reference rather than a fitment guarantee. Appliances vary by production run, so two refrigerators can share a model number and still take different boards. Always order by the number printed on your original board, it is the only identifier that decides.
Is It the 200D4850G014 or Something Cheaper When Your GE Fridge Won't Cool?
The 200D4850G014 runs the compressor, both fans and the defrost cycle together. A single dead function usually points at one smaller part instead. Multiple functions failing at once points at the board.
Unplug the refrigerator before you take any panel off. Let's verify it is the board by checking the common parts. These are the symptoms that typically show up before this board turns out to be the cause.
- GE refrigerator not cooling while the freezer still works
- No cooling at all with the outlet confirmed live
- Thick frost building up behind the rear freezer panel
- A click every few minutes, then quiet again
- Dead refrigerator right after a power outage or surge
- Ice maker and water dispenser stopping as the fridge warms
We have not found a published fault-code set for this board family, so diagnose by symptom. Work through the checks below in order, cheapest first.
The sticker on the board carries the production number, and that is what decides which board you need. Read it in place before anything comes apart.
A board that looks dead sometimes just has a dead outlet feeding it. This costs nothing and takes a minute, so check it before anything else.
This board runs the compressor, both fans and the defrost cycle at the same time, so a real board failure usually takes more than one of them down together. If only one function is out and everything else on the fridge still runs fine, in most cases that is not the board's fault.
Cooling, both fans and defrost all sit on this board, so when it goes, more than one of them tends to go with it.
A dead refrigerator right after a power outage or a surge is one of the stronger signs this board took the hit, since a surge reaches the board through the same cord that feeds everything else.
None of these checks need special tools. If nothing on this list explains what your fridge is doing, you need a replacement main control board. Keep a spare on the shelf. That is a technician's van stock, ordered ahead for the next call. You only need to order this one.
How Do You Replace a GE Refrigerator Main Control Board (200D4850G014)?
The 200D4850G014 sits behind the access cover on the back of a GE refrigerator. Plan on under 30 minutes at the back of the fridge with ordinary hand tools.
On these boards it goes in as a straight swap. Unplug the refrigerator and pull it out far enough to stand behind it. Take off the screws around the access cover and set the cover aside. Photograph the board with every plug still connected before you touch anything, then touch bare metal on the frame to clear any static. Release each plug by its latch rather than pulling on the wires, then lift the board off its mounting tabs. Set the new board in, reconnect every plug from your photo, and seat the ground wire eyelet so the cover screw passes through it into the chassis before you close up.
Why Is Your Fridge Still Not Cooling After the Board Swap?
A new 200D4850G014 that changes nothing usually means something else is still wrong. Check the ground eyelet and every plug before you judge the board. Give it several hours before you decide.
Check the new board against your photo
Size, connector layout and mounting points should line up with the board you took out. A board that looks materially different means the wrong part arrived: stop before you finish the install and email us photos of both boards, with all stickers visible, before you go further.
Reseat the ground wire eyelet
The ground wire eyelet has to sit so the cover screw passes through it into the chassis. If that connection is not remade, the board may behave as though it has no power.
Put every plug back where your photo shows
Plugs that look alike are easy to swap by mistake, and one seated a position off can leave the fridge acting as though the swap changed nothing.
Confirm the outlet is still delivering power
It sounds basic, but a loose plug at the wall or a tripped outlet produces the exact same symptom as a bad board.
Give it a few hours before you judge it
Leave the refrigerator running at a normal setting for several hours before you decide anything. Our team is reachable at info@applianceprousa.com if it is still not right after that.
How Do You Protect a New GE Control Board From Power Surges?
A power outage or surge is what takes these boards out. Surge protection at the wall protects your new 200D4850G014.
One step at the wall will help your new board live a long life.
- Put the refrigerator on surge protection. A power outage or surge is what takes these boards out, and surge protection at the wall outlet is what stands between the outlet and your new 200D4850G014.
What Should You Check While the 200D4850G014 Access Cover Is Off?
Two items are worth a look while the 200D4850G014 access cover is off. The ground wire eyelet and the board's mounting tabs take only a moment to check.
Why Are Appliance Pro USA Boards So Reliable?
Every 200D4850G014 from Appliance Pro USA is restored to reliable working condition through the FailSafe Precision Protocol. Appliance Pro USA replaces the components this board is known to lose, then tests every board before it ships.
FailSafe Precision Protocol
Failure Pattern Analysis
We've mapped the failure signatures specific to the 200D4850G014, identifying which components degrade and fail over time.
Targeted Component Replacement
The components this board is known to lose are replaced before they get the chance to fail.
Proactive Rebuild Standard
Known high-failure components are replaced with new parts on every board, regardless of whether they show a problem yet. Degraded parts don't ship.
Final Certification
Every board is tested and certified to our internal FailSafe Precision Protocol standard for function and lifespan before it ships.
Boards are supplied from tested stock and may show minor cosmetic wear. Every board is verified fully functional before shipping.
Why Buy the 200D4850G014 from Appliance Pro USA?
The 200D4850G014 ships from Appliance Pro USA with a 1-year warranty (registration required) and a 30-day return window.
What this board costs
We specialize in reconditioned control boards, and every one is restored to reliable working condition through the FailSafe Precision Protocol before it goes out. Every board is tested and certified to our internal FailSafe Precision Protocol standard for function and lifespan before it ships. Boards are supplied from tested stock and may show minor cosmetic wear.
Free shipping on every order, and orders placed before 4 PM EST ship the same day, Monday through Friday, excluding holidays. The board carries a 1-year warranty (registration required). Warranty coverage is determined at Appliance Pro USA's discretion. Boards that have been tampered with, or with verification stickers or holograms removed or damaged, are not eligible for warranty coverage. Returns are accepted within 30 days in original condition; restocking and retesting fees may apply to opened or installed boards, waived on exchanges. Boards returned with missing or damaged hologram stickers may not be eligible for a full refund. Any board that has been flashed, reprogrammed, or had its firmware altered is not eligible for return or warranty coverage.
Ask us about MarkUp Pro, exclusive pricing on every order.
What Else Do People Ask About the 200D4850G014?
Order the 200D4850G014 by the production number on your board's sticker. A replacement that looks materially different means the wrong part arrived.
Why does this listing show 200D4850G014 and not the number I found on a parts site?
GE stamps a production number on the board itself, and some parts sites pair that number with a different one. Order against what your sticker actually says: 200D4850G014. If you found a different number somewhere else, treat the sticker on your board as the final word.
My replacement board looks different from the one I pulled out. Is that a problem?
It should not look different. A genuine 200D4850G014 matches the size, connector layout and mounting points of the board it replaces. If what arrived is meaningfully different, stop before you install it and email us a photo of the old board with its stickers along with a photo of the new one, and we will sort it out.
Does the 200D4850G014 fit my specific GE refrigerator model?
Appliance Pro USA has not published a confirmed compatible-model list for this board. Match the number on your sticker, since that is the only thing that decides fitment for your refrigerator.
My GE fridge is not cooling but the freezer still works. Is that the board?
That pattern often points at a single smaller part rather than the whole board, since a real board failure tends to take more than one function down at once. Rule out the basics first: confirm the outlet is live and note whether anything else on the fridge is also acting up.
Does the 200D4850G014 need any setup after I install it?
As far as we have seen, this board goes in without any extra setup step. Reconnect every plug the way your photo shows it, close everything up, and give the fridge a few hours at a normal setting before you judge the repair.
My refrigerator went completely dead after a power outage. Does that mean it is the board?
That is one of the stronger signs, since a surge or outage reaches the 200D4850G014 through the same cord that feeds everything else in the refrigerator. Confirm the outlet is live and listen for any click or fan attempt at all. Nothing at all on a confirmed live outlet is the strongest sign yet that the board is the cause.
What if I open the board and it turns out not to be the problem?
Our standard return policy applies as long as the board stays in original condition. Once a board has been installed, or its verification stickers removed, a restocking and retesting fee may apply, so it helps to rule out the cheaper parts before you open anything.
Which Help Center Articles Support This Repair?
These Appliance Pro USA Help Center articles cover part number lookup and what a main control board does. They also cover why boards fail and what to check when a new board changes nothing.
