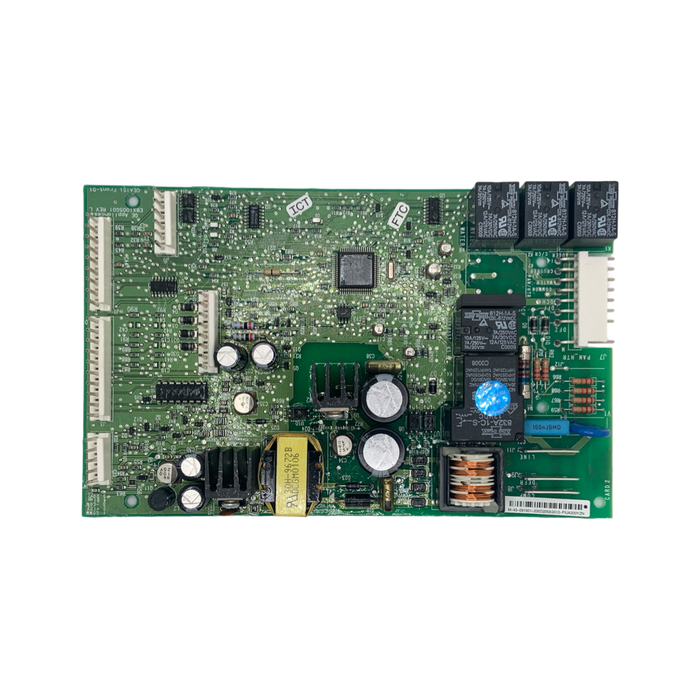

200D2259G013 GE Refrigerator Main Control Board: Symptoms, Fitment Check and Swap Guide
GE fridge running warm and the compressor never kicks in? Both of those are this board's job, so match your sticker before you order.
Your GE refrigerator has stopped cooling the way it should, and the sticker on the main control board reads 200D2259G013. That production number belongs to the board that reads every thermistor and door switch and commands the compressor, both fans, the defrost heater and the damper that sends cold air to the fresh food side. When several of those jobs stop working at once, this board is the first thing to suspect.
200D2259G013 is the number to order by. It is stamped directly on the board's sticker, and matching it exactly is the fitment check we can offer on this part today, since no published parts catalog carries a model list built around this production number yet. Send us a photo of your sticker if a digit is worn or hard to read and we will confirm it before you order.
Even if you end up calling a tech, these checks mean you can tell them exactly what you found, which usually shortens the visit and the bill.
Which Number Do You Order By for the 200D2259G013?
Order by 200D2259G013, the production number stamped on your board's sticker. Matching that number exactly is how you get the identical part.

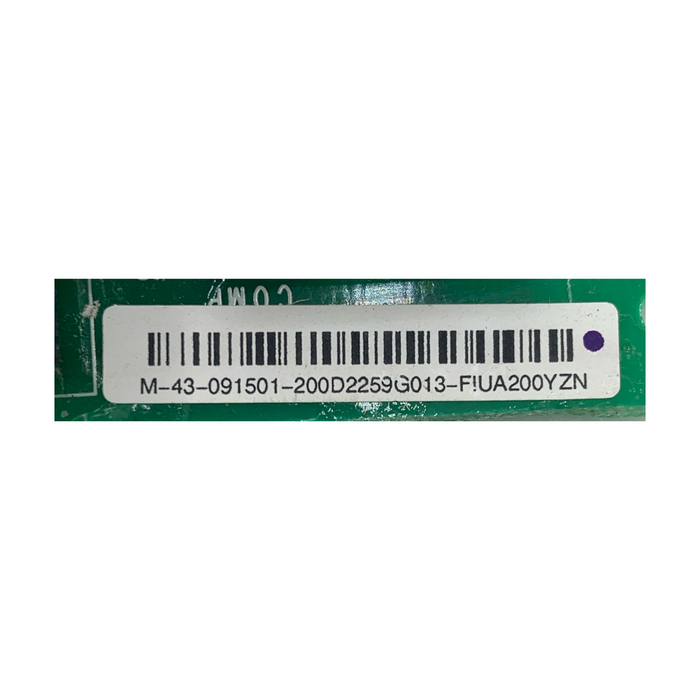

The sticker sits directly on the board itself, a white label with a barcode and a printed string of characters. On this board, the line you want reads 200D2259G013: three digits, a letter, four digits, then a G followed by two more digits marking the specific production run. That is the string to write down, photograph, and match against when you place an order.
The sticker is the authority here, not the listing you searched to land on this page and not what you remember paying for the fridge. GE prints the production number at the factory, and it is the one identifier guaranteed to describe the actual part in your hands. A retailer's title or a marketplace description can be typed wrong. Your sticker cannot.
If the sticker is scratched, faded or partly gone, do not guess at the missing suffix from what is left legible. Photograph everything you can still read, including the barcode itself, since the barcode can sometimes be decoded even when the printed characters underneath it are not.
This is not a universal control board. It is a direct replacement for the part number printed on your original board. Boards that look identical can be programmed differently, so always match the number on the sticker.
What Refrigerator Models Does the 200D2259G013 Fit?
There is no published model fitment list for 200D2259G013 yet. The sticker on your existing board is the fitment check. If it reads 200D2259G013, you have the right part to order.
No published parts catalog lists a refrigerator model against this production number. The number that matters is already on your sticker. Read it, match it, order it.
Order By Your Sticker Number
The white sticker carries 200D2259G013 in full. Photograph that label while the board is still mounted, then order against the exact characters it shows.
The board itself sits behind a removable access cover on the outside of the refrigerator, held by screws that back out with a 1/4 inch nut driver. Behind the cover it rides on mounting studs with small locking tabs, the same style of tab that holds each wire connector in place. Go by the access cover your refrigerator actually has rather than assuming a spot.
Order by the characters on your sticker. No published fitment list ties a refrigerator model to 200D2259G013, so the label on your old board is the check that decides.
GE Refrigerator Not Cooling: Is It the 200D2259G013 or Something Cheaper?
A failing 200D2259G013 rarely takes out one function alone. Rule out power, both fans, the thermistors and damper, the door switches and the compressor start relay first. If they all check out, you need a replacement main control board.
No published fault-code set was found for this board family, so the checks below run on symptoms.
Unplug the refrigerator before you open any panel. This board reads the fresh food, freezer and evaporator thermistors along with both door switches, and it drives the evaporator fan, the condenser fan, the defrost heater circuit, the fresh food damper, the water valve, and on some models the icemaker and its heaters. When a board carrying that much load fails, the complaint is rarely narrow. On this style of board a failure shows up as a refrigerator that will not cool, a compressor that never runs, and on dispenser models water that stops as well, often with close to every function affected at once. Before you spend on a new board, work through what is cheaper first. Let's verify it is the board by checking the common parts that contribute to these failures.
- 1. Power and the outlet. Confirm the refrigerator is actually receiving power and that the outlet itself is live before you suspect anything inside the refrigerator. It costs nothing to check and it clears the most common false alarm first.
- 2. Condenser coils and the condenser fan. Coils packed with dust make the compressor work harder and cool worse, and a condenser fan that will not spin while the compressor runs mimics a dead board perfectly. The fan is one of the board's outputs, so a seized motor looks like a board failure even though the board is doing its job correctly.
- 3. Evaporator fan. Listen at the freezer compartment. Silence there, with the compressor otherwise running, points at the evaporator fan motor itself, another board output, and not at the board driving it.
- 4. Thermistors and the damper. The fresh food, freezer and evaporator thermistors are the board's temperature inputs, and a sensor reporting a bad value makes a perfectly healthy board act on wrong information, and that is not the board's fault. The fresh food damper is a board output, and it is the usual explanation when the freezer holds cold but the fresh food side stays warm.
- 5. Door switches and the defrost heater circuit. The door switches are inputs, and a switch stuck open or closed changes how the fans and interior lighting behave. The defrost heater circuit is an output, and a failure there lets frost build up and temperatures drift, the kind of complaint that gets blamed on the board when the heater circuit is the actual cause.
One more worth a look before you commit to a board: the compressor start relay and its overload. A weak relay makes the compressor attempt to start and quit, which sounds exactly like a board that lost its compressor output, and it is a cheap, fast thing to clear first.
If everything above checks out clean and the refrigerator is still warm, you need a replacement main control board. Keep a spare on the shelf once one is confirmed: it turns a future failure into a short swap instead of a week of coolers and worry about spoiled food.
How Do You Replace a GE Refrigerator Main Control Board (200D2259G013)?
Unplug the refrigerator first, then reach the 200D2259G013 through its external access cover. You need a 1/4 inch nut driver, needle-nose pliers and a camera. Both the wire connectors and the board's mounting studs release with small locking tabs.
Unplug the refrigerator before you remove a single screw. Take the access cover off with a 1/4 inch nut driver, and before you touch a single wire, photograph every connector exactly as it sits, plug by plug. Each connector locks in place with its own small tab, so free the tab first and pull the plug straight off by hand rather than tugging the wire. The board itself rides on mounting studs with locking tabs of their own, squeezed gently with needle-nose pliers while you ease the board out from one corner along one side. Fit the new board onto the same studs, then work from your photos to return every connector to the exact position it came from. Refit the access cover, plug the refrigerator back in, and give it several hours at a normal setting before you judge the repair.
Why Is Your Fridge Still Not Cooling After the Board Swap?
A new 200D2259G013 that changes nothing means something else is still wrong. Confirm the board you installed is the right one, then work back through the connectors, the thermistors and the damper.
- Confirm the sticker on the new board. Before you decide anything else is wrong, read the new board's sticker end to end and make sure it actually carries 200D2259G013. A mismatched board explains every symptom that follows.
- Compare it against the one you pulled. Size, connector layout and mounting points should match the board that came out. A board that looks different in any of those ways is telling you the wrong part is in your hands. Stop before you run the refrigerator on it, and email us a photo of the old board with all its stickers still on it alongside a photo of the new one so we can look at both together.
- Reseat every connector. Each plug locks with its own small tab, and a connector that looks seated but has not clicked past its tab reads as an open circuit to the board. Go back through your install photos and check every plug against where it came from.
- Go back to the thermistors and the damper. A thermistor stuck on a bad reading, or a damper that will not move, hands the new board the same bad information the old one had. A good board still looks broken when what feeds it is bad.
- Give it real time before you judge it. A refrigerator that sat warm for hours needs several hours at a normal setting to prove itself either way. If it still is not right after all of that and the checks above came back clean, stop there and contact our team or a qualified technician before you change another part.
How Do You Help Your New Control Board Last?
Surges, heat and moisture are what shorten a refrigerator control board's life. Three checks while the cover is already off protect the new 200D2259G013 for years.
While the cover is already off, three quick checks help your new board live a long life.
- Put the refrigerator on its own surge protection. A lightning strike, a utility fault or a generator changeover sends a spike straight into the board. A surge protector rated for a large appliance is inexpensive insurance for a part that is not.
- Keep the condenser coil clean. A coil clogged with dust and pet hair makes the compressor and both fans run longer and hotter than they should, and the board sits right in that heat. Vacuum the condenser coil and the fan shroud a couple of times a year, and confirm the condenser fan still spins freely when you are done.
- Watch the door seals and the defrost drain. A gasket that no longer seals keeps the compressor and fans cycling nonstop, and a blocked defrost drain pushes moisture back into the refrigerator where it does not belong. Wipe any standing moisture dry and look for staining while you still have the panel off.
Which Parts Are Worth Replacing While the Fridge Is Open?
Several parts the 200D2259G013 reads and drives wear out on the same timeline it does. Checking them while the refrigerator is already apart saves a second teardown later.
- Evaporator and condenser fans. Both are outputs this board switches directly, and a fan that already runs rough is only a matter of time.
- Fresh food, freezer and evaporator thermistors. These are the board's temperature inputs, and an aging sensor sends the new board slightly wrong numbers long before it fails outright. They are cheap parts.
- Fresh food damper. The board commands this damper directly, and a sticky or slow damper is a common reason a fridge holds a cold freezer over a warm fresh food side even with a good board installed.
- Door switches. Both door switches are inputs the board reads to manage the fans and interior lighting. A switch that sticks changes how the board behaves long before it shows up as an obvious complaint.
Why Are Appliance Pro USA Boards So Reliable?
Every 200D2259G013 from Appliance Pro USA is restored to reliable working condition through the FailSafe Precision Protocol. Appliance Pro USA replaces the components this board is known to lose, then tests every board before it ships.
FailSafe Precision Protocol
Failure Pattern Analysis
We've mapped the failure signatures specific to the 200D2259G013, identifying which components degrade and fail over time.
Targeted Component Replacement
The components this board is known to lose are replaced before they get the chance to fail.
Proactive Rebuild Standard
Known high-failure components are replaced with new parts on every board, regardless of whether they show a problem yet. Degraded parts don't ship.
Final Certification
Every board is tested and certified to our internal FailSafe Precision Protocol standard for function and lifespan before it ships.
Boards are supplied from tested stock and may show minor cosmetic wear. Every board is verified fully functional before shipping.
Why Buy the 200D2259G013 from Appliance Pro USA?
Every 200D2259G013 we ship is reconditioned and tested on our bench. It ships with a 1-year warranty, and registration is required. Full pricing is shown in the box below.
The price for the 200D2259G013 appears in the module below. Every board is restored to reliable working condition through the FailSafe Precision Protocol before it ships.
Free priority shipping on every order, and orders placed before 4 PM EST ship same day, Monday through Friday, excluding holidays and scheduled closures. The board carries a 1-year warranty (registration required). Warranty coverage is determined at Appliance Pro USA's discretion. Boards that have been tampered with, or with our verification stickers or holograms removed or damaged, are not eligible for warranty coverage. Returns are accepted within 30 days in original condition; restocking and retesting fees may apply to opened or installed boards, waived on exchanges. Boards returned with missing or damaged hologram stickers may not be eligible for a full refund. Any board that has been flashed, reprogrammed, or had its firmware altered is not eligible for return or warranty coverage.
Ask us about MarkUp Pro, exclusive pricing on every order.
What Else Do People Ask About the 200D2259G013?
Order the 200D2259G013 by the number on your board's sticker, not by a model number. If a replacement board does not match the one you removed, stop and have it checked before you install it.
Which number do I order by for 200D2259G013?
Order by 200D2259G013, the production number stamped on your board's sticker. Matching that number exactly is the fitment check that matters for this part, since it is what actually identifies the board in your hands. If a digit on your sticker is worn or hard to read, a clear photo lets us confirm it before you order.
Are there compatible refrigerator models listed for 200D2259G013?
We do not have a published model list for this specific production number yet. Rather than guess at fitment from a model number, use the sticker on your existing board as the check: if it reads 200D2259G013, you have the right part to order.
Is a warm refrigerator with a live outlet enough to call it the board?
It is a reasonable starting point, but rule out the cheaper parts this board depends on first. Confirm both fans spin freely, the thermistors are in range, and the compressor start relay is not just clicking and giving up before you commit to a board. If all of that checks out clean and the refrigerator is still warm, you need a replacement main control board.
My replacement board does not look like the one I took out. Is that a problem?
Yes, treat it as one until it is checked. A correct replacement matches the board it replaces in footprint, connector layout and mounting points, so a board that looks different in any of those ways is a sign the wrong part shipped. It is not a normal manufacturing quirk. Hold off on installing it, and email us a photo of the board you removed with its stickers intact along with a photo of the one that arrived so we can compare them before you go further.
Where is the mini-manual for my refrigerator?
GE ships a per-model mini-manual inside the refrigerator, and where it hides varies by platform, so there is no single spot that covers every model. Check behind an access panel first, then behind the control panel if it is not there. If you cannot turn one up, work from the model and serial on the rating plate instead, since every fitment record is keyed to those two numbers.
Do I need to unplug the refrigerator before working on this board?
Yes, always. Unplug the refrigerator before you remove any panel or touch a connector, both for your safety and to protect the board itself from a stray short while it is exposed. Treat this as a required first step every time, not an optional precaution.
What does the warranty on this board cover?
Every 200D2259G013 we ship carries a 1-year warranty, with registration required to activate it. Coverage applies to the board itself when installed correctly, and full details are confirmed at checkout and on your registration card.
What Else Should You Read Before Replacing a GE Refrigerator Control Board?
These articles cover reading a control board part number and why refrigerator boards fail. They also cover what to check when a new 200D2259G013 changes nothing.
