197D8523G101 GE Refrigerator Main Control Board: Symptoms, Five Checks and the Swap
Refrigerator warm on one side, clicking instead of starting, or frost building behind the freezer panel: this is the board number to order by.
If the freezer still works but the fresh food side stays warm, or the compressor clicks every few minutes and never catches, the main control board is a real suspect, but only once the cheaper parts check out clean. 197D8523G101 is the number printed on the white sticker on your board, and the section below covers ordering by that exact number. If you would like it confirmed before you buy, reach our team here.
Work through these checks in order and you will know, before you spend a dollar, whether the board is really the fix. Even if a tech ends up doing the swap, handing over exactly what you found usually shortens the visit and the bill.
Is 197D8523G101 the Right Number for Your GE Control Board?
197D8523G101 is the production number printed on the white sticker of this GE refrigerator main control board. That sticker number is what decides fitment, so order by it and match every character.
197D8523G101 is the production number GE stamps on the white sticker of this refrigerator main control board, and it is the number that decides fitment on this page. The sticker number is the whole identity of this board. Read it, match it character for character, and order by that.
This is not a universal board. It is built to replace the exact production number printed on your original board, so let the sticker make the call. Boards that look identical may be programmed differently, so match your sticker first.
| Number on the board | 197D8523G101, the production number GE prints on the white sticker |
| Board type | Main control board assembly. A board of this type runs the compressor, the evaporator and condenser fans, and the defrost cycle |
| Board location | Back of the refrigerator, behind the rear access panel |
| Typical install time | Under 30 minutes with basic hand tools |
| Availability | In stock at Appliance Pro USA |
| APU status | FailSafe Certified, 1-year warranty (registration required), same-day shipping on orders placed before 4 PM EST |
Does the 197D8523G101 Fit Your GE Refrigerator Model?
The white sticker on your old board decides fitment for the 197D8523G101, not the refrigerator model number. GE can change boards between production runs, so two refrigerators with the same model can take different boards. Match the sticker character by character before you order.
Order By Your Sticker Number

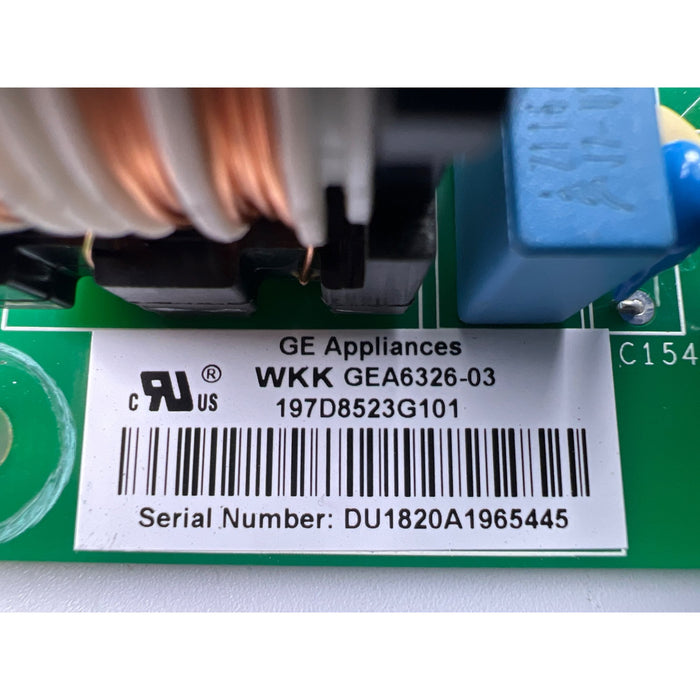

The white sticker on the board carries 197D8523G101 in full. Photograph it before the board comes out and order against what it says.
This board mounts behind the access cover on the back panel.
This model list is for reference only. GE may change boards between production runs, so two refrigerators with the same model number can use different boards. Always order by the part number printed on your original board, it is the only identifier that decides.
GE Fridge Not Cooling or Clicking: Could It Be the 197D8523G101?
A GE refrigerator main control board like the 197D8523G101 runs the compressor, the fans and the defrost cycle. Warm fresh food with a working freezer, clicking that never starts, and frost behind the panel are typical signs. Clear the thermistors, defrost parts, start relay and fans before you order this board.
Unplug the refrigerator before you take any panel off. These are the complaints that bring people to this board.
- GE refrigerator not cooling at all
- Freezer works fine but the fresh food side stays warm
- Thick frost building behind the rear freezer panel because defrost has stopped
- Refrigerator clicking every few minutes, then falling quiet
- Dead refrigerator after a power outage or a surge
- Ice maker and water dispenser stop as the fridge warms up
If your refrigerator has no display, there is no code to read, so diagnose by symptom. If your model does have a display, treat any code as a place to start testing.
Let's verify it is the board by checking the common parts that contribute to these failures. They are inexpensive, easy to check, and ruling them out means you order once, with confidence.
The white sticker on the board carries 197D8523G101, and that number is what decides which board you need. Read it in place, before any packaging comes off.
The thermistors tell the board how cold it is inside the fridge. When one shorts or opens, the board acts on bad information, and that is not the board's fault.
The board schedules defrost, but it does not do the heating itself. That cycle needs a heater passing current, a fuse that has not blown and a sensor still reporting in.
A weak start relay is easy to mistake for a dead board. It makes the compressor try and give up, which can look exactly like a board that has lost the compressor circuit.
A dragging evaporator fan leaves a cold freezer sitting over a warm fresh food section. A dead condenser fan makes the compressor run long and hot without much cooling to show for it.
Even if the fan turns out to be your culprit today, it has been working the board hard for months. Keep a spare on the shelf and a warm fridge becomes a same-day fix instead of a week of coolers.
How Hard Is It to Replace a GE Refrigerator Control Board Like the 197D8523G101?
The 197D8523G101 sits behind the access cover on the back of a GE refrigerator. This install finishes in under 30 minutes with basic hand tools.
Unplug the refrigerator before you touch a panel, then walk the refrigerator out far enough to work behind it comfortably. Photograph every plug on the old board before you disturb anything, then touch the metal frame to discharge any static built up in your body. Release each connector by its latch, lift the old board free, and set the new one in its place. Reconnect every plug from your photo, then remake the ground under the cover screw so it passes through the eyelet into the chassis before you close the panel back up.
New 197D8523G101 Installed and Still No Cooling: What Now?
A new 197D8523G101 that changes nothing points to a fault still hiding elsewhere. Check the thermistors, the ground eyelet and every plug before you judge the new board. If it does not match the board you removed, stop and email us both photos first.
How Do You Keep a New GE Control Board From Failing Again?
Surges, heat and moisture are the main threats to a GE refrigerator main control board. Checking the coil, the door seals and the drain protects a new 197D8523G101 too.
While you are back there, three quick checks help your new board live a long life.
- Put the refrigerator on surge protection. A utility fault, a lightning strike or a generator changeover sends a spike straight through the board, and several short outages can be harder on it than one long one. A surge protector rated for a large appliance is inexpensive insurance.
- Clean the condenser coil. A coil packed with dust makes the compressor and both fans run longer and hotter, and the board runs hot right along with them. Pull the lower grille, vacuum the coil and shroud, and confirm the condenser fan turns freely.
- Check the door seals and the drain. A tired gasket keeps the compressor running nonstop. A blocked defrost drain or a weeping water valve puts moisture into the board housing, so wipe it dry and look for staining before you close everything up.
What Else Is Worth Replacing While the Back Panel Is Off?
Several GE refrigerator parts sit behind the same panel as the 197D8523G101. Replacing a tired one now saves opening the back a second time.
What Makes an Appliance Pro USA Control Board Different?
Every 197D8523G101 from Appliance Pro USA goes through the FailSafe Precision Protocol before it ships. Appliance Pro USA replaces the parts this board is known to lose, then tests each board for function and lifespan.
FailSafe Precision Protocol
Failure Pattern Analysis
We've mapped the failure signatures specific to the 197D8523G101, identifying which components degrade and fail over time.
Targeted Component Replacement
The components this board is known to lose are replaced before they get the chance to fail.
Proactive Rebuild Standard
Known high-failure components are replaced with new parts on every board, regardless of whether they show a problem yet. Degraded parts don't ship.
Final Certification
Every board is tested and certified to our internal FailSafe Precision Protocol standard for function and lifespan before it ships.
Boards are supplied from tested stock and may show minor cosmetic wear. Every board is verified fully functional before shipping.
Where Should You Buy the 197D8523G101 Control Board?
Appliance Pro USA sells the 197D8523G101 with free priority shipping, a 1-year warranty with registration and 30-day returns. Orders placed before 4 PM EST ship the same day.
The price for this board appears in the module below on this page. Every 197D8523G101 we sell is restored to reliable working condition through the FailSafe Precision Protocol before it ships.
Every order includes free priority shipping, and orders placed before 4 PM EST ship same day, Monday through Friday, excluding holidays and scheduled closures. The board carries a 1-year warranty with registration required. Returns are accepted within 30 days in original condition; restocking and retesting fees may apply to boards that have been opened or installed.
Warranty coverage is determined at Appliance Pro USA's discretion. Boards that have been tampered with, or with our verification stickers or holograms removed or damaged, are not eligible for warranty coverage. Boards returned with missing or damaged hologram stickers may not be eligible for a full refund.
Ask us about MarkUp Pro, exclusive pricing on every order.
What Should You Check Before You Order a 197D8523G101?
The 197D8523G101 is ordered by the production number on its white sticker, not by a refrigerator model number. Read every character before you order, since that number is what decides fitment.
Why does searching 197D8523G101 turn up so few results?
Because this is the production number stamped on the board itself, and retailers do not widely list it. Search 197D8523G101 directly and match it against the sticker on your old board before you order, since that number is what decides fit here.
Can I order by my refrigerator's model number instead?
Order by the number on the board, not by the model number on the refrigerator. GE can change boards between production runs, so two refrigerators with the same model number can take different boards. Pull the board, read the white sticker and match it character for character.
My new board looks different from the one I removed. Is that a problem?
Possibly, and it is worth checking before you install it. Your replacement should match the board you removed in size, connector layout and mounting points. Compare it against the photo you took, and if it does not line up, email us a photo of the board you removed with all of its stickers along with a photo of the one that arrived.
The sticker on my old board is hard to read. Now what?
Do not guess at a sticker you cannot fully read. A single unclear character is enough to point you at the wrong board, so treat a faded sticker as a reason to slow down and look closer, not a reason to guess.
Does the 197D8523G101 need programming after I install it?
On these boards it goes in as a straight swap. We have not run into a jumper or a setup step on a standard replacement. Any board that has been flashed, reprogrammed, or had its firmware altered is not eligible for return or warranty coverage.
My refrigerator is completely dead. Does that mean it is the board?
It is one of the stronger signs, but check two things first. Prove the outlet has power, then listen at the back for a compressor that tries and gives up, which points at the start relay instead. If power reaches the board and the thermistors and fans check out, you need a replacement main control board.
I installed the new board and nothing changed. What happened?
A new board that changes nothing points to a fault that is still there. Check the ground eyelet, every plug and the thermistors again before you judge the swap a failure.
Where Can You Learn More About Refrigerator Control Board Repair?
These Appliance Pro USA Help Center articles cover part number lookup and what a main control board does. They also explain why boards fail and what to check when a new board changes nothing.
Ownership. This product guide is the original work of Appliance Pro USA. It may not be copied, reproduced, republished, or used to create derivative works without written permission. All rights reserved.
Ready to order the 197D8523G101?Not sure this is your board? Send us a photo of the sticker at info@applianceprousa.com and we will confirm before you order.
