197D8512G101 GE Refrigerator Main Control Board: Symptoms, Diagnosis and Installation Guide
GE fridge stopped cooling, swinging warm, or completely dead? Confirm your sticker, run five checks before you buy, then do the swap.
If your GE refrigerator has stopped cooling, is swinging warm instead of holding temperature, or has gone completely dead with no lights or display, the 197D8512G101 main control board is often behind it. It is the board that runs cooling, defrost, the fans and the dispenser functions on the refrigerators that use it. 197D8512G101 is the production number printed on your board's own sticker. Order by the number your sticker reads.
Even if you end up calling a tech, these checks mean you can tell them exactly what you found before they arrive.
What Number Do I Use to Order the 197D8512G101 GE Refrigerator Control Board?

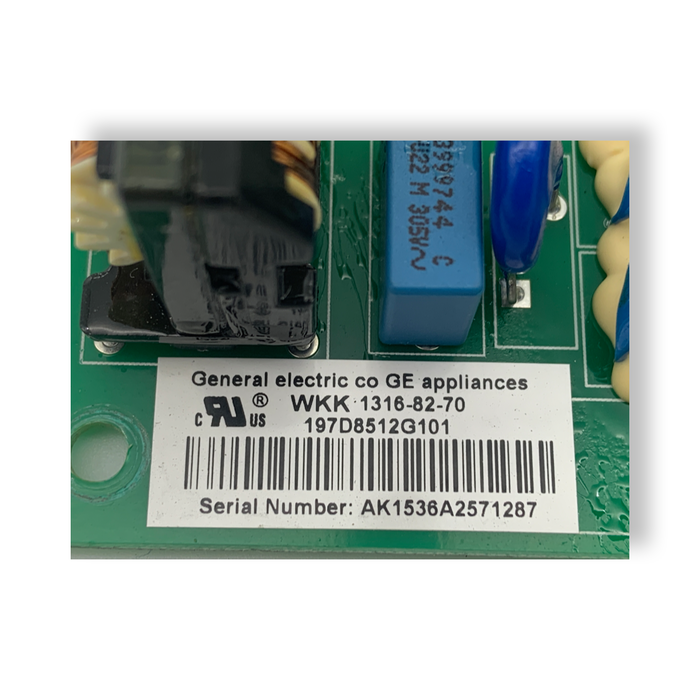

197D8512G101 is the production number printed on this GE refrigerator main control board's own sticker, and it is the number to order by. Read your sticker in full and match every character to 197D8512G101 before you buy.
GE prints a production number on the board itself, and that is the number on your sticker. Order by 197D8512G101 and match it character for character against the sticker on your own board.
This is not a universal board. It is a direct replacement for the part number printed on your original board. Boards that look similar can be built for different refrigerators, so the sticker on your own unit is what decides, not the model of refrigerator you own.
Which GE Refrigerators Take the 197D8512G101 Control Board?
There is no published model fitment list for 197D8512G101, which is the normal case for a board like this. The number on your own board's sticker is what confirms fitment, so read it and match it against 197D8512G101 before you order.
There is no published model list for 197D8512G101, and that is the normal case for a board like this. Your own board's sticker settles fitment, not a lookup by refrigerator model.
Find the sticker on your existing board and read the number in full. If it reads 197D8512G101, character for character, this is your board regardless of which refrigerator model you own.
GE Refrigerator Not Cooling or Running Warm: Is It the 197D8512G101 or Something Cheaper?
A GE refrigerator that stays warm, cycles unevenly, or will not start can point to several inexpensive parts before the board. Check the condenser fan, evaporator fan, door gasket and start relay first. If those and the defrost heater and thermostat all check out, the 197D8512G101 is the likely fault.
Unplug the refrigerator before you take any panel off. These are the complaints that bring people to this board.
- No lights and no display, the refrigerator is completely dead
- Temperature swinging widely instead of holding, cycling between the mid thirties and the high forties Fahrenheit
- Evaporator fan constantly revving up and down
- No water and no ice from the dispenser
- Interior lighting dim or dead
- Defrost heater getting no power, frost building up behind the freezer panel
Error codes on these refrigerators are read from the tech sheet packed with the refrigerator, using its built-in diagnostic mode. Run that before you condemn the board. The sheet is usually behind the toe-kick grille, on the side panel near the condenser, or inside the fresh-food control panel, so check all three. If it is missing, our team can check your model number against the fitment record before you commit to a part.
Confirm these before you order. They are inexpensive, quick to check, and ruling them out means you buy once, with confidence.
A dead or dragging condenser fan is one of the most common reasons a GE refrigerator stops cooling, and coils packed with dust make the compressor and fans work harder without anything actually being broken.
The evaporator fan moves cold air from the freezer into the fresh food section. A fan that hunts, revs up and down, or stops leaves the freezer cold and the rest of the fridge warm.
A gasket that has gone soft or torn lets warm air in continuously, so the compressor and fans run non-stop trying to keep up. It can look and feel fine to the touch and still be leaking air.
A weak start relay is easy to mistake for a dead board. It makes the compressor try and give up, which reads exactly like a board that lost the compressor.
The board schedules defrost, it does not do the heating. If the heater is not getting power, or the defrost thermostat has failed, the freezer packs with frost and the board gets blamed for a job it was never doing.
A fan that has been dragging for months has been working the board hard the whole time. Keep a spare on the shelf and a warm fridge becomes a fifteen-minute swap instead of a week of coolers.
How Do You Replace a GE Refrigerator Main Control Board (197D8512G101)?
As far as we have seen, the 197D8512G101 sits at the back of the refrigerator behind the rear panel. Most installs take under 30 minutes with basic hand tools.
Unplug the refrigerator and pull it out far enough to stand behind it. Touch the metal cabinet or wear a grounding strap before you open anything, then remove the screws holding the rear panel with a Phillips screwdriver. Photograph every wire before you disconnect it, so it goes back exactly where it came from. Disconnect the connectors, using needle-nose pliers or a slot screwdriver where one is stiff, release the locking tabs holding the board, and lift it out. Fit the new board into the same tabs, reconnect the wiring using your photo, refit the panel and its screws, restore power, and reconnect the water line if you disconnected it.
Why Is Your Fridge Still Not Cooling After You Installed the 197D8512G101?
A new 197D8512G101 that changes nothing usually means the real problem is still there. Check the board against your photo, recheck the wiring, and give it several hours at a normal setting before you judge it.
A board that does not match yours
Work from the photo you took. Header positions, plug count and mounting points should line up with the board you removed. If they do not, stop. A board that looks materially different usually means the wrong part is in hand.
Recheck the wiring against your photo
Every connector should sit back exactly where you found it. A connector one position over, or left loose, behaves exactly like a dead board.
Go back to the fan and gasket checks
A fan or gasket that was borderline before the swap is still borderline after it.
Give it a real trial before you judge it
A refrigerator that has been sitting warm needs several hours at a normal setting to pull back down. Judging it in the first few minutes reads a normal recovery as a failed repair.
Still stuck?
Give the refrigerator several hours, then reach us at info@applianceprousa.com before you return anything.
How Do You Stop a GE Refrigerator Control Board From Failing Again?
Surge protection, clean condenser coils and good door seals are the three things that help a GE refrigerator main control board last. The coils and the seal take five minutes while the fridge is pulled out.
While you are back there, three quick checks help your new board live a long life.
- Put the refrigerator on surge protection. Lightning, a utility fault or a generator changeover sends a spike straight through the board. A surge protector rated for a large appliance is cheap insurance.
- Clean the condenser coil. A coil packed with dust makes the compressor and both fans run longer and hotter, and the board runs hot with them. Pull the lower grille, vacuum the coil and shroud, and check the condenser fan spins freely.
- Check the door seal and the drain. A tired gasket keeps the refrigerator running non-stop. A blocked defrost drain or a weeping water valve puts moisture into the board housing, so wipe it dry and look for staining before you close up.
What Other GE Refrigerator Parts Should I Test While Replacing the 197D8512G101?
Several GE refrigerator parts share the same symptom picture as the 197D8512G101 and are cheap to test while the panel is already off. Test the evaporator fan, damper control assembly, start relay and thermistor first.
What Does FailSafe Certified Mean on a GE Refrigerator Control Board?
Every 197D8512G101 from Appliance Pro USA is restored to reliable working condition through the FailSafe Precision Protocol. Known high-failure components are replaced and every board is tested before it ships.
FailSafe Precision Protocol
Failure Pattern Analysis
We've mapped the failure signatures on GE refrigerator main boards of this type, identifying which components degrade and fail over time.
Targeted Component Replacement
The components this board is known to lose are replaced before they get the chance to fail.
Proactive Rebuild Standard
Known high-failure components are replaced with new parts on every board, regardless of whether they show a problem yet. Degraded parts don't ship.
Final Certification
Every board is tested and certified to our internal FailSafe Precision Protocol standard for function and lifespan before it ships.
Boards are supplied from tested stock and may show minor cosmetic wear. Every board is verified fully functional before shipping.
Why Buy the 197D8512G101 from Appliance Pro USA?
Appliance Pro USA stocks the 197D8512G101 FailSafe Certified. It carries a 1-year warranty (registration required), a 30-day return policy, and same-day shipping on orders placed before 4 PM EST.
We specialize in reconditioned replacement control boards. Every one goes through the FailSafe Precision Protocol: the components we know this board loses are replaced with new parts, then the board is tested and certified to our internal standard for function and lifespan.
Free priority shipping on every order, and orders placed before 4 PM EST ship same day, Monday through Friday, excluding holidays and scheduled closures. The board carries a 1-year warranty (registration required). Warranty coverage is determined at Appliance Pro USA's discretion. Boards that have been tampered with, or with our verification stickers or holograms removed or damaged, are not eligible for warranty coverage. Returns are accepted within 30 days in original condition; restocking and retesting fees may apply to opened or installed boards, waived on exchanges. Boards returned with missing or damaged hologram stickers may not be eligible for a full refund. Any board that has been flashed, reprogrammed, or had its firmware altered is not eligible for return or warranty coverage.
Ask us about MarkUp Pro, exclusive pricing on every order.
What Else Do People Ask About the 197D8512G101?
197D8512G101 is ordered by the number printed on the board's own sticker, and there is no published model fitment list for it. Most installs take under 30 minutes, and a replacement that does not line up with the board you removed should be checked before it goes in.
Is 197D8512G101 the number I order by?
Yes. 197D8512G101 is the number printed on this board's own sticker and the number to order by. Read your sticker in full and match every character before you buy.
Does 197D8512G101 have a compatible models list?
Not on this page. There is no published model fitment list for this production number. The number on your own board's sticker confirms fitment, not the refrigerator's model number.
My replacement board looks different from the one I took out. Did I get the wrong part?
Possibly, and it is worth checking before you install it. Your replacement should match the board you removed in size, connector layout and mounting points. If it does not, contact us with a photo of the board you removed, stickers included, along with a photo of the one that arrived, and we will confirm the right part before anything goes in.
My GE refrigerator is completely dead with a live outlet. Is that the control board?
Not always, and it is worth ruling out two things first. A dead refrigerator points equally at the board and at a compressor that cannot start at all. Check the start relay for a scorch mark and confirm the condenser and evaporator fans spin freely before you look at the board.
Does the 197D8512G101 need programming after I install it?
On these boards it goes in as a straight swap. We have not run into a jumper or a setup step on a standard replacement. Give the refrigerator several hours at a normal setting before you judge the repair. A board that has been flashed or reprogrammed is not eligible for return or warranty coverage.
How long does it take to replace a GE refrigerator main control board?
Most installs take under 30 minutes with basic hand tools once the board is confirmed and the fridge is unplugged and pulled out for access.
Where is the 197D8512G101 control board located in the refrigerator?
As far as we have seen, this board sits at the back of the refrigerator, behind the rear panel. Unplug the refrigerator and pull it away from the wall to reach it.
Where Can I Read More About GE Refrigerator Control Board Repair?
A GE refrigerator main control board runs cooling, defrost, the fans and the dispenser functions. It is often replaced when a cheaper part is the real fault. The articles below cover finding your part number, why boards fail, and what to check when a new board changes nothing.
