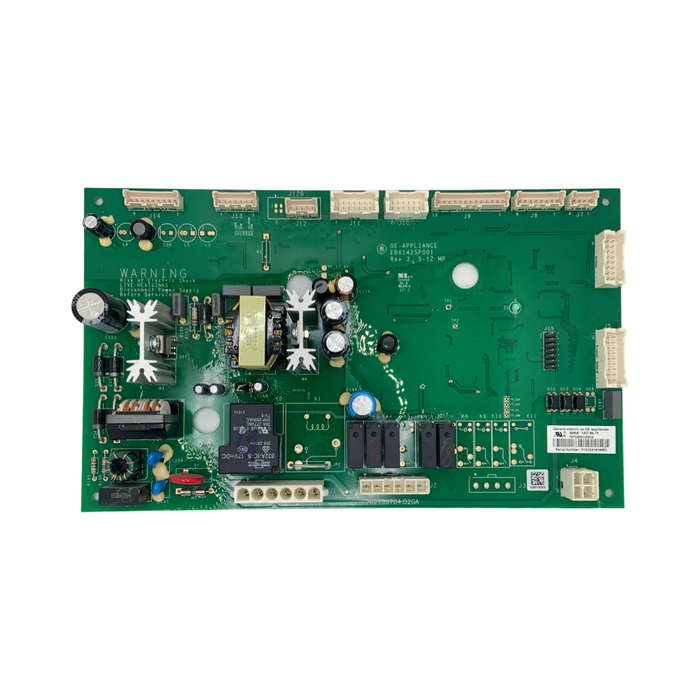

GE 197D8501G502 Main Control Board Replacement and Install Guide
If your GE refrigerator stays warm, runs its compressor nonstop, or goes dark at the control panel with no lights and no response, this board is the usual cause.
A refrigerator that stays warm no matter the setting, or goes completely dark at the control panel, usually points straight back to a single part, the main control board, identified on the sticker on the board itself by its production number, part 197D8501G502. This board controls compressor timing, defrost cycles, fan speeds and interior lighting. When it fails, the whole refrigerator can act unpredictable, running warm one hour and icy cold the next. Every board Appliance Pro USA sells has been pulled, cleaned, bench tested and restored to reliable working condition before it ships out of our shop. Every board carries FailSafe Certification and a one-year warranty once you register it.
Even if you end up calling a tech, these checks mean you can tell them exactly what you found, which usually shortens the visit and the bill.
How Do I Confirm My GE Board Is Part Number 197D8501G502?
Order 197D8501G502 by the production number printed on the sticker of your GE refrigerator's control board. Matching that number is all Appliance Pro USA needs.
Every GE main control board carries its own production number on a printed sticker attached to the board itself, and that sticker number is exactly what we match against your order before anything leaves our shop.
| What it does | Controls compressor cycling, defrost timing, fan speeds and interior lighting. |
| Location | Mounted at the back of the refrigerator behind an access cover, connected by wiring harnesses that unplug. |
| Sticker check | Match the production number on your old board's sticker before you install this one. |
| Install time | About 30 minutes, and the board itself needs no programming or extra steps. |
| Warranty and registration | Every board ships with a one-year warranty that begins once you register your purchase online after it arrives. Registration takes only a few minutes and keeps you covered against defects for the full year. A board that has had its firmware altered is not eligible for return or warranty coverage, so leave factory settings untouched. |
| Returns policy | A return on a board that does not match your sticker number may carry a restocking and retesting fee, so compare the sticker before you open the box. |
| Shipping details | Orders placed before 4 PM EST ship free that day; anything later goes out the next business day. |
| Condition | FailSafe Certified and restored to reliable working condition before it ships. Boards may show minor cosmetic wear from handling before they ship, and that does not affect performance. |
| In the box | This shipment includes the control board and installation instructions. Note that the 5-mil nitrile gloves in the box give grip and some protection, but they are not cut-proof. |
Does GE Part 197D8501G502 Fit My Refrigerator Model?
There is no published fitment list for GE part 197D8501G502. Appliance Pro USA has not found a confirmed model for this production number.

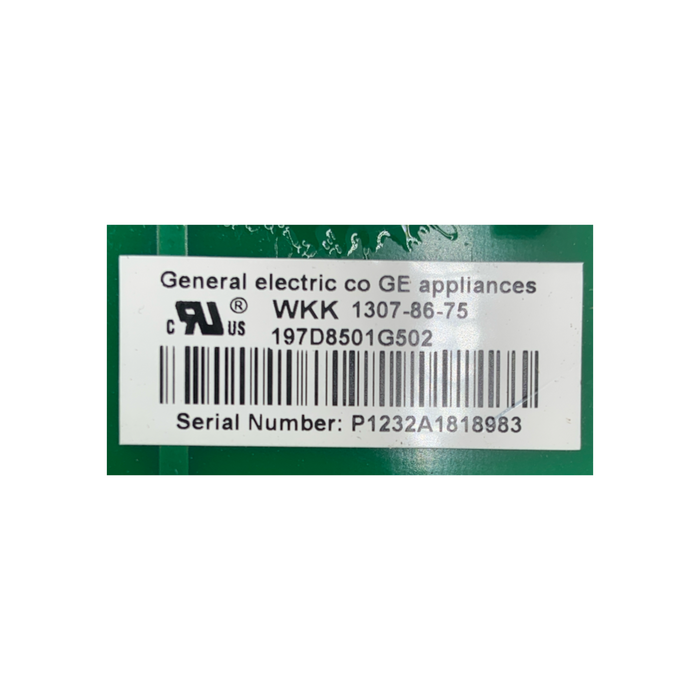

Every GE control board has its production number printed on a sticker attached to the board itself.
This style of control mounts at the back of the refrigerator, behind an access cover, and connects through wiring harnesses that unplug. No models are confirmed for this board, so the sticker on your old board is what decides.
Do I Actually Need A 197D8501G502 Control Board?
Control boards are the most misdiagnosed part in a refrigerator, so rule out the cheaper causes first. Appliance Pro USA walks you through five quick checks before you replace the 197D8501G502 board.
Let's verify it is the board by checking the common parts first.
- Refrigerator completely dead, no lights at all
- Temperature swings from warm to cold, never settling anywhere close
- Evaporator fan speeding up and slowing down on its own
- Condenser fan staying off even after replacement
- Interior LED lights dim or completely dark
- No water or ice at the dispenser, or the compressor never starts
We have not found a published fault-code set for this board family, so diagnose by symptom rather than a code. Where codes exist for a specific refrigerator, they are read from the mini-manual packed with the refrigerator.
None of these symptoms point to the board by themselves, since cheaper parts cause every one of them. That is exactly why you check everything else first before assuming the worst. Five checks below cover power, the door switches, the condenser fan, the evaporator fan and the defrost cycle, and every one of them is something you can look at yourself with no meter and no special tools. Work through them in order, cheapest first, and save the board for last.
Start here, it costs nothing and takes under a minute. Confirm the wall outlet has power and check that the house breaker for that circuit has not tripped.
Open each door and watch whether the interior light comes on and stays on the way it always has.
Pull the refrigerator out and check if the condenser coils and the condenser fan are clean and spinning freely, since a blocked or seized fan can mimic a failing board.
Open the fresh food compartment and feel for cold air actually moving out of the vents, then listen at the freezer wall for the evaporator fan speeding up and slowing down on its own instead of running steady.
Look at the back wall of the freezer for a solid sheet of frost or ice building up instead of the normal light coating that comes and goes. A heavy, unbroken sheet points to the defrost heater not getting power at all.
Once the power, the door switches, the condenser fan, the evaporator fan and the defrost cycle all check out clean, you need a replacement main control board. A fan that has been dragging for months has been working the board hard, so keep a spare on the shelf for exactly this reason.
How Do You Replace The Refrigerator Main Control Board 197D8501G502?
Replacing the GE refrigerator main control board 197D8501G502 takes about 30 minutes for one person. Power down first, photograph the harnesses, then swap the boards and plug them back in.
Before you start, compare the sticker on the old board against the new one. On these boards it goes in as a straight swap. Photograph the wiring harnesses before you unplug anything so you can match each one on reinstall. The sheet-metal edges behind the rear panel are sharp. The 5-mil nitrile gloves in the box give grip and some protection, but they are not cut-proof, so keep your hands clear of the edges. Keep the new board in its anti-static bag until you are ready to install it. If the freezer still works but the fresh food side stays warm, and you have already ruled out the cheaper causes, this straight swap is the next step. You do not need to reprogram or configure anything. Just seat it, plug the harnesses back in, and restore power.
What If The Refrigerator Still Is Not Right After The Swap?
Work through these five after-swap checks before assuming the 197D8501G502 board is defective. A board that will not power on right after the swap can just need a harness reseated.
The New Board Does Not Power On
Before you assume the board failed, unplug it and check every harness connection again. A harness pushed in at an angle can look seated but not make contact, and that is not the board's fault.
The Refrigerator Runs But Still Stays Warm
If the refrigerator stays warm after the swap, do not reach for another board yet. Recheck the condenser coils, the condenser fan, and the evaporator fan for airflow.
The Replacement Board Looks Different
If the replacement board does not match the size, connector layout, or mounting points of the board you removed, stop before installing it. Photograph the board that came out with all of its stickers and the board that arrived, then reach out to us before you go further.
Lights Work But Compressor Stays Off
If the interior lights come on but the compressor never starts, check the door switches and confirm the compressor itself still runs.
No Water Or Ice At Dispenser
If the dispenser still will not fill right after the swap, give the freezer time to reach temperature before you decide the board did not fix it.
How Do You Help Your New Control Board Last?
Good airflow around the coils and a clean fan help your 197D8501G502 keep working. Clean coils, surge protection and quick attention to warning signs help a GE control board last for years.
A few simple habits at home help your new board live a long life and keep the whole system running well.
- Keep The Condenser Coils Clean And ClearDust and pet hair on the condenser coils make the compressor and the board work harder than they need to. Vacuum the coils every few months and keep the area around the back of the refrigerator clear for airflow.
- Protect It From SurgesA cheap surge protector on the outlet is inexpensive insurance. Power spikes from storms or a shared circuit can shorten the life of any control board over time.
- Do Not Ignore Small Warning SignsIf the lights flicker, the evaporator fan starts ramping up and down instead of running steady, or the compressor cycles strangely, address it early instead of waiting for the refrigerator to go completely dead and warm.
What Else Should You Check While The Board Is Out?
While the access cover is open for the 197D8501G502 swap, a few other parts are easy to check. Each one uses the same already-open, already-powered-down access as the board swap.
Why Are Appliance Pro USA Boards So Reliable?
Every 197D8501G502 board we sell goes through the FailSafe Precision Protocol before shipping. That means it is tested and restored to reliable working condition before it reaches you.
FailSafe Precision Protocol
Failure Pattern Analysis
We start by reviewing the common failure points we see across this board family before any work begins on your board.
Targeted Component Replacement
We replace the specific components with a known history of failure on this board, using new parts at each of those points.
Proactive Rebuild Standard
Beyond the one part that failed, we address other components that commonly wear out alongside it on this board. This is the proactive part.
Final Certification
Every board is tested and certified to our internal FailSafe Precision Protocol standard for function and lifespan before it ships.
Every 197D8501G502 we ship has been restored to reliable working condition, and we stand behind it with a one-year registered warranty.
Why Buy Your Board From Appliance Pro USA?
Every 197D8501G502 from Appliance Pro USA ships FailSafe Certified with a one-year registered warranty. Orders placed before 4 PM EST ship the same business day.
Every 197D8501G502 board we sell is FailSafe Certified and backed by a one-year warranty once you register it. Orders placed before 4 PM EST ship the same business day, and shipping is free to the lower 48 states.
Registration activates your one-year warranty and is required for any coverage to apply. Warranty coverage is determined at Appliance Pro USA's discretion. Boards that have been tampered with, or with our verification stickers or holograms removed or damaged, are not eligible for warranty coverage. A board that has had its firmware altered is not eligible for return or warranty coverage of any kind. That warranty covers manufacturing and workmanship issues found after installation, separate from damage caused by a wiring mistake.
Returns are accepted within 30 days in original condition. Keep the packaging until you are sure the board works. Remember that the 5-mil nitrile gloves in the box give grip and some protection, but they are not cut-proof. Restocking and retesting fees may apply once a board has been opened or installed. Boards with missing or damaged hologram stickers are not eligible for return.
What this board costs
When five other components check out and the refrigerator is still dead or still stays warm, you need a replacement main control board, and buying a tested one from Appliance Pro USA means someone already confirmed it works.
Ask us about MarkUp Pro, exclusive pricing on every order.
What Other Questions Do Customers Ask About This Board?
These are the questions we hear most about the 197D8501G502 control board replacement. Answers come from years of GE control board bench work.
What number do I use to order this board?
Order by the production number printed on the sticker of the board you are replacing. This board's own sticker number is 197D8501G502. That sticker number is the only reliable way to match the correct board.
Will this board fit my refrigerator model?
No models are confirmed for this board, so the sticker on your old board is what decides fitment. Pull the old board and read the production number before you order a replacement. If the numbers match, this board fits your refrigerator. Whether you need a replacement main control board is a separate question, answered by ruling out the cheaper causes first.
What should I do if the replacement board does not look like my old one?
A replacement board should match the size, connector layout, and mounting points of the board you removed. If yours looks different, stop before installing it and email us a photo of the board that came out with all of its stickers, plus a photo of the board that arrived. We will confirm the right board before you go further.
How do I diagnose this without a display or error code?
We have not found a published fault-code set for this board family, so diagnose by symptom. If your refrigerator came with a mini-manual, check it for codes specific to your model, because the sequences printed there belong to that cabinet and not to the board on its own.
Is a one-year warranty really included with every board?
Yes, every board ships with a one-year warranty. Registration is required to activate coverage, and the warranty applies to manufacturing and workmanship defects found during normal use after a correct installation.
What if I install it and it turns out not to be the problem?
Confirm the board is bad before you install it. Run through the cheaper checks first: power, door switches, condenser fan, evaporator fan, and the defrost cycle, since a board swap will not fix a problem the board did not cause. Once you have ruled those out, the board is what is left to test.
Can I return the board if it does not fix the problem?
Yes, returns are accepted within 30 days in original condition. Opened or installed boards may carry a restocking and retesting fee, and boards with missing or damaged hologram stickers are not eligible for return.
