12920710 Maytag Refrigerator High Voltage Control Board, The Board Behind Flashing Displays and a Cycling Ice Door
If the display on your Maytag or Amana French door refrigerator is flashing, the ice dispenser door is opening and closing on its own, or the unit will not start, part 12920710 is worth investigating. The 12920710 is the high voltage control board used in Maytag MFI2067 and MFI2568 and Amana AFI2538 French door bottom-freezer refrigerators, and it is one of the most commonly misdiagnosed boards on this platform, because its failures show up on the dispenser and the display rather than in the cooling system. This guide covers the symptom signature, the supersession chain, the program code step that catches most installers off guard, and how to confirm compatibility before you order.
Why Is My Maytag Refrigerator Display Flashing? Common 12920710 High Voltage Board Symptoms
Commonly reported symptoms of a failing 12920710 high voltage control board include a flashing control panel display, an ice dispenser door that opens and closes repeatedly on its own, no water from the dispenser, a repetitive clicking sound, and a refrigerator that will not start. These signs are reported on Maytag MFI2067 and MFI2568 and Amana AFI2538 French door models.
If your refrigerator is showing one or more of the following, the high voltage control board is a common area to investigate. Read through the full diagnosis section below before ordering, because on this platform the dispenser interface produces overlapping symptoms.
- Control panel display flashing, dim, or unresponsive to button presses
- Ice dispenser door opening and closing repeatedly with nobody using the dispenser
- No water from the dispenser while the display still lights up
- Repetitive clicking coming from the control area at the back of the unit
- Refrigerator will not start at all with power confirmed at the outlet
- Cooling loss that appears alongside dispenser and display faults rather than on its own
FailSafe Certified, 1-year warranty (registration required), 30-day returns, ships today*
How Do I Find the Part Number on My Maytag High Voltage Board? Watch the Video

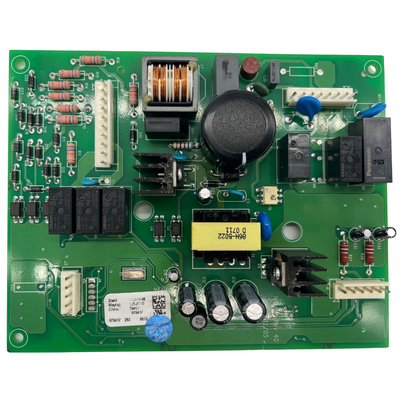

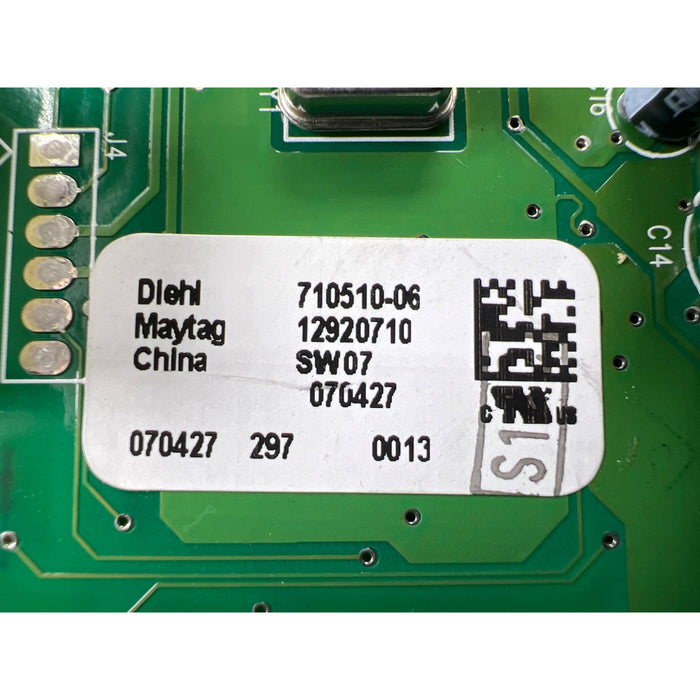

The part number on the 12920710 high voltage control board is printed on a label attached to the board itself, inside the control housing at the back of the refrigerator. Unplug the unit, open the control housing, and compare that label to 12920710 or to a listed cross-reference number before ordering anything.
This short video shows how to locate and read the part number label on an appliance control board, and how to confirm you have the right part before opening the packaging. The same method applies to the 12920710. On this platform, also write down the Code value printed on your refrigerator's serial plate before you start, because you will need it after the new board is installed.
12920710 Symptoms and What Each One Points To, Board or Something Else
The 12920710 high voltage control board has no customer-readable blink code, so it is diagnosed by symptom pattern. A flashing display combined with an ice dispenser door that cycles on its own is the pattern most commonly associated with this board. Single-function faults, such as water alone failing, more often point to a valve, a switch, or the dispenser board.
Use the table below as a starting point rather than a verdict. On this platform the high voltage board and the dispenser control board produce heavily overlapping symptoms, so the combination matters far more than any single sign.
| Symptom | What It May Indicate | Recommended Next Step | Board? |
|---|---|---|---|
| Display flashing and ice dispenser door cycling together | The board no longer holding stable control of the dispenser and display circuits | This paired pattern is the most commonly reported signature of 12920710 failure. Confirm the dispenser board and door switches are not the cause, then investigate this board. | Common |
| Display flashing with the dispenser behaving normally | Dispenser control board or interface wiring rather than the high voltage board | Check the dispenser control board and the harness running between it and the control housing before this board. | Check interface first |
| No water dispensed, ice and display normal | Water inlet valve, supply line, or a frozen fill tube | Test the inlet valve and confirm water supply pressure first. A single dispenser function failing on its own rarely traces to this board. | Usually not the board |
| Repetitive clicking from the control area | A relay on the board cycling, or the compressor start components loading the circuit | Rule out the compressor start relay and overload first, since those produce nearly identical clicking. Clicking that traces to the control housing itself points here. | Possible |
| Refrigerator completely dead with power at the outlet | No output from the high voltage board | Confirm supply voltage is reaching the control housing. If supply is present and nothing runs, board failure is a commonly reported cause. | Common |
| Unit runs but the display stays blank | Loss of the low voltage supply this board provides to the interface | Reseat the harness between the control housing and the display first. If the display stays dark with the harness confirmed seated, this board is worth investigating. | Possible |
What Does PE0 000 Indicate on a Maytag Refrigerator, and Does the 12920710 Need a Program Code?
Refrigerators using the 12920710 high voltage control board store a model specific program code, printed on the unit's serial plate after the word Code. A replacement board that has not yet been given this code commonly displays PE0 000 and will not run the refrigerator. The code must be entered per your model's instructions after installation.
This platform does not use a conventional numbered fault code table. What it has instead is a stored configuration value, and getting that step wrong is the single most commonly reported reason a perfectly good replacement board appears dead on arrival. The display indications below are the ones most frequently reported on these models.
| Display Indication | What It May Indicate | Is It This Board? |
|---|---|---|
| PE0 000 | Commonly reported on a replacement high voltage board that has not yet been given its program code. The board is powered and communicating but has no model configuration, so it will not run the refrigerator. This is a configuration state rather than a hardware fault. | Expected before programming |
| Program code shown as 0000 | A code of 0000 is not a valid configuration on these models and the unit will not operate on it. It commonly indicates the programming step was started but never completed. | Programming step |
| A beep with the code refusing to save | Commonly associated with a value the control does not recognize for that model. The control rejects the entry rather than storing it, so the code needs to be re-read and re-entered. | Re-check the code |
| Display flashing with no code state shown | Points toward a hardware fault rather than a configuration state, and is commonly reported alongside ice dispenser door cycling on a failing board. | Possible board fault |
| Nothing on the display at all | May indicate loss of the low voltage supply to the interface, a harness fault, or a board receiving no power. Check power and connections before assuming board failure. | Check power and harness |
Will the 12920710 Fix My Refrigerator? What to Rule Out Before Ordering
The 12920710 commonly resolves faults where the display flashes and the ice dispenser door cycles together, where the unit is dead with power confirmed at the control housing, or where the display stays blank with a good harness. Before ordering, rule out the dispenser control board, the door switches, and the compressor start components.
This is the single most common wrong part on this repair. When the display flashes and the dispenser misbehaves, the interface is what the owner can see, so the interface board gets replaced first and the fault comes straight back. On this platform those symptoms are frequently generated upstream by the high voltage board. Ruling the interface in or out before ordering saves a wasted part and a wasted afternoon.
A stuck or failed door switch can leave the control believing a door is standing open, which on these models can disable dispenser functions and drive indicator behavior that closely resembles a control fault. It is an inexpensive part and a quick check, and it mimics board failure well enough to be worth eliminating first.
Repetitive clicking is one of the reported signs of high voltage board failure, but the same clicking is produced far more often by the compressor start relay or overload protector cycling. This component sits directly on the compressor and costs a fraction of what a board costs, so ruling it out first is always recommended.
Can I Replace the 12920710 High Voltage Board Myself? Difficulty, Time and Tools
Replacing the 12920710 is a moderate DIY repair that most homeowners complete in 30 to 45 minutes with a nut driver and a Phillips screwdriver. The board sits in the control housing at the back of the refrigerator. Recording the program code from the serial plate before you begin is the step people most often skip.
Most DIY-confident homeowners complete this repair in well under an hour. The 12920710 sits in the control housing on the back of the refrigerator, behind the rear access panel. Two preparation steps matter more than the physical work itself: photograph every connector before disconnecting anything, and write down the program code from the serial plate, since the replacement board will need that value before the refrigerator will run. If you are not comfortable working with electronic components, a qualified appliance technician is always the right call.
Does the 12920710 Fit My Maytag, Amana or Kenmore Refrigerator? Compatibility Check
To confirm the 12920710 fits your refrigerator, match the part number label on your existing high voltage board to 12920710 or to a listed cross-reference such as WP12920710 or W10890094. Model lookups are a useful starting point, but this platform used several closely related board numbers, so the label on the board is the reliable check.
Model Number Check
Enter your refrigerator's model number to check it against our 12920710 compatibility records. Not found? Use the buttons below to reach our team directly.
Model number databases are a useful starting point, but this platform used a family of closely related high voltage boards whose numbers differ by only a digit or two, and which one your unit needs depends on its production run. The part number label on your existing board is always the most reliable confirmation. Click the image to zoom in.
Which Maytag, Amana and Kenmore Refrigerators Use the 12920710 High Voltage Board?
Part 12920710 is used in Maytag MFI2067 and MFI2568 French door bottom-freezer refrigerators, Amana AFI2538 French door models, and the matching Kenmore 596 series. Always verify compatibility by matching the part number label on your existing high voltage board before ordering, since this platform used several closely related board numbers.
Maytag MFI2568 Series, French Door Bottom Freezer
Maytag MFI2067 Series, French Door Bottom Freezer
Amana AFI2538 Series, French Door Bottom Freezer
Kenmore 596 Series, French Door Bottom Freezer
This list is compiled from cross-reference data confirmed across multiple independent parts databases and is provided as general guidance only. Always verify compatibility by matching the part number label on your existing board before ordering. This platform used several closely related high voltage board numbers across production runs, so a model match on its own is not enough. If your model is not listed, or you are unsure, contact our team and we will help confirm before you buy.
How Is the 12920710 Restored to Spec? The FailSafe Precision Protocol
Every 12920710 sold by Appliance Pro USA goes through the FailSafe Precision Protocol, a proprietary 4-step process covering failure pattern analysis, precision diagnostic testing, proactive component replacement using equal or higher-rated parts, and final certification before the board ships.
FailSafe Precision Protocol
Failure Pattern Analysis
Known failure patterns for the 12920710 are mapped before any board enters the process, so we know exactly which components to focus on for this specific board type.
Precision Diagnostic Testing
Multi-point diagnostic testing identifies faults and confirms overall board condition. Boards that do not pass diagnostic testing do not advance.
Proactive Component Replacement
Components identified through failure pattern analysis as common weak points are replaced using equal or higher-rated parts, before the board is cleared to ship.
Final Certification
Certified to meet or exceed original Maytag factory specifications. Tamper-evident hologram applied. Anti-static packaged and sealed for shipping.
12920710 Specifications and Cross-Reference Part Numbers
The 12920710 is a high voltage control board for Maytag, Amana and Kenmore French door bottom-freezer refrigerators, mounted in the control housing at the back of the unit. The original number is no longer produced and has been superseded by W10890094, which also carries the references AP6027422 and PS11759800. Appliance Pro USA supplies FailSafe Certified units with a 1-year warranty (registration required).
| Manufacturer Part Number | 12920710, also catalogued as WP12920710 |
| Board Type | High Voltage Control Board, the power and control module feeding the compressor, fans, defrost, dispenser and display circuits |
| Board Location | Control housing at the back of the refrigerator, behind the rear access panel |
| Onboard Diagnostics | No customer-readable blink or fault code. Diagnosed by symptom pattern. A program code state is shown in the display after board replacement. |
| Post-Install Requirement | A model specific program code, printed on the serial plate after the word Code, must be entered per your model's instructions before the refrigerator will run |
| OEM Availability | The original 12920710 is no longer in production and has been superseded by W10890094. Appliance Pro USA supplies FailSafe Certified units of this board. |
| Cross-Reference Numbers | WP12920710, W10890094, AP6027422, PS11759800, 12920708, 12920709, 67006389, 67006430, 67006747, W10178102 |
| Related Board Numbers | This platform used a family of closely related high voltage boards in the 12920 range that differ mainly by factory program configuration. Verify against the label on your own board rather than assuming a nearby number interchanges. |
| APU Status | In Stock, FailSafe Certified, 1-year warranty (registration required), same-day shipping* |
Is a French Door Refrigerator of This Age Worth Repairing? What the 12920710 Costs vs Your Alternatives
Replacing the 12920710 high voltage control board is typically far less expensive than a comparable new French door refrigerator, which commonly runs $1,400 or more, or a technician service call, which commonly runs $300 to $500 including parts. Many customers save $1,000 or more by replacing the board. Figures are general estimates and vary by region and provider.
What your options typically cost
Replaced the 12920710 and the Refrigerator Still Will Not Run? Start Here
The most commonly reported reason a refrigerator does not run after a 12920710 replacement is that the program code from the serial plate has not been entered, which typically shows as PE0 000 in the display. Other frequent causes are a connector that is seated but not fully clicked in, and judging cooling before the compartments have stabilized.
Enter the program code before anything else
On this platform a replacement high voltage board arrives without your unit's configuration. Until the program code printed on the serial plate after the word Code is entered, the refrigerator commonly shows PE0 000 and will not run. This is a configuration state, not a fault with the board. Follow the entry sequence given in your model's service documentation, since the sequence varies across the brands and production runs sharing this platform.
If the code is rejected with a beep, re-read it carefully
A beep with no code stored commonly indicates the control did not recognize the value entered for that model. Digits are easy to misread on an aged serial plate, and a zero mistaken for the letter O is a frequent cause. Re-read the plate under good light, and if the code still will not save, disconnect power for several minutes and start the entry again from the beginning.
Check every connector at the control housing
A connector that appears seated but has not fully clicked into place can reproduce the exact symptoms you were trying to fix, which makes a good board look like a bad one. Disconnect every connector at the board and reseat each one firmly until it clicks before you test again.
Allow enough time before judging the result
A refrigerator needs several hours to reach proper operating temperature after being unplugged, and the ice maker can take up to 24 hours to produce a first harvest. Some display activity and audible clicking on the first power-up is normal while the system initializes.
Use the install gloves and handle the board by its edges
Static discharge is a common cause of damage to replacement electronics during installation. Touch the metal refrigerator frame before picking up the board, use the included install gloves, and handle the board by its edges only.
Still not working after all of the above?
Contact our team before returning anything. A brief conversation resolves the majority of post-install situations. We stand behind every board we sell and are here to help you get the result you need.
Other Parts on This Platform That May Need Attention
Components that commonly fail alongside or instead of the 12920710 include the dispenser control board and user interface, the door switches, the water inlet valve, and the compressor start relay and overload. Each can produce symptoms overlapping a high voltage board fault, so ruling them out first reduces the chance of replacing the wrong part.
Share your model number and a photo of your existing board's sticker. Our team will help confirm the right part before you spend a dollar. No pressure, no obligation.
Why Buy the 12920710 from Appliance Pro USA?
Appliance Pro USA supplies the 12920710 as a genuine OEM board restored through the FailSafe Precision Protocol to meet or exceed OEM specifications, backed by a 1-year warranty (registration required), a 30-day return policy, free priority shipping, and same-day shipping on orders placed before 4 PM EST, Monday through Friday.
At Appliance Pro USA, we specialize in high-quality reconditioned replacement control boards, professionally inspected and tested to meet or exceed OEM specifications. Every board we sell undergoes our FailSafe Precision Protocol, meaning components identified through failure pattern analysis as common weak points are replaced proactively using equal or higher-rated parts before the board ever ships to you. With a replacement board from Appliance Pro USA, you're getting a board that's been evaluated and restored to reliable working condition, backed by our 1-year limited warranty (registration required) and 30-day return policy, so you can order with complete confidence.
We offer free priority shipping on every order, and orders placed before 4 PM EST ship same day, Monday through Friday, excluding holidays and scheduled closures. Whether you're a homeowner tackling this repair yourself or a professional technician who needs a reliable source, we're here to help you get the right part and get the job done right the first time.
Not sure this is your board? Send us a photo of your original board's part number sticker and we'll confirm before you buy. Reach us at info@applianceprousa.com
Ask us about MarkUp Pro, exclusive pricing on every order.
12920710 Maytag High Voltage Control Board, Frequently Asked Questions
Common questions about the 12920710 cover which superseding number to trust, why a replacement board shows PE0 000 before it is programmed, how to tell a high voltage board fault from a dispenser interface fault, whether nearby numbers in the same family interchange, and how long to wait after installation before judging the result.
My board is labelled 12920710 but the replacement is stamped W10890094. Is that the right part?
Yes. The 12920710 is no longer produced under its original number and has been superseded by W10890094, which also appears in parts catalogs as AP6027422 and PS11759800. The same board is catalogued as WP12920710, which is simply the prefixed form of the original number. Numbers including 12920708, 12920709, 67006389, 67006430, 67006747 and W10178102 all cross-reference into the same current board. What matters is that the number on your existing board's label appears in the cross-reference list, not which of those numbers it happens to be.
Why does my new board show PE0 000 and refuse to run the refrigerator?
That indication is commonly reported on a replacement high voltage board that has not yet been given the program code for your specific unit. The board is powered and communicating, but without a model configuration it has no instructions to run on. The code is printed on your refrigerator's serial plate immediately after the word Code, and it has to be entered per your model's instructions before normal operation begins. A code of 0000 is not a valid configuration and the unit will not run on it. If the control beeps and refuses to store the value, the digits entered were most likely not recognized for that model.
The display flashes and the ice door keeps opening and closing. Is that the display board or this board?
That paired pattern is the symptom signature most commonly associated with this high voltage board rather than the dispenser interface, and it is also the most common misdiagnosis on this platform. The flashing and the dispenser behavior are what you can actually see, so the interface board gets replaced first and the fault returns unchanged. The distinction that helps most is whether the two symptoms occur together. Display flashing on its own points more toward the interface or its harness. Display flashing combined with the ice door cycling points upstream to the board covered by this guide.
There are several 12920 numbers that look almost identical. Will any of them work in my unit?
This is worth being careful about. The platform used a family of closely related high voltage boards whose numbers differ by only a digit or two, and much of what separates them is the factory program configuration they carry. A board from that family built for a different configuration may not accept your unit's code, or may behave incorrectly once installed. Match the label on your existing board to 12920710 or to a number on the confirmed cross-reference list on this page, and if your label shows a nearby number that is not listed, send us a photo before ordering rather than assuming it interchanges.
How long should I wait after installing before deciding whether the board fixed it?
Complete the program code entry first, because nothing meaningful can be judged until the board holds a configuration. After that, give the refrigerator several hours to pull down to operating temperature before drawing any conclusion, and allow up to 24 hours before expecting ice. Two things commonly make a good board look like a failure on this platform: an incomplete programming step, and a connector at the control housing that is seated but not fully clicked in. Re-check both before concluding anything is wrong with the part.
