W10811364 Whirlpool Refrigerator Main Control Board, Why Lights and Cooling Fail Together on French Door Models
Your refrigerator keeps shutting itself off, or the interior went dark and the cooling quit at the same moment. Part W10811364 is the Whirlpool refrigerator main control board used across the four-door and French door platform shared by Whirlpool, Maytag, KitchenAid, Jenn-Air, and Kenmore, and it has since been updated to a later service number. This guide will help you separate a genuine main board fault from the two parts most often blamed in its place, then order with complete confidence.
Why Does My Whirlpool Refrigerator Keep Shutting Off? Main Control Board Symptoms
Symptoms commonly reported with a failing W10811364 Whirlpool refrigerator main control board include the unit shutting itself off at random and restarting only after a power reset, cooling that comes and goes, defrost cycles that stop running, an unresponsive control panel, and interior lights dropping out at the same moment cooling stops.
If your refrigerator is doing one or more of the following, the main control board is a reasonable area to investigate. Work through the diagnosis sections below before ordering, because two other components on this platform produce closely overlapping symptoms.
- Refrigerator shuts itself off at random and only returns after being unplugged and plugged back in
- Cooling stops and restarts on its own, with compartment temperatures drifting up between cycles
- Defrost cycle never runs, leaving frost or ice building on the rear evaporator cover
- Control panel is unresponsive, or accepts a temperature change and ignores it
- Interior lights and cooling drop out together rather than one at a time
- Ice production stops while the rest of the unit appears to run normally
- Unit restarts on its own after a brief power interruption and does not hold its settings
FailSafe Certified, 1-year warranty (registration required), 30-day returns, ships today*
How Do I Find the Part Number on My Whirlpool Control Board? Watch the Video

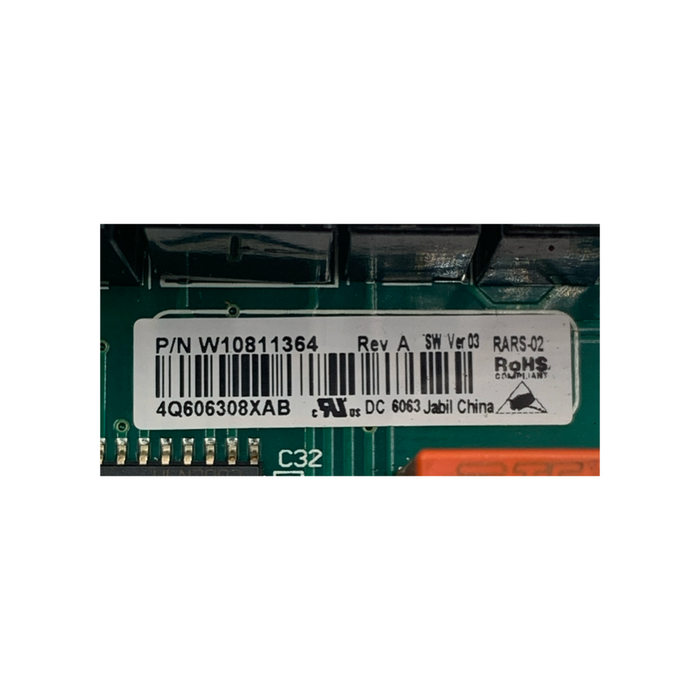

The part number on a Whirlpool refrigerator main control board is printed on a label attached to the board itself, usually along one edge. To verify a W10811364, unplug the refrigerator, remove the rear access panel, and compare that label to W10811364 or to a listed cross-reference number before ordering.
This short video shows how to locate and read the part number label on an appliance control board, and how to confirm you have the right part before opening the packaging. The same method applies to the W10811364, where a W10 or WPW10 prefix on the label is what you are looking for. General installation guidance is included in the Quick Start Guide shipped with every order.
W10811364 Symptoms, and What Each One Actually Points To
The W10811364 does not flash a customer-readable blink code, so it is diagnosed by symptom pattern and through the unit's service diagnostics rather than by a light on the board. The strongest indicator of a main board fault on this platform is a loss of several unrelated functions at once, or a shutdown that clears only on a power reset.
Use the table below as a starting point rather than a verdict. A single symptom can have more than one cause, and on this platform the lighting circuit and the interface assembly are the two things most often mistaken for the main board.
| Symptom | What It May Indicate | Recommended Next Step | Board? |
|---|---|---|---|
| Random shutdown that returns only after unplugging | The board losing its operating state and not recovering on its own | Confirm the outlet is sound and the unit is not on a switched or shared circuit. A shutdown that repeats and clears only on a power reset is the pattern most often traced to this board. | Common |
| Interior lights out, cooling still normal | The separate interior lighting board or its harness, not the main board | These models carry a dedicated board for the interior lighting. When cooling, defrost, ice production, and the control panel all behave normally, start there rather than here. | Usually the lighting board |
| Lights out and cooling stopped together | Loss of a shared supply on the main board | When two otherwise unrelated systems drop at the same moment, the common feed becomes the suspect. Check every connector at the board first, then the board itself. | Common |
| Frost or ice building on the rear evaporator cover | Defrost cycle not being commanded | Test the defrost heater and the defrost sensor first. If both check out and defrost still never initiates, the board's defrost control becomes a reasonable suspect. | Check defrost parts first |
| One compartment warm, the other holding correctly | A temperature sensor or the damper rather than the board | Uneven cooling on this platform points more often to a sensor reading out of range or a stuck damper. Verify both before the board. | Check sensors first |
| Control panel dark or unresponsive | The interface assembly, its harness, or the main board | The panel is a separate assembly that communicates with the main board. If the unit still cools and runs defrost on schedule, the interface half of that link is the more likely cause. | Board or interface |
| Ice production stopped, everything else normal | The ice maker module, its fill valve, or its own sensor | A single isolated function failing points at that function's own components rather than at the central board. | Not the board |
Whirlpool Refrigerator Display Codes, Which Ones Point at This Board and Which Do Not
Whirlpool refrigerator display codes are not a single standard set, and their meanings shift across series and production runs. On the models that use the W10811364, the two indicators seen most often are a power-interruption notice and a rapid-cooling feature state, and neither is a component fault. Confirm any code against your own model's documentation.
Two things matter more here than a code table. First, several of the characters that appear on these displays are notices or feature indicators rather than faults, and they are routinely mistaken for errors. Second, the useful fault detail lives in the unit's service diagnostic mode, and the sequence to enter it varies by model and production run, so follow your model's instructions rather than any generic key combination you may find. Treat the table below as a starting point and verify each meaning against your own documentation.
| Display shows | What It May Indicate | Is It This Board? |
|---|---|---|
| A power-interruption notice | The unit recorded a loss of power. On most of these models it is a notice that clears from the panel once acknowledged, and the refrigerator keeps cooling normally. If it returns repeatedly after being cleared, the display and interface assembly is reported at least as often as the main board. | Notice, verify further |
| A flashing rapid-cool indicator | The rapid-cooling feature responding to warm food or a door left open. This is normal operation and clears once the compartment returns to temperature. | Not a fault |
| The same indicator shown steady rather than flashing | Reported as a control fault rather than a feature state. A full power-down of several minutes is the usual first step, and an indicator that returns after that is commonly associated with the main control board. | Board-related |
| A communication failure code | A break in the link between the main control board and the user interface. Either end of that link, or the harness between them, can be responsible, so this one does not resolve to a single board on its own. | Board or interface |
| A single-character temperature code | A compartment or defrost sensor reading outside its expected range. The board is reporting the sensor, so test the sensor and its harness before condemning the board. | Usually a sensor |
| An over-temperature warning on the freezer display | The compartment rose above a threshold, most often after a power outage or a door left ajar. Clear it and watch whether temperatures recover normally before ordering any part. | Not the board |
Will the W10811364 Fix My Refrigerator? What to Rule Out Before Ordering
The W10811364 commonly resolves random shutdowns that clear only on a power reset, cooling and lighting dropping out together, and defrost that never initiates with the defrost parts testing good. Before ordering, rule out the separate interior lighting board, the compartment and defrost sensors, the interface assembly, and the outlet condition.
These refrigerators carry a board dedicated to the interior lighting that is entirely separate from the main control board, and its model coverage overlaps this board almost exactly. Lights that are dark, dim, or flickering while cooling, defrost, ice production, and the control panel all behave normally point at that lighting board first. This is the single most common way a main board gets replaced when it did not need to be.
The main board can only act on what its sensors report. A sensor reading out of range makes the board respond incorrectly, which looks identical to a board fault from the outside. Uneven cooling, one compartment drifting while the other holds, and single-character temperature codes are the patterns most often traced back to a sensor rather than the board.
The control panel is its own assembly, connected to the main board over a communication link. A dark or unresponsive panel, or a communication code, can originate at either end of that link or in the harness between them. Replacing the main board when the interface is at fault is a common and avoidable outcome on this platform.
A unit that shuts down and restarts may be responding to what reaches it rather than failing internally. A shared or switched circuit, a loose outlet, or an extension cord produces symptoms that mirror an intermittent board fault, and costs nothing to rule out.
Can I Replace the W10811364 Myself? Difficulty, Time and Board Location
Replacing the W10811364 is reported as a straightforward repair that most homeowners complete in 15 to 30 minutes with a screwdriver and a nut driver. The board sits behind an access panel on the back of the refrigerator, so the unit has to be pulled away from the wall first. Photograph every connector before disconnecting anything.
Most DIY-confident homeowners complete this repair in well under 30 minutes. The board sits behind a removable access panel on the back of the refrigerator, so the first job is pulling the unit far enough out from the wall to work behind it comfortably. Photographing every wiring connector before disconnecting anything is the most important preparation step, because several connectors are similar in appearance and easy to swap on reassembly. If you are not comfortable working with electronic components, a qualified appliance technician is always the right call.
Does the W10811364 Fit My Refrigerator? Compatibility Check
To confirm the W10811364 fits, match the part number label on your existing main control board to W10811364, to the WPW10811364 form of the same number, or to the later W10843055 service number. Model lookups are a useful starting point, but production runs vary, so the label on the board is the reliable check.
Model Number Check
Enter your refrigerator's model number to check it against our W10811364 compatibility records. Not found? Use the buttons below to reach our team directly.
Model lookups are a helpful starting point, but the same model number can span production runs fitted with different boards. The part number label on your existing board is always the most reliable confirmation. Click the image to zoom in.
Which Refrigerator Models Use the W10811364 Main Control Board?
Part W10811364 is used in Whirlpool, Maytag, KitchenAid, Jenn-Air, and Kenmore four-door and French door refrigerators, including the WRX986, WRX988, WRF757, WRF767, WRF997, WRMF7736, MFT2776, MFT2778, MFX2676, MFX2876, KRFF507, KRFF707, KRMF536, and JFX2897 series. Always verify by matching the label on your existing board.
Whirlpool, French Door and Four Door
Maytag, French Door and Four Door
KitchenAid, French Door and Four Door
Jenn-Air and Kenmore
This list is compiled from multiple parts databases and is provided as general guidance only. Always verify compatibility by matching the part number label on your existing board before ordering, because the same model number can span production runs fitted with different boards. If your model is not listed, or you are unsure, contact our team and we will help confirm before you buy.
How Is the W10811364 Restored to Spec? The FailSafe Precision Protocol
Every W10811364 sold by Appliance Pro USA goes through the FailSafe Precision Protocol, a proprietary 4-step process covering failure pattern analysis, precision diagnostic testing, proactive component replacement using equal or higher-rated parts, and final certification before the board ships.
FailSafe Precision Protocol
Failure Pattern Analysis
Known failure patterns for the W10811364 are mapped before any board enters the process, so we know exactly which components to focus on for this specific board type.
Precision Diagnostic Testing
Multi-point diagnostic testing identifies faults and confirms overall board condition. Boards that do not pass diagnostic testing do not advance.
Proactive Component Replacement
Components identified through failure pattern analysis as common weak points are replaced using equal or higher-rated parts, before the board is cleared to ship.
Final Certification
Certified to meet or exceed original Whirlpool factory specifications. Tamper-evident hologram applied. Anti-static packaged and sealed for shipping.
W10811364 Specifications and Cross-Reference Part Numbers
The W10811364 is a Whirlpool-built refrigerator main control board mounted behind an access panel on the back of the unit. It has been superseded by W10843055 and also appears in the WPW10811364 prefix form. Common cross-references include AP5989612, PS11730991, and EAP11730991. Appliance Pro USA supplies FailSafe Certified units with a 1-year warranty (registration required).
| Manufacturer Part Number | W10811364, also published as WPW10811364 |
| Board Type | Main control board. Manages cooling logic, compressor and fan operation, defrost timing, and sensor input for the whole unit |
| Board Location | Behind a removable access panel on the back of the refrigerator. The unit must be pulled out from the wall to reach it |
| Onboard Diagnostics | No customer-readable blink code. Diagnosed by symptom pattern and through the unit's service diagnostic mode, entered per your model's instructions |
| Programming | Commonly reported as a direct plug-in replacement with no program code to enter. If your model calls for a firmware or configuration step, follow your model's instructions and have a qualified technician perform it |
| Supersession Status | Superseded by W10843055, the later service revision of the same board |
| Cross-Reference Numbers | W10843055, WPW10811364, WPW10843055, AP5989612, PS11730991, EAP11730991, 4383561, PD00047059 |
| Appliance Types | Four-door and French door refrigerators across Whirlpool, Maytag, KitchenAid, Jenn-Air, and Kenmore |
| APU Status | In Stock, FailSafe Certified, 1-year warranty (registration required), same-day shipping* |
Is It Worth Repairing a French Door Refrigerator? What This Board Costs Against the Alternatives
Replacing the W10811364 main control board is typically far less expensive than a comparable new four-door or French door refrigerator, which commonly runs $2,000 or more, or a technician service call, which commonly runs $300 to $500 including parts. These figures are general estimates and vary by region and provider.
What your options typically cost
Refrigerator Still Not Right After Replacing the Main Control Board? Start Here
The reasons most commonly reported for a refrigerator not behaving immediately after a W10811364 replacement are a connector seated but not latched, skipping the full power-down that lets the board initialize, judging cooling before the compartment has pulled down, and a second component that failed alongside the board.
Do a full power-down before judging anything
Unplug the refrigerator for a full five minutes once the board is in, then plug it back in. The board needs a clean start to initialize, and a unit switched off and straight back on can come up in an odd state that looks like a failed part.
Latch every connector, do not just seat it
A connector that looks seated but has not clicked home reproduces the original symptoms exactly. Work through every connector on the board, press each until it latches, and use the photographs you took before removal to confirm nothing has been swapped between similar plugs.
Give the compartments time to pull down
A refrigerator needs several hours to reach operating temperature after being unplugged, and ice production can take a full day to resume. Some clicking and display activity on first start is normal while the system initializes.
Check whether a second part failed alongside the board
Power events that take out a main board often take something else with them. If cooling has returned but the interior is still dark, or the panel is still unresponsive, that points to the lighting board or the interface assembly rather than a problem with the replacement board.
Handle the board by its edges with the install gloves on
Static discharge is a common cause of damage to replacement electronics during installation. Touch the metal cabinet before picking up the board, use the included install gloves, and hold the board by its edges only.
Still not working after all of the above?
Contact our team before returning anything. A brief conversation resolves the majority of post-install situations. We stand behind every board we sell and are here to help you get the result you need.
Other Parts on These Models That May Need Attention
Components that commonly fail alongside or instead of the W10811364 include the interior lighting power board, the compartment and defrost sensors, the user interface assembly, and the evaporator fan motor. Each produces symptoms that overlap a main control board fault, so ruling them out first reduces the chance of replacing the wrong part.
Share your model number and a photo of your existing board's sticker. Our team will help confirm the right part before you spend a dollar. No pressure, no obligation.
Why Buy the W10811364 from Appliance Pro USA?
Appliance Pro USA supplies the W10811364 as a genuine OEM board restored through the FailSafe Precision Protocol to meet or exceed OEM specifications, backed by a 1-year warranty (registration required), a 30-day return policy, free priority shipping, and same-day shipping on orders placed before 4 PM EST, Monday through Friday.
At Appliance Pro USA, we specialize in high-quality reconditioned replacement control boards, professionally inspected and tested to meet or exceed OEM specifications. Every board we sell undergoes our FailSafe Precision Protocol, meaning components identified through failure pattern analysis as common weak points are replaced proactively using equal or higher-rated parts before the board ever ships to you. With a replacement board from Appliance Pro USA, you're getting a board that's been evaluated and restored to reliable working condition, backed by our 1-year limited warranty (registration required) and 30-day return policy, so you can order with complete confidence.
We offer free priority shipping on every order, and orders placed before 4 PM EST ship same day, Monday through Friday, excluding holidays and scheduled closures. Whether you're a homeowner tackling this repair yourself or a professional technician who needs a reliable source, we're here to help you get the right part and get the job done right the first time.
Not sure this is your board? Send us a photo of your original board's part number sticker and we'll confirm before you buy. Reach us at info@applianceprousa.com
Ask us about MarkUp Pro, exclusive pricing on every order.
W10811364 Whirlpool Main Control Board, Frequently Asked Questions
Common questions about the W10811364 cover which number in the chain to order, how to tell a main board fault from the separate lighting board, whether a recorded power interruption points to board failure, whether the board needs programming, and how long to wait after installation before judging the result.
My board says W10811364 but the part I found is W10843055. Did I look up the wrong number?
No. W10843055 is the later service revision of the same board, and W10811364 is the number your original was produced under. Both are also published with a WP prefix, so WPW10811364 and WPW10843055 refer to the same two numbers again. The AP, PS, and EAP reference numbers you may come across point back to the same board a third time. What matters is that the number printed on your board's label appears somewhere in the cross-reference list on this page, not which of those numbers happens to be the one on your label.
My interior lights are out. Does that mean I need this main control board?
Usually not, and this is the most common misdiagnosis on these models. The refrigerators that use this main board also carry a separate board dedicated to the interior lighting, and its model coverage overlaps this one almost exactly. If lighting is the only thing affected while cooling, defrost, ice production, and the control panel all behave normally, the lighting board and its harness are the place to start. The main board becomes the stronger suspect when lighting drops out at the same moment cooling does, because that pattern points to a shared supply rather than the lighting circuit on its own.
The display recorded a power interruption. Has the board failed?
Not on that basis alone. That indicator records the fact that the unit lost power, and on most of these models it clears from the panel once acknowledged while the refrigerator keeps cooling normally. It becomes worth investigating when it keeps returning after being cleared, and even then the display and interface assembly is reported at least as often as the main board. Confirm the outlet is sound and that the refrigerator is not sharing a circuit before treating a repeated power notice as evidence of a board fault.
Does this board need programming or a code entered after it is installed?
It is commonly reported as a direct plug-in replacement with no program code to enter, which sets it apart from some other refrigerator platforms where a code from the serial plate has to be keyed in before the unit will run correctly. That said, coverage for this board spans several years of production, so follow your own model's instructions rather than assuming. If your model does call for a firmware or configuration step, have a qualified technician perform it, and be aware that a board which has been reprogrammed is generally not returnable.
Several things stopped working at once. Is that one board or several failed parts?
Several unrelated functions dropping together is one of the more telling signs that the fault is central rather than distributed. This board handles cooling logic, compressor and fan operation, defrost timing, and sensor input, so a single fault on it can take down multiple systems at the same time, while an individual component failure normally affects only the system it serves. If exactly one function is affected, look at that function's own parts first. If cooling, defrost, and the panel all went down in the same moment, the shared board is the common denominator worth investigating.
How long should I wait after installing before deciding whether it worked?
Give it a full cycle before judging. Complete a five minute power-down after installation so the board initializes cleanly, then allow four to six hours for the compartments to pull down to temperature and up to a day for ice production to resume. Two things routinely make a good board look like a failure: evaluating cooling too early, and a connector that is seated but has not latched. If the result seems off, work back through every connector before concluding the board is at fault.
