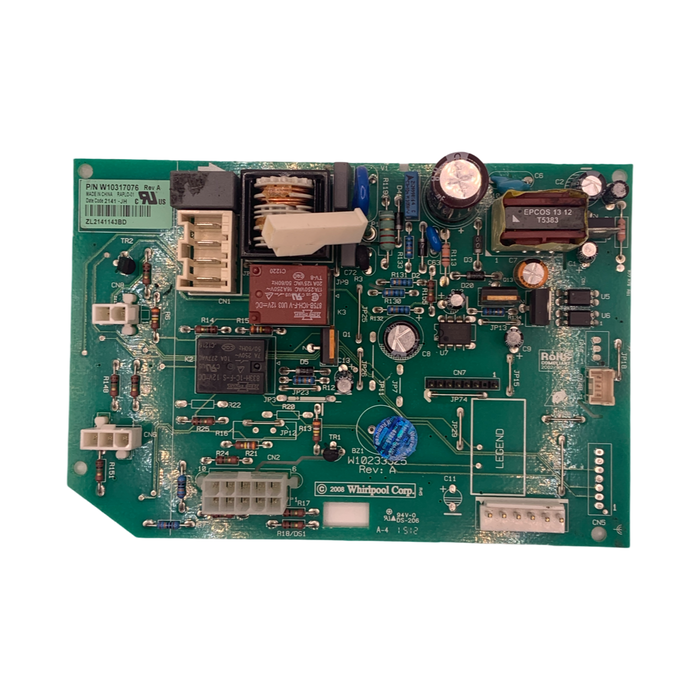

W10317076 Whirlpool Refrigerator Main Control Board, One Board With Four Part Numbers and a Programming Step
Part W10317076 is the main control board, called the high voltage control board in service literature, for a large family of bottom-mount and French-door refrigerators built by Whirlpool and sold under the Whirlpool, KitchenAid, Maytag, Jenn-Air, Kenmore, IKEA, and Dacor names. It runs the compressor, the fans, the defrost cycle, and power distribution for the whole cabinet. Two things trip people up on this repair, and this guide covers both: the same board carries four different part numbers depending on when your unit was built, and the replacement has to be programmed with the code from your serial plate before the refrigerator will run at all.
Why Has My Whirlpool or KitchenAid Refrigerator Stopped Cooling? Main Control Board Symptoms
Commonly reported symptoms of a failing W10317076 main control board include a refrigerator and freezer that stop cooling while the interior lights still work, a compressor that never starts, a defrost cycle that never runs so frost sheets over the freezer back wall, ice maker and dispenser functions dropping out at the same time as cooling, a unit that runs without ever satisfying, and operation that comes and goes after a surge.
Because a single board handles compressor control, fan control, defrost timing, and power distribution on these units, one failure often shows up in more than one place at once. The signs below are the ones most often reported. Several of them also have cheaper look-alike causes, so work through the diagnosis sections further down before ordering anything.
- Both compartments drift warm, or stop cooling entirely, while the interior lights and control panel still work normally
- The compressor never attempts to start, or the condenser and evaporator fans no longer spin up
- Frost sheets over the back wall of the freezer because the defrost cycle is never commanded
- Ice production and dispensing quit at the same time as a cooling complaint rather than on their own
- The unit runs almost continuously and never reaches the set temperature
- Cooling comes back for a day or two and then quits again, with no pattern you can pin down
- Everything went dead, or behavior turned erratic, immediately after a storm, surge, or outage
FailSafe Certified, 1-year warranty (registration required), 30-day returns, ships today*
How Do I Read the Part Number on My Whirlpool Control Board? Watch the Video

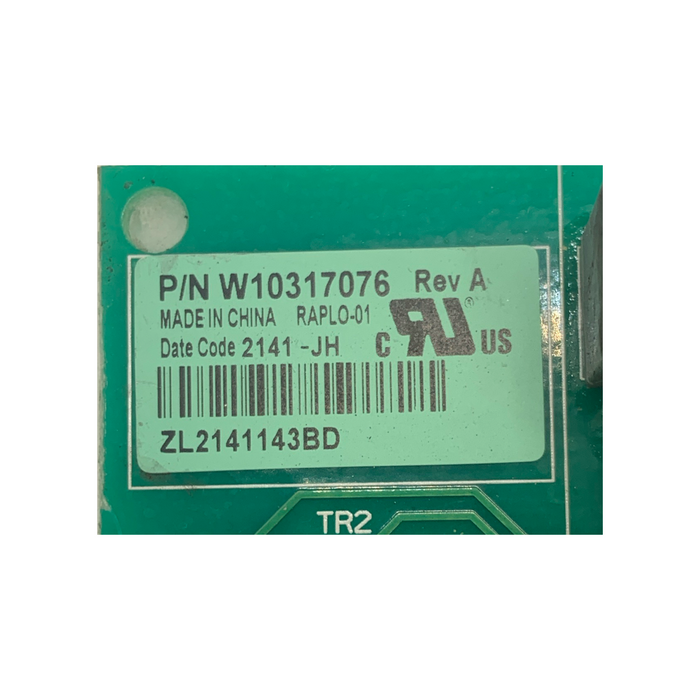

The number for the W10317076 main control board is printed on a label on the board itself, which sits behind a cover panel on the back of the refrigerator cabinet. Unplug the unit, pull it out, remove the cover, and check the label against W10205552, W10268635, W10317076, or WPW10317076, which are four numbers for the same board. Write down the program code from the serial plate at the same time.
This short video walks through locating and reading the part number label on an appliance control board, and confirming the part before the packaging is opened. The same approach applies here. While the cover panel is off, take a photo of your serial plate as well, since the four-digit program code printed after the word Code is what you will enter into the new board once it is installed. General installation guidance ships in the Quick Start Guide with every order.
Whirlpool Bottom-Mount Refrigerator Board Symptoms, What Each One Points Toward
On units using the W10317076, loss of cooling with a working display commonly points at compressor or fan control, clicking at the compressor commonly points at the start relay rather than the board, frost on the freezer back wall commonly points at defrost components first, and a panel that is entirely dark commonly points at the control panel assembly or its harness. A brand-new board that does nothing has almost always simply not been programmed yet.
Read the table as a starting point rather than a verdict. On this platform almost every function routes through one board, which is exactly why the board gets blamed for faults that belong to a fifteen dollar part somewhere else in the cabinet.
| Symptom | What It May Indicate | Recommended Next Step | Board? |
|---|---|---|---|
| Warm in both compartments, lights and panel still normal | Compressor or fans are not being commanded | Stand at the back with the doors closed and listen. If the compressor never even attempts a start and the start relay checks out, board control becomes a commonly reported cause. | Common |
| Repeated clicking at the compressor, no cooling | Start relay or overload protector cycling | Pull the relay off the compressor pins and shake it. A rattle is a commonly reported sign of a failed relay, and it is a fraction of the cost of any board. | Relay first |
| Freezer back wall sheeted in frost | Defrost cycle is never running | Ohm the defrost bimetal cold and the heater element before anything else. Only when both read good and defrost still never initiates does board control move up the list. | Defrost parts first |
| One compartment holds, the other drifts | Sensor reporting rather than board output | Compare each thermistor against your model's resistance chart at a known temperature. A sensor feeding bad data makes a healthy board behave badly. | Test sensors |
| Panel completely dark, interior lights fine | Control panel assembly, harness, or this board | The display and keypads are their own assembly. If a few buttons still respond, look there first. If the panel is entirely dead, reseat the harness at both ends before choosing a board. | Board or panel |
| Runs constantly and never satisfies | Defrost, airflow, sensors, or board control | Check for an iced evaporator and a stalled evaporator fan first, since restricted airflow produces this exact complaint. Persistent constant running with clean airflow is commonly associated with the board. | Possible |
| Brand-new board installed, refrigerator does nothing | Board has not been programmed yet | This is expected behavior, not a fault. The board arrives without your unit's program code and will not operate the refrigerator until that code is entered. | Programming step |
Does the W10317076 Display Error Codes? What These Refrigerators Actually Show
Refrigerators using the W10317076 do not publish the long alphanumeric fault-code tables found on newer Whirlpool platforms, and a failed board on these units commonly produces symptoms with no code shown at all. The display states most often seen around this board are PE, which indicates programming mode rather than a fault, a PE0 indication when a program code is rejected, and a program code of 0000, which will not run the unit.
Do not sit and wait for a code on this platform. What the display does show is tied almost entirely to the programming routine, which is why the states below are worth understanding before you assume something has failed. Anything beyond this list should be confirmed against the tech sheet for your specific model rather than taken from a general list.
| Display State | What It May Indicate | Is It This Board? |
|---|---|---|
| No code at all, cooling has failed | Normal for this platform. The absence of a code neither implicates nor clears the board, so diagnose by symptom using the physical checks below. | Possible |
| PE shown on the display | Programming mode has been entered. This is the expected response to the programming key sequence and is not a fault indication. | Not a fault |
| PE0 indication while programming | Commonly reported when the programming routine does not complete or the code entered is not accepted. Recheck the four digits against the serial plate and repeat the sequence. | Programming |
| Program code reads 0000 | A unit will not run on a program code of 0000. Enter the code printed on your serial plate after the word Code before assuming anything is wrong with the board. | Enter your code |
| Control beeps and refuses to save the code | Commonly reported when an invalid code is entered. The control rejects codes it does not recognize rather than storing them, so re-enter carefully digit by digit. | Re-enter code |
| Display and keypads dead, unit dead | Confirm the outlet and the breaker first. With supply confirmed at the unit, the control panel harness and then this board become the commonly reported causes. | Board-related |
Will the W10317076 Actually Fix It? What to Rule Out Before You Order
The W10317076 commonly resolves faults where the compressor and fans are never commanded with good start components, where defrost never initiates with a good heater and bimetal, where the panel is dead with supply confirmed and the panel assembly cleared, and where operation became erratic after a surge. Rule out the compressor start relay and overload, the thermistors, the defrost heater and bimetal, the evaporator fan and airflow path, and the control panel assembly first.
These units drive a conventional compressor through a small plug-on start device, and that device fails far more often than the board behind the cover panel. It produces the textbook complaint that gets boards replaced for nothing: no cooling, with a click every few minutes at the back of the cabinet.
A board can only act on what its sensors tell it. A thermistor drifting out of range makes a perfectly good board hold the wrong temperature, run too long, or ignore a compartment entirely, and that reads exactly like a control fault from the outside.
Frost on the freezer back wall and a slow loss of cooling almost always start with the defrost parts, not with defrost timing. Both parts are inexpensive, both are testable in minutes, and both fail far more often than the control that commands them.
If the compressor runs but the cabinet stays warm, cold air is not moving. A stalled fan, a fan blade caught on ice, or a blocked air duct produces a convincing no-cooling complaint that has nothing at all to do with the control board.
The display and the keypads on these refrigerators are a separate assembly from the board behind the back panel, which is why the programming sequence is entered at the panel. A dead or partly dead panel can come from that assembly, from the harness linking the two, or from the board, and guessing between them is a commonly reported way to buy the wrong part.
Can I Replace the W10317076 Myself? Difficulty, Time, and the Programming Step
Replacing the W10317076 is a moderate DIY repair that most homeowners finish in 30 to 45 minutes with a Phillips screwdriver, programming included. The board sits behind a cover panel on the back of the refrigerator, so the unit has to come away from the wall. After installation the four-digit program code from the serial plate must be entered at the control panel, because the refrigerator will not run until it is.
The mechanical part of this job is genuinely easy. Pull the refrigerator out, take off the cover panel on the back, move the connectors across one at a time, and mount the new board. What catches people is the step after that. The replacement arrives without your unit's program code, and until that code is entered at the control panel the refrigerator will sit there silent and look defective. Photograph every connector before you touch it, keep the serial plate photo on your phone, and if any part of this feels beyond you, a qualified appliance technician is always the right answer.
Does the W10317076 Fit My Refrigerator? How to Check Before You Buy
To confirm the W10317076 fits, read the label on the board behind the rear cover panel and check it against W10205552, W10268635, W10317076, or WPW10317076, which are four catalog numbers for the same board. A model number lookup is a useful starting point, but the label on your existing board is the reliable check, because Whirlpool changed boards partway through several of these model runs.
Model Number Check
Enter your refrigerator's model number to check it against our W10317076 compatibility records. Not found? Use the buttons below to reach our team directly.
This board went through several catalog numbers over its production life, so your original may not say W10317076 at all. Any of the four numbers in the chain points to the same board. Read the label behind the rear cover panel, and if what you see is not on the list, send us a photo and we will identify it for you. Click the image to zoom in.
Which Refrigerator Models Use the W10317076 Control Board?
The W10317076 is used in bottom-mount and French-door refrigerators across KitchenAid KBFS, KBFL, KBLS, KBRS, KRFC and KRFF series, Whirlpool WRF540 series, Maytag MFC and MFD series, Jenn-Air JBD, JBL, JBR, JFC and JFD series, Kenmore 106.72 and 596.72 series, IKEA IX6HHEXDSM units, and Dacor EF36BNNFSS units. Confirm the label on your existing board before ordering, since board assignments changed within some of these model runs.
KitchenAid, Bottom-Mount and French Door
Whirlpool, French Door
Maytag, Bottom-Mount and French Door
Jenn-Air, Bottom-Mount and French Door
Kenmore 106.72 and 596.72 Series
IKEA and Dacor
Models are shown in base form; full model numbers carry extra revision digits, and the compatibility list for this board runs to roughly two hundred variants across seven brands, so a model close to one of these is worth asking about. This list is compiled from cross-reference data and offered as general guidance only. Whirlpool changed board assignments partway through some of these model runs, so read the label on your existing board before ordering. If your model is not shown, or the label reads something other than the four numbers on this page, contact our team and we will confirm before you buy.
How Is the W10317076 Restored to Spec? The FailSafe Precision Protocol
Every W10317076 sold by Appliance Pro USA goes through the FailSafe Precision Protocol, a proprietary 4-step process covering failure pattern analysis, precision diagnostic testing, proactive component replacement using equal or higher-rated parts, and final certification before the board ships.
FailSafe Precision Protocol
Failure Pattern Analysis
Known failure patterns for the W10317076 are mapped before any board enters the process, so we know exactly which components to focus on for this specific board type.
Precision Diagnostic Testing
Multi-point diagnostic testing identifies faults and confirms overall board condition. Boards that do not pass diagnostic testing do not advance.
Proactive Component Replacement
Components identified through failure pattern analysis as common weak points are replaced using equal or higher-rated parts, before the board is cleared to ship.
Final Certification
Certified to meet or exceed original Whirlpool factory specifications. Tamper-evident hologram applied. Anti-static packaged and sealed for shipping.
W10317076 Specifications and Cross-Reference Part Numbers
The W10317076 is the main control board, designated the high voltage control board in service literature, for Whirlpool-built bottom-mount and French-door refrigerators. It handles compressor operation, fan control, defrost timing, and power distribution, while the display and keypads sit on a separate control panel assembly. It began as W10205552, was revised to W10268635 and then W10317076, and is cataloged today as WPW10317076. Every replacement is programmed after installation with the code from the unit's serial plate.
| Manufacturer Part Number | W10317076 (earlier numbers W10205552 and W10268635; current catalog number WPW10317076) |
| Board Type | Main control board, designated High Voltage (HV) Control Board in service literature. Manages compressor operation, condenser and evaporator fans, defrost timing, and power distribution. The display and keypads are a separate control panel assembly. |
| Board Location | Behind the cover panel on the back of the refrigerator cabinet |
| Programming | Required after installation. The four-digit program code printed on the serial plate after the word Code is entered at the control panel using the door alarm and freezer temperature keys. The display shows PE once programming mode is active. |
| Program Code Note | A unit will not operate on a program code of 0000. The control rejects codes it does not recognize rather than storing them. |
| Compressor Type | Conventional compressor with a plug-on start relay and overload protector, not an inverter-driven system |
| Cross-Reference Numbers | WPW10317076, W10268635, W10205552, AP6019378, PS11752684, 1876651 |
| Availability | Not discontinued. Still cataloged and produced under the current number WPW10317076. |
| APU Status | In Stock, FailSafe Certified, 1-year warranty (registration required), same-day shipping* |
Is This Repair Worth It? W10317076 Cost Against the Alternatives
Replacing the W10317076 main control board typically costs a small fraction of a comparable new French-door or bottom-mount refrigerator, which commonly runs $1,300 or more, or a technician board replacement, which commonly runs $350 to $700 installed. Handling the swap and the programming step yourself keeps most of that money in your pocket. All figures are general estimates that vary by region and provider.
What your options typically cost
Refrigerator Still Dead After Fitting the W10317076? Work Through This First
The most commonly reported reasons a refrigerator does nothing after a W10317076 replacement are that the program code has not been entered yet, that the code entered does not match the serial plate and was rejected, that programming mode timed out before the code was saved, that a harness connector never clicked fully home, and that the unit is being judged on temperature before it has had hours to pull down.
Enter the program code, the board does nothing without it
This is by far the most common call we take on this board. The replacement arrives without your unit's configuration, and an unprogrammed board simply does not operate the refrigerator. Find the four digits printed on the serial plate after the word Code, then enter them at the control panel. Silence before that step is expected behavior, not a defect.
Follow the key sequence exactly, and watch for PE
The routine is entered from the control panel, not from the board. Hold the door alarm key, add the freezer temperature down key within a few seconds, release the door alarm, and wait. When PE appears you are in programming mode and can step through the digits. If PE never appears, the sequence did not take and there is nothing wrong with the board.
A beep means the code was refused, not that the board failed
The control checks the code you enter and will not store one it does not recognize. A beep instead of a saved code points at a typed digit or a misread serial plate, so go back to the plate, read it in good light, and try again. A program code of 0000 will not run the unit either, so make sure yours is not sitting at zeros.
Do not let programming mode time out on you
Programming mode closes itself after roughly four minutes without input, and it also closes if the door alarm key is held for a few seconds. If you stop partway to check something, the code is not saved and you will need to start the sequence again from the beginning.
Reseat every connector, then give the cabinet time
A connector that looks seated but never clicked home will reproduce the original fault perfectly on a brand-new board. After reseating each one, judge the repair by whether the compressor and fans run, not by how cold the shelves feel, because a refrigerator needs hours to pull down to temperature and ice production can take longer still.
Protect the board while you handle it
Static damage during installation is a commonly reported cause of electronics that never work. Touch the metal cabinet before you pick the board up, wear the install gloves included in the box, and hold the board by its edges rather than across the components.
Still not working after all of the above?
Contact our team before returning anything. A brief conversation resolves the majority of post-install situations. We stand behind every board we sell and are here to help you get the result you need.
Which Other Refrigerator Parts Should I Be Looking At?
Parts that commonly fail alongside or instead of the W10317076 include the compressor start relay and overload protector, the defrost bimetal and heater element, the evaporator fan motor, the compartment thermistors, and the separate control panel assembly. Each one is cheaper than the main board and each one can reproduce at least one of its failure symptoms.
Share your model number and a photo of your existing board's sticker. Our team will help confirm the right part before you spend a dollar. No pressure, no obligation.
Why Buy the W10317076 from Appliance Pro USA?
Appliance Pro USA supplies the W10317076 as a genuine OEM board restored through the FailSafe Precision Protocol to meet or exceed OEM specifications, backed by a 1-year warranty (registration required), a 30-day return policy, free priority shipping, and same-day shipping on orders placed before 4 PM EST, Monday through Friday.
At Appliance Pro USA, we specialize in high-quality reconditioned replacement control boards, professionally inspected and tested to meet or exceed OEM specifications. Every board we sell undergoes our FailSafe Precision Protocol, meaning components identified through failure pattern analysis as common weak points are replaced proactively using equal or higher-rated parts before the board ever ships to you. With a replacement board from Appliance Pro USA, you're getting a board that's been evaluated and restored to reliable working condition, backed by our 1-year limited warranty (registration required) and 30-day return policy, so you can order with complete confidence.
We offer free priority shipping on every order, and orders placed before 4 PM EST ship same day, Monday through Friday, excluding holidays and scheduled closures. Whether you're a homeowner tackling this repair yourself or a professional technician who needs a reliable source, we're here to help you get the right part and get the job done right the first time.
Not sure this is your board? Send us a photo of your original board's part number sticker and we'll confirm before you buy. Reach us at info@applianceprousa.com
Ask us about MarkUp Pro, exclusive pricing on every order.
W10317076 Whirlpool Refrigerator Main Control Board, Frequently Asked Questions
Common questions about the W10317076 cover why one board carries four different part numbers, where the program code lives on the serial plate and why it matters, what PE on the display actually indicates, why brands as different as IKEA and Dacor share a Whirlpool board, how to separate a main board fault from a control panel fault, and how long to wait after installation before judging the repair.
My board says W10205552, not W10317076. Did I look up the wrong part?
No. Four numbers cover this same board across its production life: W10205552 came first, W10268635 followed, W10317076 replaced that, and WPW10317076 is the number the board carries in the current catalog. Whichever of the four is printed on your label, the current board is the direct replacement for it. What matters is that the number on your label appears somewhere in that chain, not which link of the chain it happens to be.
Where exactly is the program code, and what happens if I ignore it?
It is the four-digit number printed on your refrigerator's serial plate immediately after the word Code, and ignoring it means the refrigerator does not run. The replacement board arrives without any unit configuration stored on it. Until you enter those four digits at the control panel, the compressor and fans stay off and the unit looks dead on arrival. Photograph the plate before you start the job so you are not hunting for it with the panel already apart.
The display is showing PE. Is that an error?
No. PE indicates that the control has entered programming mode, which is exactly what you want to see after holding the door alarm key and the freezer temperature down key in sequence. From there you step through the four digits using the refrigerator temperature keys and save. If you walk away, the mode closes itself after a few minutes without saving. PE appearing when you did not ask for it is worth investigating, but PE during a board replacement is the routine working.
Why does an IKEA or Dacor refrigerator take a Whirlpool part number?
Because Whirlpool built those units. Several brands source complete refrigerators or major platforms from Whirlpool and put their own badge on the door, which is why the same control board turns up under seven different names. It is the same reason a Kenmore model beginning 106 or 596 takes Whirlpool parts. Use the full model number from your serial plate when checking fit, and read the board label regardless of the badge on the front.
How do I tell whether the fault is this board or the control panel?
Look at how the failure is distributed. When individual keys respond and others do nothing, the panel assembly is the commonly reported cause. When cooling, defrost, or compressor behavior is wrong while the display works normally, attention shifts to the board behind the rear cover. When the entire panel is dark, either one can be responsible, so verify the outlet, then unplug the unit and reseat the harness at both ends before you spend money on either.
Should I expect a fault code to tell me the board has failed?
Generally not. These refrigerators predate the long alphanumeric code tables published for newer Whirlpool platforms, and a failing board here commonly presents as lost cooling, failed defrost, or a dead panel with nothing displayed at all. Treat the absence of a code as neutral information. The physical checks in this guide, the start relay, the sensors, the defrost parts, the fan, and the panel, will get you to an answer faster than waiting for the display to tell you something.
How long should I wait after installing before deciding it worked?
Give it a full day before drawing conclusions. Once the code is programmed, judge the first hour by whether the compressor and fans actually run, not by shelf temperature. A refrigerator that has been open and unplugged during the repair needs several hours to pull down, and ice production can take up to twenty four hours to resume. If the compressor and fans are running, the repair is working and the rest is a waiting game.
